Overview

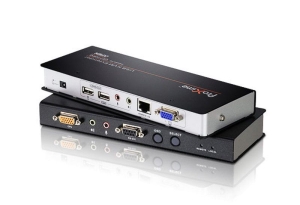

The CE790 is a IP based KVM Extender with automatic cable detection
(Auto-MDIX) and RS-232 serial functionality that allows access to a computer
system from a remote USB console (USB keyboard, monitor, and USB mouse) anywhere
on the intranet.
The CE790 improves on previous designs by: 1) the addition of an intuitive On
Screen Display (OSD) on both the transmitter and receiver units for easy setup
and operation; 2) working over a standard TCP/IP LAN via inexpensive Cat 5e
cable, allowing point-to-point, point-to-multipoint, and
multipoint-to-multipoint administration without the need for an additional KVM
switch; and 3) the addition of an RS-232 port, on both the transmitter and
receiver Units - to connect to a serial terminal for configuration, and serial
devices such as touchscreens and barcode scanners.
* The CE790 can be installed in point to point, point to multipoint and
multipoint to multipoint configurations. Multipoint configurations require a
separate purchase - contact your delear for details.
* In multipoint configurations, the IGMP (Internet Group Management Protocol)
function of your network switches/hubs should be enabled to avoid deterioration
of data throughput. If you do not know how to enable IGMP, please contact your
network administrator.
Compatible Accessories
KVM Cables
- 2L-5301U - Lenght: 1.2m
- 2L-5302U - Lenght: 1.8m
- 2L-5303U - Lenght: 3m
- 2L-5305U - Lenght: 5m
Cat 5 Cables
Compatible Products
Cable KVM Switches
Desktop KVM Switches
- CS1734B
- CS1734A
- CS1732B
- CS1732A
LCD KVM Switches
Matrix KVM Switches
Rack KVM Switches
- CS1308
- CS1788
- CS1768
- CS1758
- CS1754
Package Contents
| 1x CE790T
Digital KVM Extender (Transmitter) |
| 1x CE790R Digital KVM Extender (Receiver) |
| 1x USB KVM Cable (CE790T) |
| 2x Power
Adapters |
| 1x Mounting
Kit |
| 1x User
Instructions |
Patent No.
CN ZL 200610135911.0 , CN ZL 200710181531.5 , TW I339467 , TW I351192 , US
7585176 , US 7752339 , JP 4922722
Features
| Remotely
access computers on your KVM installation via intranet |
| Dual console operation - control your system from both the
transmitter and receiver USB consoles |
| OSD (On Screen Display) on both the transmitter and
receiver units |
| Supports GUI
operation* |
| No software
required - an HTTP server is embedded in both units |
| Built-in ASIC
for greater reliability and compatibility |
| USB Keyboard
and USB Mouse Ports |
| RS-232 serial ports** - allows you to connect to a
serial terminal for configuration, or serial devices such as touchscreens and
barcode scanners |
| Audio
enabled |
| USB
overcurrent detection and prevention |
| High
resolution video - up to 1920 x 1080 |
| Supports widescreen formats |
| Ultra-High quality video mode |
| Hot pluggable |
| Rack mountable |
| Firmware upgradable |
| Auto-MDIX - automatically detects cable type |
Note: |
* The CE790 AP and GUI operation
instructions can be downloaded from the ATEN website (www.aten.com). |
** RS-232 serial ports support Tx/Rx signals
only. |

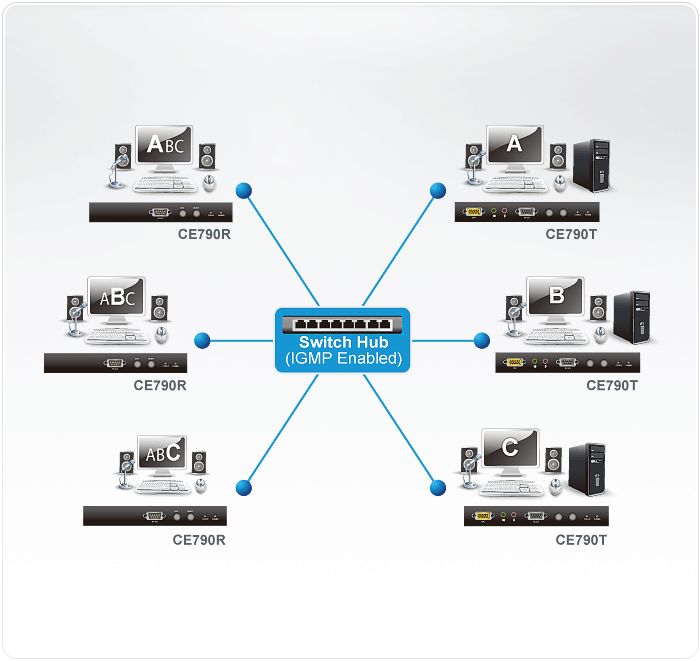

Diagram
Specifications
|
Function |
CE790R |
CE790T |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(White) |
2 x USB Type A Female
(White) |
|
1 x HDB-15 Female
(Blue) |
1 x HDB-15 Female
(Blue) |
|
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Green) |
|
1 x Mini Stereo Jack
Female (Pink) |
1 x Mini Stereo Jack
Female (Pink) |
|
KVM
Ports |
N/A |
1 x SPHD-17 Female
(Yellow) |
|
1 x Mini Stereo Jack
(Green) |
|
1 x Mini Stereo Jack
(Pink) |
|
RS-232 |
1 x DB-9 Male
(Black) |
1 x DB-9 Female
(Black) |
|
Power |
1 x DC Jack
(Black) |
1 x DC Jack
(Black) |
|
LAN
Ports |
1 x RJ-45 Female
(Black) |
1 x RJ-45 Female
(Black) |
|
Pushbuttons |
|
OSD |
1 x
Pushbutton |
1 x
Pushbutton |
|
Select |
1 x
Pushbutton |
1 x
Pushbutton |
|
LEDs |
|
Status |
1 (Green /
Orange) |
1 (Green /
Orange) |
|
Power |
1 (Green /
Red) |
1 (Green /
Red) |
|
Emulation |
|
Keyboard /
Mouse |
USB |
USB |
|
Power
Consumption |
DC5.3V/6.36W |
DC5.3V/6.62W |
|
Video |
Up to 1920 x
1080 |
Up to 1920 x
1080 |
|
Environmental |
|
Operating
Temperature |
0 -
50C |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
-20 -
60C |
|
Humidity |
0-80% RH,
Non-condensing |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
Metal |
|
Weight |
0.49 kg ( 1.08 lb
) |
0.49 kg ( 1.08 lb
) |
|
Dimensions (L x W x
H) |
20.20 x 8.64 x 2.50
cm |
20.20 x 8.64 x 2.50
cm |
|
(7.95 x 3.4 x 0.98
in.) |
(7.95 x 3.4 x 0.98
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
|
