ATEN UC10KM USB / PS2 Keyboard/ Mouse Converter Cable - 90cm

No Longer Available

Part Number:

409082

(?) Brand:

ATEN

Manuf No:

UC10KM-AT
UC10KMAT

Shipping Weight:

0.25 KG (Includes product packaging)
Estimate Shipping

Date Added:

4/7/2016

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

UC10KMAT, UC10KM-AT, USAUC10KM, USA-UC-10KM, 4710423772687

Overview

UC10KM is a signal converter with a 90cm cable. It can convert signals of PS/2 devices (keyboard and mouse) into USB signals, and supports multiple operating systems to fulfill the needs of users.

Patent No.

US D445092 , US D445764

Features

Two PS/2 devices (keyboard and mouse) to USB Interface converter
Supports PS/2 mice and Microsoft IntelliMouse
Compatible with KVM switches
USB 1.1 compliant
Non-Powered
Easy installation - no software required
OS Support: Windows, Linux Redhat 7.0 or higher

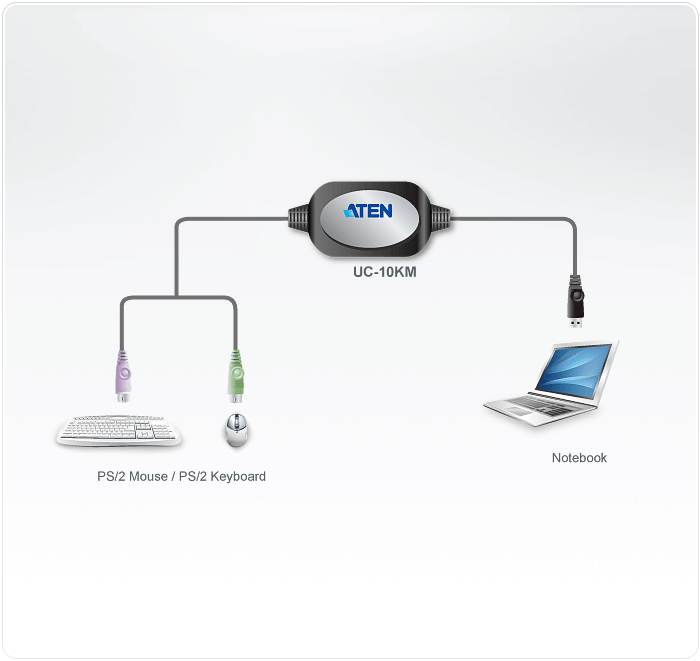

Diagram

UC10KM Diagram

Specifications

Connectors
USB Port	1 x USB Type A Male (Black)
PS/2 Keyboard	1 x 6-pin Mini-DIN Female (Purple)
PS/2 Mouse	1 x 6-pin Mini-DIN Female (Green)
Cable Length	90 cm
Platforms	Windows/Linux
Data Rate	12 Mbps
USB Specification	USB 1.1 Compatible
Power Mode	Bus Powered (via the USB Cable)
Environmental
Operating Temperature	050C
Storage Temperature	-2060C
Humidity	080% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.06 kg ( 0.13 lb )
Dimensions (L x W x H)	1.50 x 3.70 x 1.10 cm
Dimensions (L x W x H)	(0.59 x 1.46 x 0.43 in.)
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers web site.
