ATEN VC182 VanCryst VGA/Audio to HDMI Converter with Scaler
  • Up to 1080p (1920 x 1200)

IMG 1 of 1
No Longer Available
Part Number:
409092
(?) Brand:
ATEN
Manuf No:
VC182
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/7/2016
Details Files Images & Video
All stock codes associated to this product
VC182

Overview

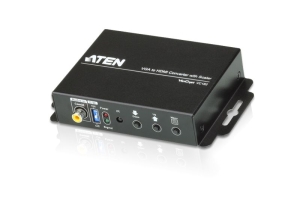

The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

You can operate the VC182 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

Package Contents

  • 1x VC182 VGA to HDMI Converter with Scaler
  • 1x Power Adapter
  • 1x Software CD
  • 1x User Instructions

Features

  • Converts VGA signals to HDMI output
  • Supports analog / digital audio
  • Superior video quality up to 1080p, 1920 x 1200
  • Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
  • 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
  • Features a built in high-performance scaler function for best image quality
  • Features a superior de-interlacer function for smooth video playback quality
  • Built-in OSD function for video and system settings confi guration
  • Integrated superior video noise reduction
  • Integrated next generation color engine automatic picture quality/color adjustment and enhancement
  • Automatically detects video input signals
  • LED indication of power status and source device
  • No software required eliminates incompatibility and installation issues
  • Device configuration using a utility tool via mini USB port
  • Supports 16:9 and 4:3 video aspect ratios
  • Multiple selectable video resolutions

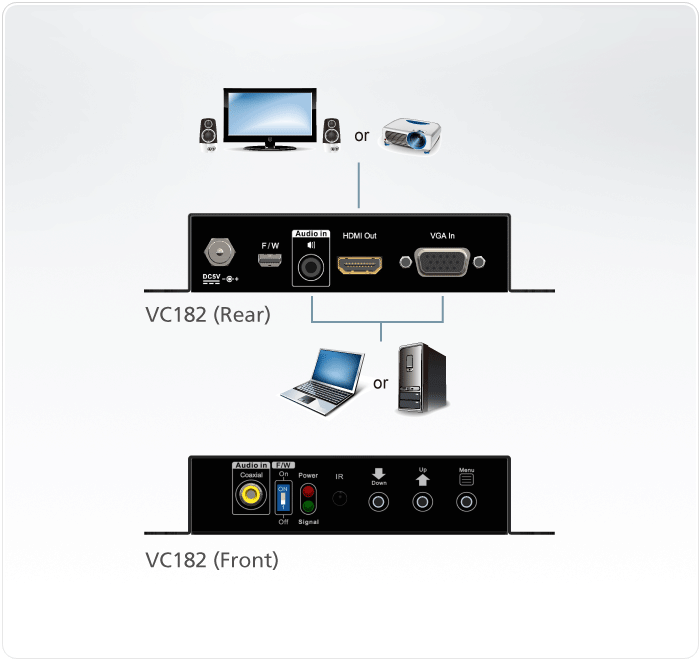

Diagram

VC182 Diagram

Specifications

Video Input

Interfaces

1 x HDB-15 Female (Blue)

Impedance

75

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100

Video

Max. Pixel Clock

165 MHz

Max. Resolution

Up to 1080p

Scaler Resolutions

480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024;

1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050;

1080i; 1080p; 1920 x 1200

Audio

Input

Analog: 1 x Mini Stereo Jack Female (Black)

Digital: 1 x RCA (Yellow)

Power

Connectors

1 x DC Jack

Consumption

5 VDC, 5W

Environmental

Operating Temperature

0 - 40 C

Storage Temperature

-20 - 60 C

Humidity

20 - 90% RH,  Non-Condensing

Physical Properties

Housing

Metal

Weight

0.31 kg ( 0.68 lb )

Dimensions (L x W x H)

11.00 x 8.30 x 2.80 cm

(4.33 x 3.27 x 1.1 in.)

Carton Lot

5 pcs

* The specification and pictures are subject to change without notice.

* All trademarks and logos are the properties of their respective holders.
