All stock codes associated to this product
JUD500, J5JUD500, J5-JUD500
Overview

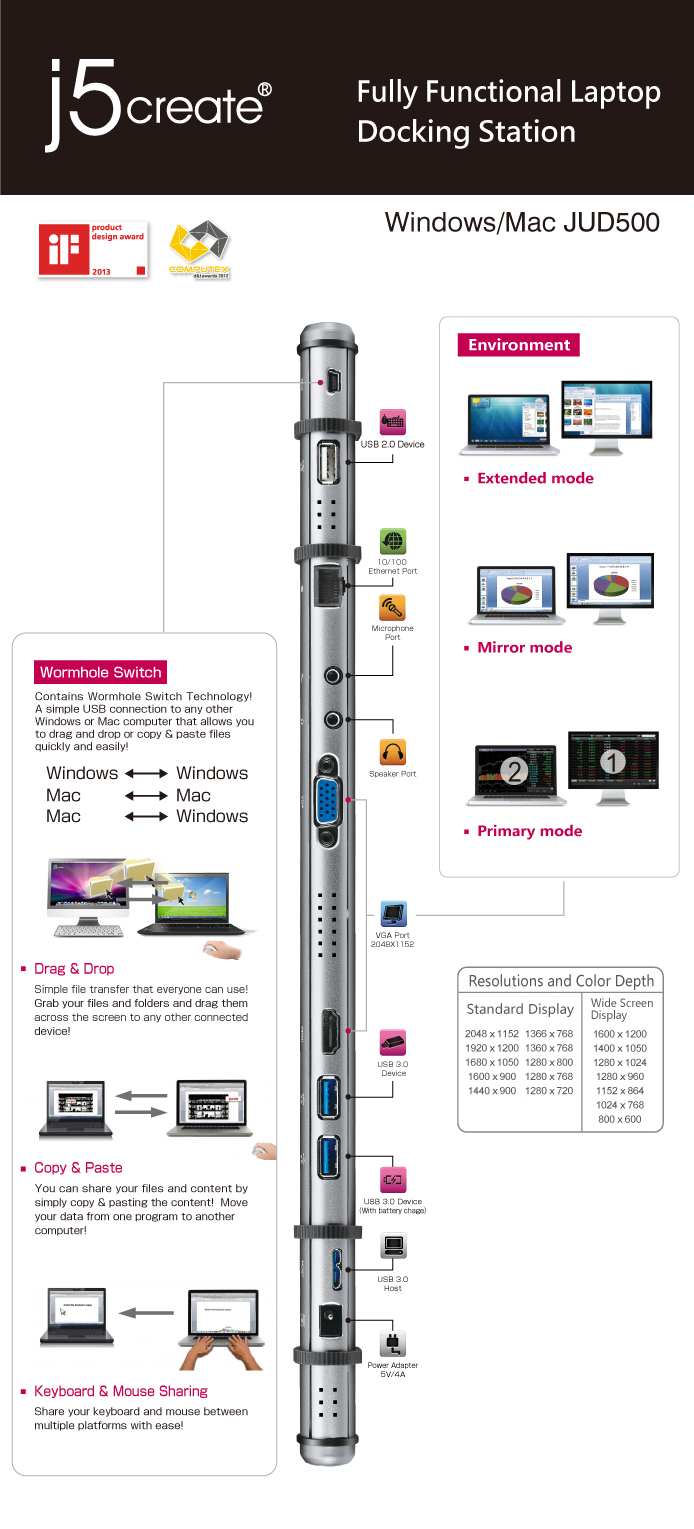

The j5create JUD500 USB 3.0 Ultra Stationenables you to add a 2nd monitor
instantly via HDMI or VGA connectors. When you need to get things done fast,
simply connect your monitor, keyboard, mouse, Ethernet, speakers, microphone and
any other USB3.0 / 2.0 peripheral to your laptop with one USB 3.0 cable. Now you
can use the Ultra Station's Keyboard / Mouse "Wormhole" functions to drag &
drop across two computers for file copying & sharing. It is the perfect
solution for expanding your Ultrabook or MacBook into a full sized workstation
and it increases productivity with its cross-platform multitasking ability.
Specifications
|
Power
(1) |
|
Power
Button |
Blue Light when power
is supplied to the docking station. |
|
Power
Mode |
Self-powered |
|
Power
Adapter |
Input: AC 100-240V,
50~60 Hz |
|
Output: DC
5V/4A |
|
Host
(2) |
|
Upstream
Port |
USB 3.0 Micro B Female
connector |
|
Cable |
USB 3.0 Micro B to Type
A |
|
Hub |
|
Downstream Port
(3) |
USB 3.0 Type-A Female
Connector with Battery Charge |
|
Downstream Port
(4) |
USB 3.0 Type-A Female
Connector |
|
Downstream
Port |
USB 2.0 Type-A Female
Connector |
|
Video |
|
VGA Port
(5) |
DB 15pin Female
Connector |
|
HDMI
Port(6) |
Standard HDMI Female
Connector (Include Audio) |
|
Support
Modes |
Extended, Mirror,
Primary Display |
|
Display Rotation: 0,
90, 180, 270 |
|
Ethernet
(9) |
|
Ethernet
Port |
10/100 Base-T Ethernet
RJ-45 connector |
|
Audio |
|
|
Microphone(8) |
3.5 mm stereo audio
in |
|
Speaker(7) |
3.5 mm stereo audio
out |
|
Wormhole
Switch(11) |
|
Wormhole
port |
USB 2.0 mini B Female
connector |
|
Cable |
USB 2.0, mini B to
Type-A (2 meter) |
|
Transfer
Rate |
Up to 20 Mbps, transfer
rate |
|
Physical
Specification |
|
Housing
Material |
Aluminum |
|

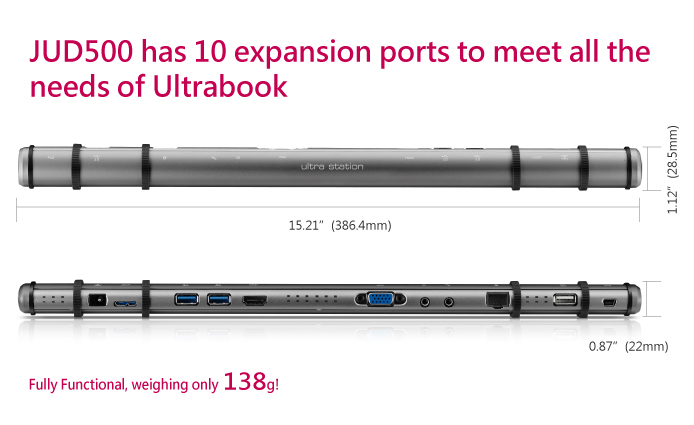

Dimensions |
Main body: 386.4(W)x
28.5(H)x22(D) mm |
|
Weight |
138g |
Resolutions and Color
Depth
|
Aspect Ratio |
Resolution |
Color Depth |
|
Wide Screen Display |
|
16:09 |
2048 x 1152 |
16,32 bits |
|
16:10 |
1920 x 1200 |
16,32 bits |
|
16:09 |
1920 x 1080 |
16,32 bits |
|
16:10 |
1680 x 1050 |
16,32 bits |
|
16:09 |
1600 x 900 |
16,32 bits |
|
16:10 |
1440 x 900 |
16,32 bits |
|
16:09 |
1360 x 768 |
16,32 bits |
|
16:10 |
1280 x 800 |
16,32 bits |
|
15:09 |
1280 x 768 |
16,32 bits |
|
16:09 |
1280 x 720 |
16,32 bits |
|
Standard Display |
|
4:03 |
1600 x 1200 |
16,32 bits |
|
4:03 |
1400 x 1050 |
16,32 bits |
|
5:04 |
1280 x 1024 |
16,32 bits |
|
4:03 |
1280 x 960 |
16,32 bits |
|
4:03 |
1152 x 864 |
16,32 bits |
|
4:03 |
1024 x 768 |
16,32 bits |
|
4:03 |
800 x 600 |
16,32 bits |
Environments
| Microsoft
Windows 10, 8.1, 8 , 7, XP (32-bit or 64-bit) compatible |
| Mac OS X 10.11 / 10.10 /
10.9 / 10.8 / 10.7 / 10.6 |
| Available USB port(USB 3.0
is recommended) |
Minimum System
Requirements |
Note for
Video Player: |
*Windows
XP users: "Windows Media Player" is recommended for video playback |
*Windows
XP users & MAC users: Some Windows XP & MAC products are not
supported by USB 3.0 at this time, therefore we suggest USB 2.0 for 'office
applications' only; Video Playback is not recommend due to USB 2.0 bandwidth
limitations causing limited video performance. |
Package
Contents
