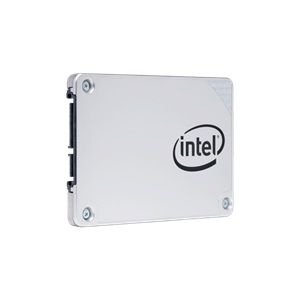

Intel 120GB 2.5" Solid State Disk - TLC, SATA-III, 16nm - 540s Series
  • 560 MB/s Read, 400 MB/s Write
  • OEM

IMG 1 of 1
No Longer Available
Part Number:
410008
(?) Brand:
Intel Web Site
Manuf No:
SSDSC2KW120H6X1
Shipping Weight:
0.25 KG (Includes product packaging)
Estimate Shipping
Date Added:
2/8/2016
Details Files Images & Video
All stock codes associated to this product
SSDSC2KW120H6X1, HBI540120GB, HBI-540-120GB, 5032037084765, 735858313230, 735858313223

Specifications

-
Essentials
Status Launched
Launch Date Q1'16
Sequential Read 560 MB/s
Sequential Write 400 MB/s
Random Read (8GB Span) 60000 IOPS
Random Write (8GB Span) 50000 IOPS
Latency - Read 50 s
Latency - Write 50 s
Power - Active 90 mW Typical
Power - Idle 50 mW Typical
Vibration - Operating 2.17 GRMS (5-700Hz)
Vibration - Non-Operating 3.13 GRMS (5-800Hz)
Shock (Operating and Non-Operating) 1500 G/0.5 ms
Operating Temperature Range 0C to 70C
Mean Time Between Failures (MTBF) 1.6 Million Hours
Uncorrectable Bit Error Rate (UBER) <1 sector per 10^16 bits read
Warranty Period 5 yrs
-
Package Specifications
Capacity 120 GB
Form Factor 2.5" 7mm
Interface SATA 3.0 6Gb/S
Lithography Type 16nm
-
Advanced Technologies
Enhanced Power Loss Data Protection No
Hardware Encryption AES 256 bit
High Endurance Technology (HET) No
Temperature Monitoring and Logging No
End-to-End Data Protection No
Intel Smart Response Technology Yes
Intel Rapid Start Technology Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 months*

Full manufacturers warranty details are available at the manufacturers (Intel) web site.
