Features

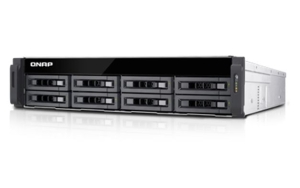

QNAP TS-EC880U R2, featuring the easy-to-useQTS operating
system, provides a reliable and scalable NAS solution to fulfill data
backup, file synchronization and remote access. The TS-EC880U R2 is 10GbE-ready,
delivers exceptional performance, and supports cross-platform file sharing,
comprehensive backup solutions, iSCSI and virtualization applications, and many
practical business functions, making it the ideal choice for SMBs to secure
important business data. It also includes abundant multimedia applications
backed by its powerful hardware specifications.
- Built-in 10GbE, highly-efficient storage solution for HD video editing and
sharing
- 3,700+ MB/s throughput and 400,000+ IOPS
- Two internal cache ports and up to 4 SSDs for caching
- Scalable design, up to 816TB raw capacity
- Virtualization-ready, centralized data storage, backup, sharing and
disaster recovery
QTS -
Simple and efficient |
Thanks to QTSs intuitive user interface, system operations of the TS-EC880U
R2 are smooth and handy. Its intelligent desktop allows you to find the desired
functions quickly, create desktop shortcuts or group shortcuts, monitor
important system information on a real-time basis, and open multiple application
windows to run multiple tasks concurrently, bringing greater working
efficiency.
Qsirch A
smarter, faster way to search |
Quickly and easily find documents, photos, videos, and music with Qsirch,
QNAP's new built-in NAS search application lets you find what you need by
real-time, natural search. Simply type in as much as you know about what you are
trying to find, including bits of the file name or even words/phrases in the
document, and Qsirch will display a list of matches, complete with thumbnails,
as you type. Qsirch even remembers your search history so you can quickly
navigate to files you've previously searched for. Qsirch is a huge productivity
boost it greatly reduces the amount of time spent looking for files on the NAS
so you can focus on other tasks.
Breakthrough performance |
The TS-EC880U R2 supports 6Gbps hard drives driving over 3,700 MB/s
throughput and 400,000 IOPS*. Featuring with Intel Xeon E3 v3 Quad-Core
Processor and 4 GB DDR3 ECC RAM, the TS-EC880U R2 greatly enhances efficiency of
CPU-consuming tasks and serves more concurrent tasks at the same time.
Internal
cache port for IO acceleration |
The TS-EC880U R2 supports two on-board mSATA internal cache ports, and up to
4 SSDs can be used for caching. By installing mSATA flash modules (optional
purchase), the IOPS performance of storage volumes can remarkably boost. It is
perfect for improving overall workflow of random IOPS demanding applications
such as database and virtualization. The internal cache port design reserves the
space of hard drive tray for more storage capacity.
Removable motherboard drawer for easy maintenance |
With the TS-EC880U R2's removable motherboard drawer, IT administrators have
easier access in upgrading/installing components such as RAM, the internal cache
and 10GbE adapter. The motherboard itself can be removed and replaced without
needing to remove the heavy TS-EC880U R2 from the rack cabinet, making it
especially useful in maintaining the TS-EC880U R2 in data centers with multiple
rack cabinets.
10GbE
ready |
The TS-EC880U R2 offers four inbuilt Gigabit Ethernet ports and features two
inbuilt 10GbE SFP+ ports to deliver 10 Gigabit high speed network. The
10GbE-ready TS-EC880U R2 delivers lightening data throughput. Coupled with the
support for large storage capacity, the TS-EC880U R2 is perfect for data centers
to storage big data and excel in fast data transmission, and for editing large
size videos on-the-fly without transferring the videos between the TS-EC880U R2
and desktop computers.
Seamless
capacity expansion |
The TS-EC880U R2 supports online capacity expansion by cascading multiple
QNAPRAID expansion enclosuresto meet the needs of growing
business data. With the QNAP scale-up solution, raw storage capacity can be
gradually expanded to 816TB. It is especially useful for large data
applications, such as video surveillance, data archiving, and TV broadcast
storage, to name few.
Powerful
QNAP flexible volume |
QNAP flexible volume provides a more secure and flexible way to store the NAS
data. This next generation volume offers powerful features such as storage
pooling with multiple RAID group protection, thin provisioned volume with space
reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage
Manager neatly presents tools and options for managing system storage which
simplifies the process of NAS capacity expansion and QNAP RAID expansion
enclosure management.
Specifications
Hardware Specs.
|
Model
Name |
TS-EC880U-E3-4GE-R2 |
|
TS-EC880U-i3-4GE-R2 |
|
TS-EC880U-i3-8G-R2 |
|
CPU |
TS-EC880U-E3-4GE-R2:
Intel Xeon E3-1246 v3 Quad-core processor |
|
TS-EC880U-i3-4GE-R2:
Intel Core i3-4150 processor |
|
TS-EC880U-i3-8G-R2:Intel
Core i3-4150 processor |
|
Memory |
Total memory slots:
4 |
|
TS-EC880U-E3-4GE-R2/
TS-EC880U-i3-4GE-R2: |
|
System memory: 4 GB
DDR3 ECC RAM |
|
Memory module
pre-installed: 2 GB x2 |
|
Memory expandable up
to: 32 GB (8GB x4) |
|
TS-EC880U-i3-8G-R2: |
|
System memory: 8 GB
DDR3 non-ECC RAM |
|
Memory module
pre-installed: 4 GB x2 |
|
Memory expandable up
to: 32 GB (8GB x4) |
|
Flash
Memory |
512MB
DOM |
|
Internal Cache
Port |
Two mSATA port on board
for read caching |
|
Note: The standard
system is shipped without mSATA flash. For the optional mSATA flash,
please visit |
|
Hard
Drive |
8 x 3.5-inch SATA
6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard
drive |
|
Hard Drive
Tray |
8 x hot-swappable and
lockable tray |
|
LAN
Port |
Built-in 2 x 10 GbE
SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports |
|
40GbE is
optional |
|
LED
Indicators |
Status, 10 GbE, LAN,
eSATA, storage expansion port status |
|
USB |
4x USB 3.0 port
(rear) |
|
4x USB 2.0 port
(rear) |
|
Support USB printer,
pen drive, USB hub, and USB UPS etc. |
|
Buttons |
System: Power button
and reset button |
|
Alarm
Buzzer |
System
warning |
|
Form
Factor |
2U,
Rackmount |
|
Dimensions |
88(H) x 442.5(W) x
530.5(D) mm |
|
3.46(H) x 17.42(W) x
20.89(D) inch |
|
Weight |
Net weight (NAS only) :
14.39 kg/ 31.72 lb |
|
Gross weight (with
packing and accessories) : 20.54 kg/ 45.28 lb |
|
Sound
Level* |
Sound pressure (LpAm)
:55.2 dB(A) |
|
Power Consumption
(W) |
Sleep mode:
73.38 |
|
In Operation: 133.88
W |
|
(with 12 x 1TB hard
drive installed) |
|
Temperature |
0-40C |
|
Relative
Humidity |
5~95% non-condensing,
wet bulb: 27C. |
|
Power
Supply |
Redundant
power: |
|
Input: 47-63
Hz; 100-127V~/ 8A; 200-240V/ 4A |
|
Output:
400W |
|
PCIe
Slot |
2 (Right slot: 1* PCIe
Gen3 x8; Left slot: 1* PCIe Gen3 x4) |
|
Fan |
4 x 6 cm smart cooling
fan |
Software Specs.
| Operating System |
| Disk
Management |
| Supported Clients |
| Power
Management |
| Supported Browsers |
| Access
Right Management |
| Multilingual Support |
| Domain
Authentication Integration |
| File
System |
| Web
Administration |
| Networking |
| File
Server |
| Security |
| File
Station |
| Powerful All-in-one server |
| FTP
Server |
| Syslog
Server |
| Backup
Station |
| Print
Server |
| iSCSI
(IP SAN) |
| Database
Server |
| Server
Virtualization & Clustering |
| RADIUS
Server |
| Virtualization Station |
| VPN
Server |
| Storage
Plug & Connect via Windows Qfinder Pro by QNAP |
| Surveillance Station |
| myQNAPcloud Service |
| Antivirus |
| Qsync |
| APP
Center |
| Web
Server |
| Add-ons | |
