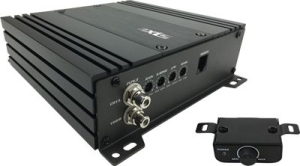

AXIS Class D Monoblock Amplifier - 1880W
  • 400W RMS @4 Ohms, 700W RMS @2 Ohms, 2 Ohm Stable, Distortion (T.H.D) <0.5%, 99dB SNR, 10-60Hz Subsonic Filter, 20-200Hz Low Pass Crossover

IMG 1 of 1
No Longer Available
Part Number:
410409
(?) Brand:
AXIS
Manuf No:
XT1D
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Date Added:
12/8/2016
Details Files Images & Video
All stock codes associated to this product
XT1D, 9321886012569

Overview

The XT1D is a powerful, monoblock Class D Digital Amplifier. Engineered with a compact & robust aluminium chassis and packing a huge 1880 Watt Max Power, enjoy superb clarity & tight, deep bass with any quality subwoofer.

Features

  • Compact Chassis
  • Robust Aluminium Construction
  • 1 x 700W RMS Power

Specifications

General

  • Max Power: 1880W (43.4V)
  • Output Power @ 14.4V 4Ohm, 1% THD: 1 x 400W RMS@ 14.4V 2Ohm, 1% THD: 1 x 700W RMS
  • THD Continuous @ 4Ohm/100Hz: 0.5%
  • Efficiency @ 4Ohm/100Hz: 93%
  • S/N Ratio @ 4Ohm/100Hz: 99dB
  • High/Low Level Input Conversion
  • Input Sensitivity: 0.2 - 8V
  • Dampening Factor @4Ohm: 142
  • Low pass Crossover: 30 - 200Hz
  • Subsonic Filter: 10 - 60Hz
  • Bass Boost Gain: 0 - 12dB @ 45Hz
  • 2 Ohm Stable
  • Power Supply: 8 - 16V DC
  • Fuse Rating: 2 x 25A
  • Dimensions: 170 x 162 x 51mm (Chassis) 170 x 191 x 51mm (Including Terminals)
  • Weight: 1.825 kg

Included

  • Remote volume controller
  • RCA Fly Lead for High Level Input
  • Installation accessories
