All stock codes associated to this product
8WDCUD01, 8WD-CUD01
Details
This is a USB-C to USB 3.0 with DVI and USB-C charging port hub. The USB 3.0
port allows you to connect a USB device to the host computer or another hub, the
USB-C female port can charge for the host computer and supply power for the
adapter at the same time, and the DVI port allows you to connect an extra
monitor so that you can watch videos or slideshows on the big screen. It can
work on Macbook or Google new Chromebook Pixel and other USB-C supported
devices.
OPERATION
- Connect the USB-C port of this product to computer
- Connect DVI output of this product to HDTV with one DVI cable
- Connect the USB 3.0 output of this product to a USB device with a USB
cable
- Connect the USB-C charging port, it can charge for the host computer and
support this adapter to work simultaneously
Note: When connecting the USB-C male port of the adapter to
Chromebook, the mouse to be connected to the USB 3.0 port will not work
immediately, it will have seconds’ delay. This problem is caused by the
incompatibility of Chromebook, not by the product itself.

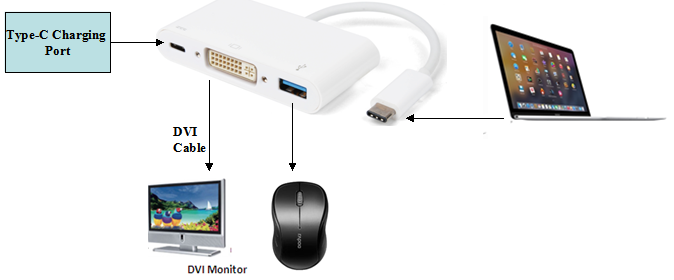

CONNECTION Diagram
Features
-
Support
USB-C input and DVI, USB3.0 output
-
Support
USB 3.0 super speed (5Gbps) transmission, downward compatible USB2.0
-
Support
DVI 225 MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
-
Support
DVI video resolution max up to 1080p
-
USB-C
female charging port for Macbook or Google new Chromebook Pixel and other
USB-C supported devices charging
-
Multiple
USB-C interfaces support plug and play, hot swap
-
Easy
to use and carry
Specifications
|
Input/Output
Connector |
|
|
Input |
USB-C Male x1, USB-C
Female x1 for charging |
|
Output |
DVI Female
x1 |
|
USB 3.0 Female
x1 |
|
|
|
Resolutions |
Resolutions: Up to
1080P@60Hz |
|
Operating
Frequency |
|
Vertical Frequency
Range: 50/60Hz |
|
Video Amplifier
Bandwidth: Max to 2.25Gbps/225MHz |
|
Warranty |
Limited Warranty: 1
year |
|
Environmental |
Operating Temperature:
0C to + 45C |
|
Operating Humidity: 10%
to 90% RH (no condensation) |
|
Storage Temperature:
-10C to +70C |
|
Storage Humidity: 5% to
90 % RH (no condensation) |
|
Regulatory
Approvals |
Certifications:
FCC,CE |
|
Accessory
Adapter |
User Manual: English
Version |
