Features

Wide variety of media captured by most compact scanner

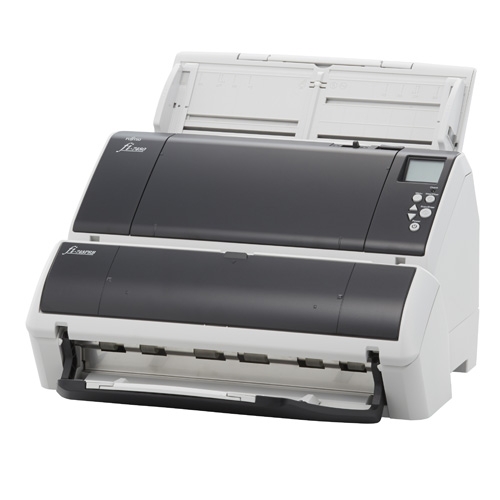

fi-7480 SizeThe fi-7480 is ideal for office use as the smallest A3-capable scanner of its class(1). Its wide range feeding ability includes regular A8 to A3 sizes, as well as folded A2 documents and plastic cards. Additionally, no burdensome pre-sorting is required with mixed batch scanning.


  • Fast scanning with fast start-up
    fi-7480 scans at the high-speed of 80 ppm / 160 ipm (A4, landscape, Color, 200 / 300 dpi). It can also recover from power-saving mode (sleep mode) in a second or less, enabling users to scan immediately and continue work seamlessly without pauses or interruptions.
  • Ability to scan various documents from thin to thick
    It can support a wide variety of media. The paper feed mechanism can handle both thick and thin paper (27~413 g/m2), enabling users to scan documents without the concern of paper thickness.

Reliable, uninterrupted volume scanning

The fi-7480 can efficiently scan a large amount of documents. The ADF paper chute (feeder) can accommodate 100 sheets (A4 sheet, landscape, 80 g/m2) and additional papers can be added while scanning. Furthermore, it also includes several functions to ensure reliable scanning.


  • Automatic Stacker to boost work efficiency
    This function is the first in its class(2)and controls paper output speed so that documents are not piled up in a disorderly fashion. This increases work efficiency as no time is spent realigning messy stacks of papers.
  • Highly reliable paper feeding mechanism
    The adopted functions, such as the Brake Roller, which separates each document, and the Skew Reducer, which assists in feeding mixed batches, are highly reliable and enable easy digitization. Additionally, each Hopper Side Guide moves independently, so you can easily adjust them to the document width for efficient scanning in mixed batches.
  • Functions that minimize paper feeding errors
    Even if documents are creased, wrinkled or when staples were not removed before scanning, Multi-feed Detection and iSOP (Intelligent Sonic Paper Protection) technology protects both the physical documents and the scanner hardware from potential damage. This helps improve and maintain work efficiency. Users can also utilize Manual Feed Mode (so that the scanner waits for the next document to be placed within a specified time) for scanning where you need to check the contents of each document or delicate documents that may cause multi-feeds or paper jams.

Connect your business workflow with PaperStream IP and PaperStream Capture

The PaperStream IP scanner driver, which supports TWAIN/ISIS, avoids the inconvenience of fine adjustments to the settings for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents, or documents with a background pattern. With an intuitive interface, PaperStream Capture effectively and efficiently allows you to feed information into your organization's workflow through various capture features during batch scanning.

PaperStream IP (32/64 Bit)

The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.

PaperStream Capture

PaperStream Capture makes advanced capture with Fujitsu scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customersblack and white, color, and auto-colornew profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IPs assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make batch separation easy, improving document organization.


Option: Post Imprinter (Back-side)

fi-7480 imprinterThe optional imprinter unit prints identification markers like dates, alphanumeric codes and symbols on reverse side of the original document. This makes it easier to locate the originals of scanned document when you need to reference them.



  1. In terms of footprint (excluding chuter, stacker, and projected parts) of A3-capable ADF type image scanner with scanning speed of 40 ppm or more in A4 landscape (based on the investigation by PFU LIMITED as of December 1st, 2015)
  2. In terms of straight-path feeding mechanism scanners (based on the investigation by PFU LIMITED as of December 1st, 2015)

Specifications

Descriptionfi-7480
Functional Specifications
Image Sensor TypeColor CCD (Charge Coupled Device) x 2 (front x 1, back x 1)
Light SourceWhite LED Array x 4 (front s, back x2)
Multifeed DetectionUltrasonic multi-feed detection sensor x 1, Paper detection sensor
Optical Resolution600 dpi
Output Format(1)Color (24-bit)50 to 600 dpi
(adjustable by 1 dpi increments), 1,200 dpi (driver)(2)
Grayscale (8-bit)
Monochrome
Output Color DepthColor: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing4,096 levels (12-bit)
Image Processing FunctionsMulti image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen, Emphasis, Halftone, Dropout color (None /Red /Green /Blue /White / Saturation /Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold
Scanning Speed(3)
(A4 Landscape)
Color(4)
Grayscale(4)
Monochrome(5)
Simplex: 80 ppm, Duplex: 160 ipm
(200 dpi / 300 dpi)
Scanning Speed(3)
(A4 Portrait)
Color(4)
Grayscale(4)
Monochrome(5)
Simplex: 65 ppm, Duplex: 130 ipm
(200 dpi / 300 dpi)
Paper chute capacity (A4 Landscape)(6)100 Sheets (A4: 80 g/m or 20 lb.)
Daily Duty Cycle12,000 Pages
Document SizeMinimum50.8 mm x 69 mm (2 in. x 2.72 in.)
Maximum(7)304.8 mm x 431.8 mm (12 in. x 17 in.)
Long page scanning(8)304.8 mm x 5,588 mm (12 in. x 220 in. )
Paper Weight
(Thickness)(9)
Letter27 to 413 g/m (7.2 to 110.6 lb.)
A8 sheets128 to 209 g/m (34.3 to 56.1 lb.)
CardUp to 1.4 mm(10)
InterfaceUSB 3.0 / USB 2.0 / USB 1.1 (backward compatible)
Minimum PC SpecificationPaperStream IP i5 2.5 MHz Processor, 4 GB RAM
Physical Specifications
Power Requirements100 to 240 VAC 10 %
Power ConsumptionOperating: 43 W or less, Sleep mode: 1.4 W or less, Auto Standby(OFF) mode: Less than 0.35 W

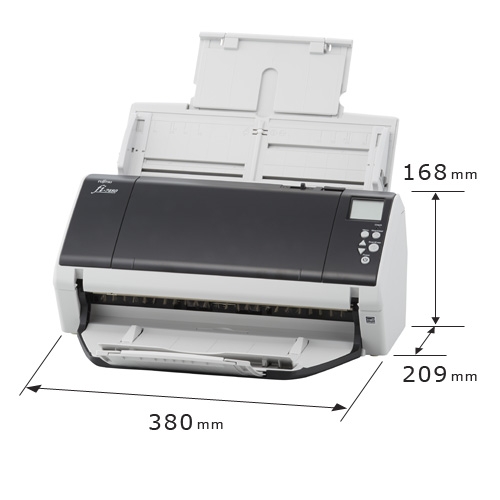

Dimensions (WxDxH)(11)380 mm x 209 mm x 168 mm (14.96 in. x 8.23 in. x 6.61 in.)
Weight7.6 kg (16 lb.) or less
Environmental CompatibilityENERGY STAR / RoHS
Operating EnvironmentTemperature5 C to 35 C (41 F to 95 F )
Relative Humidity20 % - 80 % (non-condensing)
Included ItemsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
Included Software / DriversPaperStream IP (TWAIN/ISIS) , Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series(12), 2D Barcode for PaperStream(12), Scan to Microsoft SharePoint(12), ABBYY FineReader for ScanSnap(12), Scanner Central Admin Agent
OptionsPost Imprinter (Back-side)
Supported Operating SystemsWindows 10 (32-bit/64-bit),Windows 8 / 8.1 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (64-bit)
  1. Selectable maximum density may vary depending on the length of scanned document.
  2. When scanning at high resolution (over 600 dpi), some limitations apply to the size of the document that could be scanned, depending on system environment.
  3. Actual scanning speeds are affected by data transmission and software processing times.
  4. Indicated speeds are from using JPEG compression.
  5. Indicated speeds are from using TIFF G4 compression.
  6. Maximum capacity varies, depending upon paper weight.
  7. The minimum scanning area only applies to using the ADF.
  8. It becomes the following specifications with resolution.
    200 dpi or less : 220 in. (5,588 mm)
    300 dpi or less : 215 in. (5,461 mm)
    400 dpi or less : 160 in. (4,064 mm)
    600 dpi or less : 106.3 in. (2,700 mm)
  9. The paper weight only applies to using the ADF.
  10. Capable of scanning up to 3 cards at a time. (Note: does not set more than one embossed card at a time.)
  11. Excluding the ADF paper chute and Stacker.
  12. The software can be downloaded from the website designated in the Setup DVD-ROM.
