All stock codes associated to this product
CLF039PL14BUA, CL-F039-PL14BU-A
Overview
Riing 14 High Static Pressure LED
Radiator Fan
Thermaltake has released the new Riing 14 LED
Series, a 140mm fan fitted to enhance static pressure that produces impressive
cooling performance with an optimized fan blade. Hydraulic bearings for silent
operation guarantee ultra-low noise. In addition, an anti-vibration mounting
system strengthens the stability during operation. The patented LED Ring
maintains color and brightness uniformity; the lighting effect is visible from
all sides and angles. The four-colored LED ring (in blue, red, white, and green)
adds style to the chassis.
- Taiwan Patent : M498806
- China Patent : CN204498539U
- US Application Patent :
14/702,806

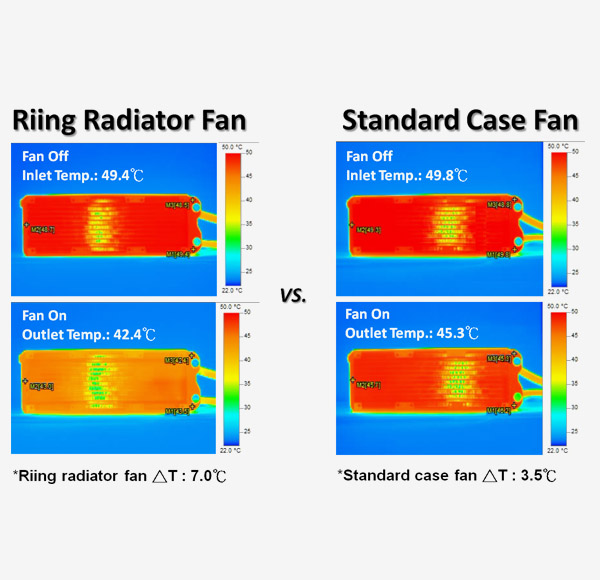

Thermal Image
Test
Compared to the standard case fan, the combination
of three Riing 14 radiator fans and RL420 radiator delivers 50% better cooling
performance. (Inlet and outlet temp. are 49.4? and 42.4? in respective, ?T=
7.0?)

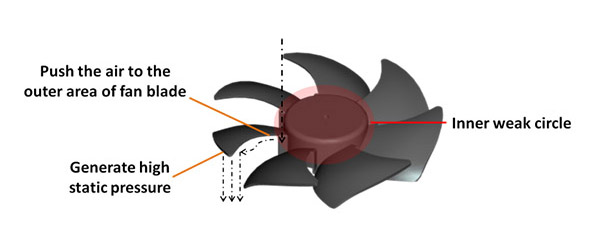

Concentrated Compression
Blade
Custom designed for high-static pressure
requirements of demanding applications such as radiators, the Concentrated
Compression Blade (CCB) is engineered to focus the inner weaker circle of air
outwards, allowing the outer section to pressurize and compress the
air.

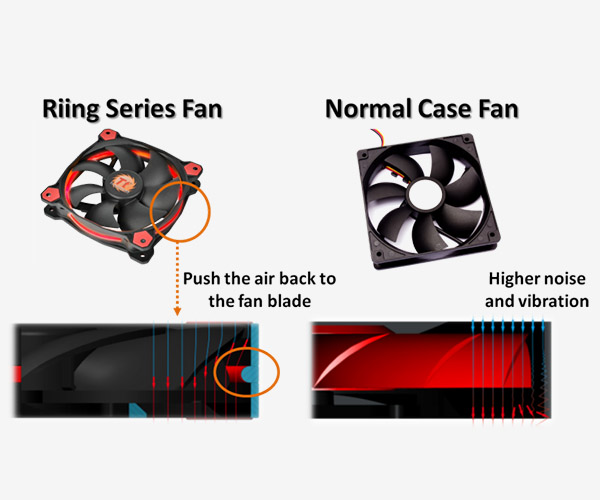

Wind Blocker
Frame
To achieve maximum static pressure in all
applications, the wind blocker frame is designed to work with the Concentrated
Compression Blades (CCB) pressure mechanism by directing airflow towards the
middle section of the blade, thereby creating a compression effect and blocking
any pressure from escaping. This reduces the blades noise and vibration,
creating a perfect balance between power and sound.

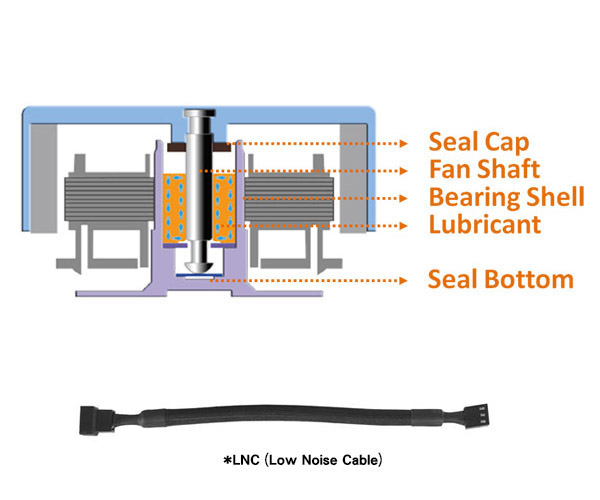

Hydraulic Bearing with Low-Noise
Design
The hydraulic bearing self-lubricates with a high
quality, friction-reducing substance which lowers operating noise and improves
efficiency. The seal cap prevents leakage of the lubricant, and improves the

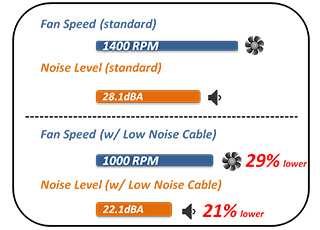

lifespan of the unit. The LNC (Low-Noise Cable) can reduce the noise level by
21% from 28.1dBA to 22.1dBA.

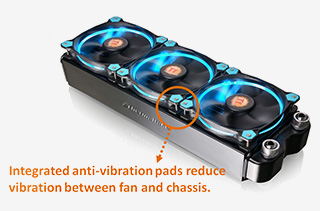

Anti-vibration Mounting
System
In-mold injection anti-vibration rubber pads
provide hassle-free usage for 80% protection coverage, including all four
corners.
Specifications
|
P/N |
CL-F039-PL14BU-A |
|
Fan
Dimension |
140 x 140 x 25
mm |
|
Started
Voltage |
9.0
V |
|
Rated
Voltage |
12
V |
|
Rated
Current |
0.11
A |
|
Power
Input |
1.56
W |
|
Fan
Speed |
1400
R.P.M |
|
1000 R.P.M (with
LNC) |
|

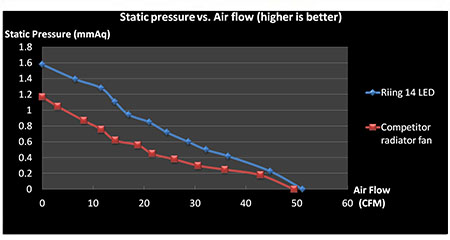

Max. Air
Pressure |
1.58
mm-H2O |
|
Max. Air
Flow |
51.15
CFM |
|
Noise |
28.1
dB-A |
|
22.1 dB-A (with
LNC) |
|
Bearing
Type |
Hydraulic
Bearing |
|
Life
Expectation |
40,000
hrs,25 |
|
Connector |
3 PIN + LNC (Low-Noise
Cable) |
|
Weight |
186.7
g |
