All stock codes associated to this product
H170IPRO, H170I-PRO, 3290819
Overview

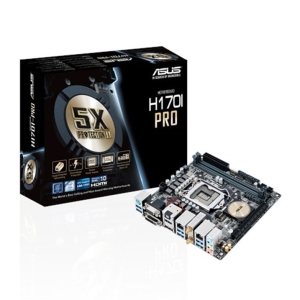

Supreme mini-ITX H170 with onboard 802.11ac Wi-Fi, Dual-LAN, M.2
transfer, and 5X Protection II for dependable stability
- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR4 memory compatibility
- 2x2 Dual-Band 802.11ac + BT4.0 connectivity
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Fan Xpert 2+ advanced fan controls for ultimate cooling and silent
performance
- Lightning-fast M.2 with PCIe® 3.0 x4 interface
Dependable Stability
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent
circuit design, and exacting standards to guarantee quality and long-term
durability of your motherboard with all-round protection. For you, that means
exceptional protection and stability for your build — the result of decades of
engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs
signal-coupling technology and premium anti-EMI surface-mounted capacitors
ensuring a more reliable connection and better throughput, plus
electrostatically-guarded and surge-protected components for greater tolerance
to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design An exclusive circuit design with
built-in voltage regulators to protect your chipset, connectivity ports, and
audio codecs from damage caused by unexpected high-level voltages from unstable
or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention Onboard resettable fuses prevent overcurrent
and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the
lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power ASUS-exclusive DIGI+ VRM intelligently
delivers power to the processor based on real-time demands, reducing energy
waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability Corrosion-resistant stainless
steel back I/O panels bonded with chromium oxide have a lifespan that's three
times (3X) longer than ordinary panels.
ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects
are easily underestimated. ASUS ESD Guards are tested to very high standards,
capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We
employ an active protective circuit design to guard your system against
electrostatic interference and damage, providing greater component
longevity.
- LAN port ESD TVS diode protection on the LAN circuit.
- USB connectors TVS diodes for surface-mount and
dual-inline packages.
- VGA connectors Additional on-circuit ESD TVS diodes to
protect D-Sub functionality.
- Keyboard and mouse connectors Additional on-circuit ESD
transient-voltage-suppression (TVS) diodes.
1000+
Compatible
Devices
Including CPUs, memory modules,
graphics cards and more.
DDR4
Compatibility
More flexibility, more compatibility
- support for DDR4.
7000+
Validation
Hours
Extensive testing for extreme reliability,
compatibility and safety.
Superb Performance
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to
make it even more appealing. Whether you're a PC novice or a seasoned
overclocker, the EZ and Advanced Modes help you find your way, quickly and
easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting
Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're
about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy
pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed
modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
|
EZ Mode |
|
Intuitive Graphical
Fan Control:Fine-tune individual fans simply by
dragging a curve with the
mouse. |
|
EZ XMP:Improve
your DRAM performance with a click. |
|
SATA
Information:View SATA port details for easy device
recognition. |
|
Fast Clock
Adjustment:Use mouse controls to change the time
and date. |
|
|
|
Advanced
Mode |
|
Last Modified
Log:Track last change and save
preferred profiles onto a USB
drive. |
|
SATA Port
Renaming:Rename SATA ports for easy
identification |
Ultrafast Transfer Speed
SATA Express
Current SSDs devour up to 550MB/s bandwidth, which is close to saturation
point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA
drives, SATA Express is the next-generation connectivity standard — and ensures
that you and your system won't get left behind.
M.2
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to
32Gbit/s data-transfer speeds. It is the perfect choice for an operating system
or application drive, making your whole PC or professional apps work as fast as
possible.
Instant front-panel USB 3.0
xperience We've put USB 3.0 right where you need it — two super-speed ports
on the front panel. Experience data-transfer speeds up to 10X faster than USB
2.0 with instant plug-and-play connectivity, so no more back-breaking
contortions in the hunt for hard-to-reach rear ports!
Total control anytime, anywhere with Wi-Fi GO!
Wi-Fi GO! gives you complete control of your PC even when you're away from
home. Access your forgotten files at home, and work on your PC from almost
anywhere. Plus, it takes just one click to manage all your public clouds or sync
files across your PC and devices!
Cloud
GO!
Gather
your ASUS WebStorage, Dropbox, Google Drive, and OneDriveaccounts in one place
and even back up to PC at the same time.
Remote
Desktop
Easily
access and control your PC, anytime and anywhere!
File
Transfer
Sync
files between your PCs and smart devices with just a click!
Remote
Keyboard & Mouse
Control
media playback from your sofa!
Easy PC DIY
Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip
and push or pull RAM modules in or out – couldn't be simpler!
Optimized Cooling
Fan Xpert 2+
Advanced fan controls With onboard thermal detection and hardware-level
4-pin/3-pin PWM/DC mode, Fan Xpert 2+ makes sure every fan achieves the best
balance of cooling performance and low noise!
- Auto-Tuning Mode: Scans and detects all fan characteristics for
single-click customization.
- RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you
fix the fan speed.
One-Stop Control
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more
attractive interface with support for larger monitors. It consolidates all
exclusive ASUS features into one simple-to-use package, allowing you to
supervise overclocking, energy consumption, fan speeds, voltages and more. This
all-in-one app offers diverse and easy to use functionality, with no need to
switch back and forth between different utilities.
Intel CPU and chipset features
Intel H170 Chipset
Intel H170 is a single-chipset design that supports 6th-generation Intel
LGA1151 Core i7 / Core i5 / Core i3 / Pentium / Celeron processors. It provides
improved performance by utilizing serial point-to-point links, allowing
increased bandwidth and stability. Additionally, H170 provides a maximum eight
USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed
support for faster data retrieval. Intel H170 also supports integrated-graphics
(iGPU) functions, so you'll enjoy the very latest Intel integrated graphics
performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core
i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron
processors in the LGA1151 package, with graphics, memory and PCI Express
controllers integrated to support onboard graphics output with dedicated
chipsets, two-channel (2-DIMM) DDR3L memory and 16 PCI Express 3.0/2.0 lanes for
great graphics performance.
Specifications
|
CPU
|
|
|
Intel for
6th Generation Core i7/Core i5/Core i3/Pentium/Celeron
Processors |
|
Supports Intel 14
nm CPU |
|
Supports Intel
Turbo Boost Technology 2.0 |
|
* The Intel Turbo
Boost Technology 2.0 support depends on the CPU
types. |
|
* Refer
to www.asus.com for CPU support list |
|
Chipset
|
|
|
Intel
H170 |
|
Memory
|
|
|
2 x DIMM, Max.
32GB, DDR4 2133 MHz Non-ECC, Un-buffered
Memory |
|
Dual Channel
Memory Architecture |
|
Supports Intel
Extreme Memory Profile (XMP) |
|
* Hyper DIMM
support is subject to the physical characteristics of individual
CPUs. |
|
* Refer
to www.asus.com for the Memory QVL (Qualified Vendors
Lists). |
|
* Due to Intel
chipset limitation, DDR4 2133 MHz and higher memory modules on XMP
mode will run at the maximum transfer rate of DDR4 2133
Mhz. |
|
Graphic
|
|
|
Integrated
Graphics Processor- Intel HD Graphics
support |
|
Multi-VGA output
support : HDMI/DVI-D/RGB/DisplayPort
ports |
|
- Supports HDMI
with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60
Hz |
|
- Supports DVI-D
with max. resolution 1920 x 1200 @ 60 Hz |
|
- Supports RGB
with max. resolution 1920 x 1200 @ 60 Hz |
|
- Supports
DisplayPort with max. resolution 4096 x 2304 @ 60
Hz |
|
Maximum shared
memory of 1024 MB |
|
Supports Intel
InTru 3D, Quick Sync Video, Clear Video HD Technology,
Insider |
|
Supports up to 3
displays simultaneously |
|
Expansion
Slots |
|
1 x PCIe 3.0/2.0
x16 |
|
Storage
|
|
|
Intel H170
chipset : |
|
1 x SATA Express
port, , Compatible with 2 x SATA 6.0 Gb/s ports |
|
1 x M.2 Socket 3,
with M key, type 2242/2260/2280 storage devices support (both SATA
& PCIE mode) |
|
4 x SATA 6Gb/s
port(s) |
|
LAN
|
|
|
Intel I219V, 1 x
Gigabit LAN Controller(s) |
|
Realtek, 1 x
Gigabit LAN |
|
Wireless Data
Network |
|
Wi-Fi 802.11
a/b/g/n/ac |
|
Supports dual
band frequency 2.4/5 GHz |
|
Support ASUS
Wi-Fi Go! Utility |
|
Bluetooth
|
|
Bluetooth
V4.0 |
|
Audio
|
|
|
Realtek ALC887
7.1-Channel High Definition Audio CODEC *1 |
|
- Supports :
Jack-detection, Front Panel Jack-retasking |
|
USB Ports
|
|
|
Intel H170
chipset : |
|
8 x USB 3.0/2.0
port(s) (6 at back panel, blue, 2 at mid-board) |
|
Intel H170
chipset : |
|
4 x USB 2.0/1.1
port(s) (4 at mid-board) |
|
Special
Features |
|
ASUS 5X
Protection II : |
|
- ASUS LANGuard -
2.5X higher surge tolerance |
|
- ASUS
Overvoltage Protection - World-class circuit-protecting power
design |
|
- ASUS DIGI+ VRM
- 6 Phase digital power design |
|
- ASUS DRAM
Overcurrent Protection - Prevents damage from short
circuits |
|
- ASUS
Stainless-Steel Back I/O - 3X corrosion-resistance for greater
durability |
|
- ASUS ESD Guards
- Electrostatic discharge protection |
|
ASUS EPU
: |
|
|
|
ASUS Wi-Fi
GO! |
|
|
|
ASUS Exclusive
Features : |
|
- AI Suite
3 |
|
- Ai
Charger |
|
-
Anti-Surge |
|
- USB 3.0
Boost |
|
- Disk
Unlocker |
|
ASUS Quiet
Thermal Solution : |
|
- Stylish Fanless
Design Heat-sink solution |
|
- ASUS Fan Xpert
2+ |
|
ASUS EZ DIY
: |
|
- ASUS CrashFree
BIOS 3 |
|
- ASUS EZ Flash
3 |
|
- ASUS UEFI BIOS
EZ Mode |
|
- Push
Notice |
|
ASUS Q-Design
: |
|
- ASUS
Q-DIMM |
|
Media
Streamer |
|
Operating
System Support |
|
Windows 10 ,
64bit |
|
Windows 8.1 ,
64bit |
|
Windows 7 ,
32bit/64bit *2 |
|
Back I/O Ports
|
|
1 x PS/2
keyboard/mouse combo port(s) |
|
1 x
DVI-D |
|
1 x
D-Sub |
|
1 x
DisplayPort |
|
1 x
HDMI |
|
2 x LAN (RJ45)
port(s) |
|
6 x USB 3.0
(blue) |
|
1 x Optical
S/PDIF out |
|
3 x Audio
jack(s) |
|
1 x ASUS Wi-Fi
GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth
v4.0 |
|
Internal I/O
Ports |
|
1 x USB 3.0
connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin,
blue) |
|
2 x USB 2.0
connector(s) support(s) additional 4 USB 2.0
port(s) |
|
1 x SATA Express
connector: , Compatible with 2 x SATA 6.0 Gb/s
ports |
|
1 x M.2 Socket 3
with M Key design, type 2242/2260/2280/22110 storage devices support
(Supports both SATA & PCIE SSD) |
|
1 x COM port(s)
connector(s) |
|
4 x SATA 6Gb/s
connector(s) |
|
1 x CPU Fan
connector(s) (1 x 4 -pin) |
|
2 x Chassis Fan
connector(s) (2 x 4 -pin) |
|
1 x 24-pin EATX
Power connector(s) |
|
1 x 4-pin ATX 12V
Power connector(s) |
|
1 x Front panel
audio connector(s) (AAFP) |
|
1 x Internal
speaker connector(s) |
|
1 x System
panel(s) |
|
1 x Clear CMOS
jumper(s) |
|
1 x 14-1 pin TPM
connector |
|
Accessories
|
|
|
User's
manual |
|
M.2 2242 mounting
kit |
|
I/O
Shield |
|
2 x SATA 6Gb/s
cable(s) |
|
1 x Supporting
DVD |
|
1 x ASUS 2T2R
dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac
compliant) |
|
BIOS
|
|
|
128 Mb Flash ROM,
UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0,
Multi-language BIOS, |
|
ASUS EZ Flash 3,
CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last
Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence
Detect) memory information |
|
Manageability
|
|
WfM 2.0, DMI 3.0,
WOL by PME, PXE |
|
Support Disc
|
|
Drivers |
|
|
ASUS
Utilities |
|
ASUS EZ
Update |
|
Anti-virus
software (OEM version) |
|
Form Factor
|
|
Mini ITX Form
Factor |
|
6.7 inch x 6.7
inch ( 17 cm x 17 cm ) |
|
Note
|
|
|
*1: Use a chassis
with HD audio module in the front panel to support an 8-channel
audio output. |
|
*2: Please refer
to ASUS website and download Windows 7 installation guide and ASUS
EZ installer to install Windows
7. | |
|
|
|
|
|
|
|
|
|
