All stock codes associated to this product
WCB300Ap01, WCB-300Ap-01, BR21940
Overview
Indoor - 3 Megapixel Cube Network Camera.
-
Most
Intelligent, Compact and Affordable 3M Camera
-
HDTV
Quality (Full HD 1080p @ 30fps Streaming)
-
Unique
Design for Low Lux Application (1/2.5" Sensor)
-
Support
802.11a/b/g/n Dual Band Wireless Connectivity
-
WPS
Supported for Easy Wireless Network Setup
-
Edge
Recording/ Micro SD slot
-
Two-way
Audio/ PIR/ Illumination LED/ DIDO/ Privacy button

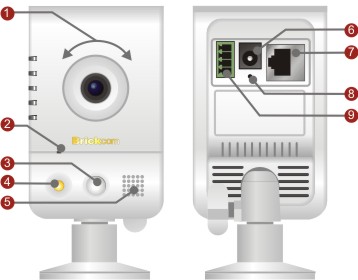

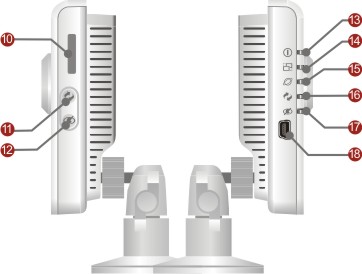

Overview
(*) These are optional features. Please refer to the Buying Guide for the
full list of optional features available for this product.
 |
Adjustable focal
Lens(*) |
 |
Built-in
Microphone |
 |
PIR |
 |
Illumination LED |
 |
Speaker |
 |
Power Connector |
 |
Ethernet RJ45
Socket |
 |
Reset Button |
 |
DIDO Terminal I/O
Connector |
 |
Micro SD/SDHC
slot |
 |
WPS button(*) |
 |
Privacy button |
 |
Power LED |
 |
Status LED |
 |
Internet LED |
 |
WPS LED(*) |
 |
Privacy LED |
 |
USB Port for
3G/4G(*) |
HDTV grade superior video quality
The Brickcom WCB-300Ap provides full frame rate video in resolutions up to 3
megapixel including HDTV (Full HD 1080p @ 30 fps streaming). At the same time,
the WCB-300Ap supports H.264, Motion JPEG and MPEG-4 for multiple streaming to
meet different quality need. The WCB-300Ap uses a 1/2.5" Sensor, offers a
reliable video even in a low lux application (1Lux @ F 2.8, B/W;2 Lux @ F 2.8,
Color). Brickcom understands the importance of the video quality, and develop
this WCB-300Ap providing clear, sharper video and color fidelity.
Smart
design & intelligent surveillance software features |
The WCB-300Ap is designed with powerful software features to maximize the
camera capabilities and adapt variable environments to provide optimized video
quality. The intelligent multi-profile supports 5 profiles, allows users being
able to configure more parameter of image. With this feature, the user has the
ability to set various sensor and lens attributes in a profile, including the
brightness, contrast, sharpness, saturation, exposure, de-noise, white balance
etc. Furthermore, the profiles can be switched automatically following the
user-defined schedule. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2
user-defined profiles are provided for the camera for unprecedented
flexibility.
Alarm capability
The WCB-300Ap is designed with a PIR sensor for detecting movement even in
dark and a white LED for illumination the scene at an event. Moreover, it
supports DI/DO for external alarm device.
Easy & Flexible installation
The 3M Cube camera Series offers a wide variety of data transmission options
to meet different needs. The WCB-300Ap supports 802.11 a/b/g/n Dual Band WiFi
wireless connectivity. With these models, users can utilize WiFi networks in
areas where cabling installation would be costly or difficult. The wireless cube
camera also supports WPS (WiFi protected setup) for easy and secure wireless
network connections.
