Overview

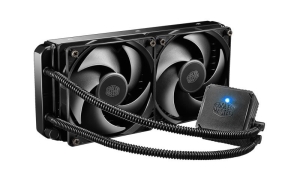

The Seidon 240V is the latest AIO watercooler that boasts an excellent value
for performance. The compact 240mm radiator fits in virtually every case. Thanks
to dual Silencio fans designed for silence, Seidon can unleash a powerful
cooling storm at your command and keep it silent. Durable FEP Tubing provides
the advantages of nearly no moisture absorption, high thermal stability and high
pressure tolerance which all contribute to a long operating life.

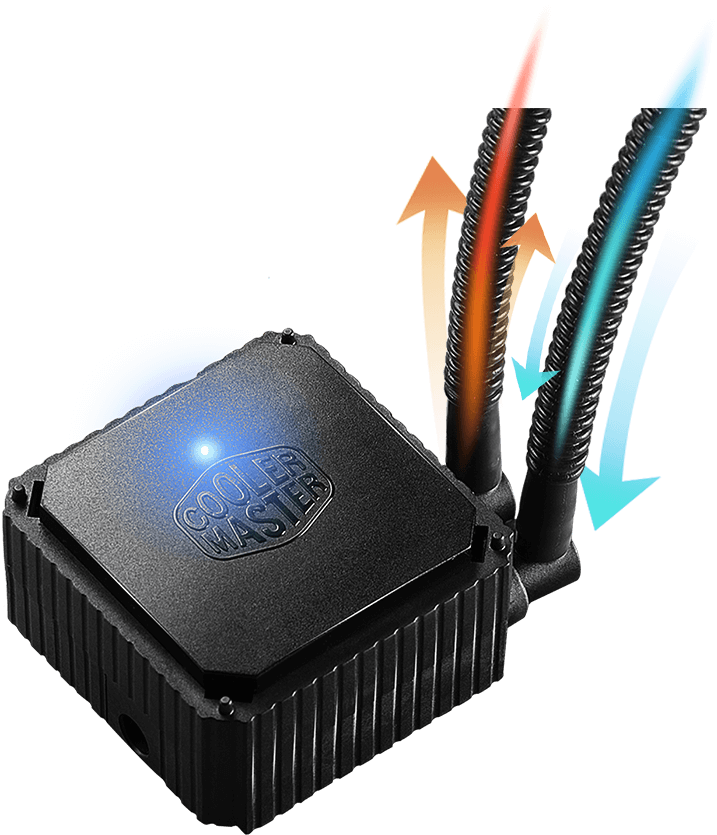

The Optimal Pump and Water Block
The optimal pump and water block guarantees the best water flow and system
performance. Elegant Blue LED illumination on the top of water block.
New Cold Plate Technology
Factory filled with coolant then sealed and pressure tested - requires zero
maintenance for years.

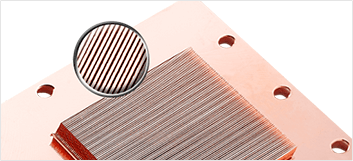

Precision machined Microchannels maximize the water contact surface too
quickly dissipate heat.

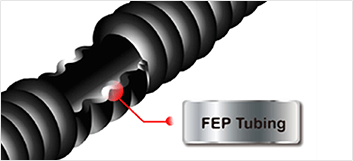

The FEP tubing allows maximum, unrestricted waterflow and decreased
evaporation rate for greater durability.
Tool-free Universal Mounting System
Compatible with all available Intel and AMD platform, include latest Intel
LGA 2011 and AM3+

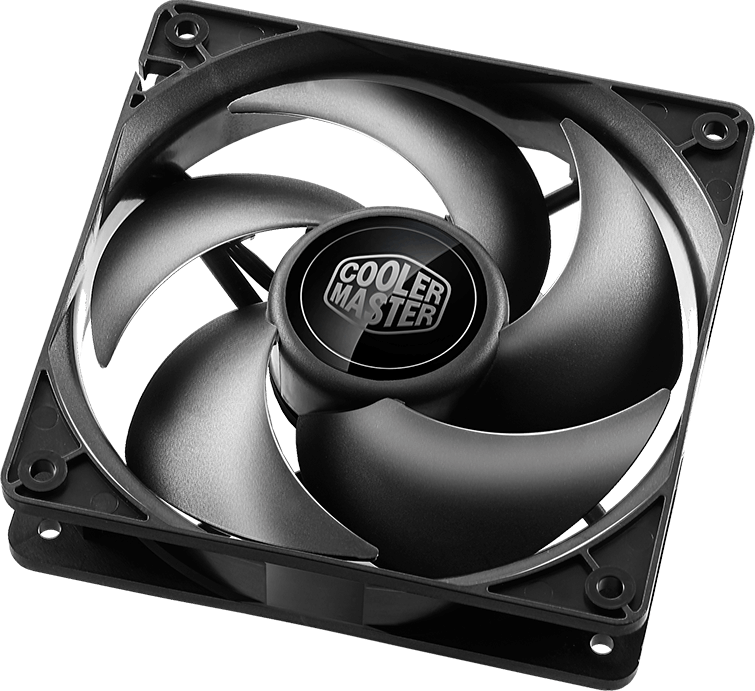

Silent Fan Technology
Dual Silencio fans to increase the performance of heat dissipation
Reduced Noise and Power Output

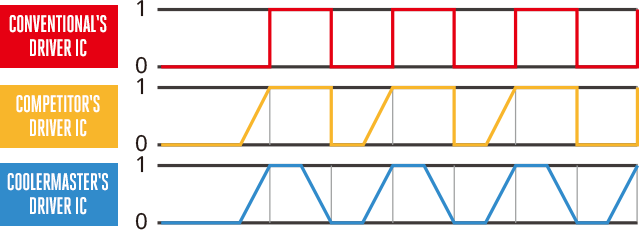

PWM fans put out signal impulses that cause clicking noises and deformations
within the fan. But Cooler Master's exclusive Silent Driver IC slows down the
signal rate, suppressing the PWM switching sound. This results in an ultra-quiet
11 dB and low power current that clocks in at 0.6w(12V, 0.05A), not only making
it the quieter choice but also helping you save on your energy bill.
Quality and Reliability

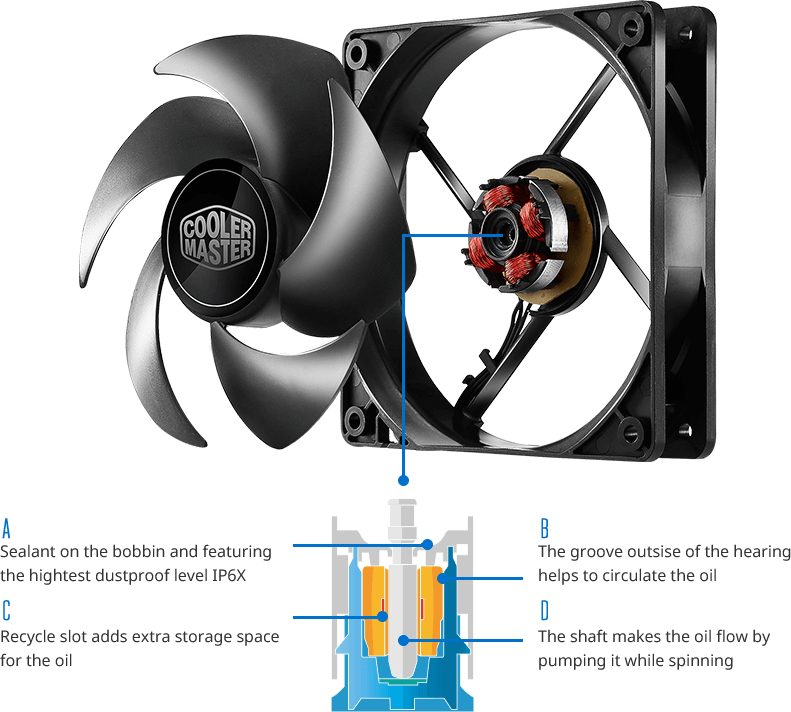

The Loop Dynamic Bearing (LDB) is a rigid and abrasion resistant compound
that reduces vibrations, noise, and increases life expectancy to 160,000 hours.
The self-lubricating and IP6X dustproofing design protects the bearing and keeps
it operating smoothly, ensuring a new system will likely be long obsolete by the
time these fans expire.
Specifications
|
Model |
RL-S24V-24PK-R1 |
|
CPU |
Intel LGA
Socket |
2011-v3/ 2011/ 1151/
1150/ 1155/ 1156/ 1366/ 775 |
|
AMD
Socket |
AM3+/ AM3/ AM2+/ AM2/
FM2+/ FM2/ FM1 |
|
Main System
Dimensions |
62 x 62 x 36.4 mm (2.4
x 2.4 x 1.4 inch) |
|
Radiator
Dimensions |
273 x 120 x 27 mm (10.7
x 4.7 x 1.1 inch) |
|
Radiator
Material |
Aluminum |
|
Fan
Dimensions |
120 x 120 x 25 mm (4.7
x 4.7 x 1 inch) |
|
Fan
Speed |
800 ~ 2400 RPM (PWM)
10% |
|
Fan
Airflow |
76 CFM 10%
(MAX) |
|
Fan Air
Pressure |
4.8 mmH2O 10%
(MAX) |
|
Fan Life
Expectancy |
160,000
hours |
|
Fan Noise
Level |
6.5 ~ 27
dBA |
|
Fan Bearing
Type |
Loop Dynamic
Bearing |
|
Fan
Connector |
4-Pin |
|
Fan Rated
Voltage |
12
VDC |
|
Fan Rated
Current |
0.16
A |
|
Fan Power
Consumption |
1.92W |
|
Pump Life
Expectancy |
70,000
hours |
|
Pump Noise
Level |
< 23
dBA |
|
Pump Rated
Voltage |
12
VDC |
|
Pump Power
Consumption |
3.6
W |
|
Warranty |
2
Years |
