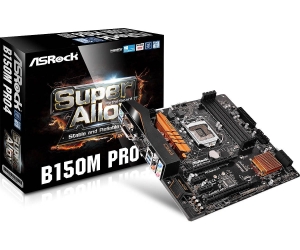

B150MPro4/D3
Overview
- ASRock Super Alloy
- Supports 6th Generation Intel® Core™
Processors (Socket 1151)
- Digi Power
- Supports Dual Channel DDR4 2133
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1
- AMD Quad CrossFireXâ„¢
- Graphics Output Options: D-Sub, DVI-D, HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA
Audio Caps
- 6 SATA3
- 6 USB 3.0 (2 Front, 4 Rear)
- Supports Full Spike Protection, ASRock Live Update
& APP Shop
I/O Armor
A new designed protective cover for all of the crucial
parts near the motherboard's rear I/O, so that they won't easily be damaged by
static electricity.
High Density Glass Fabric PCB
What youve never understood about your computer is that
it is scared to death of water, H2O, humidity or whatever youd like to name it.
And even though you do not see the water, actually there may be lots of
excessive moist in the air killing your motherboard silently and slowly. No,
your motherboard doesnt melt when in contact with water like the wicked witch of
the west, but it dies of short circuit. Luckily, ASRock has a new High Density
Glass Fabric PCB design that reduces the gaps between the PCB layers to protect
the motherboard against electrical shorts caused by humidity.

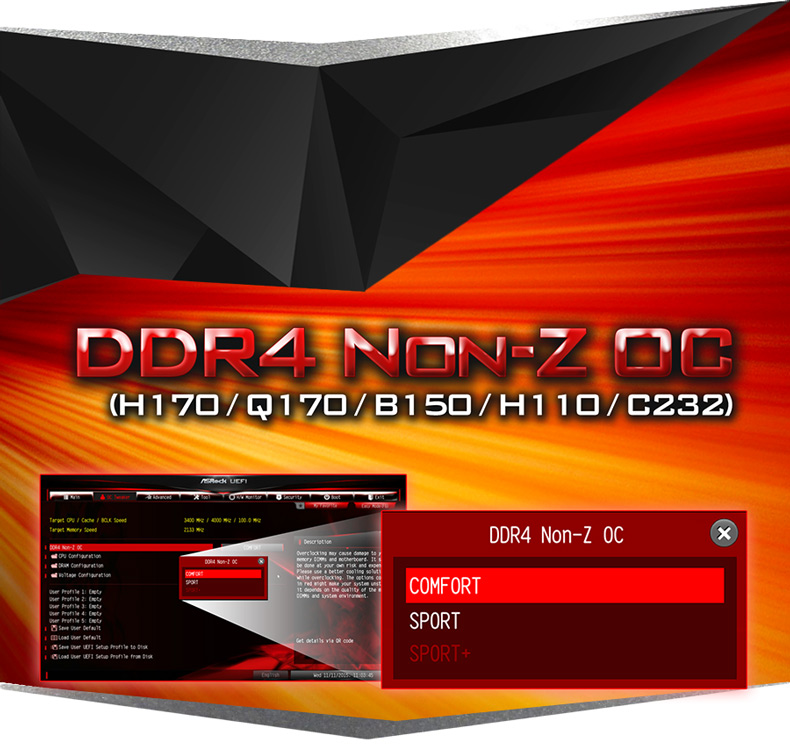

DDR4 Non-Z OC
Overclocking DDR4 memory modules is no longer limited to
Z170 models. With ASRocks DDR4 Non-Z OC users may overclock the memory of
H170/Q170/B150/H110/C232 models using certain memory sticks, such as Kingston or
Samsung memory DIMMs. The enhanced CAS latency brings up to 5% performance
boost.
Supports NVIDIA® Quadro and AMD FirePro
Workstation Graphics Cards
Two PCIe Gen3 x16 slots that not only support ordinary
graphics cards, but are also fully compatible with professional NVIDIAQuadro
and AMD FirePro workstation graphics solutions.

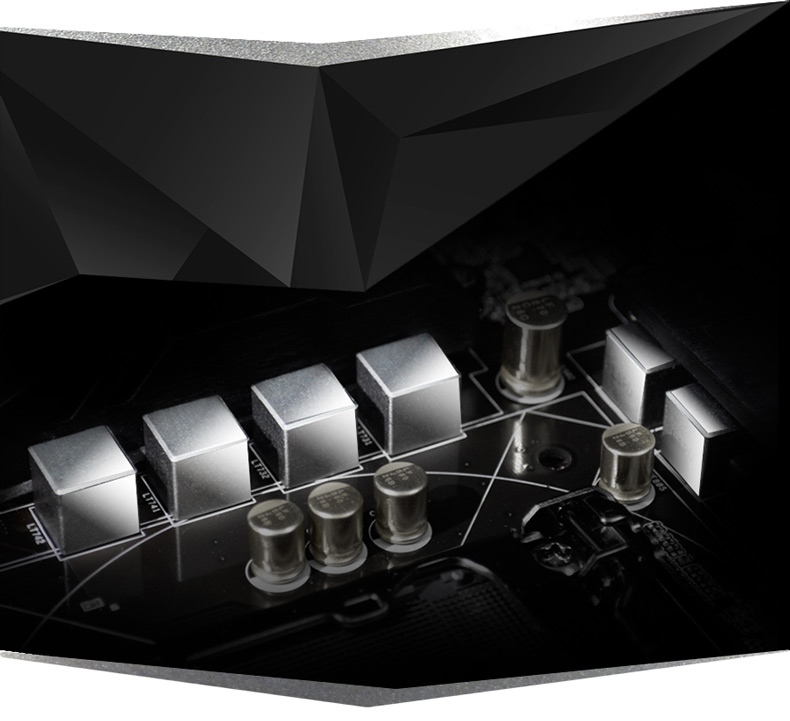

6 Power Phase Design
The power phase design offers smooth power delivery to
the CPU, unmatched overclocking capabilities, lower temperature for advanced
gamers, and reinforced system stability for taking on all sorts of arduous
computing tasks.

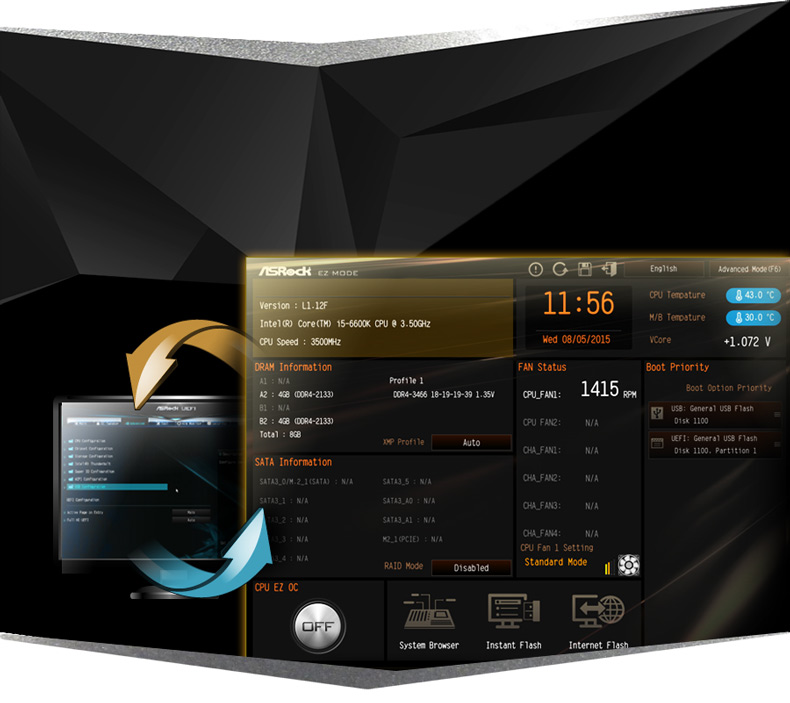

UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings
of the systems current status. You can check the most crucial information of
your system, such as CPU speed, DRAM frequency, SATA information, fan speed,
etc.

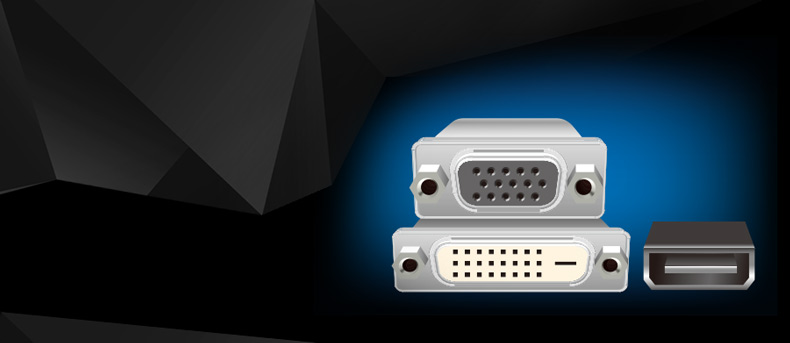

3 Graphics Outputs
Complete with all three types of most used connectors!
Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K
resolution.
Intel® LAN
Intel® LAN provides the best throughput performance,
lower CPU utilization, enhanced stability and is able to deliver ultimate
network experience to users!
Digi Power
Unlike traditional motherboards that use analog power, this
motherboard uses a next generation digital PWM (Pulse-Width Modulation) design,
which provides CPU Vcore voltage more efficiently and smoothly, so that the
stability and lifespan of the motherboard is greatly enhanced.

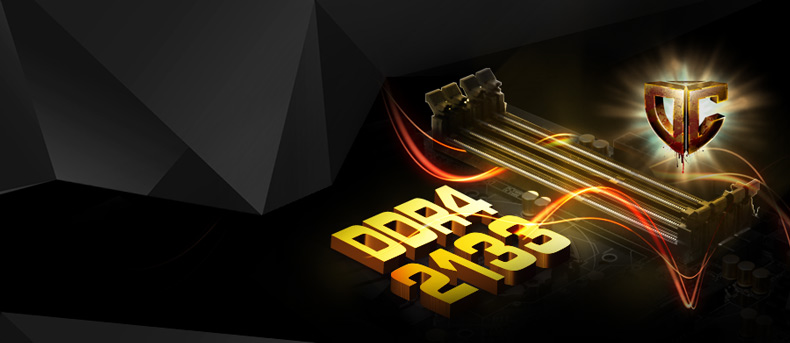

Supports DDR4 2133
Supports the latest DDR4 memory modules and most extreme
memory performance!

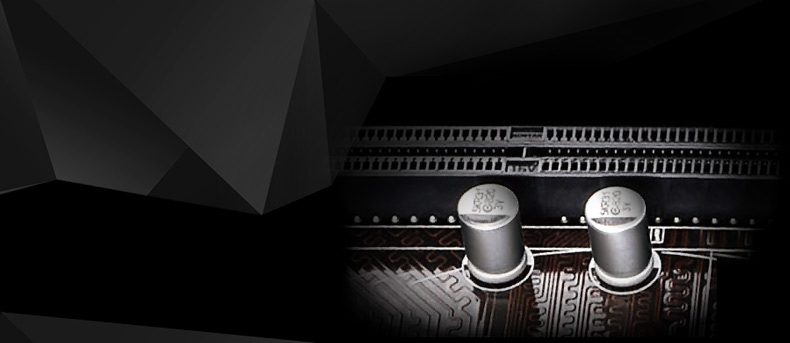

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With
these solid caps, this motherboard is allowed to perform more stably and ensure
longer lifetime.

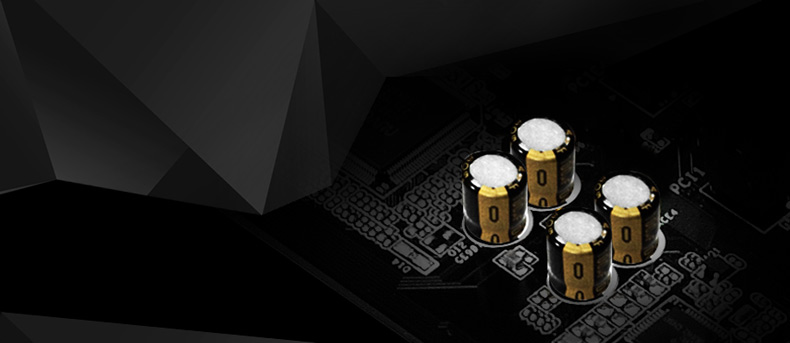

ELNA Audio Caps
Who says high quality audio is only available on high-end
motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level
motherboards! Compared with traditional solid caps, the leakage current of ELNA
audio caps is merely 3uA. This is the key to reduce noise level significantly
and satisfy even the pickiest audiophiles

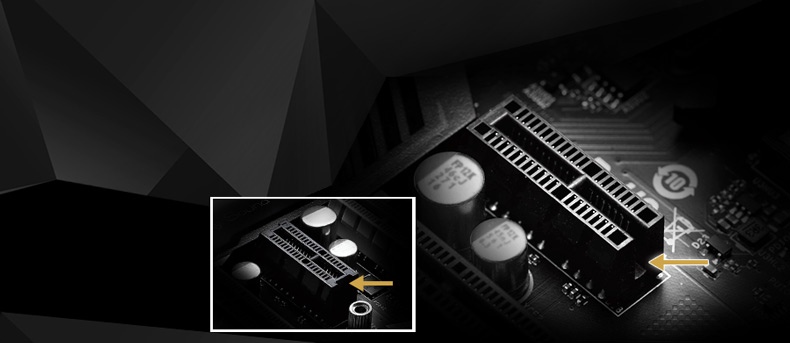

Flexible PCIe Slots
A new flexible PCIe Gen3 x1 slot design that allows users
to install add-on cards of all kinds of sizes.
*
The bandwidth of your devices will be limited to PCIe Gen3 x1.

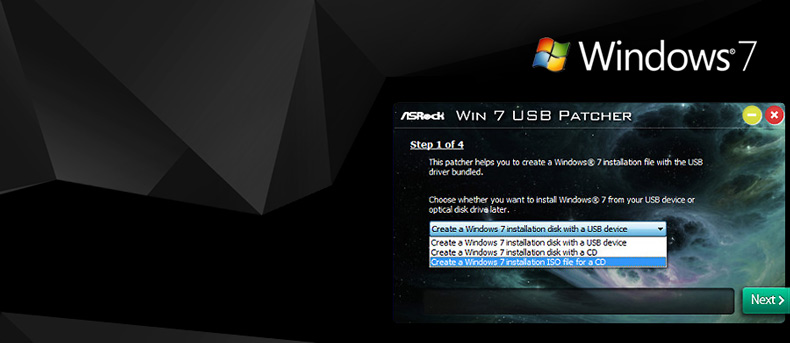

Win 7 USB Patcher
Due to chipset limitation, when you want to install
Windows7
on this MB, you may need to use Win 7 USB Patcher to create a new ISO file,
orcheck this pagefor more details on how to install Windows7
OS.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your
convenience. We provide various apps and support software for users to download.
You can also easily optimize your system and keep your motherboard up to date
with ASRock Live Update & APP Shop
Full Spike Protection
Some sensitive digital components on the motherboard are
vulnerable to power surges, the excessive current may cause your system to
malfunction immediately. ASRock Full Spike Protection includes various
technologies to prevent your motherboards components from being damaged by these
unexpected voltage spikes.
ASRock Cloud
ASRock Cloud* technology makes your mobile devices
connect to your PC seamlessly and supports multi devices for accessing File
Explorer cloud service simultaneously!
USB Key
In a world where time is money, why
waste precious time everyday typing usernames to log in to Windows? Why should
we even bother memorizing those foot long passwords? Nobody has time for that!
Just plug in the USB Key and let your computer log in to windows
automatically!
Restart to
UEFI
Fast Boot
is so fast that it is impossible for users to enter the UEFI setup utility
during POST. Therefore, ASRock Restart to UEFI technology allows users to easily
enter the UEFI setup utility automatically when turning on the PC next time. It
is designed for those who constantly need to enter the UEFI setup
utility.
ASRock OMG (Online Management
Guard)
Limit and control your children's time spent on the
internet. ASRock OMG (Online Management Guard) technology allows you to
establish an internet curfew or restrict internet access at specified times.
Administrators are able to schedule the starting and ending hours of internet
access granted to other users.
UEFI Tech
Service
Contact ASRock Tech Service by sending a support request
from the UEFI setup utility if you are having trouble with your personal
computer. Users may try to choose the category of the issue they have
encountered, describe the problem in detail, and then attach an optional picture
or log file for our technical support team.
Easy Driver
Installer
For
users that dont have an optical disk drive to install the drivers from our
support CD, Easy Driver Installer is a handy tool in the UEFI that installs the
LAN driver to your system via an USB storage device, then downloads and installs
the other required drivers automatically through the internet. Completely no CD
or optical disk drive required!
ASRock XFast RAM
fully utilizes the memory space that cannot be used under
Windows32-bit operating systems. It shortens the loading time of
previously visited websites, making web surfing faster than ever. And it also
boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock
XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in
order to extend their lifespan.
When Internet
Explorer loads very slowly for no clear reason, it's usually due to inefficient
management. ASRock is rolling out super efficient web management in the
motherboard industry. XFast LAN is a convenient tool that controls internet
related applications easily and efficiently. Creating a perfect Internet
environment, all you need is a smart manager. ASRock XFast LAN allows you to
enjoy more speed, easier multitasking, enhanced multimedia experience, and more
all without weighing you down.
This motherboard supports
HDMI (High-Definition Multimedia Interface) which is an interface standard for
transferring uncompressed video data and delivering multi-channel audio through
a single cable. Both video and audio data signals transferred through the HDMI
interface are digital without being converted into analog, therefore it delivers
the richest pictures and the most realistic sounds.
