System
Overview |
The single-processor
workstation P310 uses a Micro Advanced Technology Extended (MATX)
motherboard, both 250 watt (W), and an optional 400 watt (W) power supply
unit (PSU). The motherboard chipset consists of the Intel PCH supporting
error-correcting code (ECC) Double Data Rate 4 (DDR4). Maximum memory
supported is 64GB for UDIMMs. The processor socket is an Intel LGA1150
GA-C2 level with support for dual core, quad core, processors from the
Intel Xeon line (E3-1200V5 family of processors) as well as Core i
processors (i3, i5, i7). |
|
Operating
Systems |
|
|
Preloaded |
Genuine Windows 10DG to
7 Professional 64-bit |
|
Genuine Windows 10
Professional 64-bit |
|
Genuine Windows 10
64-bit |
|
Supported |
Red Hat Enterprise
Linux 6.4 |
|
Motherboard
P310 |
|
Board
Size |
248mm |
|
Motherboard
Core |
|
|
Processor
Support |
Intel i7 Quad
Core |
|
Socket
Type |
LGA1151 |
|
Memory
Support |
2133
MHz |
|
QPI
(GTPS) |
up to
9.6GT/s |
|
Voltage
Regulator |
80W
TDP |
|
Chipset
(PCH) |
Intel
C236 |
|
Flash |
16MB |
|
HW
Monitor |
- |
|
Super
I/O |
Nuvoton
NCT6685D |
|
Clock |
Greenlow Native
isCLK(Intel C236) |
|
Audio |
ALC662VD-GR |
|
Ethernet |
Intel
I219-LM |
|
Memory |
|
|
Slots |
4 |
|
Channels |
2 |
|
Type |
UDIMM |
|
ECC
Support |
Yes (with Xeon
Processor) |
|
Speed |
2133
MHz |
|
Max DIMM
Size |
16GB |
|
Max System
Memory |
64GB |
|
Ethernet |
|
|
Vendor |
Intel |
|
Count |
1 |
|
EEPROM |
None |
|
Speeds |
10/100/1000
Mbps |
|
Functions |
PXE,
WOL,AMT |
|
Connectors |
(1) x RJ45 on Rear
I/O |
|
Audio |
|
|
Type |
Integrated
Audio |
|
Chipset |
ALC662VD-GR |
|
Stereo
Conversion |
24-bit DAC and 24-bit
ADC |
|
High Definition
Stereo Support |
v |
|
Number of
Channels |
2 channels (5.1 via
Driver Selection) |
|
Number of Bits/Audio
Resolution |
6 channels of DAC
support 16/20/24-bit PCM format for 5.1 audio
solution |
|
2 stereo ADC support
16/20-bit PCM format |
|
Sampling Rate
(recording/playback) |
Support 44.1K/48K/96K
sample rate |
|
Signal to Noise
Ratio |
DAC SNR>98dBFSA, ADC
SNR>90dBFSA |
|
Wavetable
Voices |
32-voice wavetable(For
XP only) |
|
Analog
Audio |
v |
|
Dolby
Digital |
None |
|
THX |
None |
|
Digital Out
(S/PDIF) |
None |
|
Speaker Power
Rating |
Int Speaker (1.5W) /
Ext 2.0 Speaker (4W) |
|
Video |
|
|
Onboard |
Supported (On some
Processors) |
|
Type |
Integrated (Some
Processors) |
|
Bus
Interface |
Processor
onboard |
|
Display
Interface |
VGA/DP/DP |
|
Video Resolution
(max) |
DP:
40962304@60Hz |
|
Graphics Cover
Name |
Intel HD Graphics
530 |
|
Storage |
|
|
Floppy |
None |
|
IDE |
None |
|
SATA |
(5) x SATA Connectors,
Gen. 3 |
|
(1) x eSATA Connector,
Gen. 3 |
|
SATA RAID 0,1,5,10
supported natively via Intel Controller |
|
eSATA |
(1) x eSATA Connector,
Gen. 3 |
|
|
|
Slots |
|
|
PCI |
No |
|
Available
Slots |
No |
|
PIN
Count |
No |
|
Data Bus
Width |
No |
|
Voltage |
No |
|
PCI Express
x1 |
2pcs |
|
Available
Slots |
1 Full
High |
|
PIN
Count |
36 pins
connectors |
|
Data Bus
Width |
500MB/s per Direction;
duplex 16GB/s |
|
Voltage |
12V |
|
Power
(Max) |
25W |
|
PCI Express
x4 |
Yes |
|
Available
Slots |
1 Full
Height |
|
PIN
Count |
164 pins
connectors |
|
Data Bus
Width |
8GB/s per Direction ;
duplex 1GB/s |
|
Voltage |
12V |
|
Power
(Max) |
75W |
|
PCI Express
x16 |
Yes |
|
Available
Slots |
1 Full
High |
|
PIN
Count |
164 pins
connectors |
|
Data Bus
Width |
8GB/s per Direction;
duplex 16GB/s |
|
Voltage |
12V |
|
Power
(Max) |
75W |
|

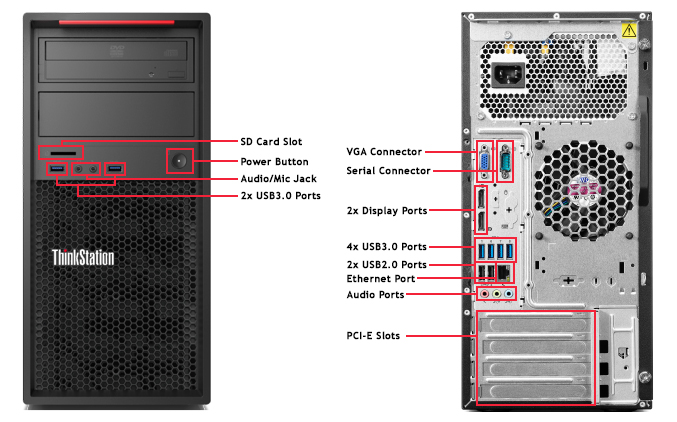

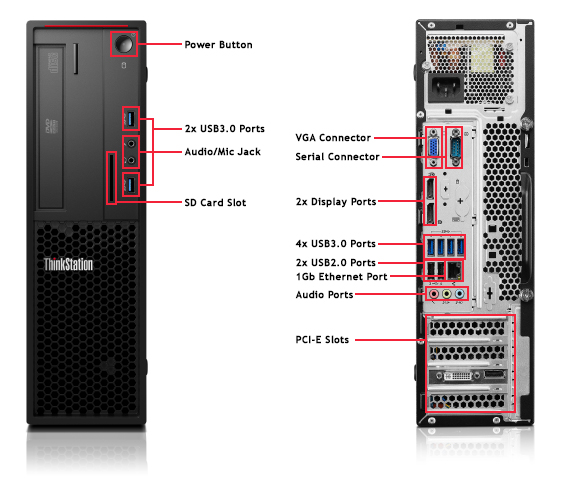

I/O |
|
|
Front |
|
|
High Speed USB
3.0 |
2 |
|
Internal High Speed
USB 2.0 |
0 |
|
Microphone |
1 |
|
Headphone |
1 |
|
Back |
|
|
High Speed USB
2.0 |
2 |
|
High Speed USB
3.0 |
4 |
|
1 standard serial, 1
optional via punching out |
Yes |
|
Optional
parallel |
Yes(header on
MB) |
|
2
PS/2 |
Yes(header on
MB) |
|
integrated VGA
port |
1 |
|
integrated Display
port |
2 |
|
RJ45 |
1 |
|
RJ11 (on selected
models) |
0 |
|
IEEE 1394 (on
selected models) |
0 |
|
Audio Line
in |
1 |
|
Audio line
out |
1 |
|
Mic
In |
1 |
|
eSATA |
1 optional
E-SATA |
|
Thermal |
|
|
Temp
Sensors |
Ambient Cable Thermal
Sensor |
|
VR Temperature
Sensor |
|
PSU Thermal
Sensor(inside) |
|
Fans |
Rear SYSTEM Fan x1
4-pin header with 4-pin key |
|
Front Fan 4-pin header
with 4 pin key |
|
ODD bay Fan 4-pin
header with 3-pin key |
|
PSU Fan Main PSU power
connector |
|
CPU Fan Header x1 4-pin
header with 4-pin key |
|
Power
Connectors |
|
|
Main |
(1) 10-Pin (25) ATX
Standard |
|
Memory &
CPU |
4-Pin |
|
Graphics |
6-Pin (400W) (None for
250W) |
|
Security |
|
|
TPM |
TPM
1.2 |
|
Asset
ID |
Rohm
BUL08-1FJ-W/FVJ-W/NXP PCA24S08AD |
|
vPro |
E3 12xx v5
yes |
|
BIOS |
|
|
Vendor |
AMI |
|
Chassis
Information |
25L Rack Mountable
Tower |
|
425mm H x 175mm W x
431mm D |
|
TWR(13kg(net
weight)+1.3kg(carton+paper)+0.47kg(plastic)+0.9375kg(wood) = 15.7075
kg) |
|
250 watt 85% efficient
tool-less power supply |
|
400 watt 92% efficient
tool-less power supply |
|
Rear Fan Standard
Optional Front fan required for some configurations |
|
Security &
Serviceability |
|
|
Access
Panel |
Tool-less side cover
removal |
|
Optical
Drive |
Tool-less |
|
Hard
Drives |
Tool-less |
|
Expansion
Cards |
Tool-less |
|
Processor
Socket |
Tool-less |
|
Color coded User
Touch Points |
Yes |
|
Color-coordinated
Cables and Connectors |
Yes |
|
Memory |
Tool-less |
|
System
Board |
Tool-less |
|
Green Color Power
LED on Front of Computer |
Yes |
|
Restore CD/DVD
Set |
Restore system to
original factory shipping image Can be obtained via Lenovo
Support |
|
Cable Lock
Support |
Yes, Optional
Kensington Cable Lock |
|
Serial, Parallel,
USB, Audio, Network, Enable/Disable Port Control |
Yes |
|
Power-On
Password |
Yes |
|
Setup
Password |
Yes |
|
NIC LEDs
(integrated) |
Yes |
|
Security
Chip |
Yes |
|
Access Panel Key
Lock |
Optional |
|
Boot Sequence
Control |
Yes |
|
Padlock
Support |
Yes, loop in rear for
optional padlock, prevents side panel removal |
|
Boot without
keyboard and/or mouse |
Yes |
|
Operating
Environment |
|
|
Air
Temperature |
Operating: 10C to 35C
(50F to 95F) |
|
Storage: -40C to 60C
(-40F to 140F) in original shipping carton |
|
Storage: -10C to 60C
(14F to 140F) without carton |
|
Humidity |
Operating 20% ~ 80%
(non-condensing) |
|
Non-Operating 20% ~
90%(non-condensing) |
|
Wet Bulb Temperature
Operating: 25C max |
|
Altitude |
Operating: -15.2 m to
3048 m (-50 ft to 10 000 ft) |
|
Vibration |
With Packaging 1.04 G
at 2 to 200 Hz at 1 octave/min |
|
Operating: 0.27 G at 5
to 500 Hz at 0.5 octave/min,Ramdom(without LCD panel) |
|
Non- operatig 1.04 G at
2 to 200 Hz at 1 octave/min |
|
Shock |
Without Package: Bottom
half-sine pulse with a change in velocity of 37.4 cm/sec (14.7
inches/sec) |
|
Operating: 45-G faired
square wave with a velocity change of 441 cm/sec (173.7
inches/sec) |
|
EMC &
Safety |
|
|
FCC DoC for North
America |
Yes |
|
VCCI certification
for Japan |
Yes |
|
BSMI certification
for Taiwan |
Yes |
|
EU/EFTA CE Mark
& DoC |
Yes |
|
UL/CUL |
Yes |
|
TUV-GS |
Yes |
|
IEC60950-1 CB
Report/Certificate |
Yes |
|
Saudi Arabia
ICCP(SASO) |
Yes |
|
China CCC
Mark |
Yes |
|
Hong Kong SAR (CB
report) |
Yes |
|
Argentina
S-mark |
Yes |
|
Singapore
PSB |
Yes |
|
South Africa
SABS |
Yes |
|
Russia-GOST/EAC |
Yes |
|
Mexico-NOM |
Yes |
|
Kazakhstan
-GOST-K /EAC |
Yes |
|
Belarus-certificate/EAC |
Yes |
|
Croatia-certificate/CE |
Yes |
|
Serbia
KVALITET |
Yes |
|
Ukraine
UKrCEPRO |
Yes |
|
Energy Star
6.1 |
Yes |
|
PERD(Product
Environmental Review Database |
Yes |
|
China
RoHS |
Yes |
|
EU
RoHS |
Yes |
|
EU
WEEE |
Yes |
|
Japan
J-Moss |
Yes |
|
California
RoHS |
Yes |
|
USA Chemical
Emission Test |
Yes |
|
New York
RoHS |
Yes |
|
Japan Energy
Saving |
Yes |
|
Energy
Star |
Energy Star Program
Requirements for Computers: Version 6.1 (select
models) |
|
EPEAT |
EPEAT Gold rating
(select models) |
|
ErP Lot-3
2013 |
ErP Lot-3 2013 (Enabled
via system setup. Default on for systems shipped to
EMEA.) |
|
Hazardous
Substances |
Products do not contain
more than; 0.1% lead, 0.01% cadmium, 0.1% mercury, 0.1% hexavalent
chromium, 0.1% polybrominated biphenyls (PBB) or 0.1% polybrominated
diphenol ethers (PBDE). |
|
Products do not contain
Asbestos. |
|
Products do not contain
Ozone Depleting Substances: Chlorofluorocarbons (CFC),
hydrobromofluorocarbons (HBFC), hydrochlorofluorcarbons (HCFC), Halons,
carbontetrachloride, 1,1,1-trichloroethane, methyl
bromide |
|
Products do not contain
more than; 0.005% polychlorinated biphenyl (PCB), 0.005% polychlorinated
terphenyl (PCT) in preparation. |
|
Products do not contain
more than 0.1% short chain chloroparaffins (SCCP) with 10-13 carbon atoms
in the chain containing at least 48% per mass of chlorine in the
SCCP |
|
Parts with direct and
prolonged skin contact do not release nickel in concentrations above 0.5
microgram/cm/week. |
|
Processor |
i7-6700 (3.4GHz / 4c /
8M / 2133 / 65W ) |
|
Memory |
8GB PC4-2133MHz DDR4
ECC-UDIMM |
|
Storage |
2TB SATA 7200rpm, (8G
Flash) 6Gb/s, 3.5 Hybrid |
|
Graphics
Cards |
NVIDIA Quadro K620
(DVI, DP) 2GB DDR3 HP |
