All stock codes associated to this product
TS64GMTS400
Overview

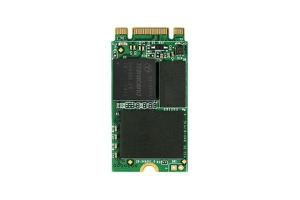

Transcend's MTS400 M.2 SSD's next generation SATA III 6Gb/s interface and
ultra compact dimensions make it best suited to address the high performance
needs and strict size limitations of small form factor devices. This means it is
perfect for use in today's modern Ultrabooks and thin, light notebooks. Meeting
the latest SATA III 6Gb/s specifications, and featuring a powerful controller
and exceptional transfer speeds of up to 560MB/s read and 460MB/s write*, the
M.2 SSD easily handles everyday computing tasks as well as demanding multimedia
applications.
Key Featrures
  - Space-saving M.2 form factor (42mm) – ideal for mobile computing devices

 - Supports DevSleep mode, which allows devices to completely shut down the
  SATA interface and conserve battery life, unlike existing partial/slumber
  states

 - DDR3 DRAM cache

 - Supports S.M.A.R.T., TRIM and NCQ commands

 - RoHS compliant

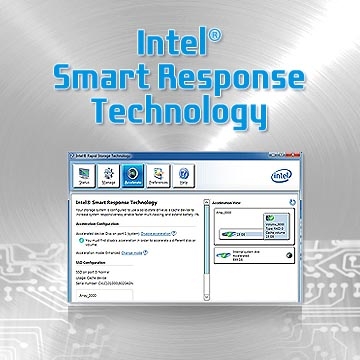

Intel Smart Response Technology
Transcend's SATA III 6Gb/s MTS400 M.2 SSD supports Intel Smart Response
Technology (ISRT), which allows you to configure your computer system with an
SSD used as cache memory between the hard disk drive and system memory. This
provides the advantage of having a hard disk drive for maximum storage capacity
with SSD-like overall system performance.
ISRT works by monitoring which programs and files you access most frequently
and storing them on the SSD. As a result, application launch speed and overall
system responsiveness are significantly improved, while space on your
large-capacity hard drive is freed up for other programs and files. In this
configuration, only one drive letter is displayed; no additional drive letter is
required for the SSD used as cache

Specifications



    |

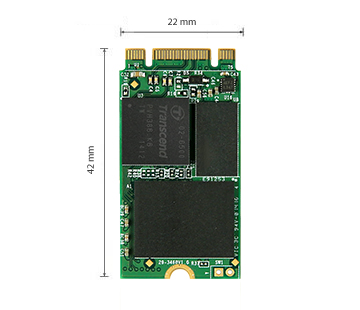

       Dimensions
      (max.)  |

       42.0mm 22.0mm 3.58mm
      (1.65" x 0.87" x 0.14")  |

    |
       Weight  |

       4g (0.14
      oz)  |

    |
       Storage
      Media  |

       MLC NAND Flash
      memory  |

    |
       Operating
      Voltage  |

       DC
    3.3V5%  |

    |
       Operating
      Temperature  |

       0C(32F) to
      70C(158F)  |

    |
       Certificates  |

       CE, FCC,
      BSMI  |

    |
       Warranty  |

       Three-year Limited
      Warranty (The 3 years warranty does not apply when SSD Scope's wear-out
      indicator shows 0% within 3 years.)  |

     |
     |

    |
       *Note  |

       Speed may vary due to
      host hardware, software, usage and storage capacity.  |

    |
       System
      Requirements  |

       Desktop or notebook
      computer with M.2 interface (a SATA 6Gb/s port is needed for best
      performance), and one of the following operating
  systems:  |

     |

       Windows
    7  |

     |

       Windows
    8  |

     |

       Windows
      8.1  |

     |

       Windows
      10  |

     |

       Linux Kernel 2.6.31 or
      later  |
