CL6700N
Overview

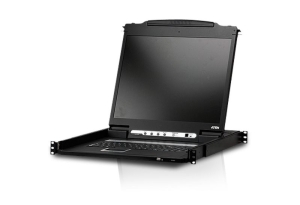

The CL6700 DVI LCD Console is a LCD KVM console featuring an integrated 19"
DVI LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding
housing with audio support. The CL6700 serves as the front end sliding console
for compatible DVI KVM switches. This means users who already have a compatible
KVM switch can take advantage of the space saving and efficiency benefi ts of
the sliding console module without having to purchase a KVM switch module.
For added convenience, a port for an external USB mouse is provided on the
units front panel, while ports for an extra console (USB mouse, USB keyboard,
DVI monitor and VGA monitor) for a second user are provided on the rear
panel.
Features
| Integrated
KVM console with a 19" DVI LCD monitor in a single rail housing with top and
bottom clearance for smooth operation in a 1U high system rack |
| Standard rack mount
kit included optional Easy Rack Mounting (single person installation) rack
mount kit available (requires separate purchase) |
| Supports an external console with USB / DVI /
VGA connectors |
| Additional hot-pluggable USB mouse port on front panel
(also functions as USB peripheral port) |
| Audio support
(speakers) |
| Superior video
quality up to 1280 x 1024 @75 Hz; DDC, DDC2, DDC2B |
| Standard 105-key
keyboard; Sun keyboard emulation |
| Multiplatform
support Windows, Linux, Mac, and Sun |
| Compatible with most ATEN DVI KVM Switches |
| Adjustable depth to fit within the rack |
| Firmware upgradeable |
| Console lock - enables the console drawer to remain
securely locked away in position when not in use |
| DDC emulation - video settings of each computer are
automatically adjusted for optimal output to the monitor |
| Keyboard Language support: English(US); English(UK);
German;German(Swiss); French; Spanish; Traditional Chinese; Japanese;
Korean;Swedish; Italian; Russian; Hungarian; Greek |

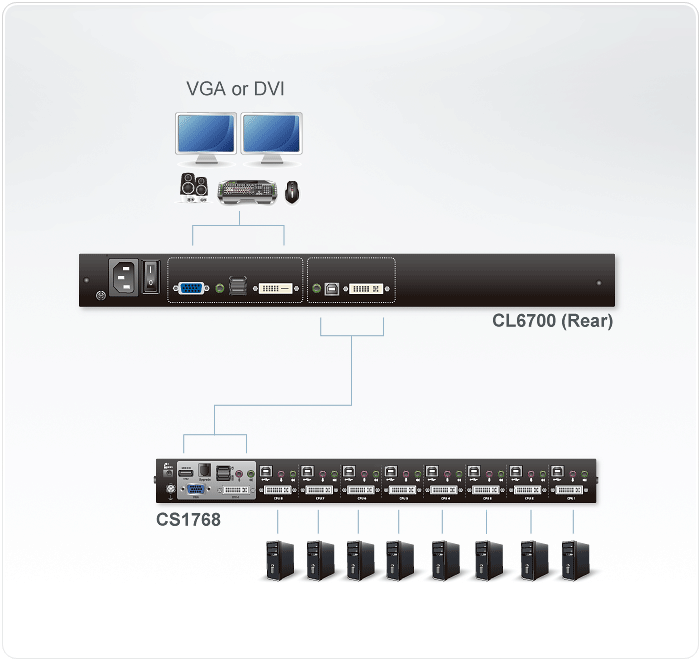

Diagram
Specifications
|
Computer
Connections |
1 |
|
Console
Selection |
Hotkey |
|
|
|
Connectors |
|
External Console
Ports |
2 x USB Type A
Female |
|
1 x DVI-D Female
(White) |
|
1 x HDB-15 Female
(Blue) |
|
1 x Mini Stereo Jack
Female (Green) |
|
KVM
Ports |
1 x USB Type B
Female |
|
1 x DVI-I Female
(White) |
|
1 x Mini Stereo Jack
Female (Green) |
|
External Mouse /
Peripheral |
1 x USB Type A
Female |
|
Power |
1 x 3-prong AC
Socket |
|
|
|
Switches |
|
Reset |
1 x Semi-recessed
Pushbutton |
|
Power |
1 x
Rocker |
|
Firmware
Upgrade |
1 x
Slide |
|
LCD
Power |
1 x
Pushbutton |
|
LCD
Adjustment |
4 x
Pushbutton |
|
|
|
LEDs |
|
Power |
1
(Green) |
|
Lock |
1
(Green) |
|
|
|
Panel
Spec |
|
Screen
Size |
19" |
|
Pixel
Pitch |
0.294 mm x 0.294
mm |
|
Support
Color |
16.7M
colors |
|
Contrast
Ratio |
1000:01:00 |
|
Luminance |
250
cd/m |
|
Response
time |
5
ms |
|
Viewing
Angle |
170 (H), 160
(V) |
|
|
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
1280 x 1024@75Hz,
DDC2B |
|
Maximum Input Power
Rating |
100-240V AC; 50-60Hz;
1A |
|
Power
Consumption |
120V/24.6W;
230V/25.4W |
|
|
|
Environmental |
|
Operating
Temperature |
050C |
|
Storage
Temperature |
-2060C |
|
Humidity |
0-80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
12.22 kg ( 26.92 lb
) |
|
Dimensions (L x W x
H) |
48.00 x 58.92 x 4.40
cm |
|
(18.9 x 23.2 x 1.73
in.) |
Package Contents
-
1x CL6700 DVI LCD Console with Standard
Rack Mount Kit
-
1x Custom USB DVI KVM Cable
Set
-
1x Power Cord
-
1x Firmware Upgrade Cable
-
1x User
Instructions
