All stock codes associated to this product
JDA213, 13LAJDA213, 13LA-JDA213, 4712795080537
Overview

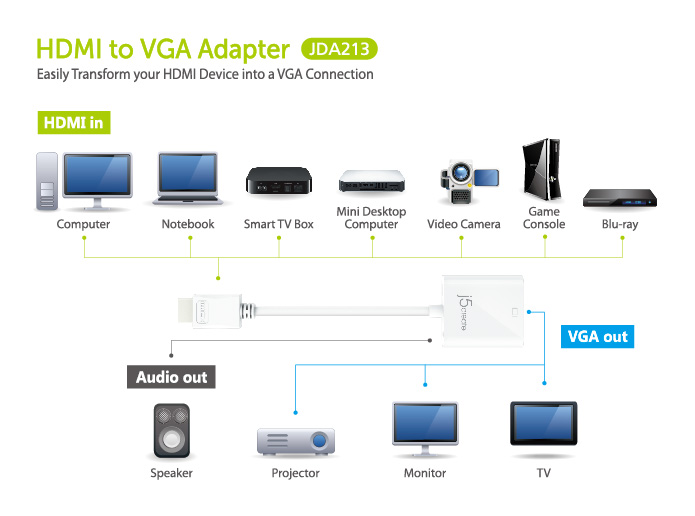

The j5creates HDMI to VGA adapter JDA213allows you to connect the HDMI output
from your laptop, Ultra book, Desktop, Tablet, Blue ray DVD, Digital set-top
box, player, Digital camera , Video camera or gamming console equipment to the
VGA input of a monitor or projector by converting the HDMI video signal from the
output device into a VGA output and separate 2-channel analog audio. The adapter
Supports resolutions including high definition 1080p, up to 1920x1200, which
eliminates the expense of upgrading a VGA display for the sake of compatibility.
The Adapter can also increase your productivity by extending your computer's
desktop onto a secondary monitor, doubling available workspace. This adapter has
a high quality, compact design for long term durability and a minimal
footprint.
Features
- Easy to use cable
- No software required
- No power adapter required
- Easily make your new HDMI equipment compatible with a VGA display
- Supports PC resolutions up to 1920x1200 @60Hz (WUXGA) and HDTV resolutions
up to 1080p @60Hz
- Reserved Micro USB B Type power input port, if the lack of HDMI output
device can be powered separately
- 2-channel analog audio output
- HDMI Receiver compliant with HDMI 1.4 specification
- device can be powered separately
Specifications
|
Interface |
|
|
VGA
Output |
VGA (15 pin; High
Density D-Sub) Female |
|
Audio
Output |
3.5 mm Mini-Jack (3
Position) Female |
|
HDMI
Input |
HDMI (19 pin)
Male |
|
Power |
USB Micro-B (5 pin)
Female 5V |
|
|
|
Hardware |
|
|
Converter
Type |
Format
Converter |
|
Audio |
Yes |
|
|
|
Performance |
|
|
Maximum Analog
Resolutions |
1920x1200 |
|
Wide Screen
Supported |
Yes |
|
Audio
Specifications |
2-Channel
Stereo |
|
|
|
Physical
Specifications |
|
|
Housing
Material |
Plastic |
|
Dimensions |
Main
body: |
|
1.6 (W) x 1.8(H) x
0.6(D) inch |
|
40 (W) x 45(H) x 14(D)
mm |
|
Cable length: 4 /100
inch / mm |
|
Weight |
Approximately 54
g |
|
|
|
Device: |
HDMI devices including,
but not limited to: |
|
* Desktop, Laptop,
Ultrabook(PCs and Macs) |
|
* DVD players and
Blu-ray players |
|
* Smart TV
Box |
|
* Digital
camera |
|
* Gamming consoles (PS3
and Xbox) |
|
VGA display devices
including, but not limited to: |
|
*
Projector |
|
* Display
monitor |
|
*
TV |
|
Audio devices
including, but not limited to: (Option) |
|
* Amplifier
speaker |
|
* Home
Theater |
|
|
|
Package
Contents |
* j5create HDMI to VGA
adapter JDA213 |
