All stock codes associated to this product
GVN105TOC4GD, GV-N105TOC-4GD, II25888, VCGVN105TOC4GD, VCGV-N105TOC-4GD, 4719331339289
Features
- Powered by GeForce GTX 1050 Ti
- Integrated with 4GB GDDR5 128bit memory
- WINDFORCE 2X with Blade Fan Design
- Support up to 8K display @60Hz
Core
- Boost: 1455MHz/ Base: 1341MHz in OC Mode
- Boost: 1430MHz/ Base: 1316MHz in Gaming

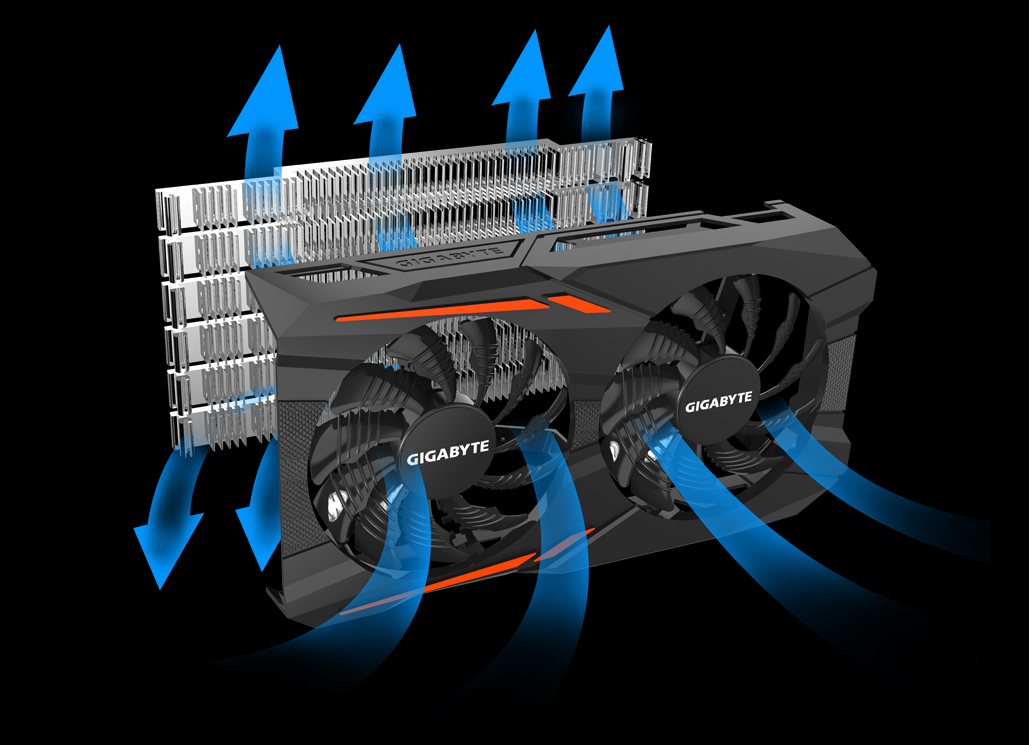

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 80mm unique blade fans and
semi-passive 3D active fan together delivering an effective heat dissipation
capacity for higher performance at lower temperatures.

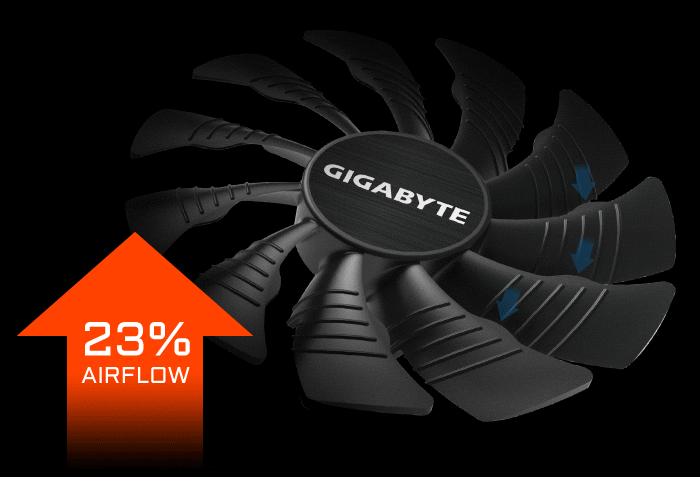

80mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the air flow by
23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming. It allows gamers to enjoy gameplay in complete
silence when the system is running light or idle.
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card
to meet their various gaming requirements without any overclocking knowledge,
while saving the hassle of manual adjustment.

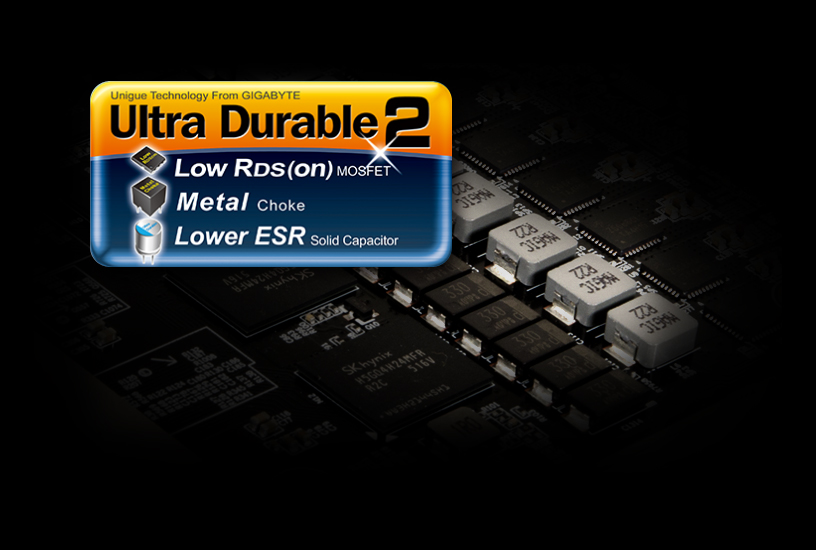

Ultra Cooling
Lower RDS(on) MOSFETs are specially designed to produce lower switching
resistance for faster electric current charging and discharging at extremely low
temperature.
Low Power Loss
Metal Choke hold energy much longer than common iron-core chokes at high
frequency, thus effectively reduce core energy loss and EMI interference.
Longer Life
Lower ESR Solid Capacitors ensure better electronic conductivity for
excellent system performance and longer lifespan.

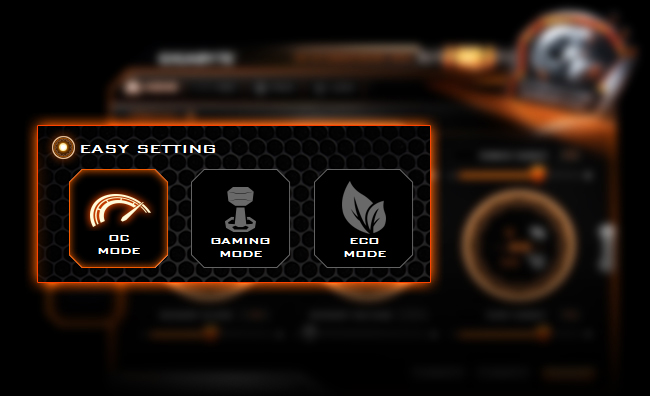

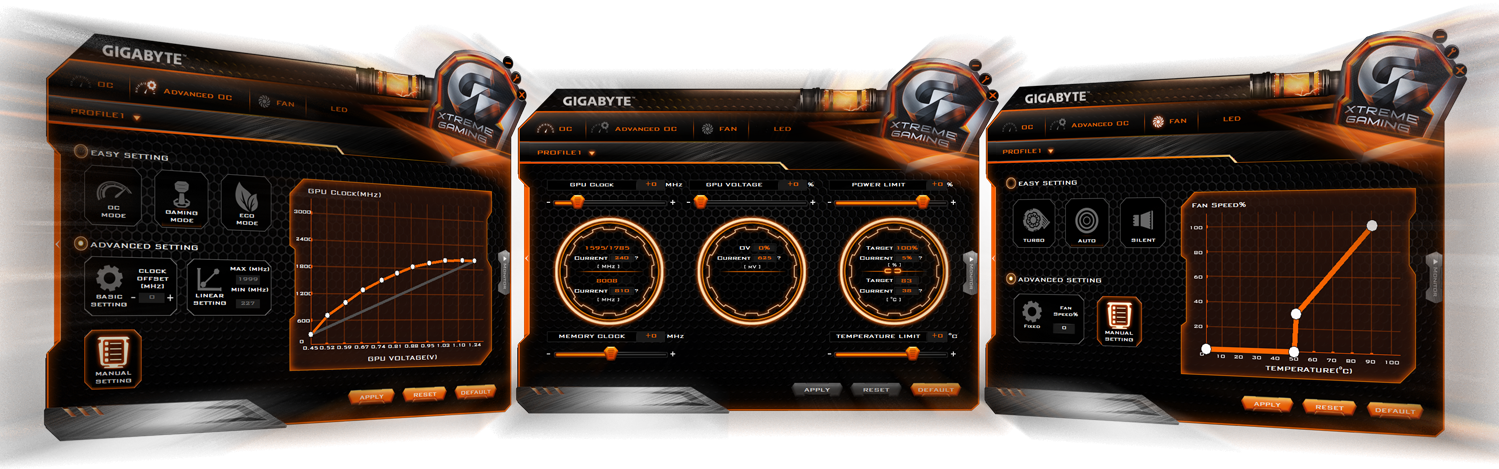

Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, power target can be monitored and
tuned in real-time according to your own preference through this intuitive
interface
Specifications
|
Graphics
Processing |
GeForce GTX 1050
Ti |
|
Core
Clock |
Boost: 1455MHz/ Base:
1341MHz in OC Mode |
|
Boost: 1430MHz/ Base:
1316MHz in Gaming |
|
Memory
Clock |
7008
MHz |
|
Memory
Size |
4
GB |
|
Memory
Type |
GDDR5 |
|
Memory
Bus |
128
bit |
|
Card
Bus |
PCI-E 3.0 x
16 |
|
Output |
Dual-link DVI-D
*1 |
|
HDMI-2.0b*1 (Max
Resolution: 4096x2160 @60 Hz) |
|
Display Port-1.4 *1
(Max Resolution: 7680x4320 @60 Hz) |
|
Digital max
resolution |
7680x4320 |
|
Multi-view |
3 |
|
Card
size |
H=36 L=191 W=111
mm |
|
PCB
Form |
ATX |
|
DirectX |
12 |
|
OpenGL |
4.5 |
|
Recommended
PSU |
300W |
|
Power
Connectors |
N/A |
