All stock codes associated to this product
MT2070SD4D62370WR, MT2070-SD4D62370WR, 3340787
Overview
THE INTELLIGENCE OF A MOBILE COMPUTER AND THE SIMPLICITY OF A
SCANNER

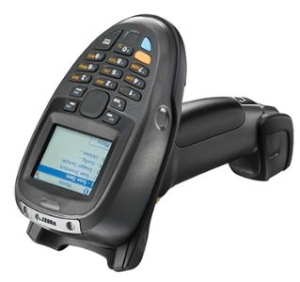

The MT2000 Series represents another industry first from Zebra. The marriage
of the simplicity of a scanner with the brainpower of a mobile computer and an
ultra-ergonomic gun-style form factor.
The easy-to-use affordable mobile terminal offers a unique hybrid design,
able to function as a scanner and a mobile computer.
FLEXIBLE DEPLOYMENT MODES
The MT2090 and the MT2070 models provide the flexibility to meet a wide
variety of business needs. Both models offer integrated Bluetooth for a
convenient cordless connection to a host device up to 300 feet (91.44 m)
away.
COMPREHENSIVE DATA CAPTURE
The MT2000 Series is loaded with advanced data capture capabilities. Choose
the scan engine that best meets your barcode scanning requirements. A 1D laser
scanner or 2D imager, both deliver Zebra's signature performance.
RUGGED DESIGN
A 6 ft./1.8 m drop specification plus a tumble specification of 500 3.2 ft./1 m drops (250 tumbles) and IP54 sealing combine to help ensure reliable operation in spite of everyday drops, bumps and exposure to dust and liquids
ZEBRA'S SIGNATURE RUGGED DESIGN FOR MAXIMUM RELIABILITY
This entry level value-priced mobile terminal offers the same drop
specification as Zebra's high-end rugged devices - a 6 ft./1.8 m drop
test performed across the entire operating temperature range. You get
reliable performance whether the device is dropped at room temperature
on carpet or tile - or out on the loading dock and in outdoor shopping
areas in extreme winter cold or summer heat. While the drop
specification defines the maximum survivable impact height, the tumble
test defines endurance - the MT2000 Series experienced no degradation in
performance after 250 tumbles in a rotating drum, which subjects the
device to 500 consecutive 3.2 ft./1 m drops. And IP54 sealing provides
dependable operation in spite of exposure to dusty environments or
splashing liquid, such as a beverage spill.
INDUSTRY-LEADING ERGONOMICS
The MT2000 Series exemplifies Zebra's expertise in industrial design.
The handle-forward design balances easily in the hand and combines with
a gun form factor, bringing all day comfort to even the most
scan-intensive applications. The shiftable alphanumeric keypad helps
ensure easy data entry - regardless of whether your applications require
primarily numeric or text-based entry - or both. And soft keys enable
the completion of a wide range of actions with the single press of a
button.
PROTECT YOUR DATA WITH GOVERNMENT GRADE SECURITY
Native FIPS 140-2 Level 1 certification* brings government grade
security to businesses and government agencies alike, providing easy and
cost-effective compliance with HIPAA, PCI and other industry security
regulations.
EXTENSIVE APPLICATION FLEXIBILITY
The industry standard Microsoft .Net Framework development
environment enables the easy creation of new applications. In addition,
porting existing batch and real-time applications developed for Zebra's
mobile computers and scanners, such as the Phaser, is virtually
effortless - the new MCL Designer Software (optional) includes a
built-in legacy application converter, and the MCL client is pre-loaded
on the MT2000 to easily port new applications. The result is a
cost-effective migration path that allows enterprises to upgrade to the
latest mobile device technology to further improve workflow automation
and employee productivity - while preserving existing application
investments.
A RAPID RETURN ON INVESTMENT (ROI) - AND A LOW TOTAL COST OF OWNERSHIP (TCO)
With the MT2000 Series, you can count on an exceptional ROI and TCO. The multi-function hybrid device eliminates the need to purchase separate bar code scanners and mobile computers, greatly reducing capital and operational costs. Zebra's flagship mobile device management solution, Mobility Services Platform (MSP), minimizes the most expensive aspect of any mobility solution - day-to-day management of mobile devices. MSP provides extraordinary centralized control, allowing IT to remotely stage, provision, monitor and troubleshoot devices - regardless of where in the world they are located. And since even the most rugged devices need a support plan, Service from the Start with Comprehensive Coverage sets the standard for post-deployment support by including normal wear and tear as well as accidental damage to internal and external components. Employee uptime is protected while unforeseen repair expenses are reduced.
Specifications
PHYSICAL CHARACTERISTICS |
Dimensions |
7.8 in H x 3.1 in. W x 5.0 in. D 19.8 cm H x 7.8 cm W x 12.7 cm D |
Weight |
13.5 oz/378 gm |
Display |
320 X 240 QVGA colour graphic display |
Battery |
2400 mAh Li-Ion @3.7Vdc |
Communication Interface |
USB 2.0 Host and RS-232 |
Keypad |
21-key single stroke numeric and shifted alpha, 4-way navigation button with 2 soft keys for application control |
Colour |
Dark Gray |
PERFORMANCE CHARACTERISTICS |
CPU |
IntelXScale PXA270 @312MHz |
Operating System |
Microsoft Windows CE 5.0 |
Memory |
64MB/64MB |
Application DevelopmentEnvironment |
Microsoft Windows client CE EMDK; Zebra EMDK; MCL Designer V 3.0 (MCL Client pre-loaded on both the MT2070 and the MT2090; pre-licensed on the MT2070 only) |
USER ENVIRONMENT |
Operating Temperature |
-4 Degrees to 122 Degrees F/-20 Degrees TO 50 Degrees C |
Storage Temperature |
-40 Degrees to 160 Degrees F/-40 Degrees TO 70 Degrees C |
Humidity |
5% to 95% non-condensing |
Drop Specification |
6 ft./1.8 m drop to concrete over the operating temperature range |
Tumble Specification |
250 3.2 ft./1 m tumbles (500 drops) |
Environmental Sealing |
IP54 |
ESD |
±15kVDC air discharge, ±8kVDC direct/indirect discharge |
Ambient LightingTolerance |
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux) |
DATA CAPTURE OPTIONS |
Options |
4 configurations: 1D Laser, 1D/2D Imager, 1D/2D HD Imager, DPM Imager |
SYMBOLOGY DECODE CAPABILITY |
1D |
UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplements, ISBN (Bookland), Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, Zebra Plessey, I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5), GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode) |
2D |
TLC-39, Aztec (Standard, Inverse), Maxicode, DataMatrix/ECC 200 (Standard, Inverse), QR code (Standard, Inverse, Micro) |
PDF417 |
PDF417 (Standard, Macro), Composite Codes (CC-A,CC-B,CC-C) |
Postal |
U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, upu fics 4 State Postal, USPS 4CB |
SECURITY CERTIFICATION |
Certified compliant with FIPS 140-2 (available on MT2000 Series Bluetooth-enabled mobile terminals) |
CORDLESS DATA COMMUNICATIONS |
Bluetooth |
2.4Ghz class I radio - 300 feet (91.44 m) open air |
PERIPHERALS AND ACCESSORIES |
Cradles |
Single slot charge only cradle, Single slot multi-interface with Bluetooth cradle, Single slot charge only fork lift cradle, 4-slot charge only cradle, 4-slot Ethernet cradle |
Chargers |
Four slot battery charger |
OtherAccessories |
Belt holster, desk cup, Intellistand |
Printers |
Supports Zebra approved 3rd party printers |
REGULATORY |
Electrical Safety |
Certified to UL60950-1, CSA C22.2 No. 60950-1, EN60950-1 |
EMI/RFI |
North American: FCC Part 2 (SAR), FCC Part 15 Subpart B - Class B, RSS210, EU: EN 301-489-1, 489-17 |
Laser Safety |
IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1 |
WARRANTY |
The MC2000 Series is warranted against defects in
workmanship and materials for a period of 36 months from date of
shipment, provided that the product remains unmodified and is operated
under normal and proper conditions. |
RECOMMENDED SERVICES |
Customer Services |
Service from the Start with Comprehensive Coverage |
1 - LED lighting with high AC ripple content can impact scanning performance |
