Overview



Built on the same storage design concept from the originalStorage Tower, the Storage Tower XIII features thirteen 5.25" drive bays, bigger power supply and more rooms for mounting more Port Multipliers (PM) or connectors. All these translates into more flexibility and more drives for larger storage capacity to meet your storage requirement

With the combination of various Disk Arrays, as many as twenty one 3.5" drives can be installed into the Storage Tower XIII. By connecting the drives to multiple Port Multipliers (available in 6G version), as many as twenty hard drives drives can be connected to the system with a single mini SAS cable, or four eSATA cables using the Storage Tower XIII. This is just one of the configuration examples. There are practically endless customization possibilities in combining 3.5" or 2.5" SATA or IDE hard drives with various RAID capability. You can actually consolidate all the storage into one Storage Tower and use it as a storage server for multiple systems

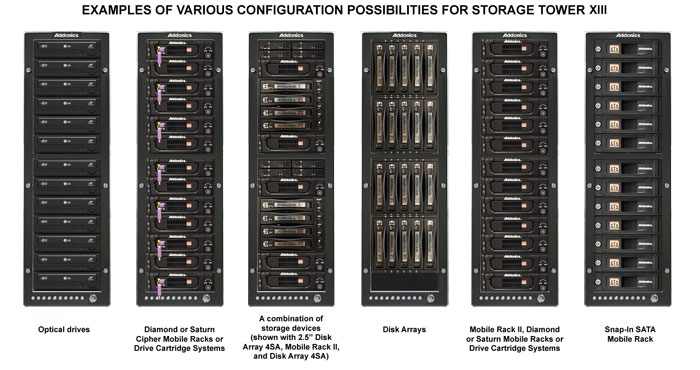

Storage Tower XIII with examples of various configuration possibilities

When combined with the Addonics Drive Cartridge Systems and Disk Arrays, the Storage Tower XIII can be turned into a storage system with hot swappable removable drive capability. For the security the Ruby Cipher Drive Cartridge System or Diamond Cipher Drive Cartridge System can be added to protect the data with AES 256-bit encryption

ST13 configuration examples

To ensure efficient cooling of all the storage devices inside the enclosure, the Storage Tower IX includes two high CFM cooling fans and vented front panel for a well ventilated interior with superior air flow. The case cover which extends over the top and side panels can also be easily removed to provide easy access for storage device installation and cable connection.

Features

  • Great for variety of storage applications - external RAID storage, Video storage, Server storage
  • Thirteen 5.25" drive bays
  • Choice of following storage controllers or bridges for connecting the drives inside the Storage Tower
  • Hardware Port Multiplier-XU (AD5HPMREU) to connect up to 5 SATA/SATA II/SATA III hard drives to computer via any eSATA* or USB 3.0/2.0 port. Can be configured as RAID 1, 0, 10, 5, 3, BIG, or Clone mode. (RAID setting is configured through onboard dip switches or included Windows software)
  • 5x1 eSATA Hardware Port Multiplier-XA Enclosure Version (AD5HPMRXA-E) to connect up to 4 SATA/SATA II/SATA III hard drives to computer via any eSATA port. Can be configured as RAID 1, 0, 10, 5, 3, BIG, or Clone mode. (RAID setting is configured through onboard jumpers or included Windows software)
  • 5-Port 6G Rack Mount PM (AD5SARM6G) to connect up to 5 SSATA/SATA II/SATA III hard drives to computer as via 1 eSATA port (requires a PM compatible SATA controller). Support SATA 3.0 6Gbps throughput when connecting to 6G SATA port. Can be configured as RAID via RAID utilily of the OS or the attached host controller.
  • 5X1 eSATA Port Multiplier (AD5SARPM-E) to connect up to 5 SATA/SATA II/SATA III hard drives to computer as via 1 eSATA port (requires a PM compatible SATA controller). Can be configured as RAID 1, 0, 1+0, RAID 5, JBOD or as individual drives**.
  • Dual Mini SAS bridge (AD2EMSRM) with two SFF-8088 connector to connect up to 8 SATA/SATA II/SATA III hard drives to system via two mini SAS cable.
  • Accommodates up to twenty one 3.5" hard drives when combined with various Disk Arrays.
  • Sturdy metal frame construction
  • Power and drive access LED sockets



Specifications

Number of 5.25" drive bays

13

Connector s on back panel

ST13HMEU - eSATA and USB 3.0/2.0

ST13PM6G - eSATA

ST13RPM - eSATA

ST132MS - two mini SAS (SFF-8088)

 Supported OS

USB 3.0/2.0 - Windows  Me, 2000, XP, Vista, 7,
2003, Linux kernel 2.4 and higher, Solaris 9.0
and higher, Mac OS 10

eSATA - DOS, Windows NT/SP6, 98SE, Me, 2000, XP,
2003, Linux kernel 2.4 and higher, Mac OS 10

Cooling fans

two 120 x120 mm

Dimension ( W x D x H )

7.5 x 15.75 x 24.75 in.

190 x 400 x 629 mm

Net weight

~ 43 lb ( 19.5kg)

LEDs

13 + 1 power LED

SCSI - I (Centronics 50) punch outs on back panel

6

USIB connector pouch outs on back panel

2

Power supply

500 watts 110/240V AC

Internal power connectors

4P Molex male

1

15-pin SATA female

13 ( 5 connectors can be changed to 4P
Molex by removing the 15-pin
SATA power adapter)

4P floppy power female

1

Operating temperature and humidity

0 - 60 degree C, 15% - 90% RH

Storage temperature and humidity

-20 - 60 degree C, 0% - 95% RH
