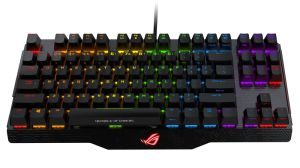

ASUS ROG Claymore Core RGB Mechanical Gaming Keyboard - Cherry MX
Blue
Features
- Individually-backlit keys with Aura Sync RGB LED technology for unlimited
personalization options
- Fully programmable keys with on the fly macro recording
- 100% anti-ghosting with N-key rollover (NKRO) technology
- Hotkeys for fan speed, lighting and overclocking controls when paired with
an ASUS ROG motherboard
- Onboard memory to save profiles on the go and intuitive ROG Armoury for
lighting, key, and stats settings
- Durable aluminum construction with intricate Mayan-inspired
detailing
Overview
ROG Claymore CoreRGB mechanical gaming keyboard with Cherry MX
RGB switches, fully programmable keys and Aura Sync
ROG Claymore Core features Cherry MX RGB switches to give you precise and
responsive keystrokes. It features individually-programmable backlit keys with
Aura Sync technology for unmatched levels of personalization. This 100%
anti-ghosting keyboard has N-Key rollover technology, on the fly macro
recording, and dedicated hotkeys for exclusive ASUS motherboard cooling and
overclocking controls. ROG Claymore Core gives you the winning edge in the
digital battlefield.
- Height adjustable feet
- Cherry MX RGB Switches (red, black, blue, brown)
- Aluminum construction with Mayan-inspired detailing
- Cable routing grooves
- Detachable micro USB cable
- ROG SYNC hotkey for Aura synchronization between ROG Claymore Core and ROG
Spatha
- On the fly macro recording
ASUS Aura – Let There Be Light
Fire up Aura and enjoy a mesmerizing light show on ROG Claymore Core's
individually-customizable backlit keys, and get creative with its palette of
over 16 million colors. You'll also be able to sync your customized light effect
with the ever-growing range of Aura-enabled gear.
Enjoy 9 Different Preset Aura Effects
- Static
- Breathing
- Color cycle
- Wave
- Ripple
- Reactive
- Starry night
- Quicksand
- Custom effect
Every Keystroke Counts
ROG Claymore Core features Cherry MX RGB switches, 100% anti-ghosting with
N-Key rollover (NKRO) technology, fully programmable keys and on the fly macro
key recording to ensure you always get the winning edge.
Cherry MX RGB Switches
German-made Cherry MX RGB switches (Red, Blue, Brown and Black) give you
tactile, responsive keystrokes and unmatched 50-million-keystroke
durability.
Blue
- Switch: fast response with light tactile and
audible feedback
- Actuation distance: 2.2mm
- Actuation force: 60g
Anti-Ghosting With N-Key Rollover
ROG Claymore Core features 100% anti-ghosting with N-Key rollover (NKRO)
technology to ensure each keystroke is detected no matter how many other keys
are pressed so all your multi-keystroke commands are logged.
Repeat Acceleration
Repeat acceleration is the rate at which a letter repeats itself when you
hold a key down. You can adjust repeat rate to suit the situation at hand keep
it at the default rate for typing, or increase it for some rapid-fire
action.
Unlimited Personalization And Customization
You can save up to six user profiles (5 customized + 1 default profile) on
ROG Claymore Core's built-in flash memory on the go. The intuitive ROG Armoury
lets you customize keys, lighting and macro settings. You can even track
statistical data like how many keystrokes were made during a game.
All In Sync
ROG gives you exclusive Aura Sync options and additional features when you
pair ROG Claymore Core with an ASUS ROG motherboard, graphics card and more. ROG
Claymore Core's hotkeys allow you to control your ASUS motherboard fan speed and
overclock the system.
Perfect Lighting In Sync
Aura Sync takes RGB lighting beyond the checkbox, combining and controlling
the LEDs of all your Aura-enabled products from a single application to achieve
perfect, synchronized harmony. Aura lets you sync light effects across your
motherboard, ROG Claymore Core and the ever-growing portfolio of Aura-enabled
products. You can choose from an array of LED effects and can even use ROG
Claymore Core's backlighting to reflect CPU temperature.
Synchronization between ASUS motherboard, graphics card and ROG Claymore Core
via Sync software is enabled and controlled by Aura-ready motherboards. Visit
the support page for your Aura-enabled motherboard to download Aura software,
click on Driver & Tools followed by Utilities.
To synchronize Aura between ROG Claymore Core and Spatha only, simply press
the Fn key and then the ROG SYNC hotkey when ROG Armoury is activated.
Synchronization will take about 10 seconds. Aura Sync with ROG Spatha is only
available in wired mode.
One-Click Cooling And Overclocking, Done!
Experience the synergy between ROG Claymore Core and your ROG motherboard via
exclusive hotkeys that let you boot up the system, control fan speed*, overclock
and access BIOS
Requires both ROG Armoury and Fan Xpert software. Please download Fan Xpert
software from your motherboard's support site.
To enable KeyBot under S5 mode: Please plug ROG Claymore Core to the
dedicated USB socket found on your ROG motherboard and active both ROG Armoury
and KeyBot II softwares.
Hot Key Table
Brightness Level
Fn + Up: Brightness up
Fn
+ Down: Brightness down
Color Customization
Fn + Delete: Red increase (10 levels)
Fn
+ End: Green increase (10 levels)
Fn
+ PageDown: Blue increase (10 levels)
ROG Sync
Fn + PrintScreen (Only available when Armoury software is activated)
Windows Key Off
FN + Windows key
On The Fly Macro Recording
Step 1: Fn + Right-ALT to start recording
Step
2: Fn + Right-ALT to end recording
Step
3: assign Macro Key
Memory Overclocking
F12
Power On
Enter
Lighting Effect Switch
Fn + Right or Fn + Left
Profile Switch
Fn + 1/ 2 / 3/ 4/ 5/ 6*
*6
is default
Fan Speed Control
Fn + "+" or Fn + "-" (Only available when ROG Armoury and Fan Xpert software
are activated)
Repeat Acceleration
Fn + F1: 1X
Fn
+ F2: 2X
Fn
+ F3: 3X
Fn
+ F4: 4X
CPU Overclocking
F11
Enter To BIOS
DEL
Clear CMOS
CLR
Switching to ROG Armoury's lighting tab will disable all hotkeys except Fn+
media keys, Fn+ fan speed control and Fn+ ROG Sync.
Specifications
Connectivity Technology |
Wired, USB 2.0 |
OS Support |
Windows® 10 |
|
Windows® 8.1 |
|
Windows® 7 |
Dimensions |
360 x 145 x 45 mm |
Weight |
770 g with cable |
Contents |
1 x Claymore Core keyboard |
|
1 x USB cable |
|
1 x ROG pouches |
|
2 x ROG logo stickers |
|
User documentation |
Note |
[Hot Keys] |
|
Profile switch: |
|
Fn + 1/ 2 / 3/ 4/ 5/ 6: Profile 1 - 6 (6 is default
profile) |
|
Lighting effects switch: |
|
Fn + Right or Fn + Left |
|
Brightness level: |
|
Fn + Up: Brightness up (5 levels) |
|
Fn + Down: Brightness down (5 levels) |
|
Color customization: |
|
Fn + Delete: Red increase (10 levels) |
|
Fn + End: Green increase (10 levels) |
|
Fn + PageDown: Blue increase (10 levels) |
|
ROG SYNC (sync Aura lighting effects between Claymore and Aura-enabled
mouse): |
|
Fn + PrintScreen |
|
*Only available when Armoury software is
activated. |
|
*Synchronization will take about 10 seconds. |
|
Motherboard fan speed control: |
|
Fn + "+" or Fn + "-" |
|
*Only available when Fan Xpert software and Armoury software are
activated. |
|
On-the-fly macro recording: |
|
Step 1: Fn + Right-ALT to start recording |
|
Step 2: Fn + Right-ALT to end recording |
|
Step 3: assign Macro Key |
|
Windows key lock: |
|
Fn + Windows key |
|
*Not available under Armoury software Claymore lighting
page. |
|
Repeat acceleration: |
|
Fn + F1: 1X |
|
Fn + F2: 2X |
|
Fn + F3: 3X |
|
Fn + F4: 4X |
|
Overclocking & Booting-up Hot Keys (ROG KeyBot II S5
mode) |
|
Boot-up: Long press on ENTER |
|
Boot-up and overclock CPU: Long press F11 |
|
Boot-up and overclock memory: Long press F12 |
|
Boot-up and enter BIOS: Long press DELETE |
|
Clear CMOS: C + L + R |
|
*Please plug keyboard to the dedicated USB socket found on your ROG
motherboard. |
|
*Only available when KeyBot II software is activated and switched
on. |
