Addonics AD2MS6GPX8 External 8-port SATA/SAS PCIe controller

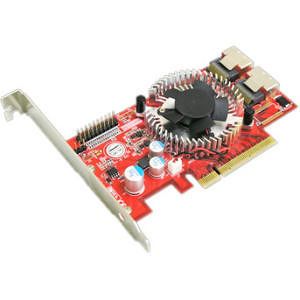

Addonics External 8-Port SATA/SAS PCIe controller

Overview

This latest PCIe controller supports connecting up to eight SAS or SATA devices via two external mini SAS (SFF-8088) connectors. Each SATA connection supports throughput up to 6Gbps when installed into PCI-Express 2.0 slots with 8 or more lanes. Thesmallform factor of this controller allowsit to fit into both standard height and low profile slots in many Desktop, small form factor system, rack mount system and various computing equipment. This controller is ideal for connecting storage system with mini SAS (SFF-8088) connector or multilane (SFF- 8487) connector.

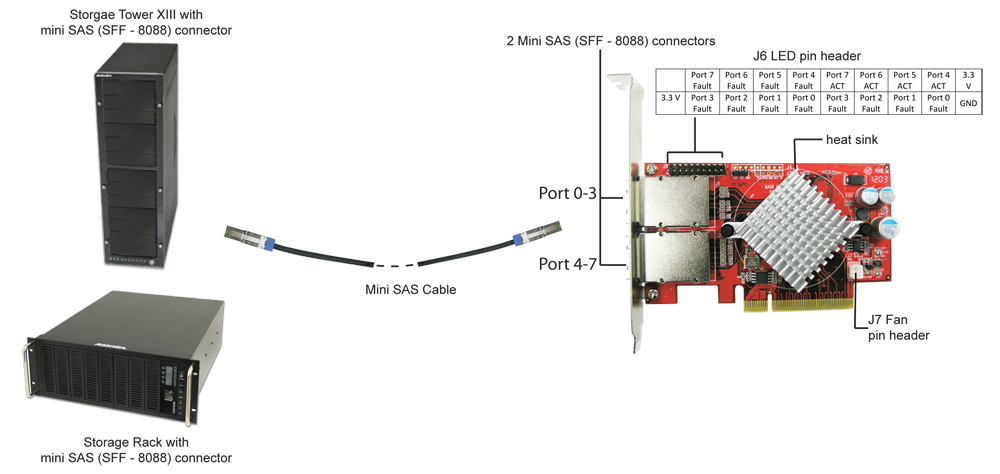

Connecting to any external storage device that has mini SAS connector(SFF-8088)via standard mini SAS cable

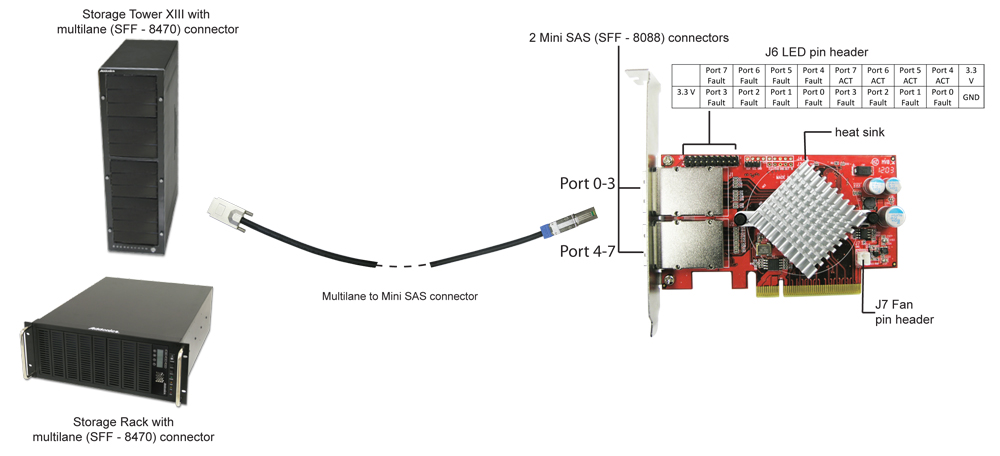

Connecting to any external storage device that has multilane connector (SFF- 8470) via a multilane - mini SAS cable

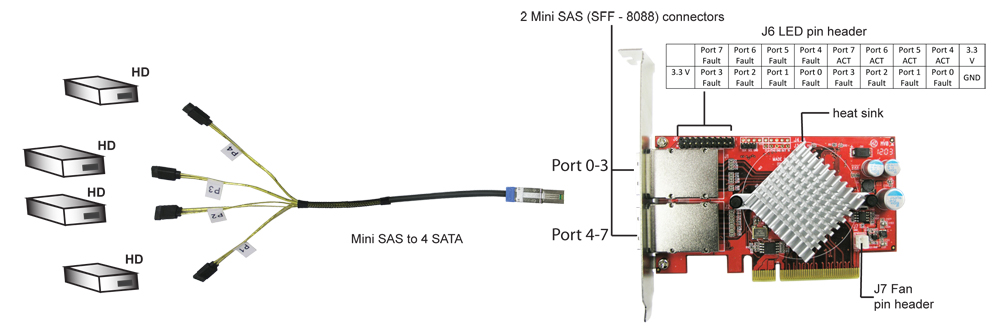

Connecting 4 eSATA hard drives to a single external min SAS port

Features

• Eight external SATA/SAS ports via two external mini SAS connectors (SFF-8088)
• Supports 6 Gbps, 3 Gbps & 1.5 Gbps SAS or SATAhard drive
• PCI-Express 8 lane compatible (also fits into PCI-Express 16 Lane or the graphic card slot)
• Up to 600 MBytes/sec (6 Gbps) per port
• Fits standard height Desktop case, low profile PC, rackmount system and various computing equipment
• Includes low profile PCI bracket
• Heat Sink for efficiently cooling of the onboard processor
• Comptaible with the following Addonics Port Multiplier AD5HPMSXA, AD5HPMRXA-E and AD5HPMREU for individual drive setting
• Non-RAID, drives appears as independent drives to the system
• Hot swap support - drive can be removed and added without system shut down or restart*
• Simple plug and play
• Completely with drivers for 64bit / 32bit Windows 7, Windows 8, Vista, XP, 2000 and above

* Hot swapping hard drive has been tested on Windows OS only

Specifications

• 40 Gbps transfer rate PCIe 2.0 8x interface card
• Two SFF-8088 connectors
• Marvell 88SE9480 chip
• Compliant with PCI Express Specification, Revision 2..0
• Supports main board PCI Express 2.0 x8 and x16 host slot
• Serial Attached SCSI 2.0 (SAS-2.0) specification compliant.
• Serial ATA Revision 3.0 (6 Gbps) specification compliant.
• Supports auto-detection of SAS or native SATA device.
• Supports PCIe Power Management: D0, D1, D3_cold, D3_hot.
• Supports SAS Multiplexing.
• Supports SSC with independent control of each PHY.
• Supports wide SAS ports.
• Supports SAS Protocol (SSP), initiator and target mode.
• Supports SAS Management Protocol (SMP), initiator mode.
• Supports SATA Tunneling Protocol (STP), initiator mode including
• Non-zero offset and non-sequential data delivery
  • ATA and ATAPI command
  • Native Commands Queuing (NCQ)

• Supports Host mode and Device mode of operation
• Dimension (W x L x H): 64.4 x 124 x 17 mm (~ 2.54 x4.88x .67 in.)
• Weight: 85g (~ 3 oz)
• Operating temperature and humidity: 0 - 60 degree C, 5 - 90% RH
• Storage Temperature and humidity: -20 - 70 degree C, 0 - 95 % RH non-condensing
• Fully RoHS compliant

SATA data transfer rate is calculated at 10 bits=1 byte
