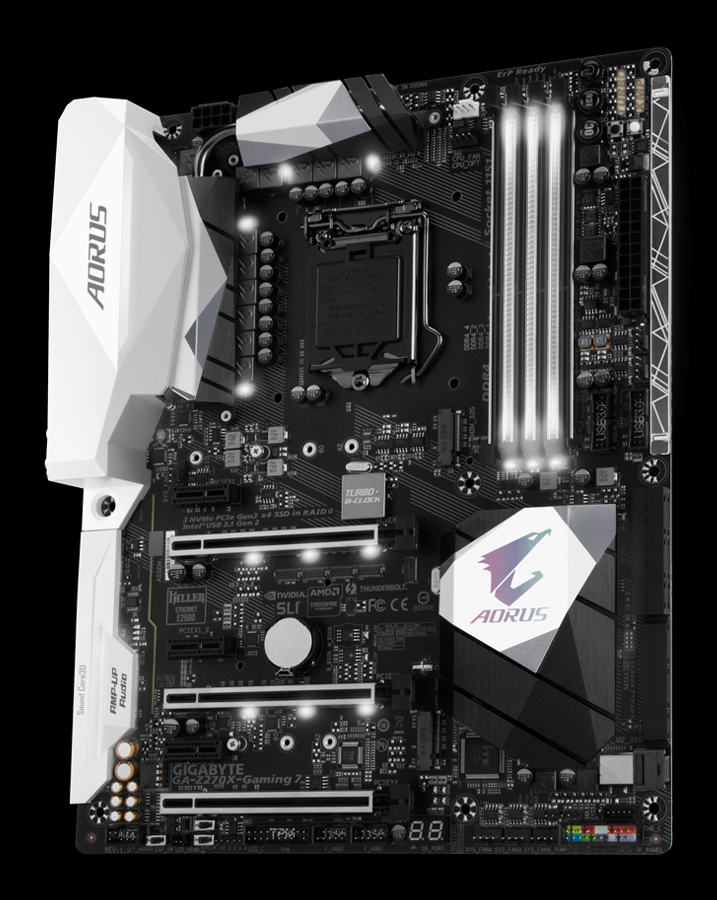

All stock codes associated to this product
GAZ270XGAMING7, GA-Z270X-GAMING-7, 4719331841393
Overview
Features
- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, DDR4 4133+(OC)
- Intel® USB 3.1 Gen 2 with USB Type-C™ and Type-A

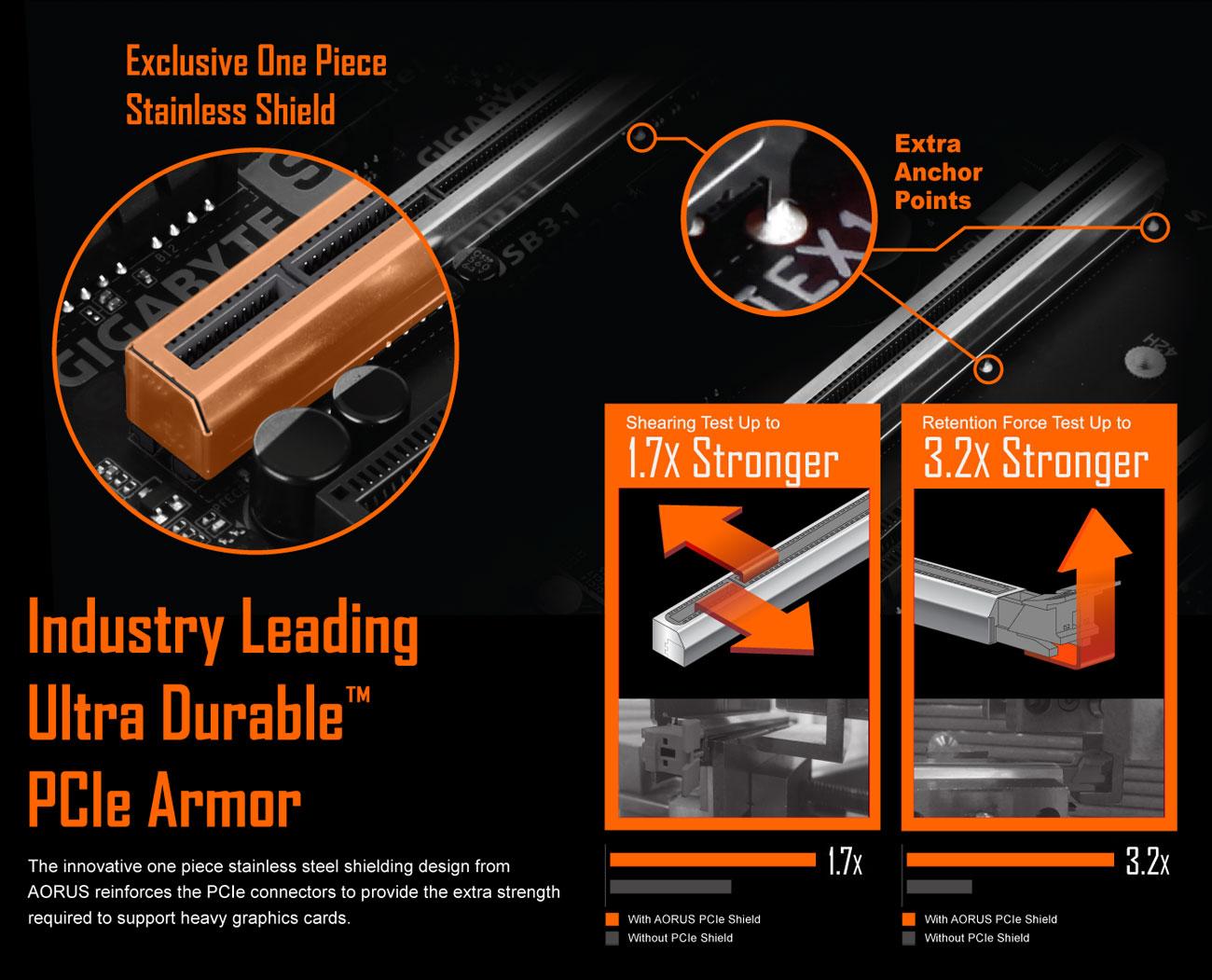

- 3-Way Graphics Support with Dual Armor and Ultra Durable Design
- Triple NVMe PCIe SSDs in RAID 0 Support
- NVMe PCIe Gen3 x4 U.2 Connector
- Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Intel Optane Memory Ready
- Creative® Sound Core3D™ with SBX Pro Studio Audio Suite
- Killer™ E2500 Gaming Network + Intel® Gigabit LAN
- USB DAC-UP 2 with Adjustable Voltage
- RGB FUSION with Multi-Zone LED Light Show design
- Swappable Overlay for Accent LED
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- 2 External Thermistors Headers with 2 Included Thermistors
- Extreme 40 Gb/s Thunderboltâ„¢ 3
- GIGABYTE UEFI DualBIOS
- APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities
YOUR GAME. YOUR WAY.
RGB FUSION | Set the Color that Matches Your Style
AORUS' 200 series motherboards boast the most advanced LED system in the
market today. With more customizability than ever and a convenient and intuitive
UI thanks to the RGB Fusion App, youll have a blast making your AORUS your own.
LED enthusiasts now have even more options with the ability to customize
multiple zones independently. For a more functional use, the bright and vibrant
LEDs can be configured to display the PCs temperature or load. For even more LED
goodness RGBW strips are now supported for more true and vibrant whites.
Multi-Zone Light Show Design
- 16.8M RGB Colors
- 3 Light Zones
- 4 Programmable Sections
- 7 Different Lighting Effects
- 1 RGBW Light Strip Pin Header
- Accent LED with interchangeable Overlay
- Advanced Mode for Extreme Customizability
Surround Lighting
Three different light zones are equipped with bright RGB LEDs, namely the CPU
Zone, Armor & Audio Zone and Accent LED Zones. When its all set and done,
your system will shine like never before.
Swappable Overlay for Accent LED
AORUS brings even more color and life to your system with an Accent LED
Overlay. This overlay complements the RGB Fusion technology in AORUS
Motherboards adding more flare and style to your gaming machine. With the
swappable overlay users can utilize different patterns and designs to make their
system their own.
Supports RGBW Light Strips
Independently Programmable Onboard Pin Header for RGBW LED Strips
Not bright enough? You can install standard 12V external RGB or RGBW light
strips on the RGBW pin header and control its color from the RGB Fusion
software. With RGBW light strips that have a dedicated white color LED, you can
have brighter and more vibrant colors.
No need to worry when choosing light strips as the AORUS motherboards support
a wide variety of RGBW light strips on the market thanks to the RGB Fusion
software that allows users to redefine the pin location for the R/G/B
Signal.

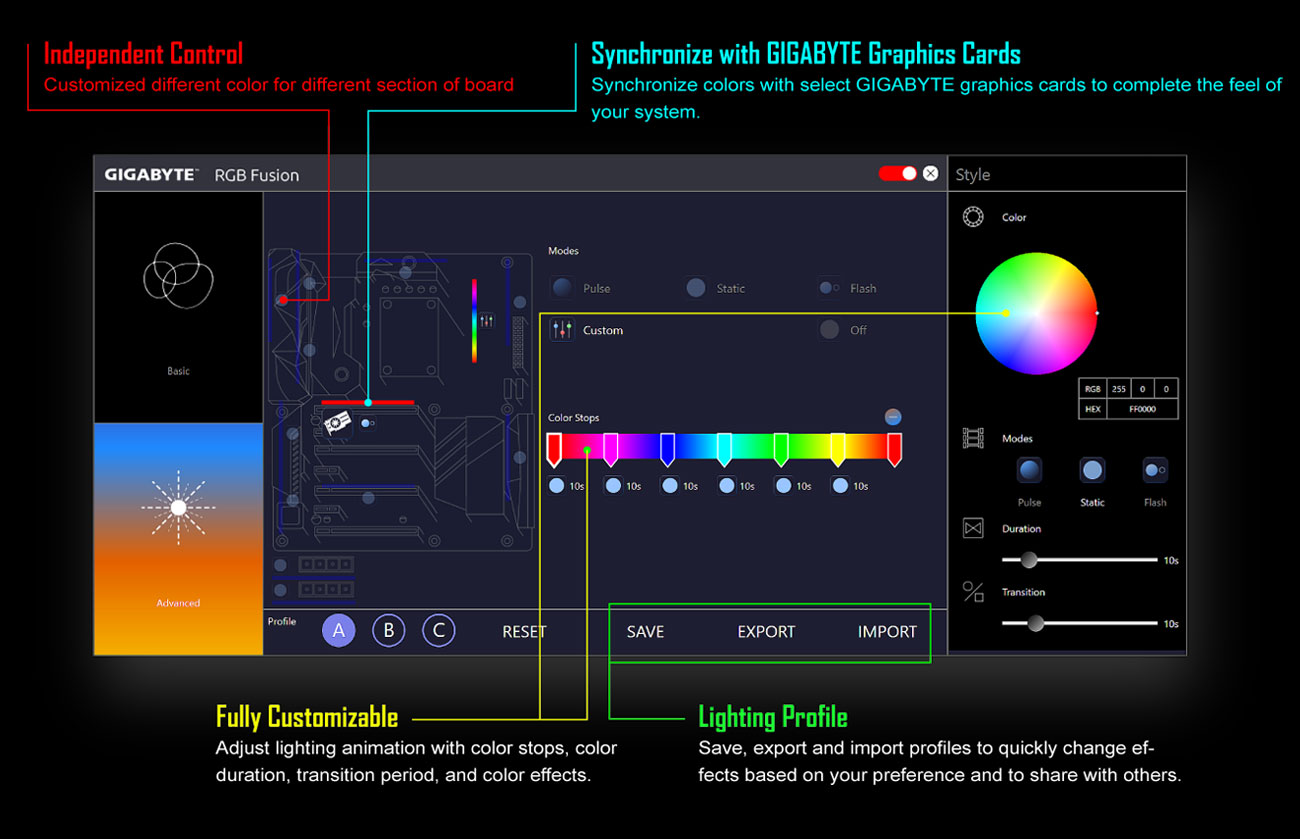

RGB Fusion (Advanced mode)
- With the all new RGB Fusion software, users have access to different
preset LED lighting configurations with choice of colors. You can even set the
LEDs to synchronize with your favorite music or have them change colors to
indicate the CPU temperature.
- For true lighting experts there is an Advanced Mode, which can be fully
customized by individual area with its own effects and color transitions,
along with specific duration and transition times.
- Once done, it’s simple to save and share your lighting profile with
others
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
All Hybrid Fan Pin Headers
- All Hybrid Fan Headers can automatically detect the type of cooling device
whether it be fan or pump with different PWM or Voltage mode.
- Supports up to 2 amps with built-in overcurrent protectiona must for
high-end high current fans.

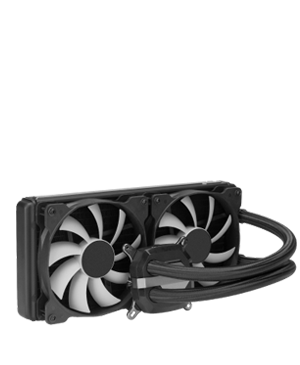

Closed Loop Watercooling

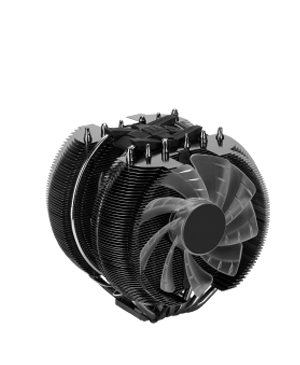

CPU Fan

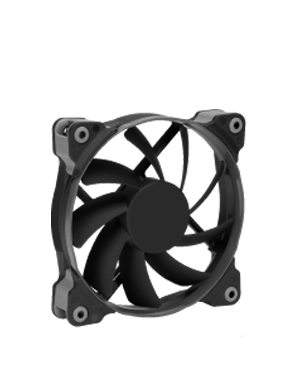

System Fan

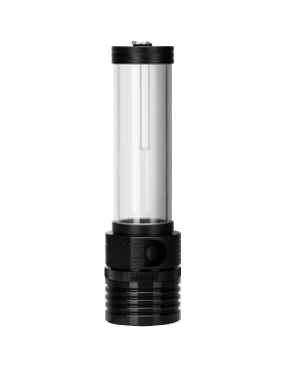

Watercooling Pump

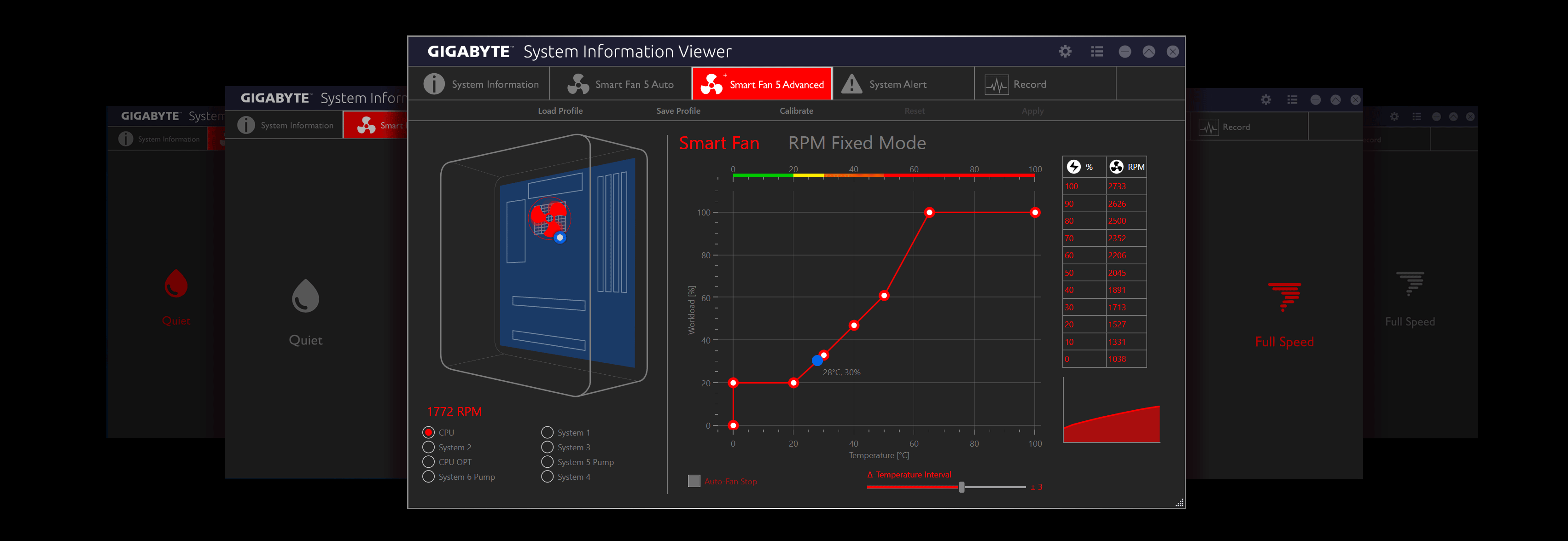

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
scenario. For each fan or pump, you can use the intuitive fan curve to define
trigger thresholds and corresponding fan speeds.
Interoperable Sensors and Fans
- Each fan can be customized to operate at different speeds according to any
defined temperature source input (except the CPU fan).
Fan Curve
- Customize fan curves based on specific temperatures with the intuitive
graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart
Fan 5 UI, such as: the ability to set triggers based on different temperature
sensors on the board, fan curve definition and the temperature interval setting,
which can prevent fan rotation noise caused by sudden temperature changeall
without having to load Windows.
Creative® Sound Core3D™ Quad-Core Audio Processor
Combining the world's first Quad-Core Audio Processor, Creative Sound Core3D,
Plus Advanced Creative SBX Pro Studioâ„¢ Audio Suite.
- Harnessing the power of a Dedicated Audio Processor to offload workload
from CPU
- Total solution from Creative (Hardware + Software)
- Richer overall audio experience.

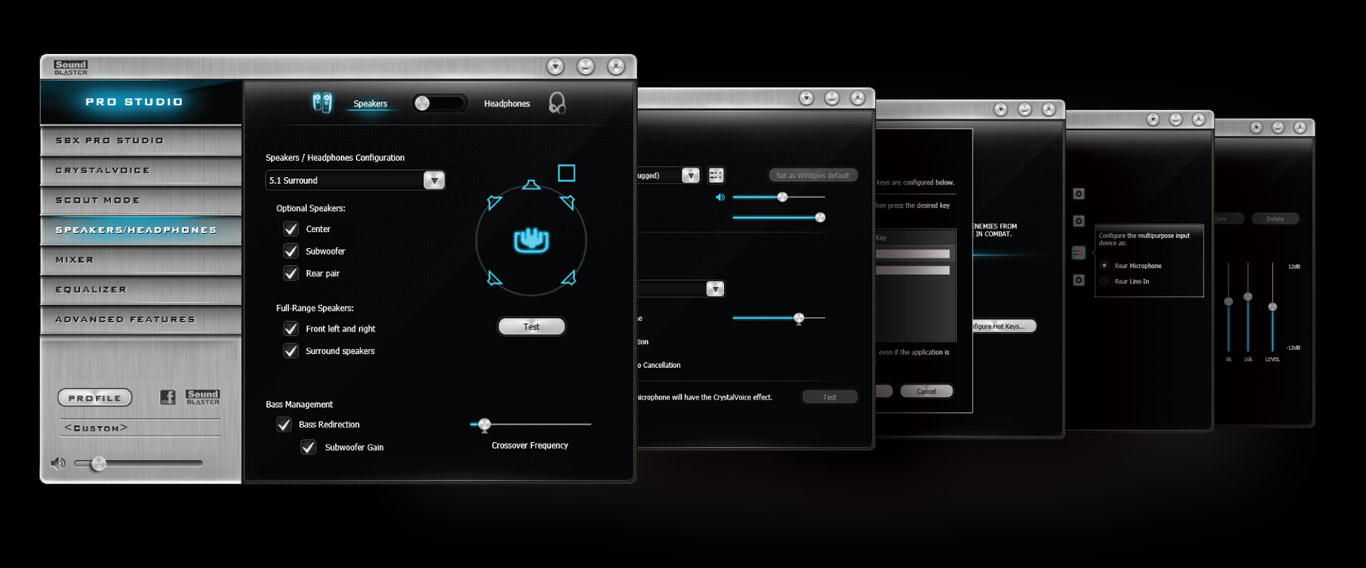

Creative SBX Pro Studioâ„¢ Audio Suite
SBX Pro Studioâ„¢ suite of audio playback technologies deliver a new level of
audio immersion. Realistic surround sound, the ability to clearly hear specific
sounds in a gaming environment are just a few elements of SBX Pro Studio that
enhances the overall experience, be it movies, games or musi
High-End Audio Capacitors
AORUS Gaming motherboards use high-end Japanese Nichicon audio capacitors.
These high quality capacitors help deliver high resolution and high fidelity
audio to provide the most realistic sound effects for gamers.
AMP-UPâ„¢ Audio Technology with Upgradable OP-AMP
Customizable
- Users can choose audio quality based on individual listening preferences.
- Wide availability of additional OP-AMPs.
Low Cost way to dramatically improve audio quality
- Improve audio dynamics and overall sound-quality with little cost.
- No need for expensive speakers or high-end audio equipment.
USB DAC-UP 2 | Adjustable Voltage USB Port with Dedicated Power
Design
- AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
- USB DAC-UP 2 continues to provide clean, isolated and low-noise power
while adding the ability to compensate for voltage drop.
- Virtual reality pioneers and gamers alike can rest assured that their
expensive accessories and peripherals will not encounter connectivity or power
deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large
amounts of power and having firm specification requirements USB DAC-UP 2 is up
for the challenge.

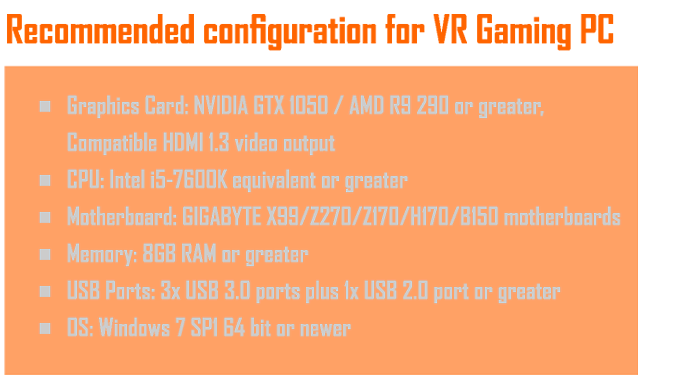

Immersive VR Gaming Experience
- VR requires more performance than Full HD graphics for a steady 90FPS or
greater.
- Only Gaming PCs can provide the best VR experience.
To create a seamless VR experience AORUS Motherboards offer the best features
to make your virtual reality feel like your actual reality. With technologies
such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for
heavier discrete graphics cards it's obvious that AORUS has the tools you need
to start your journey in VR. To set the mood AORUS Motherboards include RGB
Fusion to put you in the center of action.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime,
Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster + Broadcaster! Fully optimized social media integration is ready for
real-time chatskeeping you notified yet focused in the game. It takes just one
click to stream your gameplay to Twitch. Host your game like a pro!
Killer™ E2500 Gaming Network + Intel® Gigabit LAN
- Killerâ„¢ E2500 is a high-performance, adaptive gigabit Ethernet controller
that offers better online gaming and media performance compared to standard
solutions.
- Intel® Gigabit LAN networking, a popular choice with gamers, delivers
several performance-enhancing features such as advanced interrupt handling to
help reduce CPU overhead and Jumbo Frame support for extra large data
packets.
Triple NVMe PCIe SSDs in RAID 0 Support | Extreme Performance with
Gen3 x4 NVMe PCIe SSDs
AORUS' Z270 motherboards offers the industrys best compatibility in terms of
NVMe storage for users who demand high capacity and seek the best performance.
AORUS' unique design supports up to three Intel 750 Series NVMe PCIe SSDs which
can be configured in RAID for record speeds of up to 3525 MB/s (Sequential
Read), making AORUS the obvious choice for the ultimate PC.
U.2 Onboard (NVMe PCIe Gen3 x4) | NVMe Performance for PCIe
SSDs
The new Intel 750 series SSDs offer an incredible increase in performance
over SATA drives. Using the NVMe protocol which takes advantage of the fast
bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for
users looking to boot their OS faster, load their games in a flash and access
large files without waiting. By implementing the U.2 port onboard to support the
2.5 Intel 750 Series drive, AORUS ensures that the users can benefit from the
best performance.

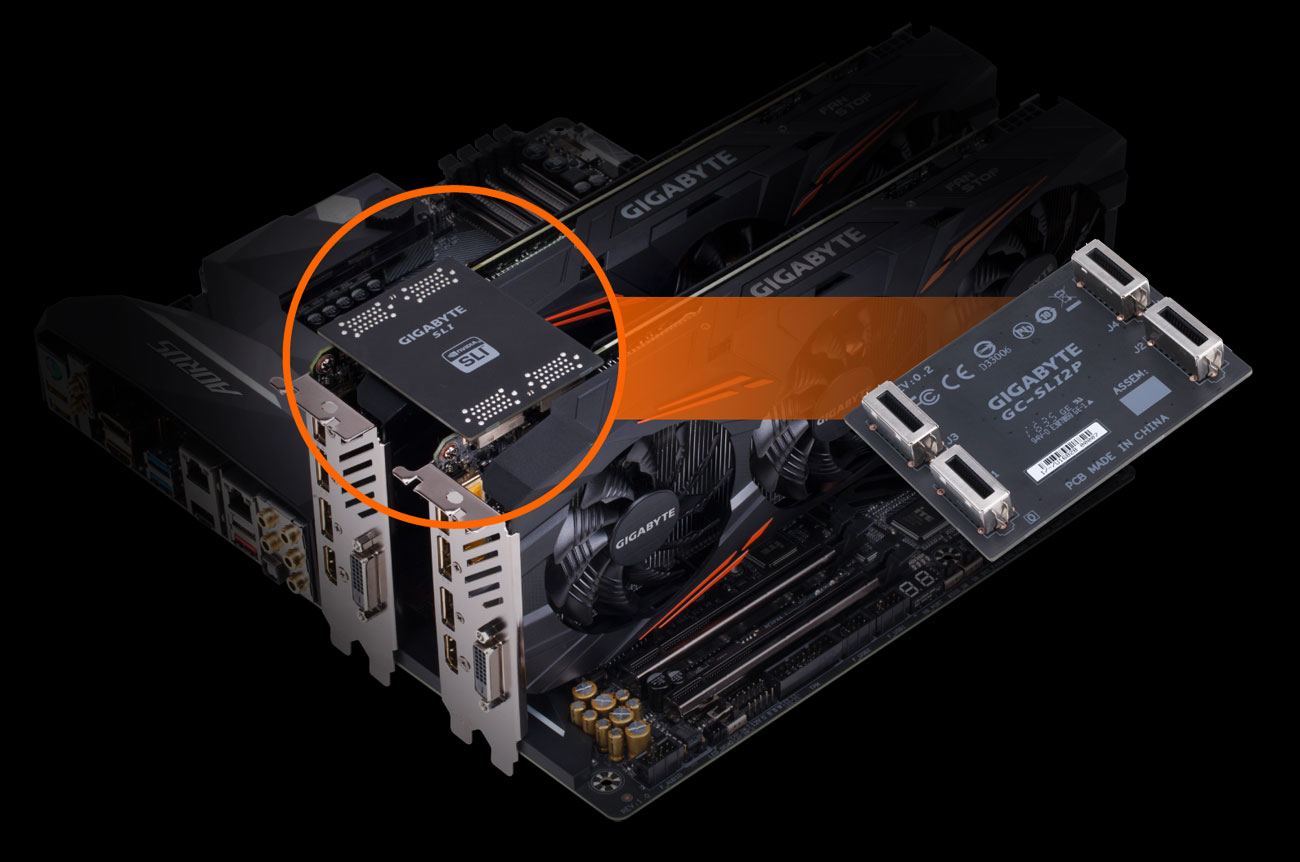

High-Bandwidth(HB) SLI Bridge
Take your gaming performances to a whole new level by multiple GeForce GTX
cards with High-Bandwidth(HB) SLI Bridge.

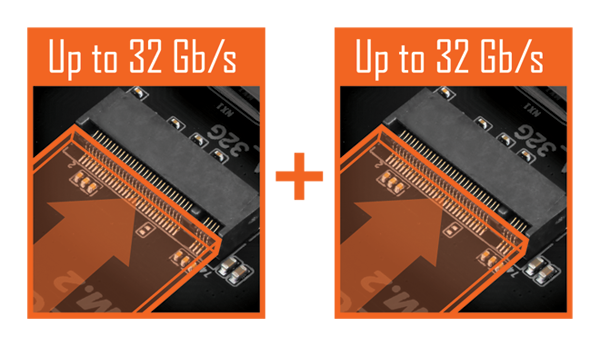

Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2
With two NVMe PCIe Gen3 x4 M.2 connectors onboard, AORUS brings to the user
PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer
speed per connector, the dual M.2 provides an ideal storage solution as it also
supports RAID modes.

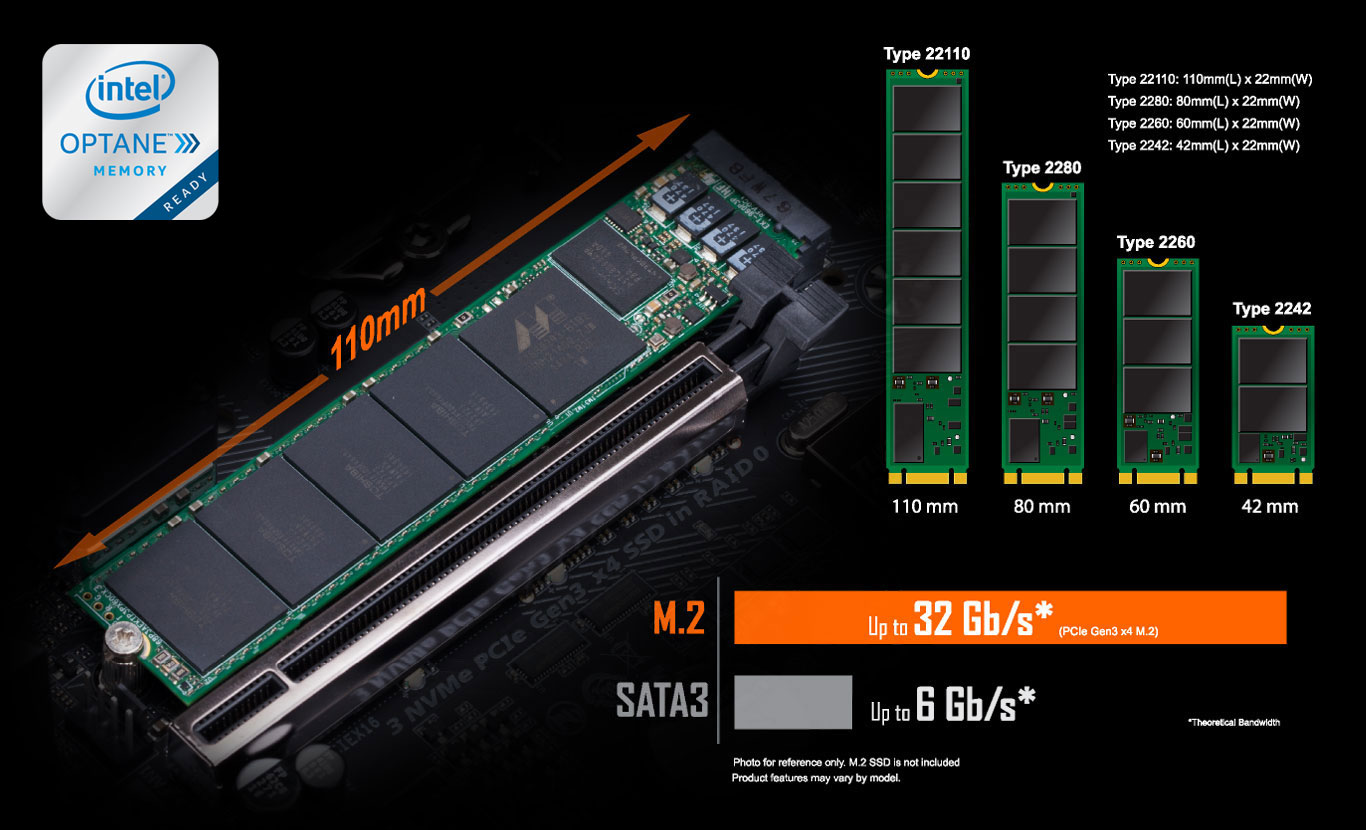

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32
Gb/s)
AORUS' M.2 solution offers considerably faster storage performance and
support for both PCIe and SATA interfaces for M.2 SSD devices.
Next Generation 40 Gb/s Thunderboltâ„¢ 3
Thunderbolt™ 3 – The Fastest 40 Gb/s Single-wire
Connection
Powered by Intel's own Thunderbolt controller the new Thunderboltâ„¢ 3
protocol, which is available over a USB Type-Câ„¢ connector on the back I/O of the
AORUS' motherboards, brings an unprecedented single-wire bandwidth of up to 40
Gb/s -- twice more than the previous generation of Thunderbolt! This incredible
increase in bandwidth is also accompanied with support for different protocols
such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0
and USB 2.0, opening up a world of new possibilities.

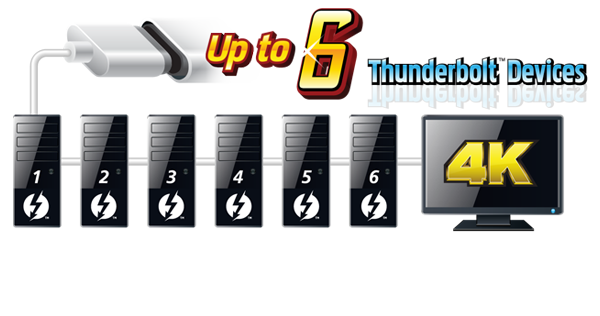

Daisy-chain Multiple Devices
Support for DisplayPort 1.2 makes Thunderboltâ„¢ 3 a must have for any
enthusiast. The Z270X-Gaming 7 is able to support a display in 4K resolution at
60 FPS. In addition, Thunderboltâ„¢ 3 over USB Type-Câ„¢ has revolutionary
industry-first features such as Power Delivery 2.0, and the ability to
daisy-chain up to 6 devices thanks to the Z270X-Gaming 7's USB Type-Câ„¢ port.
PURE SPEED, MORE POWER | Exclusively on AORUS Powered
Motherboards
Intel® USB 3.1 + Power Delivery 2.0
The Intel® USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to
32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per
USB 3.1. With twice the bandwidth compared to its previous generation, and
backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol
is available over the new reversible USB Type-Câ„¢ and the traditional USB Type-A
connector for better compatibility over a wider range of devices.
Turbo B-Clock | Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS 200 series motherboards enable
overclockers to have the ability to change their BCLK frequency to a desired
value of their choice. With the new linear range adjustment option of the Tuning
IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not
limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
Diagnostic LEDs | Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is
occurring, allowing users to quickly diagnose which major component
(CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
Support for DDR4 XMP Up to 4133MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper
compatibility with profiles up to 4133MHz and beyond. All users need to do to
attain this performance boost is to ensure that their memory module is XMP
capable and that the XMP function is activated and enabled on their AORUS
motherboard.
What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as
frequency tweaking requires a considerable amount of effort and knowledge,
memory vendors encode XMP profiles which can automatically modify the timings of
the supported memory modules to work with your CPU and to achieve increased
performance.
Dual Armor DIMM and PCIe Metal Shielding
- Never worry about your heavy graphics card damaging your motherboard
again. AORUS proprietary Ultra Durable PCIe Metal Shielding reinforces the
PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and
PCIe metal shield also provides extra strength for when you forget to release
the lock while replacing your component, adding a foolproof option which can
save your PCs life.
Ultra Durableâ„¢ PCIe Armor
- Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For
Extreme / VR Gaming Station
Ultra Durableâ„¢ Memory Armor
AORUS exclusive one piece stainless steel shielding design prevents against
PCB distortion and twist, plate bending, in addition to preventing any possible
ESD interference.
Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny onboard resistors creating
chemical change and causing these resistors to open or short. If either of these
occurs the motherboard will fail to function. By equipping resistors with an
Anti-Sulfur Design AORUS gives Ultra Durable Motherboards a whole new
meaning.
Refreshed BIOSEasy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most
optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has
been able to reinvent the BIOS to give users a better experience while setting
up their new system.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps
that help you get the most from your GIGABYTE motherboard. Using a simple,
unified user interface, GIGABYTE APP Center allows you to easily launch all
GIGABYTE apps installed on your system, check related updates online, and
download the latest apps, drivers, and BIOS.
EasyTuneâ„¢
GIGABYTE's EasyTuneâ„¢ is a simple and easy-to-use interface that allows users
to fine-tune their system settings or adjust system and memory clocks and
voltages in a Windows environment. With Smart Quick Boost, one click is all it
takes to automatically overclock your system, giving an added performance boost
when you need it the most
Overclocking to Boost Your Frame Rates
Get the highest levels of performance from your PC with easy-to-use GIGABYTE
overclocking features.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you
access to your current system status. Monitor components such as the clocks and
processor, set your preferred fan speed profile, create alerts when temperatures
get too high or record your systems behavior; these are the possibilities of the
System Information Viewer.
@BIOS
The GIGABYTE @BIOS app allows you to update your systems BIOS from within
Windows using a simple and slick graphical user interface. @BIOS can
automatically download the latest version from the GIGABYTE serversor you can
update your BIOS from a file on your computer. @BIOS also allows you to save
your current BIOS to a file, recover your previous BIOS from an image and backup
your BIOS to an image.
3D OSD
3D OSD automatically detects and displays your system information during
games, allowing you to easily get a hold of your system information without
switching between screens.
GIGABYTE Patented DualBIOSâ„¢ (UEFI) Design
GIGABYTE Ultra Durableâ„¢ motherboards feature GIGABYTE DualBIOSâ„¢, an exclusive
technology from GIGABYTE that protects arguably one of your PC's most crucial
components, the BIOS. GIGABYTE DualBIOSâ„¢ means that your motherboard has both a
'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to
virus, hardware malfunction, improper OC settings or power failure during the
update process.
Long Lifespan Durable Blackâ„¢ Solid Caps
AORUS motherboards integrate the absolute best quality solid state capacitors
that are rated to perform at maximum efficiency for extended periods, even in
extreme performance configurations. With ultra-low ESR no matter how high the
CPU load, this provides peace of mind for end users who want to push their
system hard, yet demand absolute reliability and stability. These exclusive
capacitors also come in customized jet black, exclusively on AORUS
motherboards.
15µ Gold Plated CPU Socket Design
AORUS motherboards come equipped with a 15 microinch thick gold plated CPU
socket, which means that enthusiasts can enjoy absolute reliability and
longevity for the CPU socket overtime, without having any concerns about
corroded pins or bad contacts.
Easy to Install "G-Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as
space is restricted and indicators being tiny. With the G-Connector, you can
connect all the FP cables at once, simplifying the process of building your next
PC and saving you some frustrations.
TriDef® SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each AORUS motherboard
includes TriDef® SmartCam software, you are now able to remove backgrounds
without the hassle of using a green screen. Through the SmartCam application you
can now apply live filters, and fully control your background, not only while
streaming, but also through other video applications such as Skype.
Specifications
CPU |
1. Support for 7th and 6th generation
Intel Core i7 processors/ Intel Core i5
processors/Intel Core i3 processors/
IntelPentium processors/Intel Celeron processors
in the LGA1151 package |
|
2. L3 cache varies with CPU |
|
|
|
(Please refer "CPU Support List" for more
information.) |
|
Chipset |
1. Intel Z270 Express Chipset |
|
|
Memory |
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system
memory |
|
* Due to a Windows 32-bit operating system limitation, when more than 4
GB of physical memory is installed, the actual memory size displayed will
be less than the size of the physical memory installed. |
|
|
|
2. Dual channel memory architecture |
|
3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) /
2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules |
|
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate
in non-ECC mode) |
|
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules |
|
6. Support for Extreme Memory Profile (XMP) memory
modules |
|
|
|
(Please refer "Memory Support List" for more
information.) |
|
Onboard Graphics |
Integrated Graphics Processor+Intel Thunderbolt 3
Controller: |
|
|
|
1. 1 x Intel Thunderbolt 3 connector, supporting
DisplayPort and Thunderbolt video outputs and a maximum resolution of
4096x2304@60 Hz |
|
* Because of the limited I/O resources of the PC architecture, the
number of Thunderbolt devices that can be used is dependent on the number
of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back
Panel Connectors," for more information.) |
|
* Support for DisplayPort 1.2 version. |
|
|
|
Integrated Graphics Processor-Intel HD Graphics
support: |
|
|
|
1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
Hz |
|
* Support for DisplayPort 1.2 version. |
|
|
|
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24
Hz |
|
* Support for HDMI 1.4 version. |
|
|
|
Support for up to 3 displays at the same time |
|
Maximum shared memory of 1 GB |
|
Audio |
1. Creative Sound Core 3D chip |
|
2. Support for Sound Blaster Recon3Di |
|
3. TI Burr Brown OPA2134 operational
amplifier |
|
4. High Definition Audio |
|
5. 2/5.1-channel |
|
6. Support for S/PDIF Out |
|
|
|
LAN |
1. 1 x Intel GbE LAN chip (10/100/1000
Mbit)(LAN1) |
|
2. 1 x Killer E2500 LAN chip (10/100/1000 Mbit)
(LAN2) |
|
* Teaming is not supported. |
|
|
|
Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
|
* For optimum performance, if only one PCI Express graphics card is to
be installed, be sure to install it in the PCIEX16 slot. |
|
|
|
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8) |
|
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the
PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8
mode. |
|
|
|
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
|
* The PCIEX4 slot shares bandwidth with the M2P_32G connector. The
PCIEX4 slot operates at up to x2 mode when an SSD is installed in the
M2P_32G connector. |
|
|
|
4. 3 x PCI Express x1 slots |
|
* The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. The
SATA3 1 connector becomes unavailable when the PCIEX1_3 is
populated. |
|
(All of the PCI Express slots conform to PCI Express 3.0
standard.) |
|
|
|
Multi-Graphics Technology |
1. Support for NVIDIA Quad-GPU SLI and 2-Way
NVIDIA SLI technologies |
|
2. Support for AMD Quad-GPU CrossFireX and 3-Way/2-Way AMD CrossFire
technologies |
|
|
|
Storage Interface |
Chipset: |
|
|
|
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA
and PCIe x4/x2 SSD support) (M2M_32G) |
|
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and
PCIe x4/x2 SSD support) (M2P_32G) |
|
3. 1 x U.2 connector |
|
4. 3 x SATA Express connectors |
|
5. 6 x SATA 6Gb/s connectors |
|
6. Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
|
* Refer to "1-10 Internal Connectors," for the installation notices for
the PCIEX4, M.2, and SATA connectors. |
|
|
|
USB |
Chipset+Intel Thunderbolt 3
Controller: |
|
|
|
1. 1 x USB Type-C port on the back panel, with USB 3.1 Gen 2
support |
|
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back
panel |
|
|
|
Chipset+Realtek USB 3.1 Gen 1 Hub: |
|
|
|
1. 4 x USB 3.1 Gen 1 ports (available through the internal USB
headers) |
|
|
|
Chipset: |
|
|
|
1. 5 x USB 3.1 Gen 1 ports on the back panel |
|
2. 4 x USB 2.0/1.1 ports (available through the internal USB
headers) |
|
|
|
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
|
2. 1 x 8-pin ATX 12V power connector |
|
3. 1 x U.2 connector |
|
4. 2 x M.2 Socket 3 connectors |
|
5. 3 x SATA Express connectors |
|
6. 6 x SATA 6Gb/s connectors |
|
7. 1 x CPU fan header |
|
8. 1 x water cooling CPU fan header |
|
9. 4 x system fan headers |
|
10. 2 x system fan/water cooling pump headers |
|
11. 1 x front panel header |
|
12. 1 x front panel audio header |
|
13. 2 x USB 3.1 Gen 1 headers |
|
14. 2 x USB 2.0/1.1 headers |
|
15. 1 x Trusted Platform Module (TPM) header |
|
16. 1 x RGB (RGBW) LED strip extension cable header |
|
17. 1 x Thunderbolt add-in card connector |
|
18. 1 x Clear CMOS jumper |
|
19. 2 x temperature sensor headers |
|
20. 1 x power button |
|
21. 1 x reset button |
|
22. 1 x Clear CMOS button |
|
23. 1 x ECO button |
|
24. 1 x OC button |
|
25. 1 x audio gain control switch |
|
26. Voltage Measurement Points |
|
27. 2 x BIOS switches |
|
|
|
Back Panel Connectors |
1. 1 x PS/2 keyboard/mouse port |
|
2. 1 x DisplayPort |
|
3. 1 x HDMI port |
|
4. 1 x Thunderbolt3 port (USB Type-C port, with USB 3.1 Gen 2
support) |
|
5. 1 x USB 3.1 Gen 2 Type-A port (red) |
|
6. 5 x USB 3.1 Gen 1 ports |
|
7. 2 x RJ-45 ports |
|
8. 1 x optical S/PDIF Out connector |
|
9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out,
Line In/Mic In, Line Out, Headphone) |
|
|
|
I/O Controller |
1. iTE I/O Controller Chip |
|
|
H/W Monitoring |
1. Voltage detection |
|
2. Temperature detection |
|
3. Fan speed detection |
|
4. Overheating warning |
|
5. Fan fail warning |
|
6. Fan speed control |
|
* Whether the fan speed control function is supported will depend on
the cooler you install. |
|
|
|
BIOS |
1. 2 x 128 Mbit flash |
|
2. Use of licensed AMI UEFI BIOS |
|
3. Support for DualBIOS |
|
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
|
Unique Features |
1. Support for APP Center |
|
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications. |
|
3D OSD |
|
@BIOS |
|
AutoGreen |
|
BIOS Setup |
|
Color Temperature |
|
Cloud Station |
|
EasyTune |
|
Easy RAID |
|
Fast Boot |
|
Game Boost |
|
ON/OFF Charge |
|
Platform Power Management |
|
RGB Fusion |
|
Smart Backup |
|
Smart Keyboard |
|
Smart TimeLock |
|
System Information Viewer |
|
USB Blocker |
|
USB DAC-UP 2 |
|
V-Tunerr |
|
|
|
2. Support for 3TB+ Unlock |
|
3. Support for Q-Flash |
|
4. Support for Xpress Install |
|
|
|
Bundle Software |
1. Norton Internet Security (OEM
version) |
|
2. Intel Optane Memory Ready |
|
|
|
Operating System |
1. Windows 10 64-bit (for
7th Generation
Intel Processors) |
|
|
|
2. Windows 10 64-bit / Windows 8.1
64-bit / Windows 7 32-bit / 64-bits (for
6th Generation
Intel Processors) |
|
* Please download the "Windows USB Installation Tool" from GIGABYTE's
website and install it before installing Windows 7. |
|
|
|
Form Factor |
1. ATX Form Factor; 30.5cm x 24.4cm |
|
|
Box Contents |
1. GA-Z270X-Gaming 7 motherboard |
|
2. Motherboard driver disk |
|
3. User's Manual |
|
4. Quick Installation Guide |
|
5. Four SATA cables |
|
6. I/O Shield |
|
7. One GC-SLI2P bridge connector |
|
8. One G Connector |
|
9. One pack of back I/O dust cover |
|
10. One RGB (RGBW) LED strip extension cable |
|
11. Two velcro cable ties |
|
12. Two thermistors cables |
|
|
|
