Design

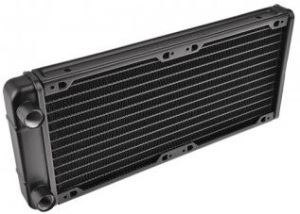

Pacific R240 Radiator
The Thermaltake Pacific R Series introduces high-quality radiators to deliver
outstanding water cooling performance for the enthusiasts PC. Manufactured from
high-quality German zinc alloy aluminum and aerospace-grade materials,
configurations of 120mm, 240mm, and 360mm are available to provide exceptional
performance. Integrated G1/4" threads make it easy to install, while rigid
connections ensure leak-resistant measures are in place. With an ideal mounting,
fitting and flow set-up, the Thermaltake Pacific R Series meets your cooling
needs in every way.
Tt LCS Certified is the hallmark that ensures first-class performance from
the best features and fitment. A certification exclusive to Thermaltake, it sets
the benchmark for all true LCS chassis and is applied only to products that meet
our stringent design standards for delivering what hardcore enthusiasts demand.
The Tt LCS certification is a way for Thermaltake to designate to all power
users the chassis which have been tested for best compatibility with extreme
liquid cooling configurations.
Optimized Heat Dispatching
Designed for the most demanding hardcore enthusiasts, the Thermaltake R
Series Radiators are optimized for maximum heat dispatching. They deliver an
average heating load of 32?-35? on each radiator. After brazing, the fin and
tube connect to form a joint, thereby creating uniform heat transfer. By
efficiently pulling heat away from the power-dissipating components, the
radiators ensure component reliability.

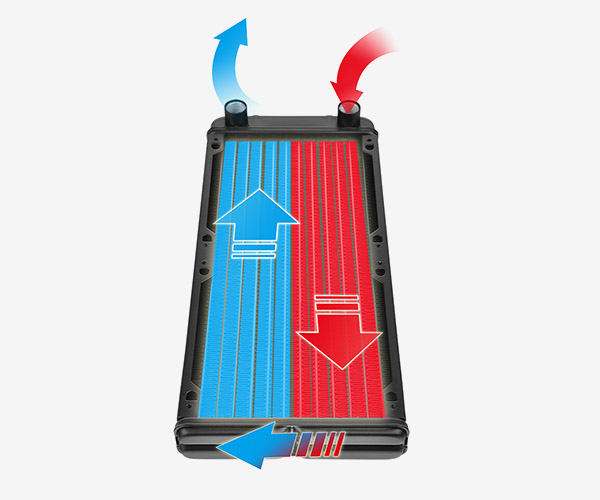

Slim Form Factor Design

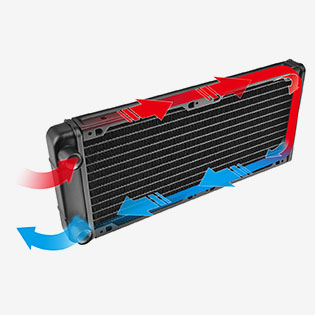

The Pacific R Series is a slim radiator with a 13-set flat tube design to
increase heat transfer. Water flows down on the one side, then circulates back
to the other side of the radiator.

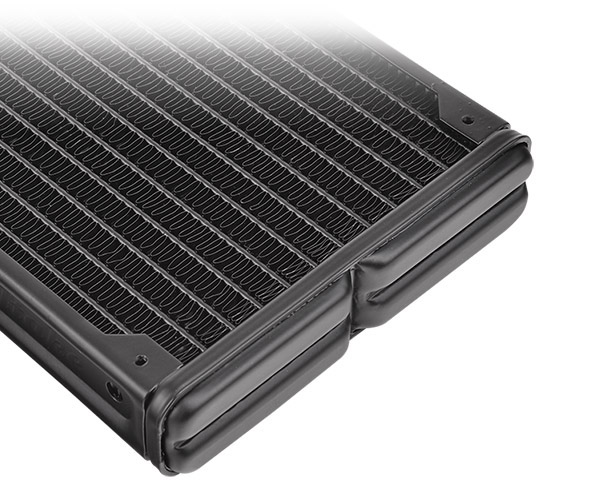

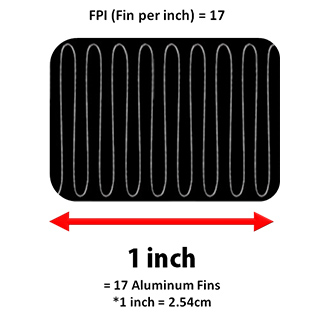

High-Density Fin Design
Fin density is optimally designed to accommodate high air pressure. The
cooling performance improves significantly with increased fan speed, offering
exceptional cooling performance during operation. FPI (fin per inch): 17.
German-Made Anti-Corrosion Materials
Without compromise, the Pacific R Radiator Series is designed with
high-quality German aerospace-grade materials and constructed with zinc, the
most common anti-corrosion agent. Although this protection will gradually
degrade as the zinc corrodes away over time, it provides the best means to
reduce electronic conductivity and can withstand scratches to the zinc layer.

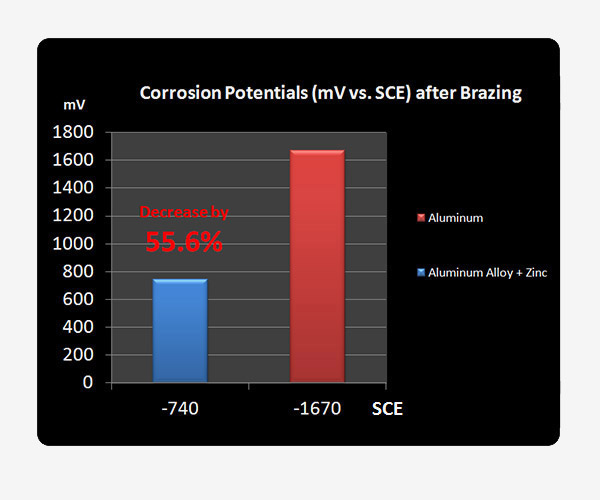

Corrosion potentials of zinc alloy aluminum can be reduced by 55.6% after
brazing.

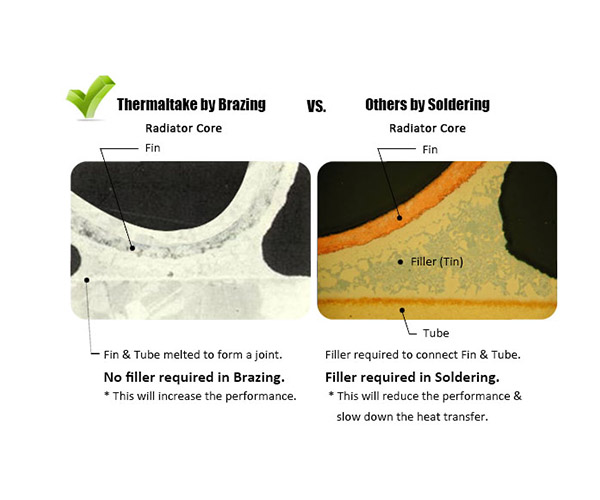

High-Quality Manufacturing Process: Brazing
An exceptional manufacturing process using high temperature brazing at
1022?/550? sets Pacific R Radiator Series in a class of their own. This
technique allows for impurities to be kept out of the brazing process, ensuring
that full strength on all the connected areas is achieved. The radiators are
baked through a controlled atmosphere brazing line. The materials melt into each
other to accomplish optimal thermal transfer from the tubes to the actual fins
in order to attain better heat evacuation.

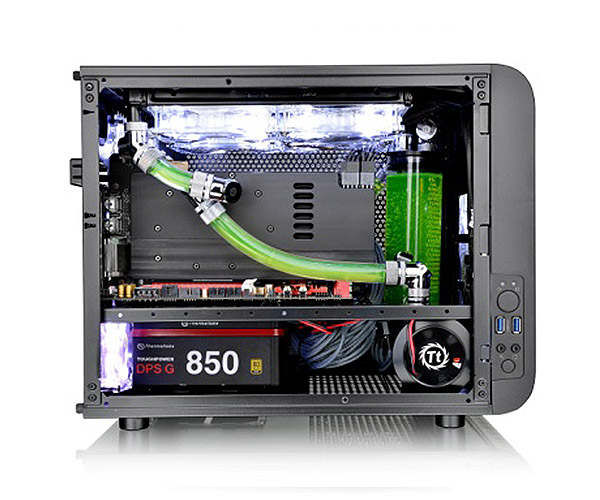

Remarkable Expansion
The Pacific R Radiator Series provides multiple sizes for users to build the
ultimate in custom configurations. A wide array of radiator sizes are available
for enthusiasts to build up aesthetically-superior water cooling systems by
allocating the radiators to each particular component and incorporating
externally-modular upgrades for their chassis.
Cautions
Thermaltake recommends the following steps to be taken before using the
Pacific series radiators and water blocks:
- To ensure a clean loop, flush and rinse your radiators and water blocks
with distilled water prior to use.
- Do not use tap water or distilled water as your coolant, it may harm your
loop and reduce performance.
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while protecting the
entire liquid loop from corrosion.
- Before storing your water cooling components, please clean, rinse and dry.
This will ensure a longer lifespan for your components.
Thermaltake recommends the following steps to be taken after completing your
water loop setup:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system – copper, brass, nickel, aluminum, and steel – from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
Specifications
P/N |
CL-W009-AL00BL-A |
Dimension |
273 (L) x 120.7 (W) x 39.9 (H) |
Weight |
332 g |
Material |
Anti-Corrosion |
Aluminum Alloy |
FPI (Fin per inch) |
17 |
Flat Tube |
12 pcs |
Screw Thread |
G 1/4 *
2 |
