Overview

  • Supports New Generation AMD Ryzen Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Turbo B-Clock, Built-in Advanced Performance Tuning IC
  • Fast 4 USB 3.1 Gen 2 with USB Type-C and Type-A
  • 2-Way Graphics Support with Dual Armor and Ultra Durable Design
  • NVMe PCIe Gen3 x4 U.2 Connector
  • Ultra-Fast M.2 with PCIe Gen3 x4 &SATA interface
  • Creative Sound Blaster X-Fi MB5 support
  • Dual ALC 1220 with Front &Rear 120dB SNR HD Audio with Dual Smart Headphone Amps
  • Killer E2500 Gaming Network + Intel Gigabit LAN
  • USB DAC-UP 2 &4 Front USB 3.0 Ports with Adjustable Voltage
  • RGB FUSION with Multi-Zone LED Light Show design
  • Swappable Overlay for Accent LED
  • Smart Fan 5 features 9 Temperature Sensors and 8 Hybrid Fan Headers
  • 2 External Thermistors Headers with 2 Included Thermistors
  • GIGABYTE UEFI DualBIOS
  • APP Center Including EasyTune and Cloud Station Utilities

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/AM4_1920.jpg

YOUR GAME. YOUR WAY.

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_board_1920.jpg

RGB FUSION
Set the Color that Matches Your Style

AORUS' motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, youll have a blast making your AORUS your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PCs temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.

  • Multi-Zone Light Show Design
  • 16.8M RGB Colors
  • 2 Programmable Sections
  • 7 Different Lighting Effects
  • 2 RGB &RGBW Light Strip Pin Headers
  • Accent LED with Interchangeable Overlay
  • Advanced Mode for Extreme Customizability

Lighting zone, programmable sections, wave mode may vary by model.

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_rgbapp_1366.jpg

Surround Lighting

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_lighting_1920.jpg

Swappable Overlay for Accent LED

AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

The photos are for reference only.

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_swappable_1366.jpg

Supports RGBW &-UV Light Strips
Independently Programmable Onboard Pin Header for RGBW/-UV LED Strips

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.

No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_smart-fan_1366.jpg

All Hybrid Fan Pin Headers
  • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
  • Supports up to 2 amps with built-in overcurrent protectiona must for high-end high current fans.
New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature changeall without having to load Windows.

Dual ALC 1220 120dB SNR HD Audio with Dual Smart Headphone AMPs + Sound Blaster X-Fi MB5

No longer are you limited to quality audio from only the rear of your Gaming PC, the new AORUS AX370-Gaming K7 offers dual ALC1220 Codecs, a high-performance multi-channel high-definition Audio Codec with 120dB SNR. These Codecs offer crystal clear audio and features such as Smart Headphone AMP, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

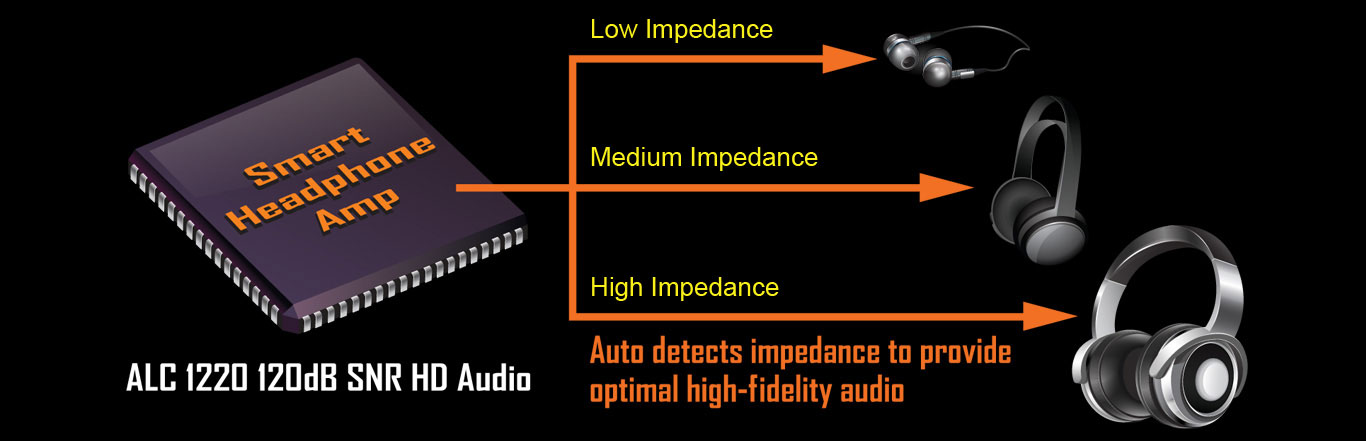

Dual Smart Headphone AMPs

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamicspreventing issues such as low volume and distortion. With the AORUS AX370-Gaming K7 incorporates dual Smart Headphone AMPs guaranteeing that users will have a plug-n-play experience whether they connect their headphones to the front or the rear of their system.

Sound Blaster X-Fi MB5 Software

The Sound Blaster X-Fi MB5 provides you with everything you need to stretch your audio experience potential. Its a comprehensive suite of tools, equipped with cutting-edge technology and premium audio quality, effects and features to support your needs. Featuring SBX Pro Studio suite of technologies, it gives you the fullest audio experience like no other.


High-End Audio Capacitors

AORUS Gaming motherboards use high-end Japanese Nichicon audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

USB DAC-UP 2
Adjustable Voltage USB Port with Dedicated Power Design

AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.

USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_usbdacup_1366.jpg

Immersive VR Gaming Experience

  • VR requires more performance than Full HD graphics for a steady 90FPS or greater.
  • Only Gaming PCs can provide the best VR experience.

To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

Killer E2500 Gaming Network + Intel Gigabit LAN

Killer E2500 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

Intel Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets


Give yourself the competitive edge: Optimize your network performance with the all-new killer Control Center


Gaming Performance while Multitasking


Networking Performance


U.2 Onboard (NVMe PCIe Gen3 x4)
NVMe Performance for PCIe SSDs


The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5 Intel 750 Series drive, AORUS ensures that the users can benefit from the best performance.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

AORUS' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.


Fast Four USB 3.1 Gen 2 Solution

AORUS AX370-Gaming K7 Motherboard ensures its users are future-proofed. With a total of four USB3.1 Gen2 ports youre never caught off guard without the latest in USB standards. The Latest USB 3.1 offers a staggering 10GB/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.



Connecting the Future - USB Type-C

  • The World's Next Universal Connector
  • Reversible USB Type-C with USB 3.1 Gen 2
6+4 Phase Digital Power Delivery Design

AX370-Gaming K7 features a 6+4 phase power delivery design equipped with 4th gen. IR digital power controllers and 3rd gen. PowIRstage ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage ICs, preventing the overheating of each individual PowerIRstage, resulting in longer lifespan and better reliability.

Turbo B-Clock
Built-in Advanced Performance Tuning IC

Turbo B-Clock Tuning IC in the AORUS X370 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 100MHz to 300MHz are now possible.

* Turbo B-Clock overclocking range may vary according to CPU capabilities.

Diagnostic LEDs
Hardware Troubleshooting at a Glance

Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.


GIGABYTE Patented Double Locking Bracket

https://www.gigabyte.com.au/FileUpload/Global/KeyFeature/648/images/mb_locking_1366.jpg

Dual Armor DIMM and PCIe Metal Shielding

 Never worry about your heavy graphics card damaging your motherboard again. AORUS proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PCs life.

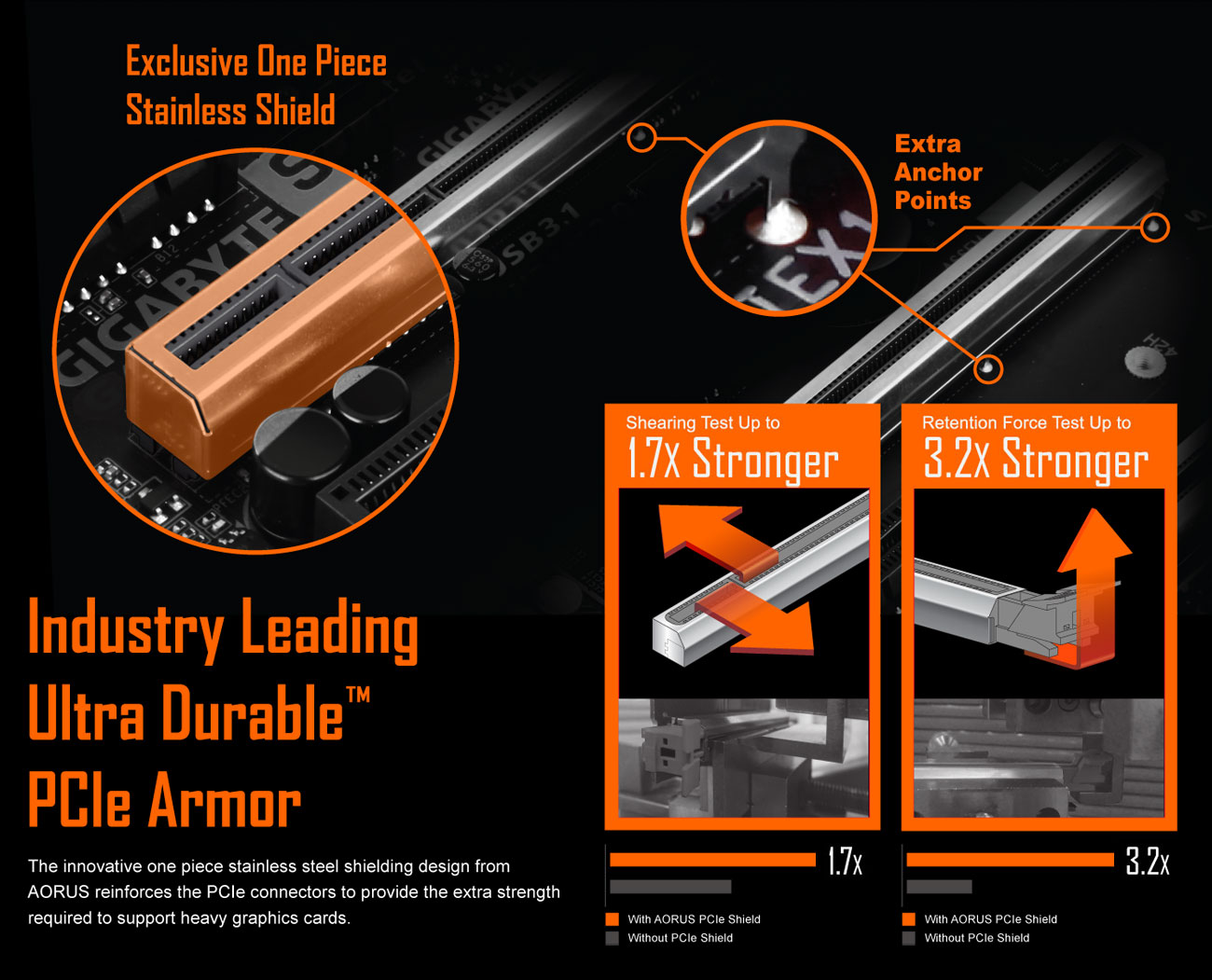

Ultra Durable PCIe Armor

Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design AORUS gives Ultra Durable Motherboards a whole new meaning.

Specifications

  • CPU AM4 Socket:
    1. AMD Ryzen processor
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD X370
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
      * Support for HDMI 1.4 version.
    2. Maximum shared memory of 2 GB
  • Audio
    1. 2 x Realtek ALC1220 codecs
    2. Support for Sound Blaster X-Fi MB5
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN1)
    2. 1 x Rivet Networks Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)
      * Teaming is not supported.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * Actual support may vary by CPU.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      * Actual support may vary by CPU.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with all of the PCI Express x1 slots. The PCIEX4 slot operates at up to x4 mode when all of the PCI Express x1 slots are empty.
    4. 3 x PCI Express x1 slots
      * All of the PCI Express x1 slots share bandwidth with the PCIEX4 slot. The PCIEX4/PCIEX1_2/PCIEX1_3 slot operates at up to x1 mode when the PCIEX1_1 slot is populated; the PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated.
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
      * Actual support may vary by CPU.
    2. 1 x U.2 connector
      * When the U.2 connector is populated, the M.2 connector becomes unavailable.
    3. 2 x SATA Express connectors
    4. 8 x SATA 6Gb/s connectors
    5. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology
    1. Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
    2. Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies
  • USB
    Chipset+ASMedia USB 3.1 Gen 2 Controller:
    1. 1 x USB Type-C port on the back panel, with USB 3.1 Gen 2 support
    2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    Chipset:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    2. 6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    3. 4 x USB 2.0/1.1 ports (available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x U.2 connector
    4. 1 x M.2 Socket 3 connector
    5. 2 x SATA Express connectors
    6. 8 x SATA 6Gb/s connectors
    7. 1 x CPU fan header
    8. 1 x water cooling CPU fan header
    9. 4 x system fan headers
    10. 2 x system fan/water cooling pump headers
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x S/PDIF Out header
    14. 2 x USB 3.1 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header
    17. 1 x CPU cooler LED strip/RGB LED strip extension cable header
    18. 1 x RGB (RGBW) LED strip extension cable header
    19. 2 x temperature sensor headers
    20. 1 x Clear CMOS jumper
    21. 1 x power button
    22. 1 x reset button
    23. 1 x Clear CMOS button
    24. 1 x OC button
    25. 2 x BIOS switches
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x HDMI port
    3. 1 x USB Type-C port, with USB 3.1 Gen 2 support
    4. 3 x USB 3.1 Gen 2 Type-A ports (red)
    5. 6 x USB 3.1 Gen 1 ports
    6. 2 x RJ-45 ports
    7. 1 x optical S/PDIF Out connector
    8. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      3D OSD
      AutoGreen
      BIOS Setup
      Cloud Station
      Color Temperature
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      USB DAC UP 2
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • No additional files, specification sheets, guides or documentation found for product.

    Warranty: 36 Month Manufacturers Return To Base

    Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

    Visitor Reviews

    [ There are no visitor reviews for this product yet]

    Review Product
    Click on a thumbnail to view it below

    L7: 1 | TM: 8 | LM: 14 | TY: 79 | T: 613

    Secure Online Shopping

    We accept the following with No surcharge on VISA, Mastercard and Paypal!
    Techbuy Pty Ltd 2000 - 2018 All rights reserved.
    All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
