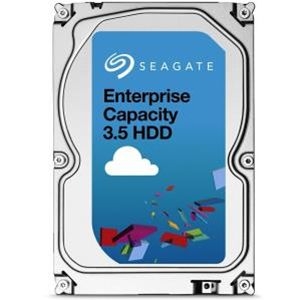

Seagate ST3000NM0005 Enterprise Capacity 3.5" Hard Drive



Overview

  • Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications.
  • 1TB to 8TB 1 , 3.5-inch enterprise drive with industry-leading conventional magnetic recording (CMR) technology
  • Advanced Write Caching feature enables up to 100% performance improvement in random writes over last-generation drive
  • 12Gb/s SAS and SATA 6Gb/s interfaces in industry-standard formats (512n, 512e and 4Kn) for easy integration into replicated and RAID multi-drive storage servers and systems
  • State-of-the-art cache, on-the-fly error-correction algorithms, super parity and end-toend SAS-based data integrity for accurate data storage
  • Industry-leading rotational vibration design helps ensure consistent performance in dense multi-drive systems
  • Engineered for 24x7 workloads of 550TB/yr
  • Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis
  • On-demand PowerBalance feature available for lower power/performance in random read/write environments
  • Seagate Secure Self-Encrypting Drive featuring Instant Secure Erase for cost-saving drive retirement and secure data-at-rest protection 2
  • Seagate SeaTools diagnostic software to provide drive self-tests ensuring no unnecessary downtime and maximizing TCO

Best-Fit Applications

  • Hyperscale applications/cloud data centers with replicated storage
  • Massive scale-out data centers and big data analytics
  • High-capacity density RAID storage
  • Mainstream enterprise external storage (SAN, NAS, DAS)
  • Distributed file systems, including Hadoop and Ceph
  • Enterprise backup and restoreD2D, virtual tape

Specifications

Base Model

ST3000NM0005

Capacity

3TB

Seagate Secure Model1

ST3000NM0015

Seagate Secure SED-FIPS Model1,2

ST3000NM0055

Special Features

Protection Information (T10 DIF)

-

Humidity Sensor

Yes

SuperParity

Yes

Halogen Free

Yes

PowerChoice Technology

Yes

PowerBalance Technology

Cache

128MB

Advanced Write Caching (Internal NOR flash)

Yes

Reliability/Data Integrity

Vibration, Nonoperating: 10Hz to 500Hz (Grms)

5

MTBF

2,000,000hr

Reliability Rating @ Full 247 Operation (AFR)

0.44%

Nonrecoverable Read Errors per Bits Read, Max

1 sector per 10E15

Power-On Hours

8760

Bytes per Sector

512

Warranty, Limited (years)

5

Performance

Spin Speed

7200RPM

Interface Access Speed (Gb/s)

6.0, 3.0, 1.5

Max Sustainable Transfer Rate

226MB/s

Average Latency (ms)

4.16

Interface Ports

Single

Rotational Vibration @ 1500Hz (rad/s)

12.5

Power Consumption

Idle Average (W

5.45W

Average Operating Power

6.9W

Power Supply Requirements

+12 V and +5 V

Environmental/Temperature

Temperature, Operating (C)

5C 60C

Shock, Operating, 2ms

70/40Gs

Shock, Nonoperating, 1ms/2ms (Gs)

250/150Gs

Physical

Height (mm/in)3

26.1mm/1.028in

Width (mm/in, max)

101.85mm/4.010in

Depth (mm/in, max)3

147.0mm/5.787in

Weight (g/lb)

680g/1.5lb

Carton Unit Quantity

20

Cartons per Pallet / Cartons per Layer

40 / 8
