All stock codes associated to this product
GVN108TAORUSXWB11GD, GV-N108TAORUSX WB-11GD, VCGN108TAORUSXWB11G, VCG-N108TAORUSXWB11G, 4719331301798
Overview
Features
- Powered by GeForce GTX 1080 Ti
- Integrated with 11GB GDDR5X 352-bit memory interface
- WATERFORCE Water Block cooling system
- Advanced Copper Back Plate Cooling
- AORUS VR Link provides the best VR experience
- RGB fusion 16.8M customizable color lighting
- Metal Back Plate with RGB AORUS LOGO Illumination
- Built for Extreme Overclocking 12+2 Power Phases
- AORUS Care provides 4 years warranty (Online registration
required)
Core Clock
- Boost: 1746 MHz / Base: 1632 MHz in OC mode
- Boost: 1721 MHz / Base: 1607 MHz in Gaming mode
- (Reference Card Boost: 1582 MHz / Base: 1480 MHz)
AORUS PERFORMANCE
AORUS graphics cards are crafted for perfection in pursuit of the ultimate
graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA
Pascal GPU architecture, AORUS graphics card brings you incredible gaming
experience.
- GPU Gauntlet Sorting
- Pascal-powered graphics card give you superior performance and power
efficiency
- Support up to 8K display @60Hz
- Outstanding performance for Virtual Reality gaming
aorus All-around cooling solution
AORUS provides the all-around cooling solution
for all key components of the graphics card. We take care not only GPU but also
VRAM and MOSFET, to ensure a stable overclock operation and longer life. On the
front side, the large copper base plate dissipates the most heat from the GPU
and VRAM. On the back side, the copper back plate dissipates the heat from the
GPU back side. All other key components are taken care of very well by the
WATERFORCE cooling module. AORUS ensures the customer a better cooling solution
in many ways.

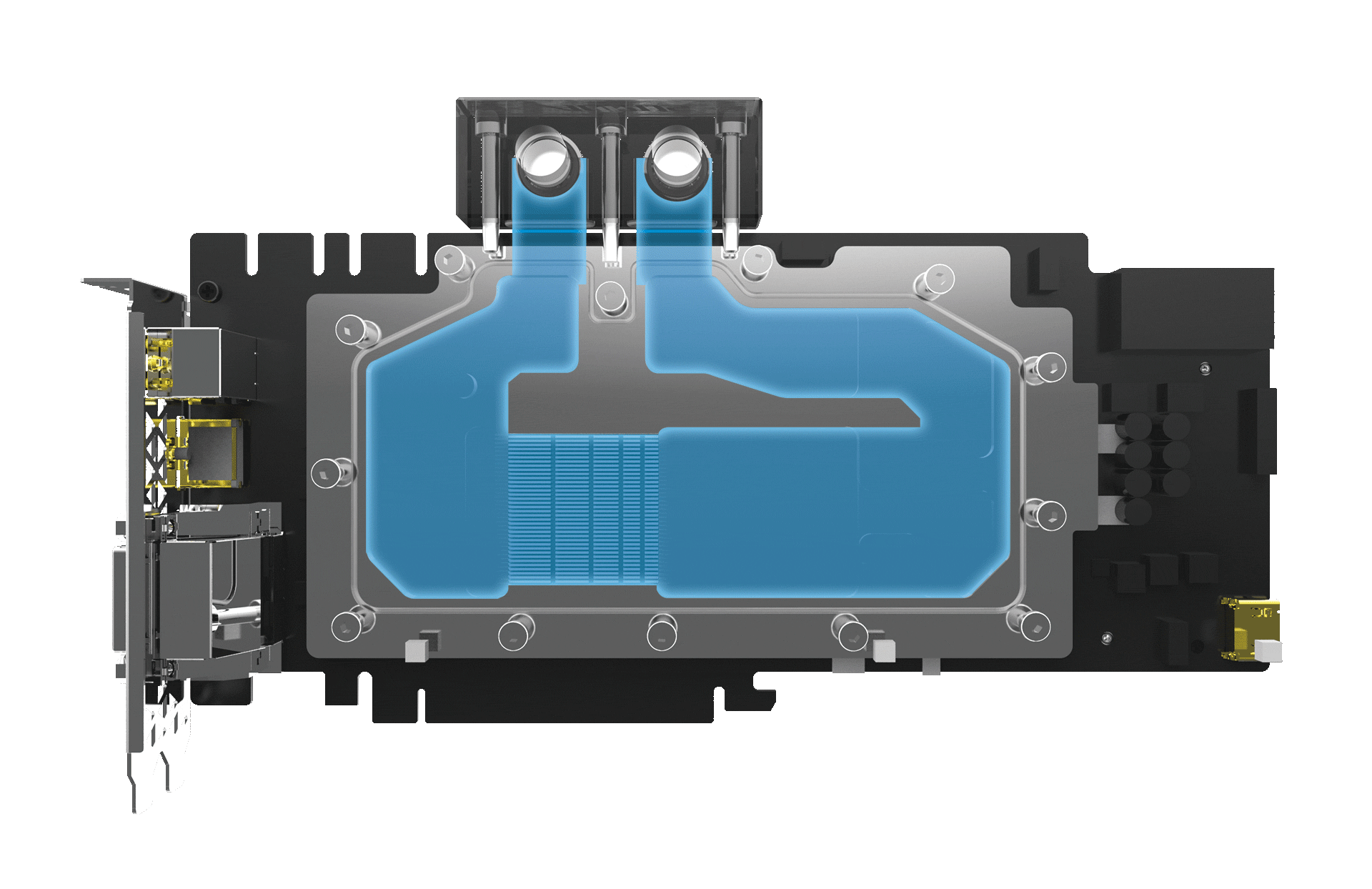

Optimized Flow Design
The optimized liquid flow of the water block
rapidly removes the heat from the large copper plate with zero noise, providing
a comfortable and high performance gameplay experience.
RGB FUSION
With 16.7M customizable color options and
numerous lighting effects, you could now choose the right scheme for your gaming
rig through AORUS graphics engine.
AORUS VR LINK
SO EASY TO VR
AORUS VR Link features 1 extra
front-facing and 2 rear HDMI ports, letting you connect a VR device and up to 2
HDMI monitors at the same time without having to swap cables, so you can
flexibly set up a display configuration that best fits your gaming needs.

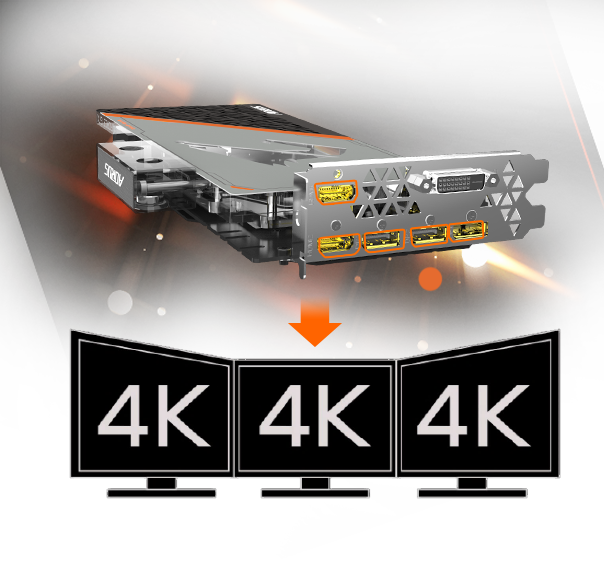

MULTI DISPLAY CONFIGURATION
SUPPORT
AORUS VR Link is the only output technology in the
market that supports the following combinations of displays without any adaptors
required. (VR Headsets are connected via HDMI)
Specifications
-
Graphics Processing
GeForce GTX 1080 Ti
-
Core Clock
Boost: 1746 MHz / Base: 1632 MHz in OC mode
Boost: 1721 MHz / Base:
1607 MHz in Gaming mode
(Reference Card Boost: 1582 MHz / Base: 1480
MHz)
-
Memory Clock
OC mode: 11448 MHz
Gaming mode: 11232 MHz
-
Memory Size
11 GB
-
Memory Type
GDDR5X
-
Memory Bus
352 bit
-
Card Bus
PCI-E 3.0 x 16
-
Output
Dual-link DVI-D *1
HDMI-2.0b*3 (Max Resolution: 4096x2160 @60
Hz)
Display Port-1.4 *3 (Max Resolution: 7680x4320 @60 Hz)
(VR mode:
DP*3, HDMI*3)
(Standard mode: Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1)
-
Digital max resolution
7680x4320
-
Multi-view
4
-
Card size
H=28.25 L=266.7 W=149.27 mm
-
PCB Form
ATX
-
DirectX
DirectX 12 API feature level 12_1
-
OpenGL
4.5
-
Recommended PSU
600W
-
Power Connectors
8 pin*2
-
Accessories
AORUS Metal Sticker/ PCIE Power cable (Dual 6-pin to 8-pin)
