Overview

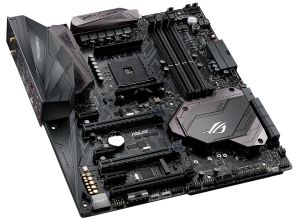

AMD X370 EATX gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 3200MHz, Dual M.2,USB 3.1 Gen2 and 802.11ac Wi-Fi

  • Onboard PCH M.2 heatsink: Design for optimal heat dissipation and gaming performance.
  • Optimal Cooling: Compatible for AM3/AM4 Cooler and water cooling headers zone
  • Aura Sync RGB LED: Stunning synchronized effects with two Aura 4-pin RGB-strip headers and one addressable header.
  • Best gaming audio: SupremeFX S1220 teamed with Sonic Studio III, cast an aural landscape that draws you deeper into the action.
  • 5-Way Optimization: One-click system-wide overclocking.
  • Best gaming networking: Intel Gigabit Ethernet, LANGuard GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO support.
  • Best gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors.
  • Best gaming durability: ASUS Safeslot and premium components for maximum durability

For more than a decade, Republic of Gamers has delivered exemplary design and performance to thrill the world's best players and PC enthusiasts. Our journey is a road without end. Now, it's time for competitors to be warned and for gamers and enthusiasts to push the limits - the packed and pumped ROG Crosshair VI Extreme is ready to defeat all challengers!

https://dlcdnimgs.asus.com/websites/global/products/crmB9fKGEQXtzLft/img/spec/video-bg.jpg

Optimal cooling

PERFECTED COOLING FOR UNLEASHING PERFORMANCE

PCH M.2 HEATSINK

ROG Crosshair VI Extreme is equipped with an M.2 heatsink integrated into the PCH heatsink. With its huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD providing maximum performance and reliability.

Featuring a stylish angular design replete with an awesome glowing ROG eye logo, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.

Fully Dominate Your Water-Cooling System

Water Cooling Zone

ROG's innovative Water Cooling Zone lets you monitor your cooling system like never before. The dual water-temperature headers and flow-rate header of the ROG Water Cooling Zone feeds information straight into ROG's intuitive Fan Xpert 4 utility so you can stay on top of the heat and stay cool in every game!

best gaming LIGHTING

Aura lighting control

Customize your own favorite LED effects with intuitive, ASUS-exclusive lighting-control software. Aura RGB technology makes it possible to cast a stunning multicolor glow across your entire build, via the ROG Crosshair VI Extreme's brilliant built-in RGB LEDs or attached RGB strips via the two onboard 4-pin headers all lights will perform in perfect synchronization! Fire up Aura and enjoy the creative freedom of nine different lighting schemes!

*The Aura RGB-strip header supports standard 5050 RGB LED strips with a maximum power rating of 3A (12V). For maximum brightness, strip length should not exceed 2m.

* One extension cable is included; RGB LED strips sold separately.

RGB LIGHTING PERFECTED

ROG Crosshair VI Extreme includes a dedicated addressable RGB header* that connects to compatible lighting strips, fans, coolers, and compatible PC cases all to create a new world of illumination possibilities. Aura software offers an array of effects for addressable gear, and the Aura SDK takes things to the next level allowing developers to control each LED individually, unleashing infinite lighting possibilities!

*Addressable RGB header supports strips with a maximum power rating of 3A (5V). For maximum brightness, strips should contain no more than 120 LEDs.

AURA SDK

INFINITE LIGHTING POSSIBILITIES

ASUS AURA SDK

Aura SDK* is an evolving developer toolkit that ASUS has made available in order to advance the capabilities and benefits of our Aura illumination technology. Aura SDK enables enthusiasts and developers by providing a platform for discussing, exploring and exploiting the vast eco-system of ASUS Aura Sync-capable gear. Developers can share ideas for customizing the display of various system stats and alerts via RGB illumination, and also explore ways to brilliantly portray in-game action with real-time synchronized lighting.

OUTSHINE THE COMPETITION

ASUS Aura Sync technology makes ROG Crosshair VI Extreme the control hub for your illumination ambitions so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow illumination effects smoothly across all synchronized devices.

Best Gaming Audio

Exquisite audio, inside and out

New SupremeFX Codec

ROG SupremeFX audio technology has levelled up with ROG Crosshair VI Extreme, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection for best-ever recording quality and 120dB on line-out for crystal-clear sound. We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, plus Texas Instruments RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before!

Intuitive Audio-Tuning Suite

Sonic Studio III

Sonic Studio III now supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The Sonic Studio GUI also offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that arrive from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.

**Please note HRTF function is available only in version 3.6 and later.

best gaming connectivity

Unleash 32Gbps SSD Speeds

Dual M.2

ROG Crosshair VI Extreme offers dual PCIe 3.0 x4 M.2 slots that provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 3.0 storage devices via the dual M.2 slots to enjoy the fastest data-transfer speeds on the AMD Ryzen processors platform!

USB 3.1 gen2 Type A+C

Ultimate-speed 10Gb/s With Onboard USB 3.1 gen2

best gaming networking

More Throughput And Less Processing Equals Faster Online Play

Intel Ethernet

ROG Crosshair VI Extreme features the very latest Intel I211-AT Ethernet controller for faster, smoother gaming. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for your game and your gameplay.

Pumped-Up Throughput, Best Surge Protection

LANGaurd

LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Crosshair VI Extreme connection, plus electrostatically guarded and surge-protected components (ESD Guards) provide 1.9X-greater tolerance to static electricity and 2.5X-greater protection against surges up to 15kV!

2x2 802.11ac Wi-Fi With MU-MIMO

ROG Crosshair VI Extreme has next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5GHz antennas for up to 867Mbps* transfer speeds, and the very latest Multi-User MIMO (MU-MIMO) technology** to ensure that every connected user experiences the best wireless and online speeds!

* Actual speed varies, and Wi-Fi hotspot feature operates at 802.11a/b/g/n. Windows 10 does not currently support Wi-Fi hotspot functionality.

**Requires MU-MIMO-ready client.

Team Up To Banish Lag

GameFirst IV

GameFirst IV optimizes network traffic for faster, lag-free online gaming - and now we've added Multi-Gate Teaming to team up to four networks for maximum bandwidth and ultrasmooth gameplay. You'll also enjoy all-new Intelligent mode, which automatically compiles a database by parsing new app data to ensure that every game is optimized for the best performance.

best gaming performance

OC design (base-clock generator)

ASUS Pro Clock Technology

A dedicated base-clock generator designed for Ryzen processors allows overclocked base-clock frequencies up to or beyond 150MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock overclocking control providing an exciting new way to boost performance to extreme heights.

DDR4 Overclocking Strength In Numbers

DDR4 OC 3200MHz+

With support for DDR4 memory you're able to drive memory frequencies to 3200MHz or beyond! ASUS-exclusive T-Topology circuit design provides superb memory-overclocking potential, minimizing coupling noise and signal reflection to unleash the full power of DDR4. With innovative equidistant memory channels, the ROG design delivers the most balanced control and incredibly powerful overclocking capability. And that's not all: ROG works with almost every DDR4 memory vendor, ensuring the best compatibility.

One-Click Overclocking And Cooling, Done!

5-Way Optimization

ASUS 5-Way Optimization technology sorts all the complex settings with a click for instant, highly controllable performance boosts! Exclusive ROG technology dynamically optimizes essential aspects of your system, based on real-time use so you get superb CPU performance, everyday energy savings, ultrastable digital power, cool and quiet fans, and networking settings that are tailored for your apps. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, and productivity!

  • Games run swiftly and smoothly with high performance, prioritized bandwidth.

  • Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.

  • Stutter is eliminated for smooth-running apps, even under heavy loading.

  • Energy waste is reduced so you'll save money and the earth.

best gaming protection

ROG Backplate

ROG blackplate

ROG Crosshair VI Extreme features a new and exclusive backplate, levelling up the board's aesthetic appeal and providing enhanced protection against bending.

Pre-mounted I/O Shield

ROG's pre-mounted I/O shield offers increased protection against electrostatic discharge of 12kV, and is pre-fitted to make it even easier to install the motherboard. As an added bonus, its sleek new design makes it look as good as it performs!

ROG Gives You More

Beyond VR READY

ROG Crosshair VI Extreme isn't just VR ready it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Crosshair VI Extreme has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS ROG Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

Specifications

  • CPU
    AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors
    Supports AM4 Socket 14 nm CPU
    Supports CPU up to 8 cores
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD X370
  • Memory
    AMD Ryzen Processors
    4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *
    AMD 7th Generation A-series/Athlon Processors
    4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
    Dual Channel Memory Architecture
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI Technology *1
    Supports AMD 3-Way CrossFireX Technology *1
  • Expansion Slots
    AMD Ryzen Processors
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2
    AMD 7th Generation A-series/Athlon Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD X370 chipset
    1 x PCIe 2.0 x16 (max at x4 mode) *3
    3 x PCIe 2.0 x1 *3
  • Storage
    AMD Ryzen Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA &CIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
    AMD 7th Generation A-series/Athlon Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA &CIE 3.0 x 4 mode)
    AMD X370 chipset :
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Intel I211-AT, 1 x Gigabit LAN Controller(s)
    Anti-surge LANGuard
    ROG GameFirst IV
  • Wireless Data Network
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
  • Bluetooth
    Bluetooth V4.2*4
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
    - Impedance sense for front and rear headphone outputs
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - ESS ES9023P
    - Supports up to 32-Bit/192kHz playback *5
    Audio Feature :
    - Gold-plated jacks
    - Optical S/PDIF out port(s) at back panel
    - Sonic Radar III
    - Sonic Studio III
  • USB Ports
    AMD Ryzen/7th Generation A-series/Athlon Processors :
    4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
    AMD X370 chipset :
    6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
    AMD X370 chipset :
    5 x USB 2.0 port(s) (4 at back panel, black, 1 at mid-board)
    ASMedia USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 front panel connector port(s)
    ASMedia USB 3.1 Gen 2 controller :
    2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
  • ROG Exclusive Features
    Clear CMOS button
    ROG RAMCache II
    ROG CPU-Z
    ROG CloneDrive
    Pre-mounted I/O Shield
    Slow Mode
    Overwolf
    ReTry Button
    Safe Boot Button
    Start Button
    Reset Button
    LN2 Mode
    GameFirst IV
    Extreme Engine Digi+ :
    - MicroFine Alloy Chokes
    - NexFET Power Block MOSFET
    - 10K Black Metallic Capacitors
    Mem TweakIt
    KeyBot II
    - One-click Overclocking
    - DirectKey
    - ClrCMOS
    - Power On
    UEFI BIOS features :
    - O.C. Profile
    - Tweakers' Paradise
    - ROG SSD Secure Erase
    - Graphic Card Information Preview
    ROG RAMDisk
    Extreme Tweaker
    USB BIOS Flashback
  • Special Features
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
    TPU
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
    Gamer's Guardian:
    - SafeSlot
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    - Aura Addressable Strip Header(s)
    ASUS Exclusive Features :
    - AI Suite 3
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS USB BIOS Flashback
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Back I/O Ports
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 Gen 2 (black)USB Type-CTM
    1 x USB 3.1 Gen 2 (red)Type-A
    6 x USB 3.1 Gen 1 (blue)
    4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS Flashback Button(s)
    1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module
    5 x Gold-plated audio jacks
  • Internal I/O Ports
    1 x Aura Addressable Strip Header(s)
    2 x Aura RGB Strip Headers
    2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
    1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    1 x TPM header
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x W_PUMP+ connector (1 x 4 -pin)
    1 x 8-pin EATX 12 V Power connector
    1 x 4-pin EATX 12 V_1 Power connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Internal speaker connector(s)
    1 x System panel(s) (Q-Connector)
    1 x Slow Mode switch(es)
    7 x ProbeIt Measurement Points
    1 x EZ Plug connector(s) (4-pin Molex power connector)
    1 x Reset button(s)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x LN2 Mode jumper(s)
    1 x ROG extension (ROG_EXT) header(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x W_IN header
    2 x W_OUT header
    1 x W_FLOW header
    1 x Thermal sensor connector
    1 x Start button
    1 x USB 3.1 Gen 2 front panel connector
    1 x 9 pin Monoblock sensor
    8 x Radiator Fan Headers
  • Accessories
    User's manual
    1 x ROG logo plate sticker
    8 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x Fan Extension Card (3 x 4-pin fan out)
    1 x Fan Extension card screw pack
    1 x Fan Extension card cable
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x ROG big sticker
    1 x Q-Connector
    1 x 10-in-1 ROG cable label
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    3 x Thermistor cable(s)
    1 x ROG coaster(s)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, WOL by PME, PXE
  • Support Disc
    Drivers
    AURA
    ROG GameFirst IV*5
    ROG RAMDisk
    ROG RAMCache II
    ROG CPU-Z
    ROG Mem TweakIt
    ROG Keybot II
    Sonic Studio III
    Sonic Radar III
    Overwolf
    CloneDrive
    Kaspersky Anti-Virus
    DAEMON Tools Software
    Winzip
    ASUS Utilities
  • Operating System
    Windows 10 64-bit
  • Form Factor
    Extended ATX Form Factor
    12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
  • Note
    *1 Due to CPU limitation, AMD 7th Generation A-series/Athlon Processors support AMD 2-Way CrossFireX Technology only.
    *2 The PCIEX8_2 slot shares bandwidth with M.2_2
    *3 The PCIEX4_3 slot shares bandwidth with the PCIEX1_1, PCIEX1_2, PCIEX1_3 slots
    *4 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0.
    *5 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio and due to Windows 7 limitations, 32-bit playback is unavailable for Windows 7.
    *5 ROG GameFirst Technology is only available for Windows 10/8.1 64-bit

No additional files, specification sheets, guides or documentation found for product.

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Warranty: 36

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 2 | TM: 5 | LM: 19 | TY: 165 | T: 404

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2019 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
