LaCie STFC20000400 5big Thunderbolt 2



Features

Thunderbolt 2 Power for Professional 4K Workflows.

  • Up to 1050 MB/s* speeds for 4K video editing
  • Hardware RAID 5/6 with hot swap
  • Dual Thunderbolt 2 ports for daisy chaining
  • Aluminum enclosure and whisper-quiet fan

For 4K and other bandwidth-hungry workflows, external storage needs to be fast, secure, reliable, and quiet. The new LaCie 5big fits the bill, delivering Thunderbolt 2 speeds for 4K video editing, up to 40TB capacity, and hardware RAID 5/6 for no-compromise data security.

Thunderbolt 2 Speeds for the 4K Era

5big-THB2-Speed-A-Content-Row-570x320jpg

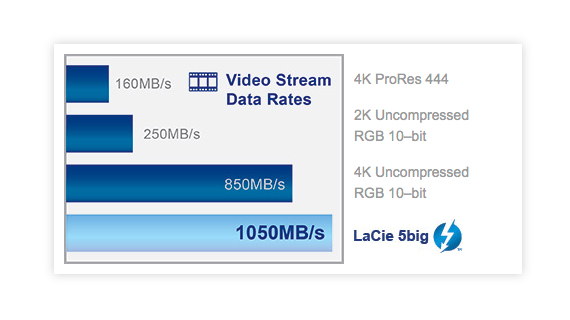

With Thunderbolt 2 technology, the interface is no longer the performance bottleneck. For the 5big, LaCie harnessed the breakthrough performance potential of the Thunderbolt 2 I/O, squeezing the absolute best speeds out of the hard disks. Add a hardware RAID controller and 7200 RPM disks and the result is incredible, sustained speeds of up to 1050 MB/s that turbocharge 4K workflows, file transfers, and backups.

5big-THB2-Speed-B-Content-Row-570x460jpg

With this kind of speed, videographers can work directly from RAW files in Apple Final Cut Pro or Adobe Premiere, get maximum quality from footage, and see edits in real time. No need to first convert footage into a lower resolution. Avid Pro Tools users will notice incredibly smooth audio mixing, even when working with hundreds of tracks simultaneously. Professional photographers using Adobe Lightroom or Apple Aperture can browse through archived libraries of thousands of RAW and edited images with zero lag.

Bulletproof Reliability

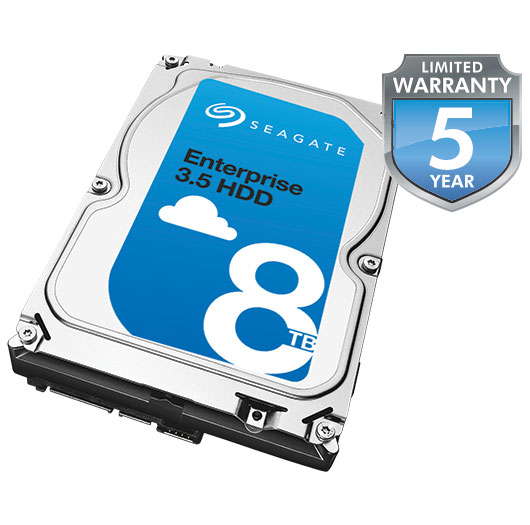

The 40TB version features Seagate Enterprise Class hard disks that provide superb accessibility, reliability, and robust performance. Designed to operate 24x7 on 16-bay racks (instead of 8x5 operations for traditional hard drives), these HDDs can support 8,760 hours of operation per year for extraordinary availability. The LaCie 5big with Enterprise Class drives also comes with a five-year warranty that covers drives, enclosure, and spare parts, ensuring a solid, long-term investment. Enterprise Class drives feature 256MB cache, 7200 RPM, and rack environment optimization, offering the ideal solution for handling aggressive workloads. For maximum reliability of your critical data, depend on the LaCie 5big with Enterprise Class drives.

RAID for Speed with Security

The LaCie 5big offers RAID modes 0, 1, 5, 6, 10, and JBOD. Its hardware RAID controller delivers sustained performance, better flexibility, and the ability to connect the product to another computer while keeping the RAID configuration. Preconfigured in HFS+ and RAID 5, it is truly plug and play for Mac users. And easily customize the RAID mode to suit your needs using the LaCie RAID Manager utility.

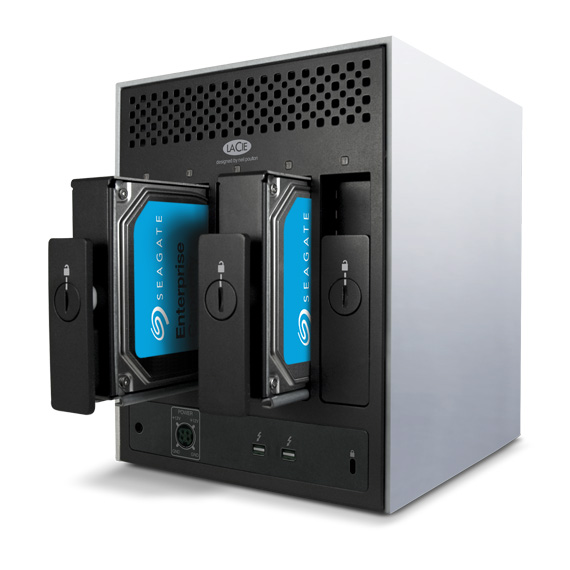

RAID modes 5 and 6 provide complete data protection against disk failure, while providing excellent speed and capacity. This is perfect for when you want to use a single storage product for both editing and backup. Even in the case of disk failure, the LaCie 5bigs hot-swappable disks mean zero data loss or downtime.

You could instead choose RAID 0** to maximize speed and capacity for current projects, and then move completed projects to archival storage incredibly quickly. Or, choose JBOD, which allows you to see and use each disk independently. With five working days a week, you can assign each disk to a daily backup. Its even possible to set up multiple RAID volumes. For example, create both a 3-disk RAID 5 array for current projects, and a 2-disk RAID 1 array for backing up source files and final footage.

  • SPEED + SECURITY
  • MAXIMUM SPEED
  • HYBRID
  • DAILY BACKUP

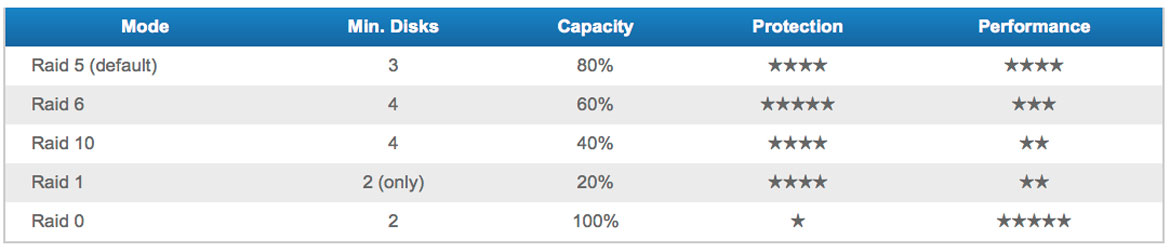

5big-THB2-RAID-Chart-F-Content-Row-1170x252

The Most Powerful I/O, Reinvented

5big-THB2-Powerful-Content-Row-570x242jpg

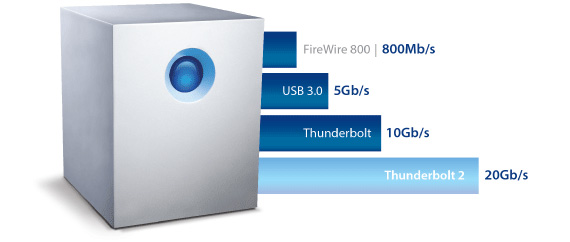

Thunderbolt technology redefined external storage with its speed and versatility for bandwidth-intensive applications. Thunderbolt 2 builds on those advances by doubling the speed potential to 20 Gb/s and enabling simultaneous RAW 4K video editing and display. And thanks to support for DisplayPort 1.2, its now possible to daisy chain higher-resolution displays such as 4K monitors.

5big-THB2-Powerful-B-Content-Row-370x263

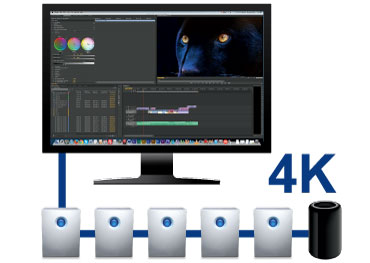

Thunderbolt 2 also continues to support daisy chaining up to six devices to a computer via a single cable (included in the box). For example, you could connect a total of 36 LaCie 5bigs via the six Thunderbolt 2 ports on a single Mac Pro, enabling more than 1PB (1080TB) and more than 3000 MB/s. Thunderbolt 2 even uses the same cables and connectors as first-generation Thunderbolt***.

Advanced Cooling for Long-Term Reliability

5big-THB2-Powerful-B-Content-Row-570x405

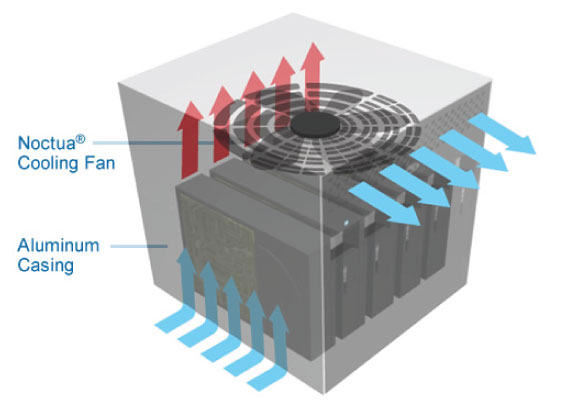

The LaCie 5big has a cutting-edge cooling system that ensures long-term reliability by preventing overheating. It consists of three key components: an innovative heat-dissipating aluminum casing, a Noctua cooling fan, and jumbo heat exhausts. For the enclosure, a solid-aluminum heat-sink design diverts and dissipates heat more efficiently than plastic casings.

The ultra-quiet Noctua NF-P12 fan pulls heat away from the internal components while producing exceptionally little noise. Its thermoregulated, so it also controls its speed according to ambient temperature. As a result, the fan works more efficiently while prolonging the products lifespan. And for whisper-quiet operation, the LaCie 5bigs heat exhausts direct noise away from the user. Altogether, this professional cooling system makes the LaCie 5big perfect for even the most noise-sensitive creative environments.

Usability & Reliability for Professionals

In designing the LaCie 5big enclosure, LaCie relentlessly focused on usability for professionals. The front button gives you a convenient way to turn off the product or put it into Power-Saving Mode. A short press spins down the disks, reducing power consumption, without interrupting a Thunderbolt daisy chain. A long press powers down the product completely.

The LaCie 5big features a cable lock to prevent accidental Thunderbolt cable or power supply disconnections. It also includes LaCie Private-Public software?, which lets you prevent unauthorized access by password-protecting volumes with AES 256-bit encryption. Combined with KensingtonĀ® lock compatibility, the LaCie 5big fully protects your data against unauthorized access.

LaCie also bundles the 5big with software solutions for system monitoring, backup, and unauthorized access prevention. Use the LaCie RAID Manager utility to set up email alerts and monitor storage before potential problems escalate. And for professional backup schemes, the LaCie 5big includes Intego Backup Manager Pro and is compatible with Time Machine.

Specifications

Capacity

20TB

Internal Storage Media

5 x hot-swappable* 7200 RPM/64MB cache (or greater) hard disks

Interface

2 x Thunderbolt 2

Interface Transfer Rate

20 Gb/s

Performance Benchmark

Reads | Writes (MB/s)**

20TB RAID 0: 920 | 880

20TB RAID 5: 700 | 720

Thunderbolt 2 Technology

Bidirectional 20 Gb/s permits a high-resolution display and RAW 4K video editing

Power-Saving Mode

Reduce power consumption by pressing the front button to spin down disks without disrupting daisy chain transfers (short press initiates power-saving mode; long press turns product off completely)

RAID Modes

Preconfigured HFS+ RAID 5

Hardware RAID 0 / 1 / 5 / 6 / 10 / JBOD

Configure RAID using LaCie RAID Manager software

Daisy Chain

Connect up to six Thunderbolt-compatible devices including Thunderbolt 2 and LaCie Thunderbolt Series products to a computer via a single Thunderbolt cable***

Security

AES 256-bit software encryption

Kensington lock compatible

Cable lock

Cooling

Aluminum enclosure with improved internal heat dissipation Thermoregulated Noctua cooling fan: effective and whisper-quiet cooling

Additional Features

System monitoring and email alerts for failure or warning events

Acoustic

Standby

Negligible

Idle

25-28 dBA

Operating

25-29 dBA

Power Supply

100-240 V; 50/60 Hz; 150 W

Dimensions (W x H x D)

173 x 220 x 196 mm | 6.8 x 8.6 x 7.7 in.

Weight

7.6 kg | 16.8 lbs

System Requirements

Computer with a Thunderbolt 2 or Thunderbolt*** port

Latest version of Windows 7, Windows 8/Mac OS X 10.9 or later

Software

Intego Backup Manager Pro for Mac

Genie Backup Manager Pro for PC

LaCie Private-Public(protect data with AES 256-bit encryption)

LaCie RAID Manager (administration console)

Box Content

LaCie 5big Thunderbolt 2

External power supply

Thunderbolt cable

Drawer key

Cable lock clip

Quick Install Guide

Comments

* Hot swapping will result in data loss in a RAID 0 array.

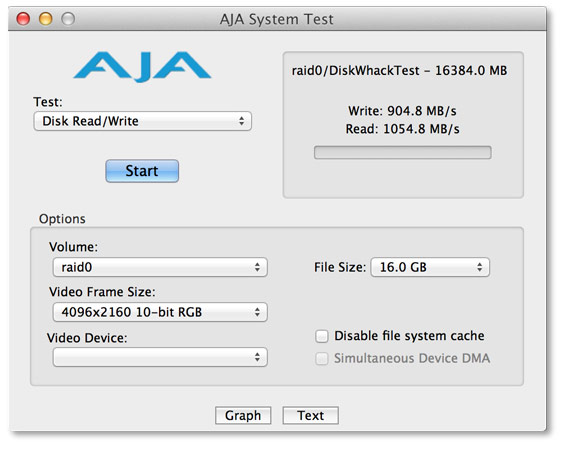

** These transfer rates were achieved using AJA System Test when connected to a Mac computer via the Thunderbolt 2 interface. Actual data rates may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, and disk capacity.

*** To achieve full interface bandwidth, connect the product to a Thunderbolt 2 port on a computer or device.

Encryption software is only available via download and is not available in Russia.

These measurements have been made under normal conditions, one meter/three feet from the front of the product. This value may vary with conditions and product configuration.

When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one thousand billion bytes. Your computers operating system may use a different standard of measurement and report a lower capacity. In addition, some of the listed capacity is used for formatting and other functions and will not be available for data storage.
