All stock codes associated to this product
DS1817, DS1817 , 846504002726

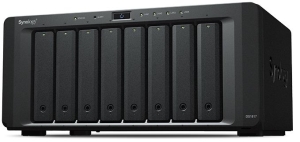

DS1817 is a powerful,scalable8-bay NAS delivering outstanding data transfer
rates.With built-in dual 10GbE LANports in addition to dual Gigabit ports,
DS1817 supports Link Aggregation and failoverfunctionsfor maximum performance
and service continuity.
Engineered for reliability, backed by Synology
DS1817 is designed to reliably store your data and is backed by Synology's
three-year hardware warranty. An optional two-year extended warranty is
available in select regions for up to five years of coverage.
Synchronize files across your devices
Cloud Station Suite provides real-time data synchronization across all your
devices, such as computers, mobile devices, and other Synology NAS whenever a
file is modified. "Intelliversioning" keeps the most important file versions to
better utilize storage space.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow
easy, drag-and-drop operation without requiring any complex setup on Mac or PC.
Advanced search and filtering tools allow for easy organization and sharing of
files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any
environment.
Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of
public clouds with the data privacy and security guaranteed by private clouds.
It allows you to work seamlessly together on documents and spreadsheets in a
protected environment.
Maximize system uptime with Synology High Availability
(SHA)
Enjoy a complete hardware and data redundancy solution with Synology High
Availability (SHA) in case of unforeseendisasters.After joiningtwo Synology NAS
devicesto formahigh-availability cluster, theNAS acting asthe active
serverwillhandleall dataoperationsand services,while cloning the entire systemto
the passive standby server.
-
Automatic failover
-
Real-time protection,minimumdata loss
-
No-hassle installation and
maintenance
-
Maximize service availability for
virtualization through iSCSI
Fully certified storage virtualization
solutions
Synology iSCSI storage fully supports most
virtualization solutions to enhance work efficiency with easy management
interface. VMware vSphere 6 and VAAI integration helps offload storage
operations and optimizes computation efficiency. Windows Offloaded Data Transfer
(ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns
your Synology NAS into a block-based storage component.
Powered by Synology DSM
Surveillance Station
Complete surveillance solution for recording, monitoring, and management.
Desktop Backup
Simplified backup solution for your Mac, PC, and mobile devices.
Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and
your NAS.
DSM UI
Award-winning operating system with an intuitive user interface and powerful
capabilities.
Security
Comprehensive built-in security tools are constantly updated to tackle
evolving threats and protect your devices.
Multimedia
Complete multimedia solution for management, streaming, and playback.
-
Status indicator
- Alert indicator
- Drive status indicator
- Drive tray lock
-
Power button and indicator
- LAN indicator
- Fan
- Power port
-
Kensington Security Slot
- USB 3.0 port
- 10GbE RJ-45 port
- 1GbE RJ-45 port
- eSATA port
- Reset button
Specifications
| CPU |
| CPU Model |
Annapurna Labs Alpine AL-314 |
| CPU Architecture |
32-bit |
| CPU Frequency |
Quad Core 1.7 GHz |
| Hardware Encryption Engine |
|
| Memory |
| System Memory |
4 GB DDR3L |
| Memory Module Pre-installed |
4GB (1 x 4GB) |
| Total Memory Slots |
2 |
| Memory Expandable up to |
8 GB (4 GB x 2) |
| Storage |
| Drive Bays |
8 |
| Maximum Drive Bays with Expansion Unit |
18 |
| Compatible Drive Type* |
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
|
| Maximum Internal Raw Capacity |
96 TB (12 TB drive x 8) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units |
216 TB (12 TB drive x 18) (Capacity may vary by RAID types) |
| Maximum Single Volume Size |
108 TB |
| Hot Swappable Drive |
|
| External Ports |
| RJ-45 1GbE LAN Port |
2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port |
2 (with Link Aggregation / Failover support) |
| USB 3.0 Port |
2 |
| eSATA Port |
2 |
| File System |
| Internal Drives |
EXT4 |
| External Drives |
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT*
|
| Notes |
exFAT Access is purchased separately in Package Center. |
| Appearance |
| Size (Height x Width x Depth) |
157 mm x 340 mm x 233 mm
|
| Weight |
5.31 kg
|
| Others |
| System Fan |
120 mm x 120 mm x 2 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan |
|
| Power Recovery |
|
| Noise Level* |
24.2 dB(A)
|
| Scheduled Power On/Off |
|
| Wake on LAN/WAN |
|
| Power Supply Unit / Adapter |
250W
|
| AC Input Power Voltage |
100V to 240V AC |
| Power Frequency |
50/60 Hz, Single Phase |
| Power Consumption* |
59.1 W (Access)
26.4 W (HDD Hibernation)
|
| British Thermal Unit |
201.66 BTU/hr (Access)
90.08 BTU/hr (HDD Hibernation)
|
| Environment Temperature |
| Operating Temperature |
5°C to 40°C (40°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
| Relative Humidity |
5% to 95% RH |
| Certification |
- FCC Class B
- CE Class B
- BSMI Class B
|
| Warranty |
3 Year Hardware Warranty, Extendable to 5 Year Coverage - |
| Notes |
- Power consumption is measured when fully loaded with Western Digital
1TB WD10EFRX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 1TB
ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones,
each set up at 1 meter away from the Synology NAS front and rear;
Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75ÚC;
Humidity: 58.2-61.8%
|
| DSM Specifications |
| Storage Management |
| Maximum Internal Volume Number |
256 |
| Maximum iSCSI Target Number |
32 |
| Maximum iSCSI LUN |
256 |
| iSCSI LUN Clone/Snapshot, Windows ODX |
|
| Supported RAID Type |
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
|
| RAID Migration |
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
|
| Volume Expansion with Larger HDDs |
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
|
| Volume Expansion by Adding a HDD |
- Synology Hybrid RAID
- RAID 5
- RAID 6
- JBOD
|
| Global Hot Spare Supported RAID Type |
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
- RAID 10
|
| SSD Support |
| SSD Read/Write Cache |
|
| SSD TRIM |
|
| File Sharing Capacity |
| Maximum Local User Accounts |
2048 |
| Maximum Local Groups |
256 |
| Maximum Shared Folder |
256 |
| Maximum Shared Folder Sync Tasks |
4 |
| Maximum Concurrent CIFS/AFP/FTP Connections |
1024 |
| Windows Access Control List (ACL) Integration |
|
| NFS Kerberos Authentication |
|
| High Availability Manager |
|
| Log Center |
|
| Syslog Events per Second |
400 |
| Virtualization |
| VMware vSphere 6 with VAAI |
|
| Windows Server 2012 |
|
| Windows Server 2012 R2 |
|
| Citrix Ready |
|
| OpenStack |
|
| Add-on Packages |
| Central Management System |
|
| Chat |
|
| Maximum Users |
150 |
| Notes |
- The number of concurrent HTTP connections for Chat was configured to
the maximum.
- For tested models with expandable memory, the maximum amount of RAM
was installed.
|
| Cloud Station Server |
|
| Maximum Number of Concurrently Connected Devices |
1024 |
| Maximum Number of Concurrently Connected Devices (with RAM
expansion) |
1200 |
| Maximum Number of Synced Files (ext4) |
500,000 / single file reaction time 763 ms |
| Notes |
- The maximum number of concurrently connected devices refers to the
maximum number of devices that can remain connected at the same time.
For more information on file processing capability, please refer to the
reaction time for file processing.
- File reaction time refers to the preparation time required for other
devices to start downloading a 1KByte file from a Synology NAS after the
file has been added to the NAS. RAM expansion was not used during
testing.
- Non-encrypted shared folders were used during the aforementioned
testing.
|
| Download Station |
|
| Maximum Concurrent Download Tasks |
50 |
| exFAT Access (optional) |
|
| Media Server |
|
| DLNA Compliance |
|
| Office |
|
| Maximum Users |
150 |
| Maximum Simultaneous Editing Users |
40 |
| Notes |
- For tested models with expandable memory, the maximum amount of RAM
was installed.
- Client performance may affect maximum simultaneous editing users.
Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
|
| Surveillance Station |
|
| Maximum IP cam (Licenses required) |
30 (including 2 Free License) |
| Total FPS (H.264)* |
900 FPS @ 720p (1280x720)
480 FPS @ 1080p (1920×1080)
300 FPS
@ 3M (2048x1536)
250 FPS @ 5M (2591x1944)
|
| Total FPS (MJPEG)* |
480 FPS @ 720p (1280x720)
300 FPS @ 1080p (1920×1080)
250 FPS
@ 3M (2048x1536)
200 FPS @ 5M (2591x1944) |
| Notes |
Surveillance Station throughput is tested with Axis network camera,
using continuous recording with live view from Surveillance Station and
motion detection by camera. Live view and recording are sharing the same
stream from the camera. |
| Video Station |
|
| Video Transcoding |
Group 1 - Type 2 |
| Maximum Transcoding Channel Number |
1 channel, 30 FPS @ 720p (1280x720), H.264 (AVC)/MPEG-4 Part 2 (XVID,
DIVX5)/MPEG-2/VC-1 |
| VPN Server |
|
| Maximum Connections |
15 |
| Environment &ckaging |
| Environment |
RoHS Compliant |
| Packaging Content |
- Main Unit X 1
- Welcome Note X 1
- Accessory Pack X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
|
| Optional Accessories |
- Surveillance Device License Pack
- 4GB DDR3 RAM Module
- Expansion Unit: DX517 X 2
- VS360HD
- VS960HD
|
