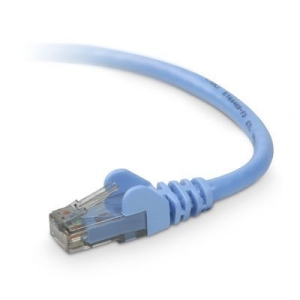

Belkin CAT6 Snagless Patch Cable - 10m, Blue
Upgrade your network with a CAT6 Snagless Networking Cable from Belkin and
enjoy clean, clear transmissions. Now you can replace CAT5 cables that don't
support 100BASE-T or Gigabit Ethernet and improve the return loss in your
current network by 40 percent. Engineered with 50-micron gold-plated connectors
to ensure clear transmissions, and snagless molds to protect the RJ45 tabs from
damage during installation, this cable meets and exceeds the performance
requirements of Category 6.
- CAT 6 High Performance UTP Stranded Cable
- Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2-1
- Conductor Size: 24AWG x 4pairs
- Conductor Construction: Bare Stranded Copper
- Insulation Material: HDPE
- Jacket Diameter: 5.50±0.20mm
- Jacket Material: PVC
- Rating: 75°C, 300V
- Conductor Resistance: 93.8O/km/20°C max
- Mutual Capacitance: 56pF/m max
- Dielectric Strength: AC 1.5kV/min
- Spark Test: 2.5kV
- Flame Retardant Test: CMR
- Characteristic Impedence: 100±15O @ 1 ~ 550MHz
- Structural Return Loss: 8.6dB min at 550MHz
- Propagation Delay: 536nS/100m max @ 550MHz
- Category 6 performance rated for any 10Base-T, 100Base-T, and 1000Base-T
Network
Specifications
|
General |
|
|
Network Cable Type |
Patch cable - CAT 6 |
|
Technology |
Unshielded twisted pair (UTP) |
|
Wiring Scheme |
T568B |
|
Features |
Molded |
|
Length |
10 ft |
|
Color |
Blue |
|
|
|
Connectivity |
|
|
Connector(s) |
1 x RJ-45 - male |
|
Connector(s) (Other Side) |
1 x RJ-45 - male |
|
|
|
Miscellaneous |
|
|
Manufacturer Selling Program |
Belkin B2B |
|
|
|
Manufacturer Warranty |
|
|
Service & Support |
Limited lifetime warranty |
|
|
|
Compatibility Information |
|
|
Designed For |
Belkin Omniview SMB 1x16 KVM-over-IP Switch, SMB 1x8 KVM-over-IP
Switch, Belkin OmniView SMB CAT5 KVM
Switch |
