ATEN VE156 VGA/Audio Cat5 Extender Wall Plate
  • Supports Up to 1920x1200@30m/1280x1024@150m

IMG 1 of 1
No Longer Available
Part Number:
425518
(?) Brand:
ATEN
Manuf No:
VE156
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
9/1/2018
Details Files Finance Images & Video
All stock codes associated to this product
VE156, ATVE156

Aten VE156 VGA/Audio Cat5 Extender Wall Plate

The VE156 VGA Over Cat 5 Extender Wall Plate extends VGA and audio signals up to 150m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 combination can further extend the distance or multiply sources/displays.

The VE156 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE156’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

ROHS Weee

Package Contents

  • 1x VE156T VGA Over Cat 5 Extender Wall Plate
  • 1x VE156R VGA Over Cat 5 Extender Wall Plate
  • 1x Terminal Block Connector
  • 1x Power Adapter
  • 1x User Instructions

Features

  • Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
  • Remotely powered from either the Transmitter or Receiver side**
  • Extends the distance between VGA source and VGA display
  • Superior video quality – up to 1920 x 1200@60Hz (30 m), 1280 x 1024@60Hz (150m)
  • Adjustable Gain Control – manually adjusts signal strength to compensate for distance
  • Supports wide screen formats
  • Supports hot-plugging
  • Decora type design is easily configurable to fit various wall plates
  • LED indication of power sources / connection status
  • Supports stereo audio
  • Built-in 8KV/15KV ESD protection
  • Easy installation
  • Wall mountable type for a neat and cleaner installation
  • Plug-and-play – no software installation required

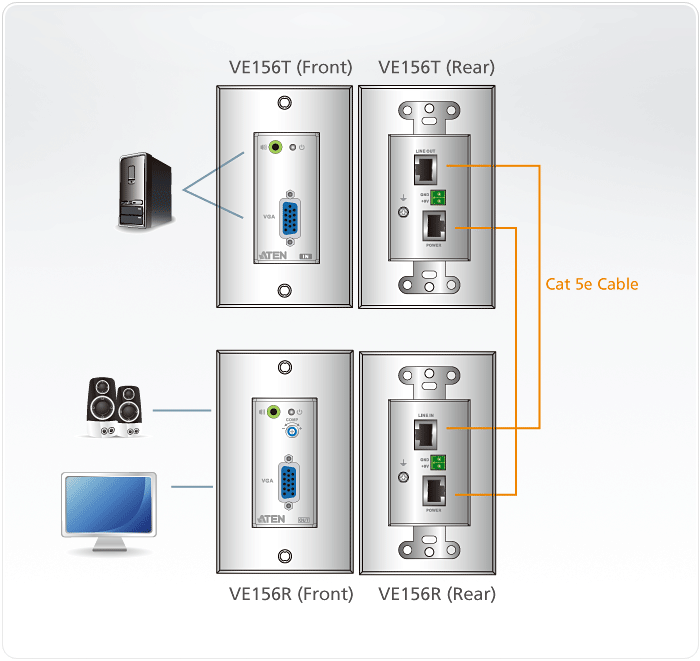

Diagram

Specifications

Function

VE156R

VE156T

Video Input

Interfaces

N/A

1 x HDB-15 Female (Blue)

Impedance

N/A

100 Ώ

Video Output

Interfaces

1 x HDB-15 Female (Blue)

N/A

Impedance

100 Ώ

N/A

Video

Max. Bandwidth

300 MHz

300 MHz

Max. Resolutions / Distance

Up to 1920 x 1200@30m; 1280 x 1024@150m

Up to 1920 x 1200@30m; 1280 x 1024@150m

Audio

Input

N/A

1 x Mini Stereo Jack Female (Green)

Output

1 x Mini Stereo Jack Female (Green)

N/A

Power

Connectors

1 x Terminal Block (Green)

1 x Terminal Block (Green)

Consumption

9 VDC, 3.2W

9 VDC, 3.2W

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.18 kg ( 0.4 lb )

0.18 kg ( 0.4 lb )

Dimensions (L x W x H)

10.41 x 4.44 x 4.28 cm

10.41 x 4.44 x 4.28 cm

(4.1 x 1.75 x 1.69 in.)

(4.1 x 1.75 x 1.69 in.)

Carton Lot

5 pcs

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
