HOME / Back -> Hard Drive Controllers -> SAS Controllers -> Intel

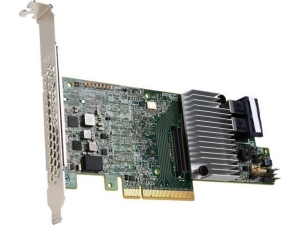

Intel RS3DC080 8-Port 12G SAS/SATA RAID Controller - PCI-E 3.0x8
  • SAS/SATA Internal Ports(8), LSI3108 Rock Mainstream, RAID 0/1/5/10/50/60, PCI-E 3.0x18
  • Included Low-Profile Bracket

IMG 1 of 1
No Longer Available
Part Number:
425835
(?) Brand:
Intel Web Site
Manuf No:
RS3DC080
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
RS3DC080, 2561615, 735858265355

Intel RS3DC080 8-Port 12G SAS/SATA RAID Controller - PCI-E 3.0x8

Specifications

Essentials

  • Product Collection Intel RAID Controllers
  • Code Name Products formerly Dark Canyon
  • Status Launched
  • Launch Date Q3'13
  • Expected Discontinuance 2H'20
  • Target Market Mainstream
  • Board Form Factor Low Profile MD2 Card
  • Data Transfer Rate 12 Gb/s
  • Supported Devices SAS/SATA
  • RAID Level Supported 0, 1, 10, 5, 50, 6, 60
  • JBOD Mode No
  • # of Ports Internal 8
  • # of Devices Supported 128
  • Embedded Memory 1GB
  • PCIe Host Interface PCIe x8 Gen3
  • IO Processor Model LSI3108
  • Connector Orientation Side
  • Additional Extended Warranty Details Intel RAID Extended Warranty
  • Included Items Raid Controller, Quick Start User Guide, 1 standard &1 Low Profile bracket.
  • Recommended Customer Price N/A

Supplemental Information

  • Description 12Gb/s SAS, 6Gb/s SATA, LSI3108 ROC Mainstream Intelligent RAID 0,1,5,10,50,60 add-in card with x8 PCIe 3.0, 8 internal ports, MD2 Low Profile form factor.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Intel) web site.
