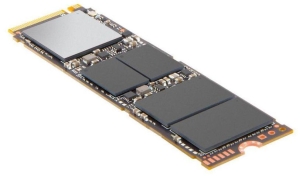

Intel 128GB M.2 NVMe Solid State Drive - M.2 2280, 3D2, TLC, PCIe 3.0x4 - 760P Series

Twice the Performance. Half the Power Consumption.

Accelerate your PC performance with the optimal PCIe* bandwidth of the Intel® SSD 760p Series.

The Intel® SSD 760p Series combines PCIe* performance, versatile capacities, and high-quality Intel® 3D NAND technology to deliver twice the performance and up to 50% of the power consumption 1 than its previous generation – the Intel® SSD 600p Series. The Intel SSD 760p features an M.2 thin profile with PCIe Gen3 x4, NVMe* interfaces, and is ideal for a wide range of devices from desktops to laptops. The SSD is backed by a five-year limited warranty and Intel’s world-class quality leadership.

Performance to Handle Multiple Tasks

The SSD 760p is designed to effortlessly manage demanding consumer client applications and easily handle intense multi-tasking. The SSD 760p accelerates platform performance with sequential reads of up to 3,230 megabytes, sequential writes of up to 1625 megabytes per second (MB/s), and random read and write input/output operations per second (IOPS) of up to 340K and 275K, respectively. 2 The SSD 760p enables PC users to experience enhanced efficiency with the applications they care about, and up to 6x better performance 2 than SATA SSDs .

3D NAND Delivers Capacity

The SSD 760p is part of the Intel® 3D NAND SSD family of products. Built on Intel® 3D NAND Technology, these SSDs are designed to transform the economics of storage. The SSD 760p offers capacity points up to 512GB on single-sided M.2 (80mm), enabling system designers the flexibility to design for thin/light systems or to provide space for other components. The combination of Intel® 3D NAND technology and PCIe enables Intel® SSDs to push the limits of performance and value.

Performance at Lower Power

The SSD 760p provides extended battery life through low power modes. It reduces idle consumption by >90% compared to a typical hard disk drive, reducing power consumption from watts to milliwatts. 3 When coupled with an 8th generation Intel® Core™ processor-based platform, the advanced power mode settings reduce active and idle power consumption by up to 50% versus the prior generation device (SSD 600p Series). 1

Quality & Reliability You Can Trust

The SSD 760p is backed by Intel’s five-year limited warranty, including Intel’s world- class post sales customer support. The SSD 760p also supports AES 256-bit self- encryption to provide protection of critical data stored on the device.

Specifications

Essentials

Code Name
Products formerly Harris Harbor
Capacity
128 GB
Status
Launched

Launch Date
Q1'18
Lithography Type
3D2 TLC

Performance

Sequential Read (up to)
  • 1640 MB/s
Sequential Write (up to)
  • 650 MB/s
Random Read (8GB Span) (up to)
  • 105000 IOPS
Random Write (8GB Span) (up to)
  • 160000 IOPS
Power - Active
  • 50 mW
Power - Idle
  • 25 mW

Reliability

Vibration - Operating
  • 2.17 GRMS
Vibration - Non-Operating
  • 3.13 GRMS
Shock (Operating and Non-Operating)
  • 1000 G
Endurance Rating (Lifetime Writes)
  • 72 TBW
Mean Time Between Failures (MTBF)
  • 1.6 million hours
Uncorrectable Bit Error Rate (UBER)
  • <1 sector per 10^15 bits read
Warranty Period
  • 5

Package Specifications

Weight
  • <10 grams
Form Factor
  • M.2 22 x 80mm
Interface
  • PCIe NVMe 3.1 x4

Advanced Technologies

Enhanced Power Loss Data Protection
  • No
Hardware Encryption
  • AES 256 bit
High Endurance Technology (HET)
  • No
Temperature Monitoring and Logging
  • No
End-to-End Data Protection
  • Yes
Intel Smart Response Technology
  • Yes
Intel Rapid Start Technology
  • Yes
Intel Remote Secure Erase
  • No

No additional files, specification sheets, guides or documentation found for product.
