Coolermaster MCY-B5P2-KWGN-02 MasterBox Pro 5
RGB
Overview

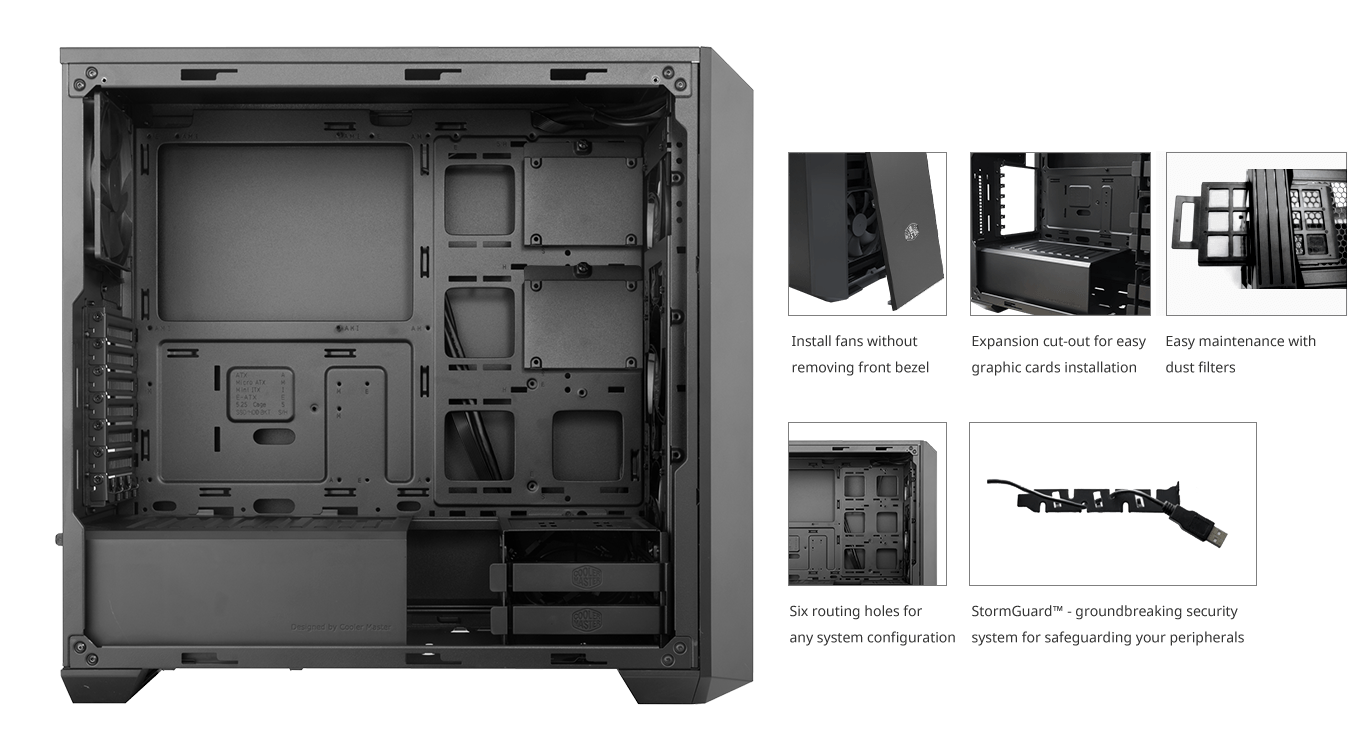

Exploring the Interior
Create a design that follows your personality and preferences. This case is
designed to allow users the freedom to configure everything from components to
lighthing however they want.

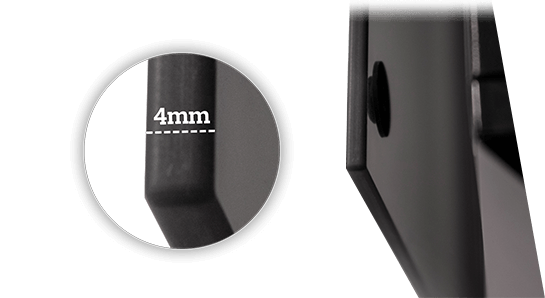

Tempered Glass Side Panel
4MM THICK EDGE TO EDGE TEMPERED GLASS SIDE PANEL
Show off your perfect build and powerful components through the 4mm thick,
edge to edge, tempered glass side panel!
Expanding the Possibilities
FOR MOTHERBOARDS
Motherboard tray cut-outs creatively rearrange space for any size
motherboard
- MINI ITX
- MICROATX
- ATX
- E-ATX
*Each slot supports one motherboard type

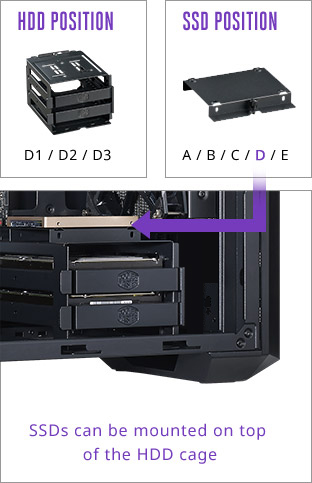

Expanding the Possibilities
FOR STORAGE
Tray cut-outs also allow for the easy mounting and rearranging of SSDs and
HDDs across the motherboard tray, along the bottom shelf, or on the back side of
the tray (for SSDs).

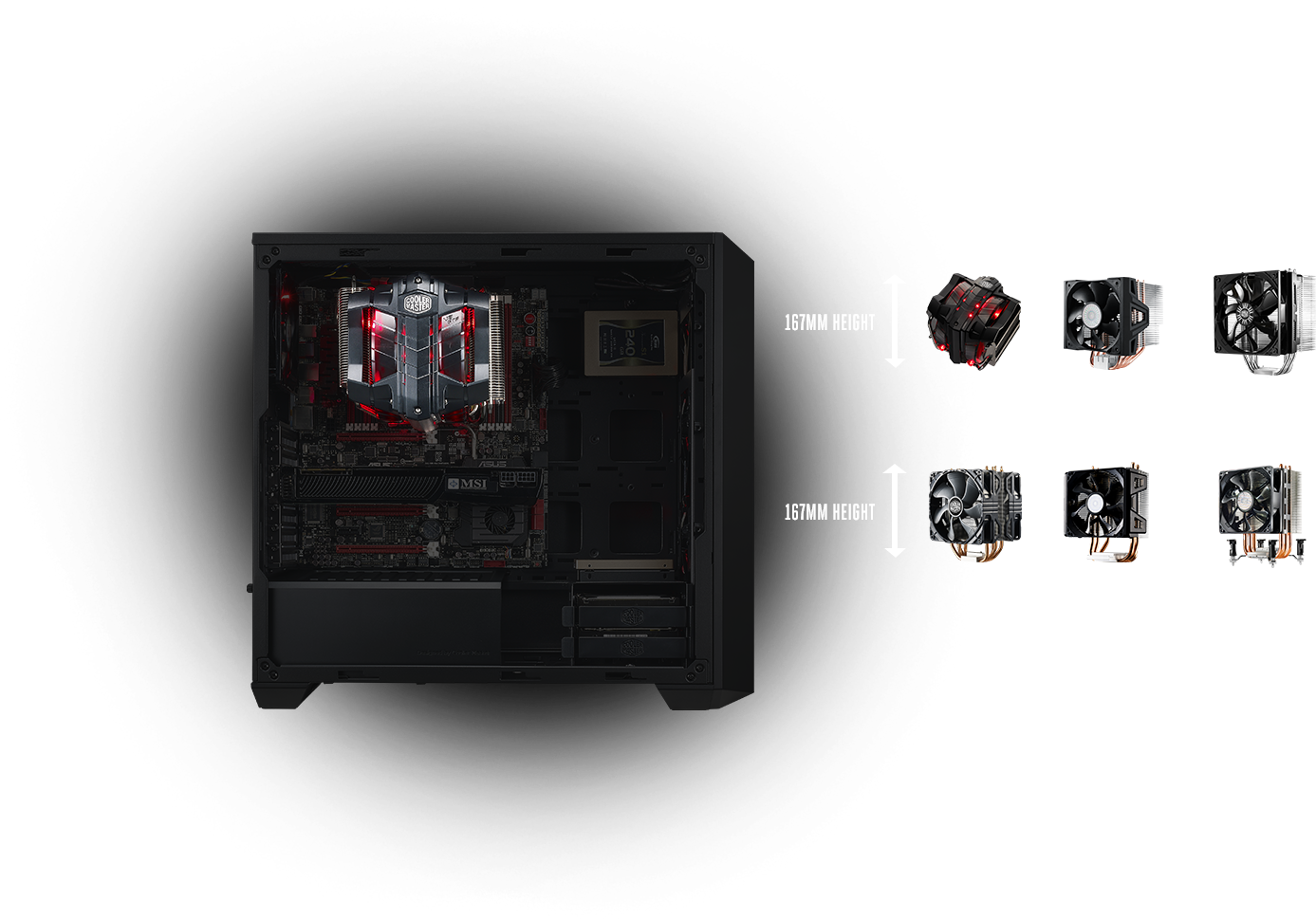

Expanding the Possibilities
FOR CPU COOLERS
No pushing! Theres enough elbow room inside, even for beastly coolers.
Expanding the Possibilities
FOR GRAPHICS CARDS
Titans have a place inside too. Or your next VR-ready GeForce 1080.

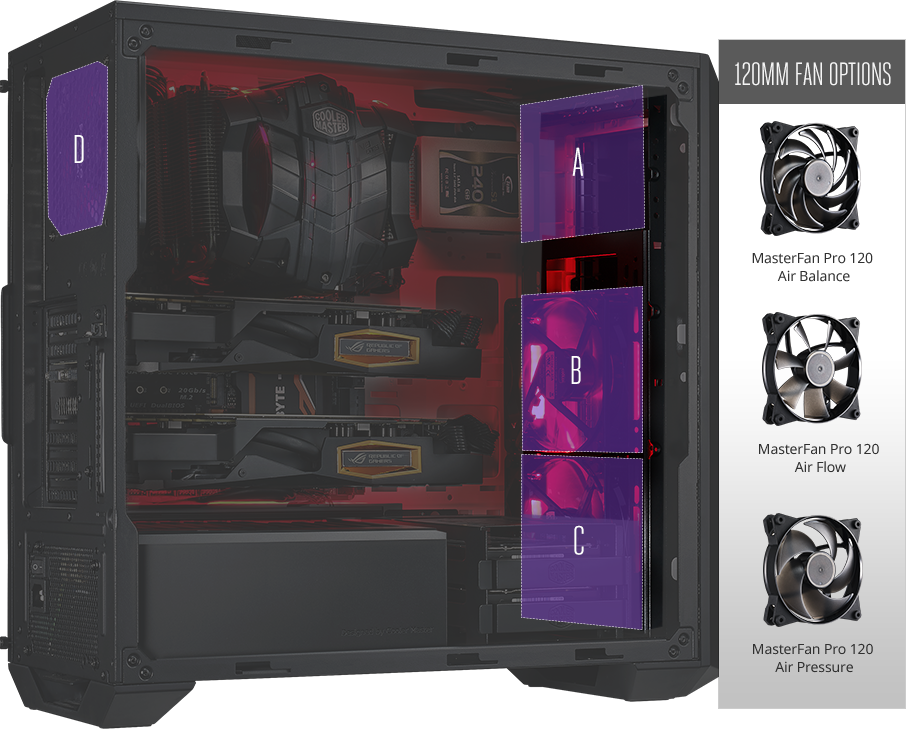

Internal Configuration
YOUR AIR COOLING SET-UP
The uniquely modular design of the MasterBox creates space where there
usually isn't. The case supports
- Three 120mm fans
- Four fans with use of optional front bracket

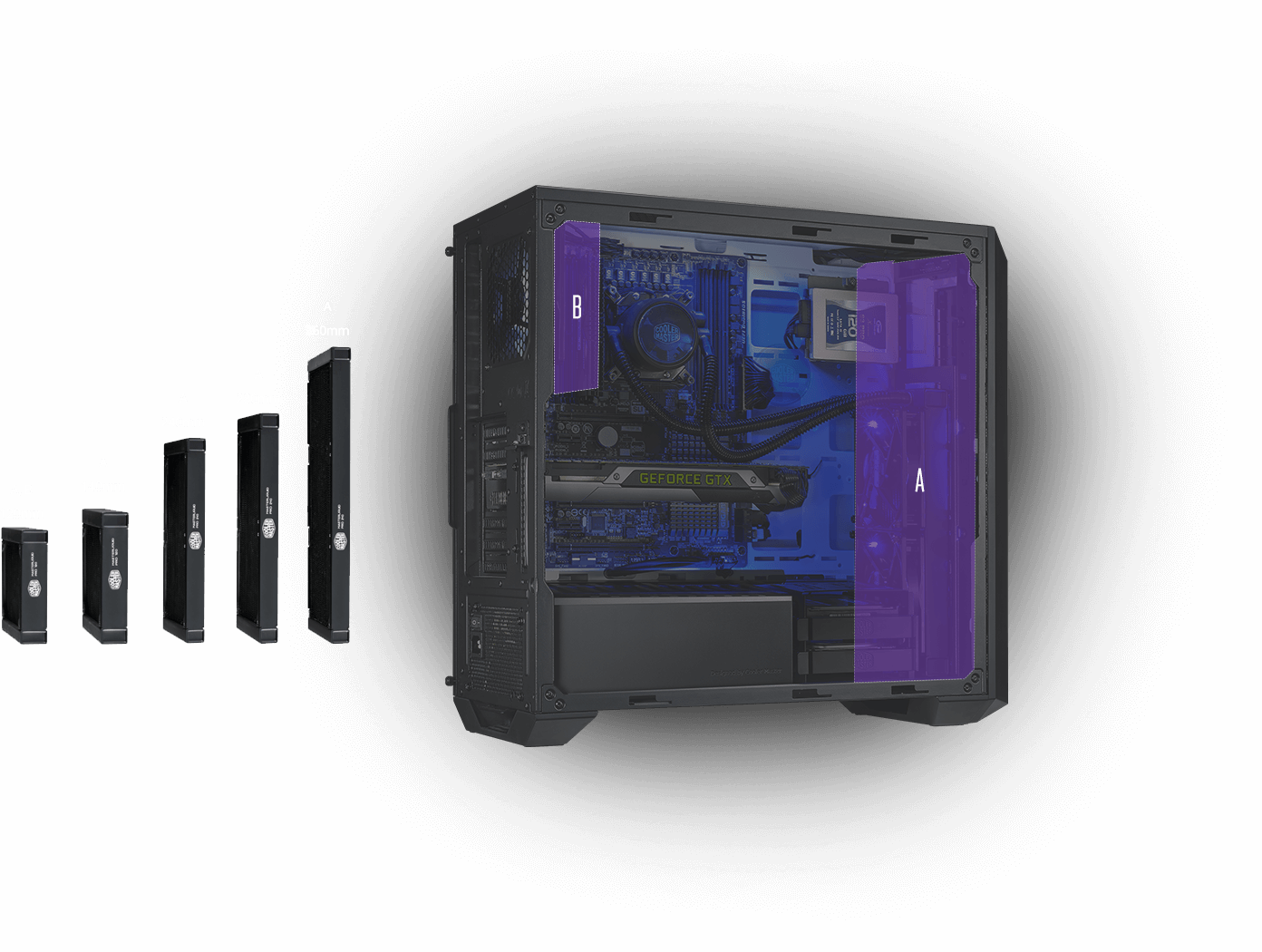

Internal Configuration
YOUR LIQUID COOLING SET-UP
The uniquely modular design of the MasterBox creates space to fit the biggest
DIY cooling contraptions.*
*360mm radiator installable with optional front bracket

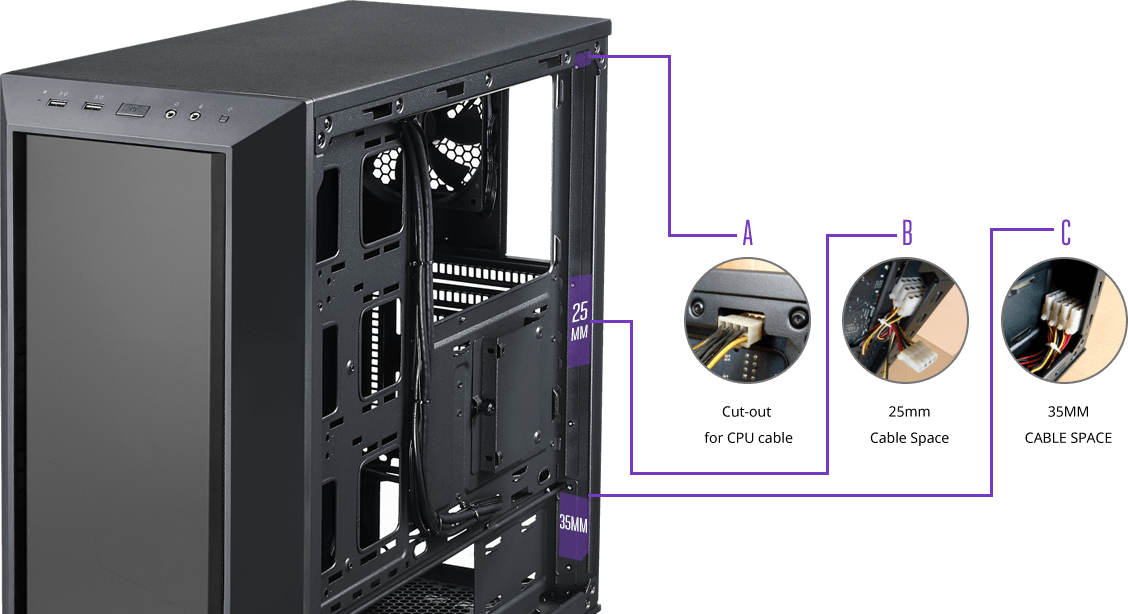

Clean Cabling
FOR CLEAN ACCESS
All system setups have hidden space for cable management
Easy Fun
EASY COMPUTING
Challenge the confines of the MasterBox Pro 5 by creating intuitive and
flexible layouts for components and cables, large or small. Then comes the easy
part: building.

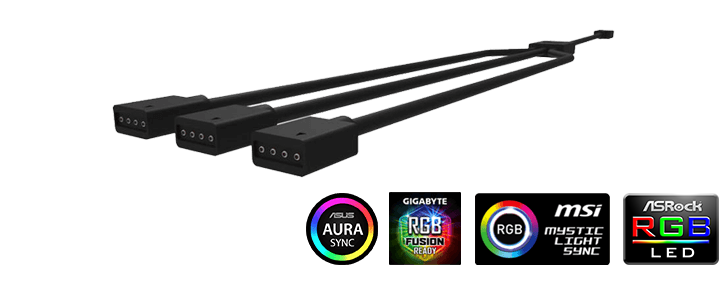

1 to 3 Splitter Cable for RGB LED Fans
The RGB Connector Splitter and 4 pin male to male adapters are included.
Certified compatible with:ASUS, Gigabyte and MSI motherboards.
Specifications
|
Product
Name |
MasterBox Pro 5
RGB |
|
|
|
Model
number |
MCY-B5P2-KWGN-02 (w/RGB
Controller) |
|
|
|
Available
Color(s) |
Black |
|
|
|
Materials |
Steel body, Plastic
mesh bezel, Tempered Glass |
|
|
|
Dimensions
(WxHxD) |
223(W) x 475(H) x
500(D) mm |
|
|
|
Weight |
10.4kg |
|
|
|
M/B
Type |
E-ATX, ATX, Micro-ATX,
Mini-ITX |
|
|
|
5.25" Drive
Bays |
Cages are sold
separately |
|
|
|
3.5" Drive
Bays |
2 |
|
|
|
2.5" Drive
Bays |
2 |
|
|
|
I/O
Panel |
2x USB
3.0 |
|
1x Audio In &
Out |
|
|
|
Expansion
Slots |
7 |
|
|
|
Air Cooling
Compatibility |
|
|
Front |
3x 120mm or 2x
140mm |
|
Rear |
1x
120mm |
|
|
|
Water Cooling
Compatibility |
|
|
Front |
240/280/360mm
radiator |
|
Rear |
120mm
radiator |
|
|
|
Included
Fans |
|
|
Front |
3x 120mm RGB fan
(Additional controller or compatible motherboard required for RGB
functionality) |
|
Rear |
1x
120mm |
|
|
|
Dust
Filters |
Front /
Bottom |
|
|
|
Power Supply
Type |
Bottom
Mount |
|
Standard ATX PS2 / EPS
12V |
|
|
|
Maximum CPU Cooler
Height |
167mm |
|
|
|
Maximum GPU/PCI Card
Length |
410mm |
|
|
|
Warranty |
2
Years |
