Vantec NexStar TX USB Hard Drive Dock w. 3-Port Hub - USB3.0,
Black
for 2.5"/3.5" SATA 6Gbps SSD/HDD

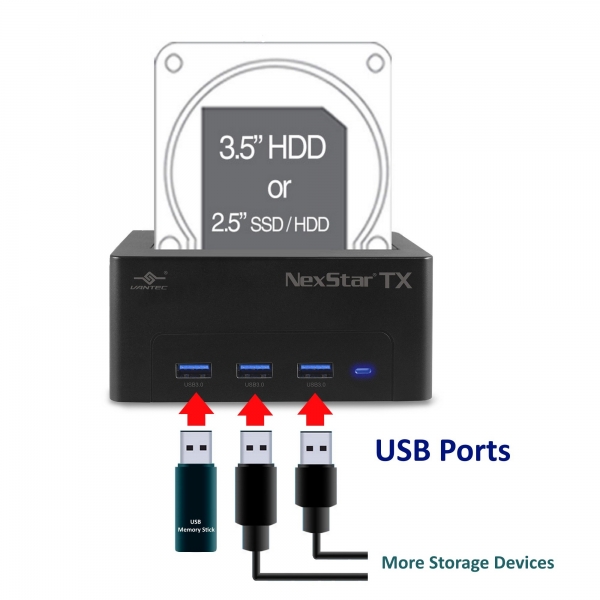

This multi-purpose NST-D328S3H-BK USB 3.0 Hard Drive Dock with 3-Port Hub is
a simple design with broad functionality. The first thing that you will notice
is the three USB 3.0 ports on the dock. This built in USB hub is easy accessible
in front, the three front USB 3.0 port provides ample connections saving you
another device on your desk. This combination of Hub + Dock allows for easy
connection to any Standard SATA 2.5”/3.5” HDD/SSD/Hybrid bare drive. It comes
with the latest USB 3.0 technology and USAP support to help speed up file copy
and swapping of drives for unlimited storage.
This design allow for maximum flexibility to use both at the same time, or
USB hub alone or Dock alone. The USB Plug and Play functionality further
simplifies adding or removing of devices from the USB ports. Once you start
using this multi-purpose Hub + Dock, you will not want to go back to have two
device on your desk anymore. This one NST-D328S3H-BK will do the job of two
devices and simplify your system work space.
- Hard Drive Dock and 3-Port Hub in one
- Easy Access to 3USB 3.0 Ports
- SuperSpeed USB 3.0 with UASP for enhanced speed, backward compatible with
USB 2.0/1.1
- Support High performance SATA 6 Gbps interface - Twice the interface speed
with backwards compatibility to legacy SATA I/II
- Insert and Use 2.5/3.5 SATA HDD/SSD/Hybrid Drive for ultimate convenience
- Use USB eject and power off dock to swap drive without shutting down
Computer
- Hi-Quality Shielded USB 3.0 Cable Ensures Data Integrity and Speed
- Support Large capacity drives
Specifications
Dock Support: SATA I/II/III HDD/SSD/Hybrid Drive
Dock Drive Size: 2.5/3.5 HDD/SSD/Hybrid Drive
Internal Interface: Standard SATA III (Compatible with
SATA I/II)
External Interface: USB Type B
Hub Ports: 3 Ports, USB 3.0 with UASP
Hub interface: USB Type A
Interface Cable: USB 3.0 Type-A (system side) to Type B
(Dock side)
USB cable Length:787 mm / 31 inches
Power Supply: Universal Switching AC adapter, Output:
12VDC, 3A (5.5mm plug)
HD Capacity: Up to 8TB
Material: ABS/PC Plastic
Dimension: 130 x 80 x 58 mm / 5.1 x 3.2 x 2.3 inches
Weight: 263g / 0.6 lbs.
Environmental:
Temperature
Operating: 0C to +50C
Non-Operating: -20C to +70C
Humidity
Operating: 5% ~ 90% (Non-Condensing)
Non-Operating: 5% ~ 90%
(Non-Condensing)
