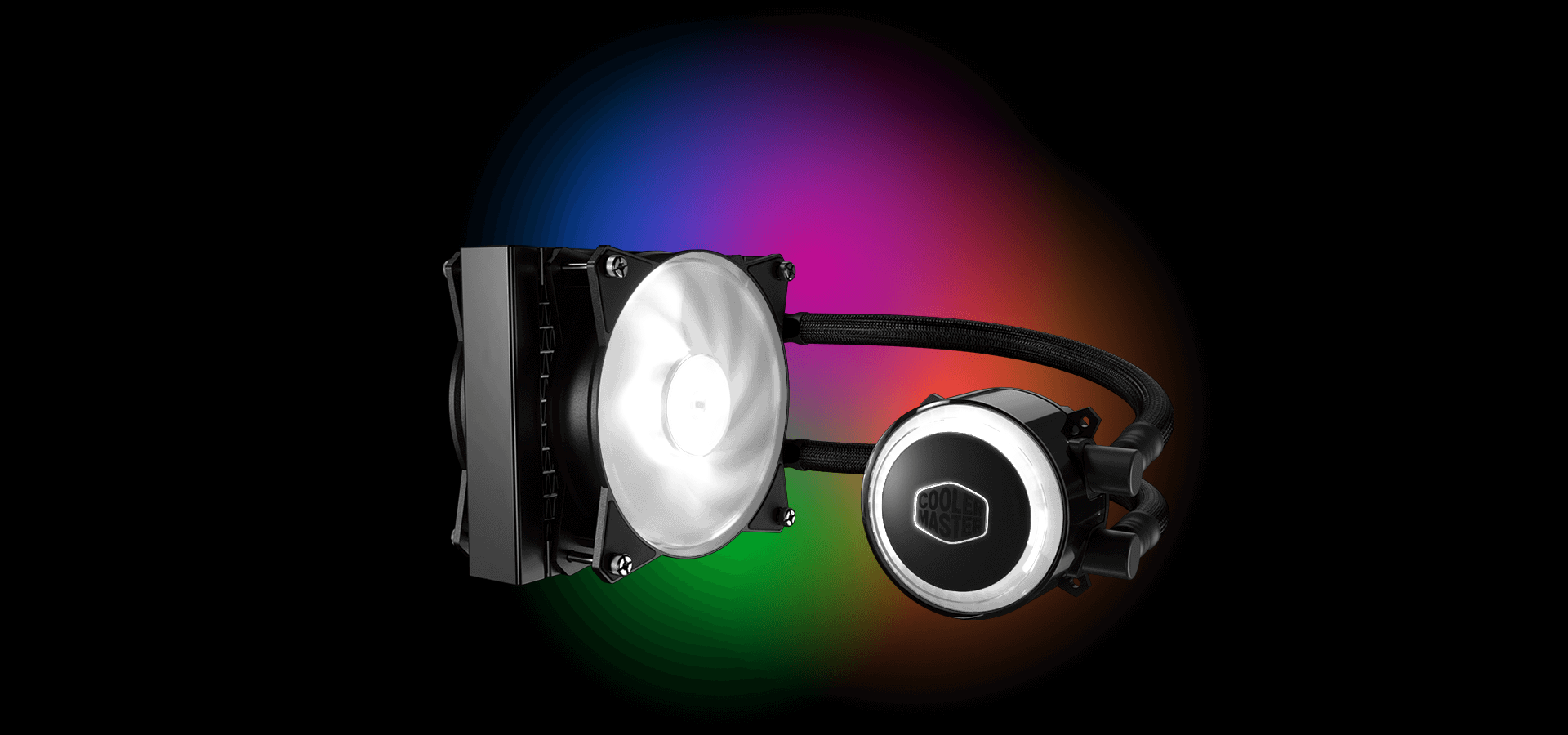

Coolermaster MasterLiquid ML120R
RGB
THE MOST COLORFUL WAY TO COOLMASTERLIQUID ML120R RGB
SPECIAL DESIGN
DUAL CHAMBERLOW-PROFILE DUAL CHAMBER
The PPS (Polyphenylene sulfide) and glass fiber construction resists a broad
range of chemicals and is unaffected by moisture or immersion in water. Our pump
is light and impervious to oxidation and corrosion.

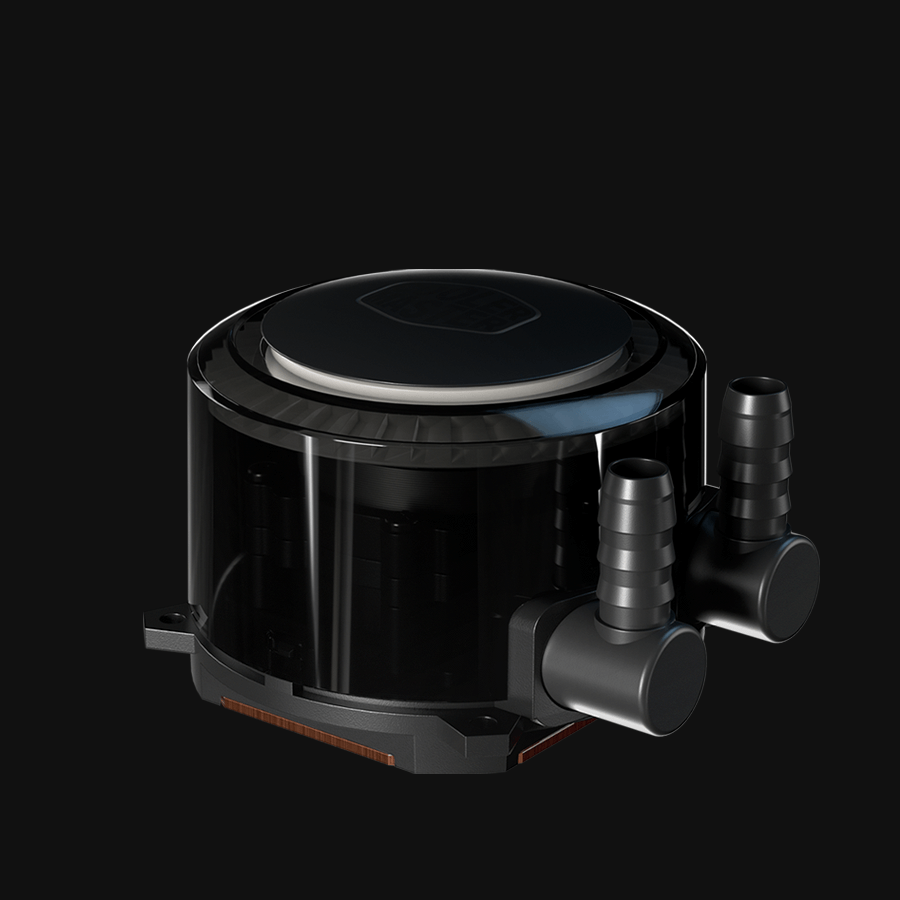

PUMP
DIFUSER
Provides unifrom color in refelected and transmitted light.
TRI-PHASE COLOR WITH SILENT DRIVER
Minimizing operating current while keeping a low dBA.
PPS + GLASSFIBER HOUSING & NOZZLE
Temperature and liquid resistance to increase life excpectancy of the
jump.
O-RING MADE OF HIGH QUALITY EPDM RUBBBER
Eliminates and prevent liquid emission.
12 ADDRESSABLE RGB LEDS
Fully addressable RGB that is certified to sync with RGB Motherboard or
controlled by MasterPlus++.
HIGH PERFORMANCE IMPELLER
Exclusive in house design for enhance liquid pressure.
MICROCHANNEL COLD PLATE
Precision machined microchannels maximize the water contact surface, to
quickly dissipate heat. The base is finished with clean and clear appearance.
STYLISH RADIATOR
Custom design low resistance radiator allows higher flow rate, heat exchange
efficiency and provides unmatched cooling performance.
DOUBLE TUBING
FEP tubing makes it durable yet flexible. Sleeved tubing on the exterior to
give it a premium look.

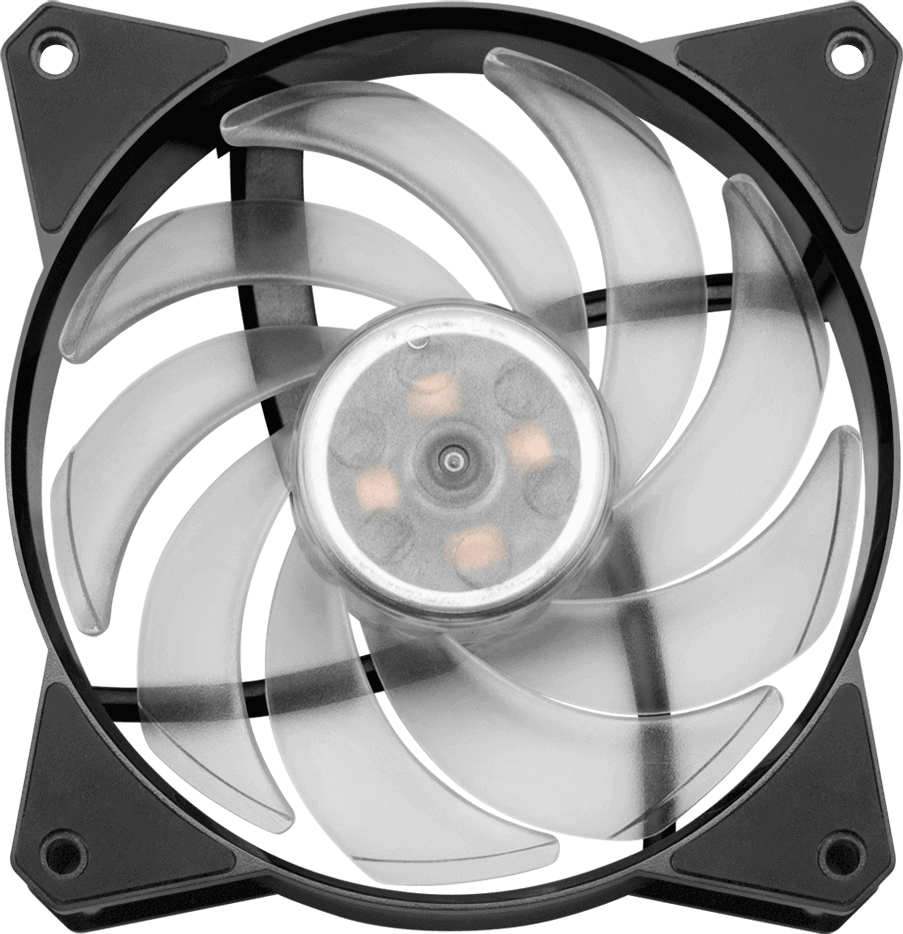

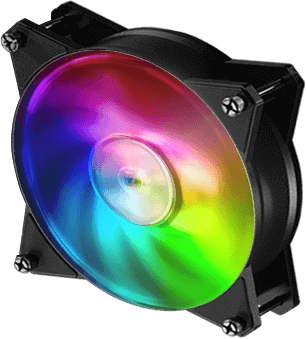

MF120R ARGB FANS
MasterFan MF120R ARGB provides a specific air cooling solution ideal to
maximize air pressure for AIO liquid cooling. Designed for Builders with
Addressable RGB-enabled PCs, you can personalize the color of your fans to match
your PC perfectly.
Specifications
|
Product
Name |
MasterLiquid
ML120R RGB |
|
Model |
MLX-D12M-A20PC-R1 |
|
CPU
Socket Compatibility |
Intel
LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
socket |
|
|
AMD
AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
socket |
|
Radiator |
|
|
Material |
Aluminum |
|
Dimensions |
157
x 119.6 x 27mm (6.2 x 4.7 x 1.1") |
|
Dimensions |
120
x 120 x 25 mm (4.7 x 4.7 x 1") |
|
Quantity |
2
PCS |
|
Speed |
650
~ 2000 RPM (PWM) 10% |
|
Air
Flow |
66.7
CFM (Max) |
|
Fan |
|
|
Air
Pressure |
2.34
mmH2O (Max) |
|
MTTF |
160,000
hours |
|
Noise
Level |
6
~ 30 dBA |
|
Connector |
4-Pin
(PWM) |
|
Rated
Voltage |
12
VDC |
|
Dimensions |
83.6
x 71.8 x 52.7 mm (3.3 x 2.8 x 2.1") |
|
MTTF |
70,000
hours |
|
Pump |
|
|
Noise
Level |
<
15 dBA |
|
Connector |
3-Pin |
|
Rated
Voltage |
12
VDC |
|
Warranty |
2
Years |
