All stock codes associated to this product
SSN6G256U31, SSN6G-256U31
The
Sapphire Cipher II Snap-In is Addonics 2nd generation encryption solution with
support of SATA 6G speed. It is a high performance and simple solution to secure
any 3.5" or 2.5" SATA HDD/SSD with FIPS certified AES 256-bit full disk hardware
encryption. Connects to any system via eSATA or USB 3.1/3.0 port, drives are
added or removed from the Sapphire Cipher Snap-In like a VHS cassette.
Encryption is activated by a simple insertion of a Cipher key, just like locking
the door. There is no password to remember or special software to install. If
the drive is stolen or lost, all the information is inaccessible without the
Cipher key. The drive will appear as a blank drive without any traces of data
when it is connected to a system.TheSapphire Cipher II Snap-Inis OS
independent andcan be connected to any system. It is the ideal security
solution for organizations with heterogeneous computing environments and legacy
systems,for securing sensitive data stored on any hard drive or for
transporting hard drives containing sensitive information.
Constructed
with a rugged aluminum body for tough handling and effective heat dissipation,
the Sapphire Cipher Snap-In System comes in a choice of models with eSATA or a
combo eSATA / USB 3.0 interface for easy connection to any Desktop or Notebook
system.
High
Performance
The Sapphire Cipher II Snap-In encrypts
and decrypts data on the fly using an onboardFIPS 140-2 certified
AES crypto enginefrom Enova Technology. Unlike software
encryption products that depend on the system CPU to encrypt and decrypt the
data, the Sapphire Cipher II Snap-In has no impact on CPU utilization. This
allows the system CPU to perform its computing tasks at normal speed. The
Sapphire Cipher II Snap-In has minimal impact on the performance of the hard
drive or SSD.
Security
Sapphire Cipher II Snap-In is a full disk encryption
solution, meaning that the boot sector, partition table, and all the information
in the drive are encrypted. Storage devices protected by the Sapphire Cipher II
Snap-In are inaccessible without the Cipher key. When the drive in the Sapphire
Cipher II Snap-In is connected as a boot drive to a system, it will beinoperable
without the Cipher key. If the Sapphire Cipher II Snap-In encrypted drive is
stolen and then is connected to another system, the drive will appear as a brand
new drive with no trace of any data. For further security enhancement, Sapphire
Cipher II Snap-In also supports HMAC key (Key-Hash Message
Authentication Code).
Use
as a Cipher key programmer
The Sapphire Cipher II
Snap-In can be used for programming or duplicating the Cipher key code using the
AddonicsRNG softwareutility (a software sold
separately). This allows users to manage their own key code and is highly
recommended for multiple units deployment.
Choice
of standard Cipher (SC) key or HMAC key (Key-Hash Message Authentication
Code)
The standard Cipher key stores the
cipher code in plain text. Addonics first generation of CipherChain, Diamond
Cipher and Ruby Cipher can only be authenticated with this SC key. This type of
key is also compatible with the new Sapphire Cipher II Snap-In product. Although
you can use the same key code for both the Sapphire Cipher II Snap-In and the
Addonics first generation Cipher products, the encrypted hard drives are not
compatible. In other words, drives encrypted in Sapphire Cipher II Snap-In
cannot be attached to the first generation of Cipher product and vice versa.
The
HMAC keydoes not store any key code. Its authentication requires
two ways communication with the Sapphire Cipher II Snap-In and the original
encrypted hard drive. The HMAC key cannot be duplicated. The original key file,
generated by theAddonics RNG software PRO, is required to
program additional HMAC key. So when a HMAC key is lost or stolen, the key code
cannot be copied or hacked. HMAC key is supported only by the 6G SATA hardware
encryption products.

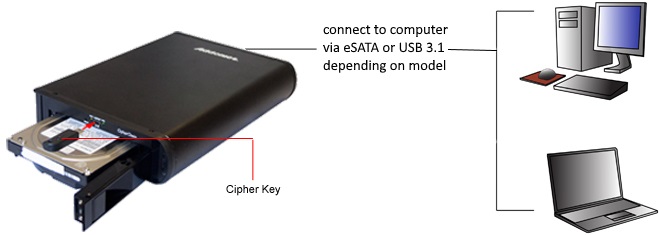

Illustration of drive installation/removal and the insertion of Cipher key (hard drive is for illustration only and is not
part of the product) |
|
|
|
|

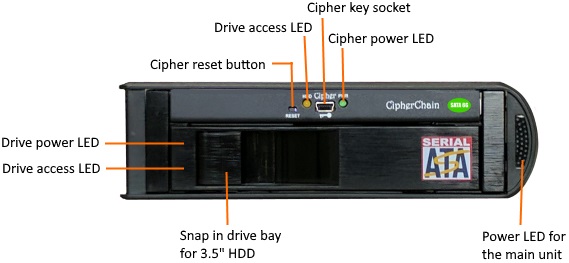

Front view |
|
|
|
|
|

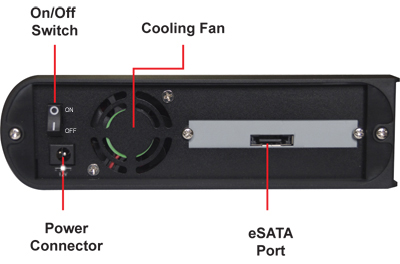

Rear view for model with
eSATA connection (can also connect to
USB 3.1/3.0/2.0 connection using optional eSATAp-USB 3.1 adapter,
modelADU31ESP) |
|

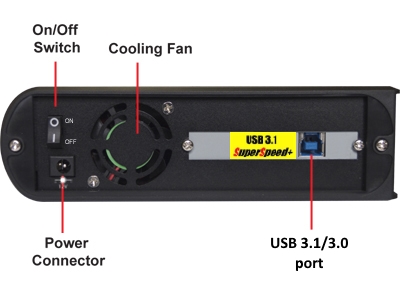

Rear View for model with integrated USB 3.1/3.0/2.0 |
|
|
|
|
|
|
|
|
|

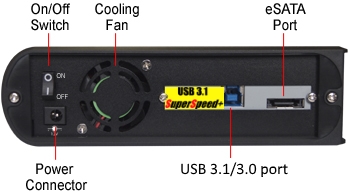

Rear
view of model with integrated USB 3.1 and eSATA connection
|
|
|
Drive
sanitizing
The Sapphire Cipher II Snap-In
can also be used to sanitize drives ~ wiping clean all previous data on a used
hard drive by using the following operation procedures:
- Install
the hard drive that is to be sanitized into the Sapphire Cipher II Snap-In.
- Initialize
and perform a standard formatting (not quick format) of the hard drive with
the Cipher key.
- Transfer
unimportant data to completely fill the hard drive inside the Sapphire Cipher
II Snap-In.This essentially writes over every sector in the hard drive
or the flash media with unimportant encrypted data that are invisible to any
OS. The drive or the flash media, when connects directly to a system, will
appear as a brand new media with no trace of any data.
- Now
connect the drive directly to any computer. Initialize and format the hard
drive with any OS to use it as a brand new hard drive.
2.5"
hard drive can also be installed into this Sapphire device using the Addonics
optionalSnap-In 25, a 2.5" - 3.5" SATA HDD adapter.

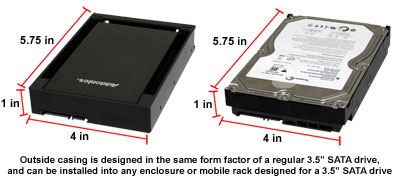

Snap-In 25 on the left has the exact same dimension of the 3.5" hard drive on the right |
|

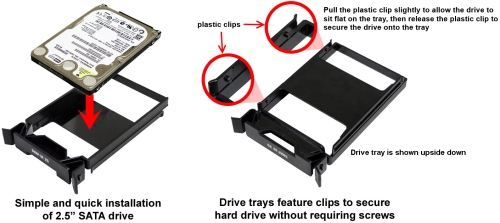

Installing
2.5" SATA drive into the Snap-In 25
M2
card, mSATA SSD, CFast, CF, slim SATA or micro SATA HDD/SSD card can be loaded
into the Snap-In 25 with the following optional adapters
Shown
with media side facing up |
2.5"
M2/mSATA SSD drive kit
(AD25M2MSA)
|
CFast
card in 2.5" CFast drive kit
(AD25CFASTD-N)
|
CF
card in 2.5" CF drive kit (AD25CFD-N)
|
Slim
SATA SSD 2.5" HDD adapter
(AA25SEMBK)
|
1.8"
micro SATA - 2.5" SATA HDD adapter
(AD18M25S)
|
note:
the flash cards shown above are for illustration purpose and are not part of the
flash drive adapter
- Great
for the following applications:
- Prevent
sensitive data from unauthorized access when the hard drive is lost or
stolen
- Shipping
or transporting hard drives containing sensitive data.
- Sanitizing
used hard drives
- Support
following hard drive:
- any
3.5" SATA hard drive
- any
2.5" SATA hard drive or SSD using the optional Addonics 3.5" to 2.5" drive
converter (model:AE25SN35SA)
- Maximum
throughput ~ up to 6Gbps. Actual performance depends on the media and the
system hardware.
- Drives
are added or removed similar to using a VHS cassette. No special tool is
required.
- Choice
of model with connection via eSATA, USB 3.1/3.0 only or both eSATA and USB
3.1/3.0/2.0
- FIPS
140-2 certified Crypto Module(MX+ crypto engine from Enova
Technology)
- AES
256-bit encryption ~ the highest level of encryption standard
- Full
disk encryption. The encrypted drive, when it is connected to any system,
appeared as a brand new drive with no trace of any recoverable data
- Simple
to use - no software to run or any password to remember
- No
training required. Encryption / Decryption via a hardware key , just like
using a regular key to open a door.
- Choice
of standard Cipher keyor HMAC key(Key-Hash Message Authentication
Code)
- OptionalRNG
softwarefor programming or duplicating Cipher key
- OS
independent ~ can be used on any system
Note
on Cipher key code
Each pair of Cipher keys
is set with a unique key code. When ordering multiple Cipher kits and extra
Cipher keys and wish that all the keys be set to the same key code, please
provide instructions at the final checkout when placing the order at our online
store. Customers may also e-mail the instructions with reference to the sales
order number after final checkout. When ordering from an Addonics reseller or
distributor, be sure to leave the instructions when placing the order. Keys can
be sent back to Addonics at any time if re-coding is desired there is no charge
for re-coding keys, the only charge is the return shipping of the newly re-coded
keys.
There
is no backdoor for any Addonics encryption product if the Cipher key is lost or
stolen.
For models that comes with the SC
(standard cipher) key, a pair of keys is included. One of these keys should be
kept in a safe, secure location and, if needed, can be sent back to Addonics for
duplicating additional keys. If one of the two keys is lost, be sure to make a
back up of all the data stored inside the encrypted hard drive prior to sending
your last key to Addonics. Addonics is not responsible for keys lost in the mail
or the retrieval of the data inside the encrypted hard drive.
For
models that come with HMAC key, the key file that is used for programming the
HMAC key is sent to the customer for safe keeping. Addonics does not keep any
record of the key file. In case of a lost or stolen key, the customer will need
to send the key file to Addonics to program the key.
For
the HMAC key users, we highly recommend ordering theAddonics RNG
software suitePROversion, available with a license for
minimum 30 keys. This software allows you to program the SC or HMAC key with
your own code or the random number generator built-in the software.
- Onboard
AES 256-bit crypto engine
- SATA
I / II / III compliant
- Connector
on back of the unit:
- eSATA
connector
- 12V
input jack
- LEDs:
Power, Cipher activation, drive access
- RESET:
To clear cipher key code and reset the CipherChain. This also removes the
drive icon when the storage device is removed from the Sapphire Cipher
External Drive Cartridge System and connecting to USB or a hot-swappable eSATA
port.
- Maximum
throughput - up to 6Gbps via eSATA or USB 3.1
- Light
weight, sturdy anodized aluminum housing
- Low
noise high CFM cooling fan
- Power
consumption (excluding the storage media): ~ 1.5 watts
- Dimensions
(L x W x H): 9.88 x 6.88 x 2.00 in ( 251 x 175 x 50.8 mm)
- Weight:
~ 2.75 lb (1.25 kg) without drive
- Operating
temperature and humidity: 0 C to + 60 C, 5% - 95% (non condensing)
- Storage
temperature and humidity: -40 C to + 70 C, 5% - 90%
humidity
