Samsung 1000GB (1TB) NVMe M.2 SSD - M.2 2280, V-NAND 2-bit MLC, PCIe Gen 3.0x4, NVMe 1.3 - 970 Pro Series

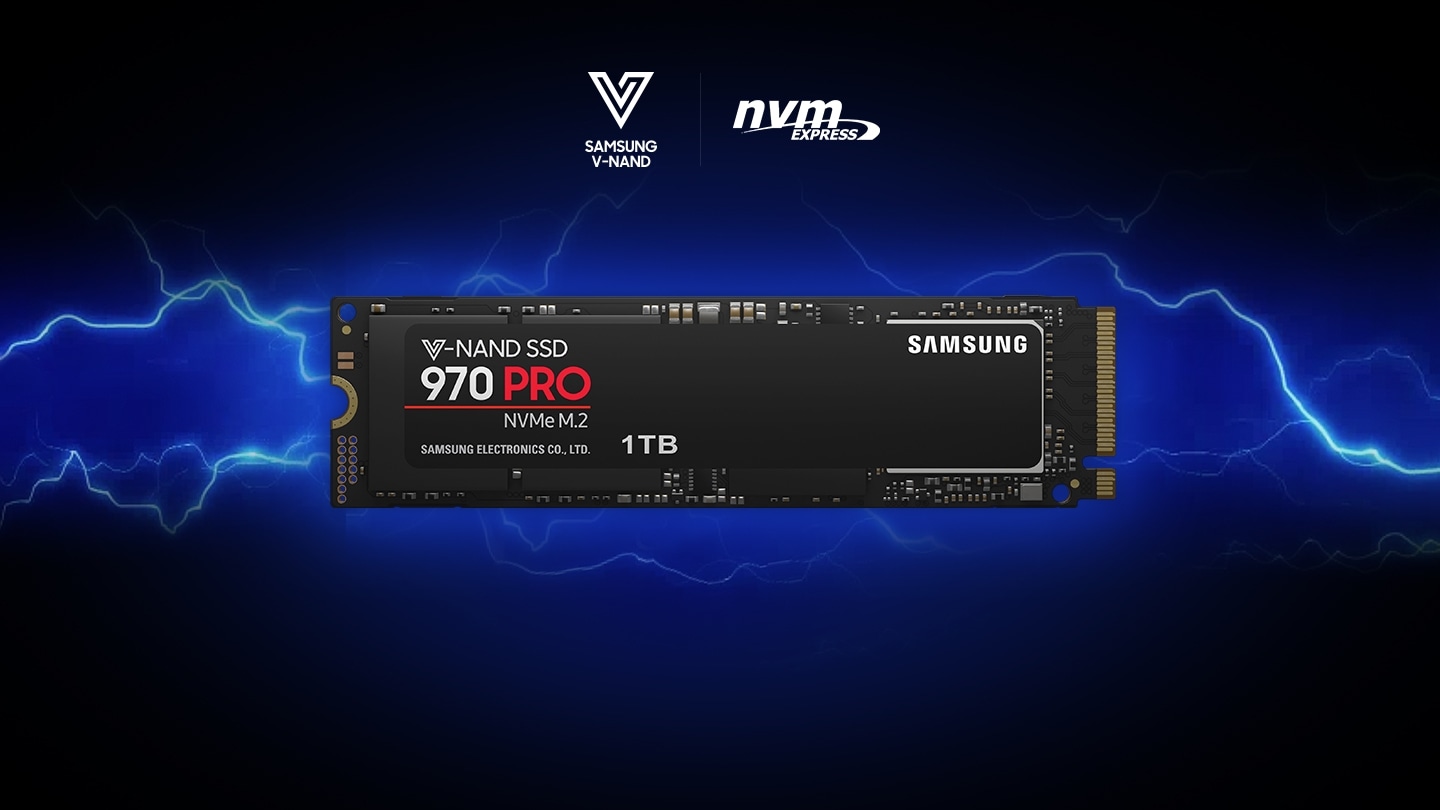

The SSD that goes beyond

Experience the best. For intensive workloads on PCs and workstations, the 970 PRO gives utmost performance enabled by Samsung†s NVMe SSD leadership. The latest V-NAND technology and new Phoenix controller in a compact M.2 (2280) form factor surpass the demands of tech enthusiasts and professionals.

https://images.samsung.com/is/image/samsung/in-feature-the-ssd-that-goes-beyond-98003622?$FB_TYPE_A_JPG$

Fearless Performance

Performance that puts you in command. The 970 PRO combines the next-gen PCIe Gen 3x4 NVMe interface with the latest V-NAND technology and a newly enhanced Phoenix controller to achieve fearless read/write speeds up to 3,500/2,700 MB/s*, approximately 30 percent faster than the previous generation.

Fearless Performance

* Sequential and random performance measurements are based on IOmeter 1.1.0. Performance may vary based on the SSDs firmwareversion, system hardware and configuration.* Test system configuration: Intel Core i7-7700K [email protected], DDR4 2400MHz 32GB, OS-Window 10 Built 10240, Chipset-ASUS PRIME Z270-A

Exceptional Endurance

Get the ultimate sustainable performance. The 970 PRO delivers up to 1,200 TBW* with a 5-year limited warranty, achieving 50 percent greater endurance than the previous generation, all powered by the latest V-NAND technology.

Exceptional Endurance

* TBW: Terabytes Written* Warrantied TBW for 970 PRO: 600 TBW for 512GB model, 1,200 TBW for 1TB model.* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

Unparalleled Reliability

Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 PRO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.

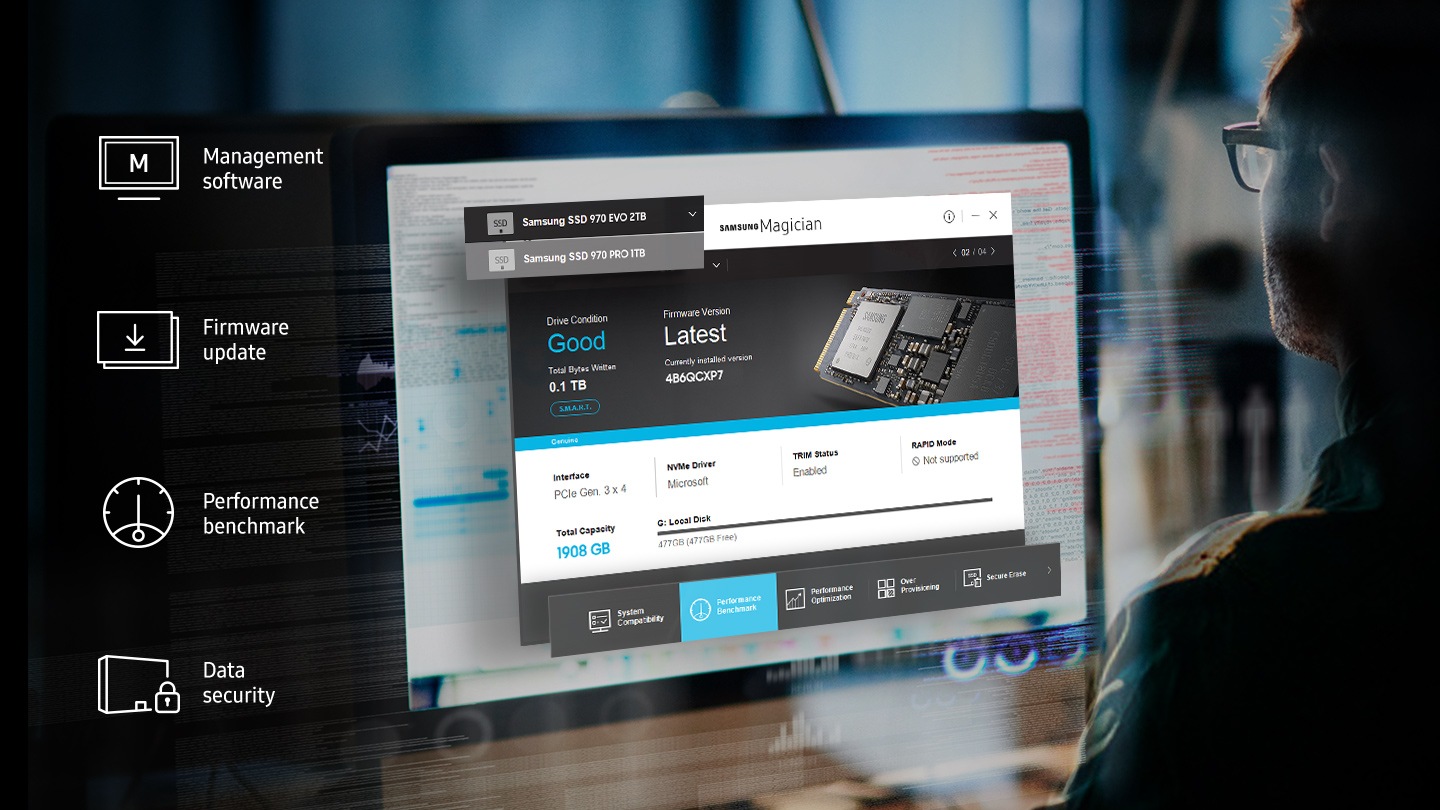

Samsung Magician

Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

Samsung Magician

Specifications

  • Application Client PCs
  • Capacity 1,024GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
  • Form Factor M.2 (2280)
  • Interface PCIe Gen 3.0 x4, NVMe 1.3
  • Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)
  • Weight Max 8.0 g Weight
  • Storage Memory Samsung V-NAND 2-bit MLC
  • Controller Samsung Phoenix Controller
  • Cache Memory Samsung 1GB Low Power DDR4 SDRAM
  • Special Feature
    • TRIM Support Supported
    • S.M.A.R.T Support Supported
    • GC (Garbage Collection) Auto Garbage Collection Algorithm
    • Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    • WWN Support Not supported
    • Device Sleep Mode Support Yes
  • Performance
    • Sequential Read Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
    • Sequential Write Up to 2,700 MB/s * Performance may vary based on system hardware & configuration
    • Random Read (4KB, QD32) Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
    • Random Write (4KB, QD32) Up to 500,000 IOPS * Performance may vary based on system hardware & configuration
    • Random Read (4KB, QD1) Up to 15,000 IOPS * Performance may vary based on system hardware & configuration
    • Random Write (4KB, QD1) Up to 55,000 IOPS * Performance may vary based on system hardware & configuration
  • Environment
    • Average Power Consumption (system level) * Average: 5.7 W * Maximum: 8.5 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
    • Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
    • Allowable Voltage 3.3 V5 % Allowable voltage
    • Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    • Operating Temperature 0 - 70 Operating Temperature
    • Shock 1,500 G & 0.5 ms (Half sine)
  • Accessories
    • Installation Kit Not Available
  • Software
    • Management SW Magician Software for SSD management
  • Warranty 5-Year Limited Warranty or 1,200 TBW Limited Warranty
  • No additional files, specification sheets, guides or documentation found for product.
