Essentials |
|
|
Product Collection |

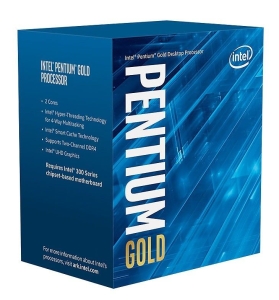

IntelPentiumGold Processor Series |
|
Code Name |
Products formerly Coffee Lake |
|
Vertical Segment |
Desktop |
|
Processor Number |
G5400 |
|
Status |
Launched |
|
Launch Date |
Q2'18 |
|
Lithography |
14 nm |
|
|
|
|
|
|
Performance |
|
|
# of Cores |
2 |
|
# of Threads |
4 |
|
Processor Base Frequency |
3.70 GHz |
|
Cache |
4 MB SmartCache |
|
Bus Speed |
8 GT/s DMI3 |
|
TDP |
54 W |
|
|
|
|
Supplemental Information |
|
|
Embedded Options Available |
Yes |
|
|
|
|
Memory Specifications |
|
|
Max Memory Size (dependent on memory type) |
64 GB |
|
Memory Types |
DDR4-2400 |
|
Max # of Memory Channels |
2 |
|
Max Memory Bandwidth |
37.5 GB/s |
|
ECC Memory Supported ‡ |
Yes |
|
|
|
|
Processor Graphics |
|
|
Processor Graphics |
Intel® UHD Graphics 610 |
|
Graphics Base Frequency |
350 MHz |
|
Graphics Max Dynamic Frequency |
1.05 GHz |
|
Graphics Video Max Memory |
64 GB |
|
4K Support |
Yes, at 60Hz |
|
Max Resolution (HDMI 1.4)‡ |
[email protected] |
|
Max Resolution (DP)‡ |
[email protected] |
|
Max Resolution (eDP - Integrated Flat Panel)‡ |
[email protected] |
|
DirectX* Support |
12 |
|
OpenGL* Support |
4.5 |
|
Intel® Quick Sync Video |
Yes |
|
Intel® InTru™ 3D Technology |
Yes |
|
Intel® Clear Video HD Technology |
Yes |
|
Intel® Clear Video Technology |
Yes |
|
# of Displays Supported ‡ |
3 |
|
Device ID |
0x3E90/x93 |
|
|
|
|
Expansion Options |
|
|
Scalability |
1S Only |
|
PCI Express Revision |
3.0 |
|
PCI Express Configurations ‡ |
Up to 1x16, 2x8, 1x8+2x4 |
|
Max # of PCI Express Lanes |
16 |
|
|
|
|
Package Specifications |
|
|
Sockets Supported |
FCLGA1151 |
|
Max CPU Configuration |
1 |
|
Thermal Solution Specification |
PCG 2015C (65W) |
|
T JUNCTION |
100°C |
|
Package Size |
37.5mm x 37.5mm |
|
Low Halogen Options Available |
See MDDS |
|
|
|
|
Advanced Technologies |
|
|
Intel® Optane™ Memory Supported ‡ |
No |
|
Intel® Turbo Boost Technology |
No |
|
Intel® vPro™ Technology ‡ |
No |
|
Intel® Hyper-Threading Technology ‡ |
Yes |
|
Intel® Virtualization Technology (VT-x) ‡ |
Yes |
|
Intel® Virtualization Technology for Directed I/O (VT-d)
‡ |
Yes |
|
Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
|
Intel® TSX-NI |
No |
|
Intel® 64 ‡ |
Yes |
|
Instruction Set |
64-bit |
|
Instruction Set Extensions |
Intel® SSE4.1, Intel® SSE4.2 |
|
Idle States |
Yes |
|
Enhanced Intel SpeedStep® Technology |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Intel® Identity Protection Technology ‡ |
Yes |
|
Intel® Stable Image Platform Program (SIPP) |
No |
|
|
|
|
Security & Reliability |
|
|
Intel® AES New Instructions |
Yes |
|
Secure Key |
Yes |
|
Intel® Software Guard Extensions (Intel® SGX) |
Yes |
|
Intel® Memory Protection Extensions (Intel® MPX) |
No |
|
Intel® OS Guard |
No |
|
Intel® Trusted Execution Technology ‡ |
No |
|
Execute Disable Bit ‡ |
Yes |
|
Intel® Boot Guard |
Yes |
