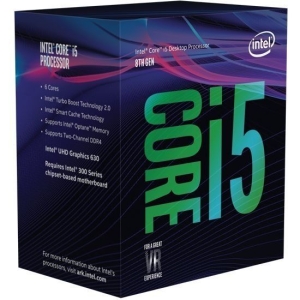

Intel Core i5-8500 6-Core Processor - (3.00GHz, 4.10GHz Turbo) - LGA1151

Essentials

  • Product Collection 8th Generation Intel Core i5 Processors
  • Code Name Products formerly Coffee Lake
  • Vertical Segment Desktop
  • Processor Number i5-8500
  • Status Launched
  • Launch Date Q2'18
  • Lithography 14 nm

Performance

  • # of Cores 6
  • # of Threads 6
  • Processor Base Frequency 3.00 GHz
  • Max Turbo Frequency 4.10 GHz
  • Cache 9 MB SmartCache
  • Bus Speed 8 GT/s DMI3
  • TDP 65 W

Supplemental Information

  • Embedded Options Available Yes
  • Datasheet View now

Memory Specifications

  • Max Memory Size (dependent on memory type) 64 GB
  • Memory Types DDR4-2666
  • Max # of Memory Channels 2
  • Max Memory Bandwidth 41.6 GB/s
  • ECC Memory Supported No

Processor Graphics

  • Processor Graphics Intel UHD Graphics 630
  • Graphics Base Frequency 350 MHz
  • Graphics Max Dynamic Frequency 1.10 GHz
  • Graphics Video Max Memory 64 GB
  • 4K Support Yes, at 60Hz
  • Max Resolution (HDMI 1.4) [email protected]
  • Max Resolution (DP) [email protected]
  • Max Resolution (eDP - Integrated Flat Panel) [email protected]
  • DirectX* Support 12
  • OpenGL* Support 4.5
  • Intel Quick Sync Video Yes
  • Intel InTru 3D Technology Yes
  • Intel Clear Video HD Technology Yes
  • Intel Clear Video Technology Yes
  • # of Displays Supported 3
  • Device ID 0x3E92

Expansion Options

  • Scalability 1S Only
  • PCI Express Revision 3.0
  • PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
  • Max # of PCI Express Lanes 16

Package Specifications

  • Sockets Supported FCLGA1151
  • Max CPU Configuration 1
  • Thermal Solution Specification PCG 2015C (65W)
  • TJUNCTION 100C
  • Package Size 37.5mm x 37.5mm
  • Low Halogen Options Available See MDDS

Advanced Technologies

  • Intel Optane Memory Supported Yes
  • Intel Turbo Boost Technology 2.0
  • Intel vPro Technology Yes
  • Intel Hyper-Threading Technology No
  • Intel Virtualization Technology (VT-x) Yes
  • Intel Virtualization Technology for Directed I/O (VT-d) Yes
  • Intel VT-x with Extended Page Tables (EPT) Yes
  • Intel TSX-NI Yes
  • Intel 64 Yes
  • Instruction Set 64-bit
  • Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2
  • Idle States Yes
  • Enhanced Intel SpeedStep Technology Yes
  • Thermal Monitoring Technologies Yes
  • Intel Identity Protection Technology Yes
  • Intel Stable Image Platform Program (SIPP) Yes

Security & Reliability

  • Intel AES New Instructions Yes
  • Secure Key Yes
  • Intel Software Guard Extensions (Intel SGX) Yes
  • Intel Memory Protection Extensions (Intel MPX) Yes
  • Intel OS Guard Yes
  • Intel Trusted Execution Technology Yes
  • Execute Disable Bit Yes
  • Intel Boot Guard Yes
