All stock codes associated to this product
55UH5CB, 55UH5C-B
LG 55UH5C-B 55" UHD IPS Digital Signage Display
Features
- Brightness : 500 cd/m²
- Bezel : 12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B)
- Depth : 38.6 mm
- Interface : HDMI / DVI / DP / RGB / RJ45 / IR / RS232C / SD Card /
USB
Overview
UHD Resolution & HEVC
Outstanding Picture Quality
UHD large screen delivers immersive viewing with four times higher definition
than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency
Video Coding) and double the data compression ratio of H.264.
Quad Core SoC with webOS
High Performance Smart Platform
Quad Core SoC (System-on-Chip) executes several tasks at once with smooth
content playback without a media player. webOS smart signage platform enhances
user convenience with intuitive UI and simple development tools.
USB Content Scheduling
Simply Play and Schedule Content
There is no need for additional server or media player connections as UH5C
supports USB playback and scheduling. Users can set a playlist and timing for
playing content using a USB.
PBP/PIP
Multiple Screen Composition
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two
divided split screens in landscape or portrait display format enabling users to
more flexibly allocate space for each content source.
Wireless Solutions
Content Sharing
Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons
and information in real-time.
\
SNMP Support
Real-Time Remote Monitoring
In case of malfunctions or errors, real-time remote care is available. When
an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via
the SNMP Protocol.
Embedded Group Manager
Easy Content Management
The LG group manager allows users to distribute content and set data on a
selected group within the same network without the need for a separate PC or a
server.

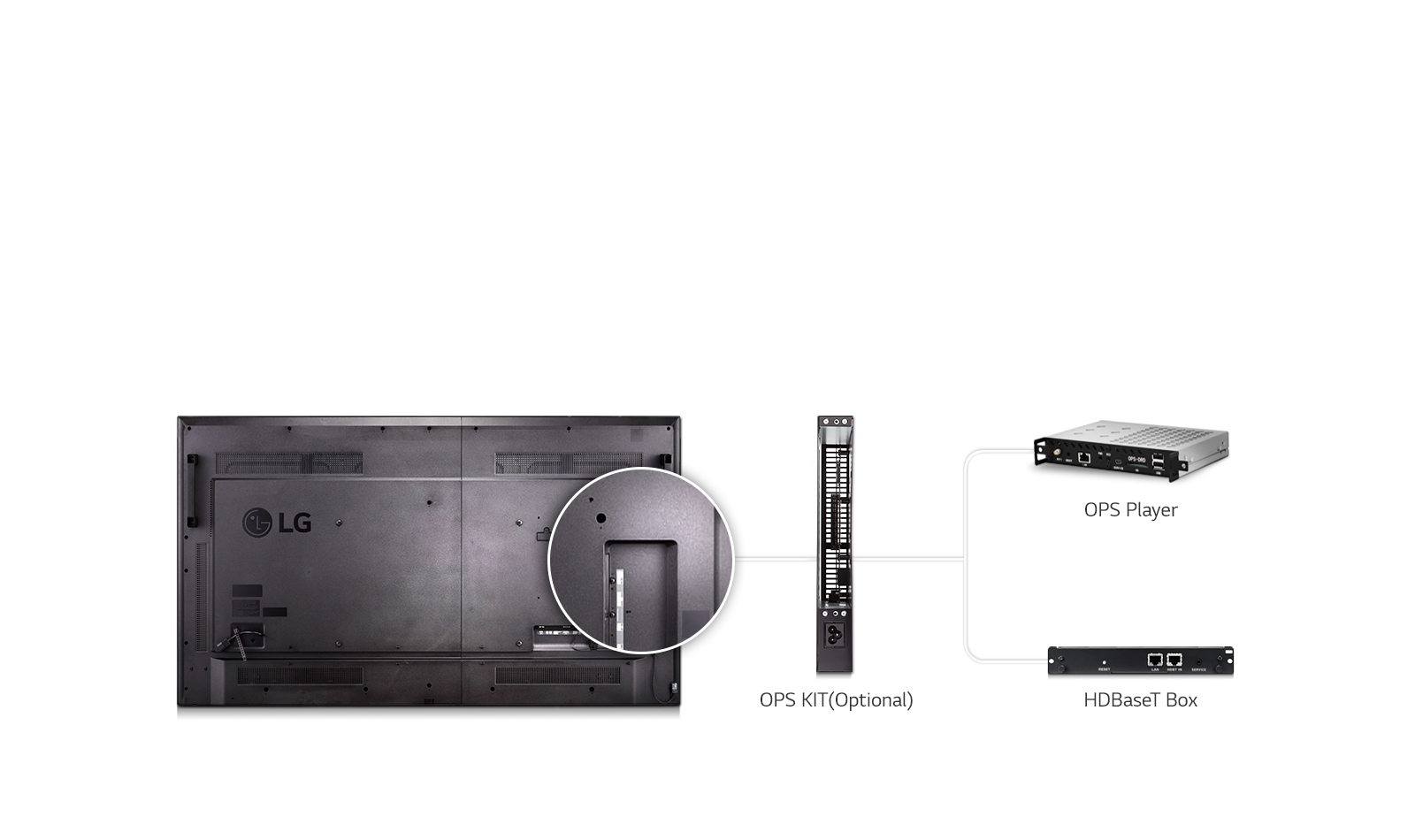

OPS/HDBaseT Connectivity
High Compatibility
UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a
third-party OPS player or HDBaseT box. Users have the flexibility to choose any
media player as long as it complies with the OPS.
Specifications
Panel |
|
Screen Size |
55" |
Resolution |
3,840 x 2,160 (UHD) |
Brightness |
500 |
|
|
Connectivity |
|
Input |
HDMI, DP, DVI-D, Audio, USB 3.0, SD Card |
Output |
DP, Audio, Externel Speaker Out |
External Control |
RS232C, RJ45, IR Receiver, Pixel Sensor |
|
|
Physical Specification |
|
Bezel Width |
12.1 mm (T), 12.6 mm (R/L), 15.7 mm (B) |
Monitor Dimension (W x H x D) |
1,239.8 x 725.2 x 38.6 mm |
Weight (Head) |
16.6 kg |
|
|
Environment Conditions |
|
Operation Temperature |
0°C to 40°C |
Operation Humidity |
10 % to 80 % |
|
|
Power |
|
Power Supply |
100-240V~, 50/60Hz |
Power Type |
Built-In Power |
|
|
Power Consumption |
|
Typ. |
116 W |
Smart Energy Saving |
80 W |
|
|
Standard (Certification) |
|
Safety |
UL / cUL / CB / TUV / KC |
EMC |
FCC Class "A" / CE / KCC |
ErP / Energy Star |
NA / EPA7.0 |
|
|
Media Player Compatibility |
|
OPS type compatible |
Yes |
External Media player Attatchable |
Yes (MP500/MP700) |
|
|
Software Compatibility |
|
SuperSign-w lite |
Yes |
SuperSign-c |
Yes |
|
|
Accessory |
|
Basic |
Remote Controller (2ea batteries included), Power cord, QSG, HDMI
cable, Regulation book, Phone to RS232C gender, Memory
cover |
Optional |
Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media
player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit
(KT-OPSA), HDBaseT
(EB-B100) |
