All stock codes associated to this product
ST4TB3B, ST4-TB3-B, ST4TB3, ST4-TB3, 4713227440363

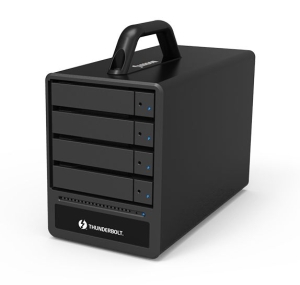

Stardom SOHORAID ST4-TB3 4-Bay 2.5"/3.5" SATA-III HDD/SSD Hardware RAID Storage - Diskless, TB3 - Black
4-Bay 2.5”/3.5” SATA III HDD/SSD Hardware RAID Storage
Thunderbolt 3 ports, 1 Mini DisplayPort, Hot-Swappable Drive
- Hardware RAID that works seamlessly between Macs and PCs.
- The ST4-TB3 is equipped with two configuration modes to suit every need.
- Thunderbolt 3 (USB-C) brings you 40Gbps extreme high data transfer speed.
- ST4-TB3 to support both of 3.5" HDD and 2.5" HDD &SD products.
- Thunderbolt 3 The USB-C that does it all.
- Support 15W ( 5V/3A ) Power Delivering.
- Mini DisplayPort connect DVIHDMIVGA display devices.

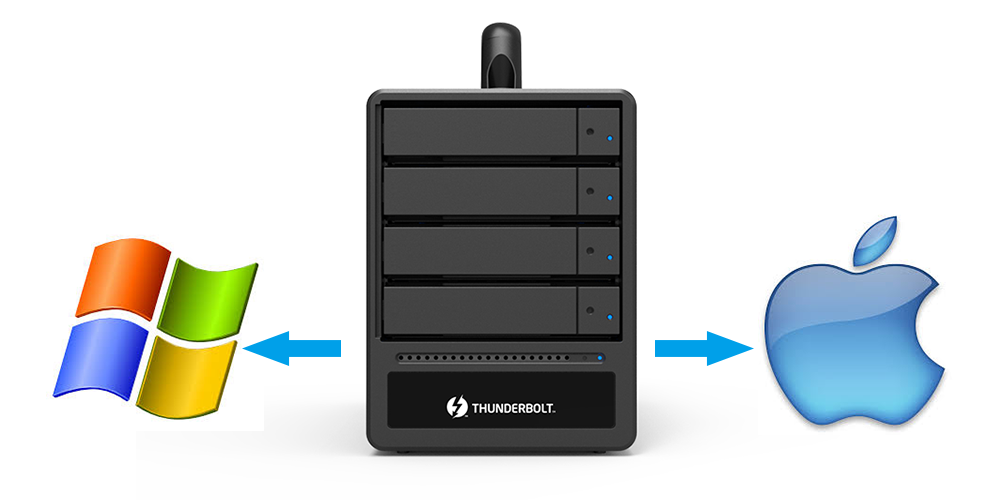

Hardware RAID that works seamlessly between Macs and PCs
A software RAID storage system is unable to overcome the problems associated
with cross-platform usage. It is only through hardware RAID controller chipsets
that users can use these hard drives concurrently in Mac or Windows computers.
With the ST4-TB3's built-in hardware RAID controller chipset and Thunderbolt 3
host interface, not only does it promise high transmission speed, it also
eliminates the cross-platform usage issues associated with JBOD or RAID 0
setups. Also, with hardware RAID, all data is computed and processed by the
built-in CPU. With such advantages, your computer performance can be focused on
running the software and work, instead of handling the storage device's
transmission issues.
The ST4-TB3 is equipped with two configuration modes to suit every
need

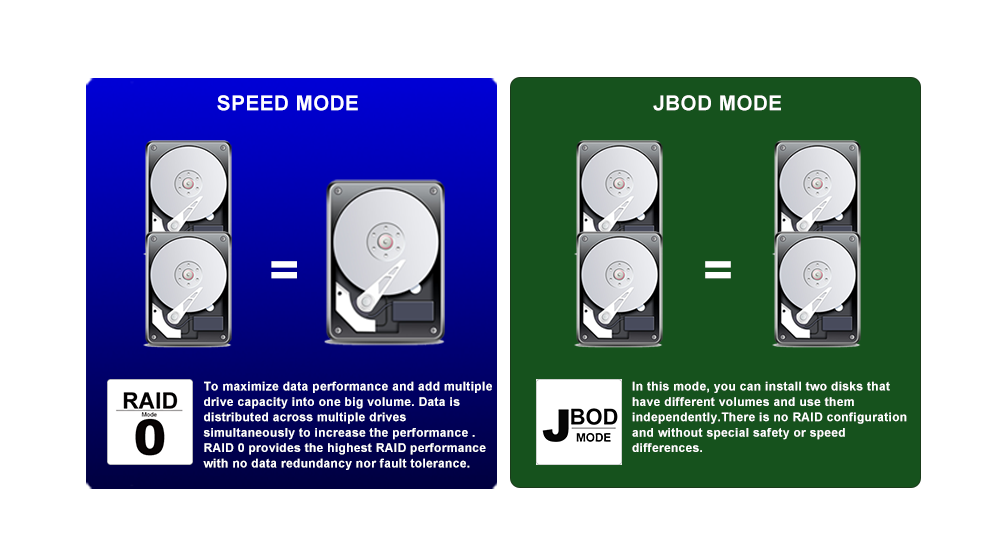

The ST4-TB3 has two built-in disk configuration modes: RAID 0
(Speed Mode), JBOD (Two Independent Volumes) for you to choose according to your
needs.
RAID 0 functionality increases storage speed and performance.
JBOD function provides two independent disk data access convenience.

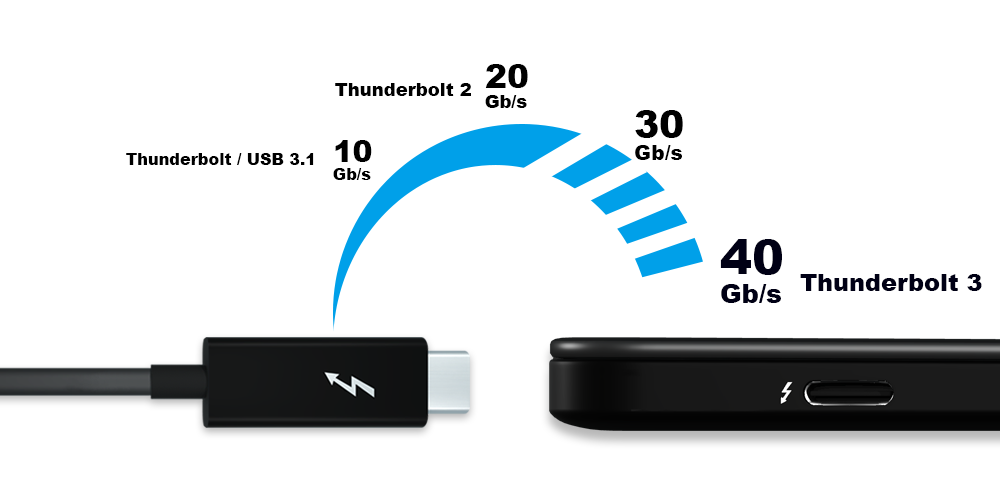

Thunderbolt™ 3 (USB-C) brings you 40Gbps extreme high data transfer
speed
ST4-TB3 supports Thunderbolt 3.0 (TB3) interface for an extreme high data
transfer speed. And both of the two TB3 ports are equipped with a up to 40Gb/s
data transfer rate which is 4 times faster than USB 3.1 Gen 2 ,2 times faster
than Thunderbolt 2.0 and even 8 times than SATA III interface. You could
definitely use it to play your 4K high-resolution films with no any lagging
hassle. Thunderbolt 3.0 interface not only brings you this high data transfer
rate advantage, it also let you chain maximum up to 6 products (or other
compatible storage products).

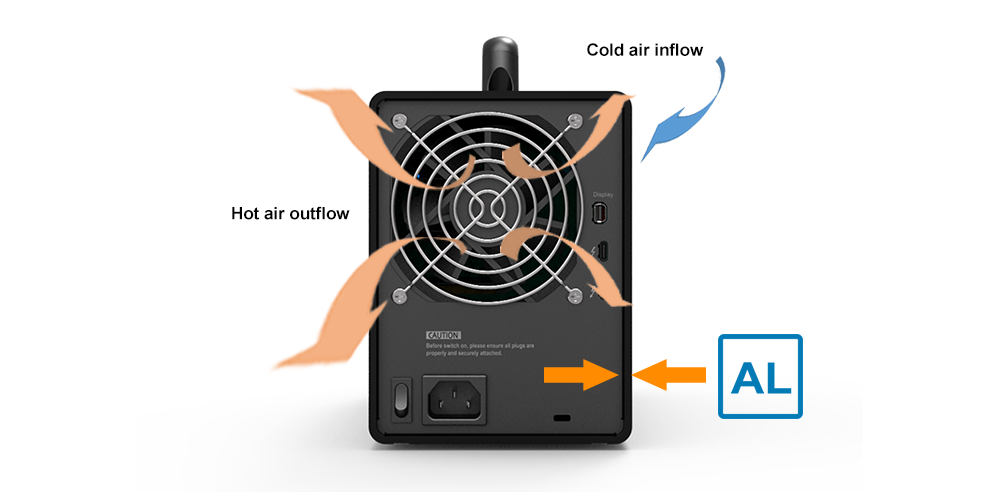

The solid aluminum chassis pluses one powerful low noise
Fans
ST4-TB3's solid chassis is made by a thickness aluminum-alloy plate. And its
aluminum housing and the 9 cm FANs (with safe FAN GUARDs) really help an
efficient heat dissipation for your long time use.
Advanced power management
ST4-TB3 uses energy-efficient hardware components that work hand in hand with
the Mac system to conserve power. It spins down hard drives and activates sleep
mode after a period of inactivity.

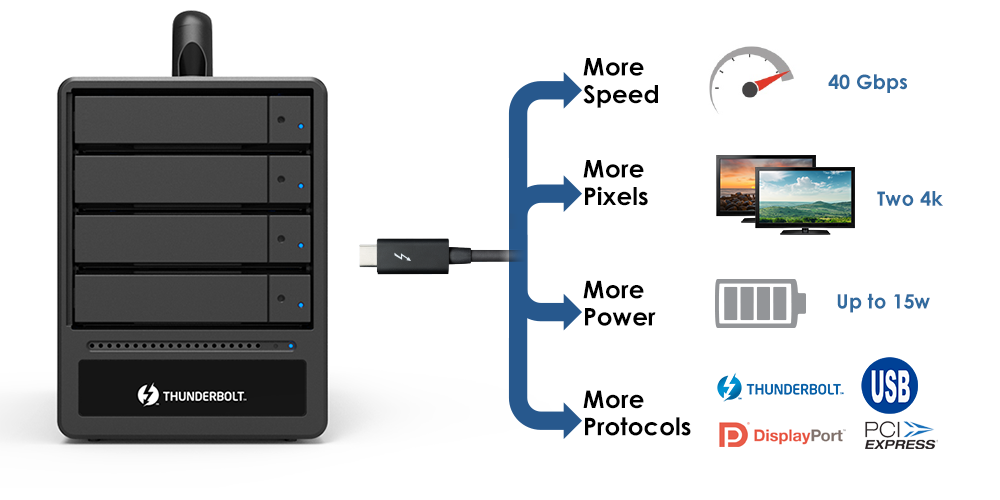

Thunderbolt™ 3 The USB-C that does it all
All our Thunderbolt 3 products support USB-C type connector and you could
always use it to charge not only your mobile phone but notebook thru its 15W
5V/3A PD (Power Delivering) feature.
All our Thunderbolt 3 products also support a Mini DisplayPort which gives
you a very easy way to connect to your display device. This Mini DisplayPort is
fully complaint to all the existing DVI, HDMI, and VGA display devices thru an
adapter.
ST4-TB3 to support both of 3.5" HDD and 2.5" HDD &SD
products
To bundle with four new easy-to-use Trays, ST4-TB3 supports any kinds of 3.5"
&.5" HDDs/SSDs. And also, ST4-TB3's aluminum housing help protecting your
data from its solid structure design and the excellent heat dissipation. Since
this new easy-to-use Tray is dimensional compliant to all our Stardom products,
you could easily transfer your data among different storage devices. And also,
its key lock design could provide a double protection at your data from any
improper Tray extracting.
Thunderbolt3 With ST4-TB3 Stylish and Rugged
The ST4-TB3 has a sleek exterior design thatll never go out of style when
placed next to your Mac. Its also built tough with thickness aluminum to shield
the enclosed drives durably and to dissipate the heat created by the drives
faster for the drives to work comfortably.

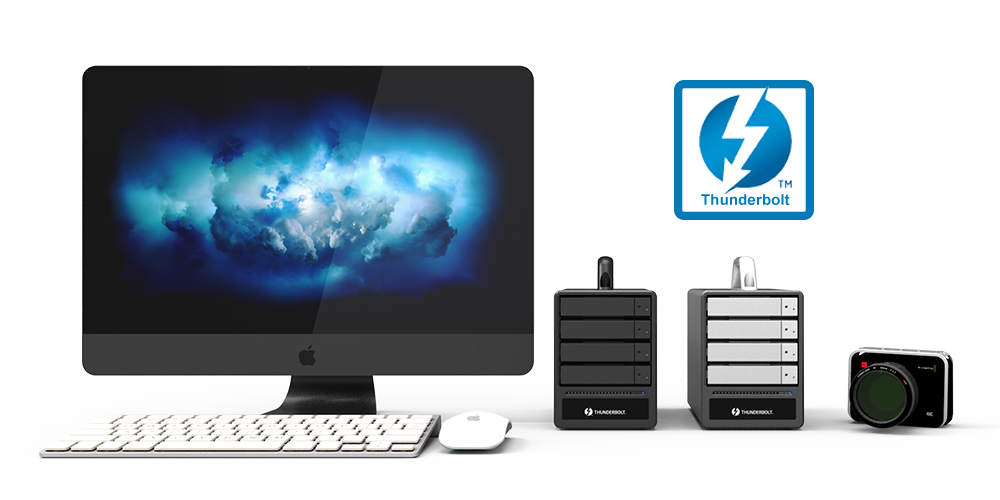

To help you complete your photography projects
With two
ultrafast Thunderbolt 3 ports, you can build a photo studio around Macbook Pro
and ST4-TB3. Or take them with you and import thousands of RAW images on
location. Once your photos are on your computer, editing in Aperture is faster
and more responsive than before.
ST4-TB3's RAID 0 mode lets you quickly browse large image libraries from
external storage. So you have instant access to any photo in your library.

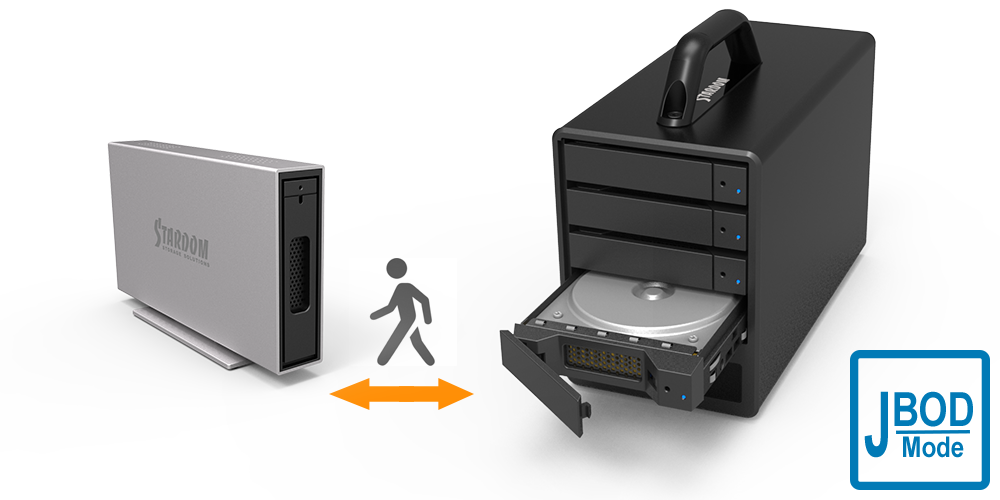

Support the transportable feature for JBOD mode
Again, you could use its single-bay JBOD with either 3.5" or 2.5" HDDs/SSDs
which gives you an 100% hot-swappable feature. And you could easily use and
replace it with any large capacity of HDD you could buy from market.
ModelNo |
ST4-TB3-B(Black) |
Interfaces |
Thunderbolt3Portx2(upto40Gbps),Support15W(5V/3A)PowerDelivering. MiniDisplayPortx1 |
CompatibleDrive |
4x3.5/2.5"SATAIIIHDD/SSD(upto6Gbps) Supportlargevolumeupto10TB |
Certification |
CE/FCC
|
StorageMode |
JBOD-IndependentMode RAID0-SpeedMode |
OperatingSystem Support |
Windows7,Windows10orabove,OSX10.10orabove |
CoolingSystem |
9cmLownoisefan |
Electricaland Operating Requirements |
*Linevoltage:100-240VAC *Frequency:50Hzto60Hz,singlephase *Maximumcontinuouspower:150W *Operatingtemperature:41to95F(5to35C) *Storagetemperature:-4to116F(-20to47C) *Relativehumidity:5%to95%noncondensing |
SizeandWeight |
Height:166mmWidth:124mmDepth:248mm |
ProductCode |
ST4-TB3-B EAN4713227440363 UPC884826504542
|
Carton |
4pcspercarton |
PackageAccessories |
*ST4-TB3x1(withremovabledrivetrayenclosedx4) *ThunderboltCablex1 *ACPowerCablex1 *Accessorykit *UserManualx1 |
