All stock codes associated to this product
ST8U61883/96, ST8U6-1883/96

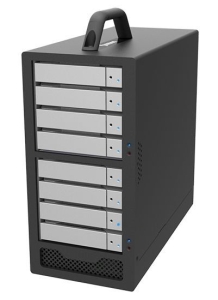

Stardom 96TB SOHOTANK ST8-U6 8-Bay 2.5"/3.5" SAS/SATA-III HDD/SSD
JBOD Storage - miniSAS(SFF-8644)
8-Bay 2.5/3.5" SAS/SATA III HDD/SSD JBOD Storage
2 Mini-SAS ports (SAS 12G), Hot-Swappable Drive
With 8 10TB HDDs, it to provide you 80TB storage
capacity
ST8-U6 provide eight HDDs storage system with JBOD storage, ST8-U6 is
compatible to most of 10TB HDD product which are available in the market. Under
RAID adapter which its RAID 0 mode, you could get an almost up to 80TB storage
capacity. And its RAID 50 feature not only gives you a good data protection but
also an almost up to 60TB storage capacity!
Its multipurpose tray to give you the flexibility for choosing
storage media
ST8-U6's 8-bay chassis provides you an up to 80TB storage capacity and
supports any kind of storage disk platforms, both of 3.5" and 2.5" SATA and SAS
HDD/SSD products. It's strong aluminum extrusion chassis provides you an
excellent protection at your 8 storage disks which you could fully rely on it
for your daily heavy-duty works.
A variety choice of SFF-8644 to SFF-8644 miniSAS
interfaces
ST8-U6's miniSAS interface supports 2 x SFF-8644 to SFF-8644 miniSAS cable
which includes 8x12Gb/s bandwidths and lets each HDD/SSD gets a whole 12Gb/s
bandwidth alone. It brings you a best efficiency for data transfer for your
heavy-duty video editing works!
MCU provide you in-chassis temperature control and the mute switch to
adjust the buzzer
ST8-U6 is also designed with the MCU feature which monitors and helps
improving its in-chassis system temperature. While the system temperature rises
up to 50 degree-C (118 degree-F), MCU will bump up the 8 cm fans with full
speed; and once system temperature goes down to 45 degree-C (109 degree-F), you
could manually adjust fan switch on the rear, MCU would reduce the fan speed
down to a half speed for a better green user environment from a less fan noise
and lower power consumption.
In addition, if the fan fails or the device temperature is too high, the
buzzer will beep and let the user know that the device has failed. The user can
turn off or turn on the buzzer through the mute adjustment switch on the back of
the back panel.
Its aluminum chassis to help an excellent heat
dissipation
Its a thickness aluminum extrusion production creates a very strong and
seamless chassis to perform good at both of data protection and heat dissipation
for your data disks. And even with its casted zinc-alloy handle, you could enjoy
its good mobility feature at your work.
The built-in power supply unit
ST8-U6 uses conform with safety regulation certified 250W power supply unit
which provides a stable and high efficient power output and definitely satisfies
the big power consumption from all 8 HDDs.
It to fit most of RAID Controller Adapter
Our ST8-U6's 12Gb/s data transfer rate and JBOD features fits most of your
old SAS RAID controller adapter from your former Mac Pro and Win PCs. And also,
you could use our SA2TB2 Docking to connect ST8-U6 to your Mac
which supports Thunderbolt interface.
SA2TB2 to help connecting ST8-U6 to your new Mac
Thunderbolt
Thru one new Stardom SA2TB2 docking, you could easily
connect ST8-U6 with a total 8 HDDs to your new Mac Thunderbolt. This solution
also gives you an excellent data transfer rate up to 1300MB/s with its RAID 5
feature which lets you not only enjoy watching your 4K video with no missing
frames but also get a perfect data protection for all your data in 8 HDDs.
Specifications
ModelNo |
ST8-U6-B |
Interfaces
|
12GbpsSFF-8644miniSASPort*2 |
CompatibleDrive |
8x3.5"/2.5"SAS(upto12Gbps)/SATAHDD/SSD(upto6Gbps)/ Supportlargevolumeupto10TB |
StorageMode |
JBOD |
Certifications |
CE&FCC |
OperatingSystem Support |
Windows,Mac,Linux |
CoolingSystem |
8cmLownoisefanx2 |
Electricaland Operating Requirements |
*Linevoltage:100-240VAC *Frequency:50Hzto60Hz,singlephase *Maximumcontinuouspower:250W *Operatingtemperature:50to95F(10to35C) *Storagetemperature:-4to113F(-20to45C) *Relativehumidity:5%to95%noncondensing |
SizeandWeight |
Height:296mmWidth:140mmDepth:282mmWeight:4.525Kg
|
ProductCode |
EAN:4711132866001 UPC:884826501978 |
Carton |
2pcspercarton |
PackageAccessories |
*ST8-U6x1(withremovabledrivetrayenclosedx8) *SFF-8644miniSAScablex2 *PowerCordx1 *AccessoryKit *CDx1 *QuickInstallationGuidex1 |
