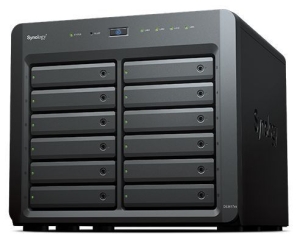

Synology 120TB DS3617xs DiskStation 12-Bay NAS System

Business-class storage capacity and performance

High-performance NAS server with flexibility to scale

Synology DiskStation DS3617xs is a high-performance NAS server with easy scalability. Equipped with quad-core Xeon D processor and 16GB DDR4 ECC RAM, DS3617xs delivers stunning reading and writing performance while ensuring data accuracy when handling mission-critical tasks.

10GbE ready, and beyond

The PCIe 3.0 slot allows for faster networking as you expand your infrastructure. Together with the built-in quad Gigabit ports, DS3617xs offers comprehensive connectivity options for link aggregation and failover configurations.

Digital asset protection

Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.

Security Advisor

Analyzes system settings, password strength, network preferences, and removes any possible malware.

AppArmor

A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.

AES 256-bit encryption

Encrypt shared folders and network data transmission to keep data from unauthorized access.

2-step verification

Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.

Trust Level

Customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered package files.

Complete iSCSI and virtualization solutions

Synology iSCSI storage supports most virtualization solutions including VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder, to enhance work efficiency. Create and manage virtual machines running multiple operating systems such as Windows, Linux, and DSM using Virtual Machine Manager.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

  • Flexible Shared Folder / User Quota System provides comprehensive quota control on user accounts and shared folders
  • Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
  • File- or folder-level data restoration accelerates data recovery, providing more flexibility for businesses
  • Automatic file self-healing detects and recovers corrupted files without user intervention

5 year warranty

Synology's 5-year limited warranty provides hardware replacement and technical support via email and telephone services, maximizing your enterprises' return on investment.

Synology Replacement Service (SRS)

SRS provides free shipment of replacement units as early as the next business day in selected regions1.

Powered by Synology DSM

CMS

Manage multiple Synology NAS servers simultaneously on a centralized interface to increase business efficiency.

MailPlus

Secure, reliable, and private mail server solution with an intuitive and modern mail client.

Synology High Availability

Ensures seamless service transition between clustered servers in the event of a server failure.

Office

Collaborate on spreadsheets and documents on your private cloud.

Snapshot Replication

Provides schedulable and instantaneous data protection for shared folders and virtual machines on iSCSI LUNs in the event of disaster.

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

  1. Status indicator
  2. Alert indicator
  3. Drive status indicator
  4. Drive tray lock
  5. Power button and indicator
  6. LAN indicator
  7. Fan
  8. PCIe 3.0 slot
  9. USB 3.0 port
  10. Expansion port
  11. Reset button
  12. Console port
  13. 1GbE RJ-45 port
  14. Power port

Specifications

CPU
CPU Model Intel Xeon D-1527
CPU Architecture 64-bit
CPU Frequency Quad Core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 16 GB DDR4 ECC SO-DIMM
Memory Module Pre-installed 16GB (2 x 8GB)
Total Memory Slots 4
Memory Expandable up to 48 GB (16 GB + 16 GB x 2)
Storage
Drive Bays 12
Maximum Drive Bays with Expansion Unit 36
Compatible Drive Type*
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 144 TB (12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 432 TB (12 TB drive x 36) (Capacity may vary by RAID types)
Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 2
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x8 link)
Add-in-card support PCIe Network Interface Card
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Notes exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.8 kg
Others
System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 22.3 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 108.2 W (Access)
53.4 W (HDD Hibernation)
British Thermal Unit 369.4 BTU/hr (Access)
182.3 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 5 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number 1024
Maximum iSCSI Target Number 64
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
Volume Expansion by Adding a HDD
  • RAID F1
  • RAID 5
  • RAID 6
  • JBOD
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
SSD Support
SSD Read/Write Cache
SSD TRIM
File Sharing Capacity
Maximum Local User Accounts 16000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 16
Maximum Concurrent CIFS/AFP/FTP Connections 2048
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second 3000
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
OpenStack
Add-on Packages
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users 4000
Notes
  • The number of concurrent HTTP connections for Chat was configured to the maximum.
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices 2000
Maximum Number of Concurrently Connected Devices (with RAM expansion) 10000
Maximum Number of Synced Files (btrfs) 1,000,000 / single file reaction time 542 ms
Maximum Number of Synced Files (ext4) 1,000,000 / single file reaction time 210 ms
Notes
  • The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing.
  • File reaction time refers to the preparation time required for other devices to start downloading a 1KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing.
  • Non-encrypted shared folders were used during the aforementioned testing.
Maximum DDSM Number (Licenses required) 35 (including 1 Free License)
Document Viewer
Download Station
Maximum Concurrent Download Tasks 80
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts 5
Recommended MailPlus Client Number Up to 400 (Btrfs) / 400 (EXT4)
Maximum Server Performance 3,283,000 (Btrfs) / 1,992,000 (EXT4) emails per day, approx. 100.2 GB (Btrfs) / 60.8 GB (EXT4)
Notes
  • The CPU and RAM usages were both under 80% when testing recommended client numbers.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Office
Maximum Users 1600
Maximum Simultaneous Editing Users 100
Notes
  • CPU and RAM usage were both under 80% when the number of maximum users was reached.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
PetaSpace
Snapshot Replication
Maximum Snapshots per Shared Folder 1024
Maximum Snapshots of all Shared Folder 65536
Surveillance Station
Maximum IP cam (Licenses required) 75 (including 2 Free License)
Total FPS (H.264)* 2250 FPS @ 720p (1280x720)
1050 FPS @ 1080p (1920×1080)
600 FPS @ 3M (2048x1536)
500 FPS @ 5M (2591x1944)
Total FPS (MJPEG)* 900 FPS @ 720p (1280x720)
450 FPS @ 1080p (1920×1080)
280 FPS @ 3M (2048x1536)
200 FPS @ 5M (2591x1944)
Notes Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding Group 1 - Type 1
Maximum Transcoding Channel Number 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server
Maximum Connections 30
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Surveillance Device License Pack
  • 16GB DDR4 ECC SO-DIMM
  • Expansion Unit: DX1215 X 2
  • VS360HD
  • VS960HD
  • Synology Ethernet Adapter E10G15-F1
  • Synology Ethernet Adapter E10G17-F2
