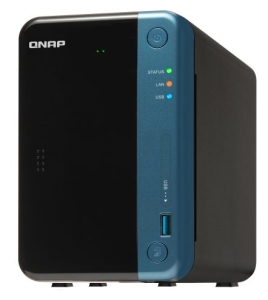

QNAP TS-253Be 2-Bay NAS Server - Diskless, Tower
Quad-core multimedia NAS with PCIe slot for diverse application expansion and
greater efficiency
The TS-253Be features a simple physical design that can easily fit into
office and home environments. It provides a PCIe port that can boost its
functionality: a QNAP QM2 expansion card can be installed to add M.2 SSD
caching/10GbE connectivity and support for Qtier auto-tiering technology, or a
compatible wireless card can be installed to use the TS-253Be as a wireless
access point. The TS-253Be also supports dual-channel 4K H.264/H.265 processing
to provide a smooth media viewing experience on all connected devices. In
addition, a wide range of productivity tools are available for use on the
TS-253Be to improve work efficiency for media creators or creative
professionals, while also enriching their multimedia experience.
The PCIe port supports installing a 10GbE network card, a QM2 dual-port M.2
SSD/10GbE card, a USB 3.1 10Gbps card or a compatible PCIe wireless adapter.
4K media playback and online transcoding; multimedia viewing on HDTV via HDMI
output
Snapshots fully record the system status and data. If files are accidentally
deleted or modified, you can quickly restore the previously-recorded data.
Hybrid Backup Sync consolidates backup and sync tasks into a single app.
Secure private cloud solution with high storage scalability.
Supports containerized applications and hosting multi-OS virtual
machines.
Specifications
| CPU |
Intel Celeron J3455 quad-core 1.5 GHz, up to 2.3 GHz |
| Encryption Acceleration |
(AES-NI) |
| Graphics |
Intel HD Graphics 500 |
| System Memory |
2GB DDR3L (1 x 4GB) |
| Maximum Memory |
8GB |
| Memory Slot |
2 x DDR3L SODIMM slots
(For dual-DIMM configuration, you must use a
pair of identical DDR3L modules.) |
| Drive Bay |
Hot-swappable 2 x 3.5"/2.5" SATA 6Gb/s HDD/SSD |
| Gigabit Ethernet Port |
2 x RJ45 Gigabit LAN port |
| 10 Gigabit Ethernet Port |
Optional 10 Gigabit LAN port via a PCIe expansion card |
| USB Port |
5 x USB 3.0 Type-A ports |
| PCIe Slot |
1 PCIe 2.0 x2 slot |
| HDMI Output |
2 x HDMI v1.4b, up to 3840 x 2160, 30 Hz |
| Audio |
Input: 2 x 3.5mm microphone input jacks
Output: speaker, 3.5mm line
out jack |
| LED Indicators |
Status/Power, LAN, USB, Drives |
| Buttons |
Power, USB copy, Reset, Capacitive touch buttons (select, enter) |
| IR sensor |
Optional QNAP RM-IR004 remote
control |
| Security Slot |
Kensington security slot |
| Dimensions (H x W x D) |
168 x 105 x 226 mm
6.61 x 4.13 x 8.90 inch |
| Net Weight |
1.66 kg ( 3.66 lbs ) |
| Operating Temperature & Relative Humidity |
0 ~ 40C (32F ~ 104F) /
5~95% RH non-condensing, wet bulb: 27C
(80.6F) |
| Power Consumption (W) |
HDD sleep: 13.07W
Typical Operation: 20.42W |
| Power Supply Unit |
65W AC adapter, 100-240V |
| Fan |
1 x 7 cm |
| Package Contents |
NAS, QIG, 2 x RJ45 ethernet cables, AC adapter, power cord,
2.5"/3.5"drive screw
kit |
