All stock codes associated to this product
65SM5KDB, 65SM5KD-B
LG 65SM5KD-B 65" SM5KD Series IPS Digital Signage
Display
Features
- Brightness : 450 cd/m2
- Bezel : T/L/R 11.9 mm, B 18.0 mm
- Depth : 56.5 mm
- Interface : HDMI(2), DVI, DP, RGB, RJ45, IR, RS232C, USB
- Built-in Speaker : 10W + 10W
- Available Size: 65"
Smart Platform Quad Core SoC*
The high-performance SoC can execute several tasks at the same time and
provides smooth content playback without an external media player.

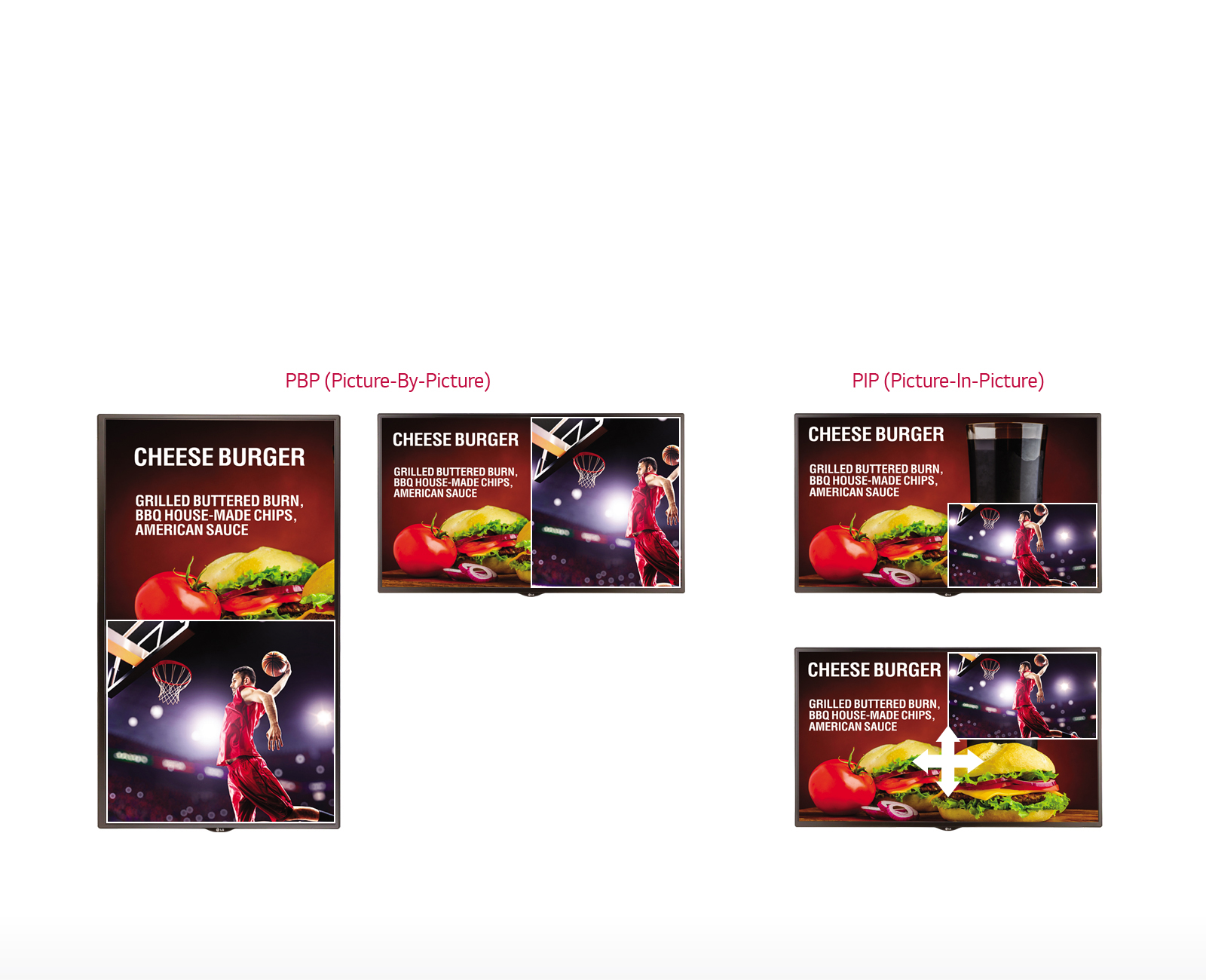

PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to
compose various layouts for several digital devices.

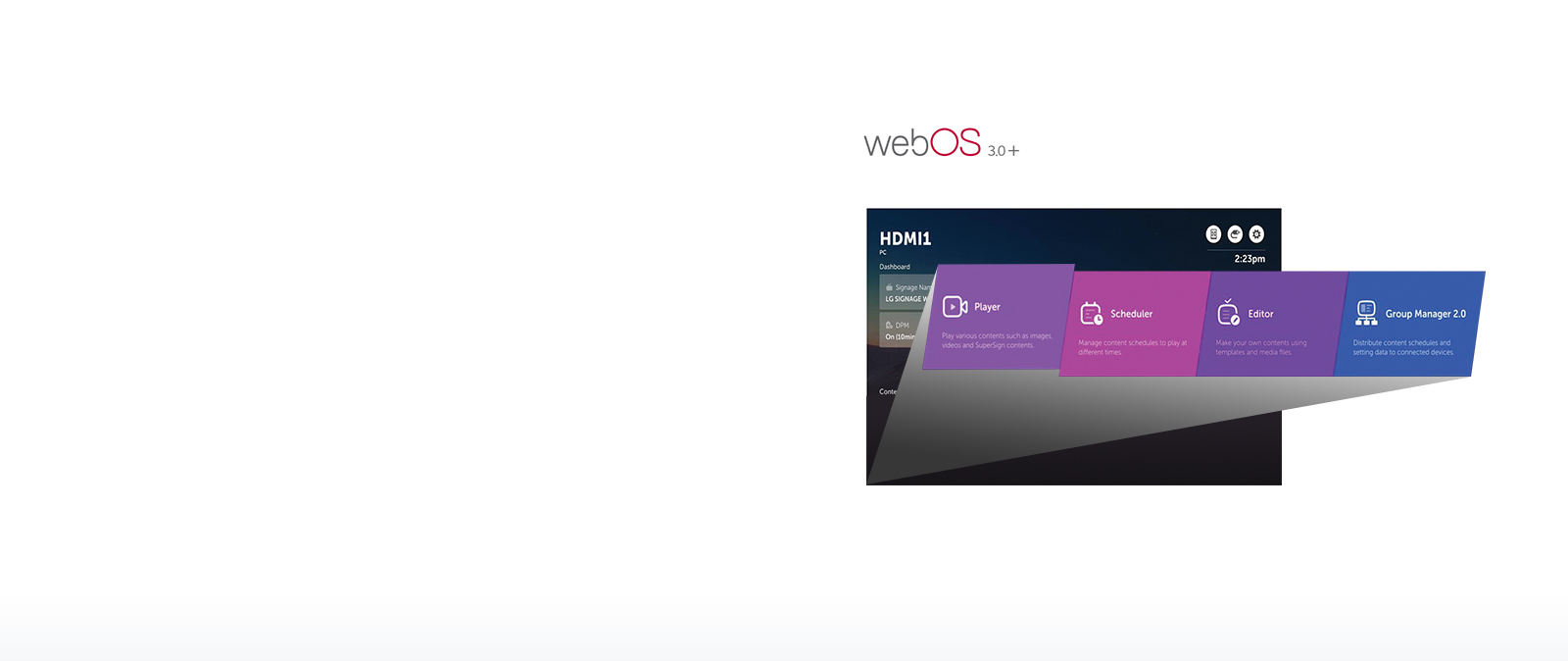

Integrated CMS (Contents Management System)
You can edit contents, check your schedule, and use group manager function
etc. without a separate PC. It is one-stop system that enables you to manage the
signage.

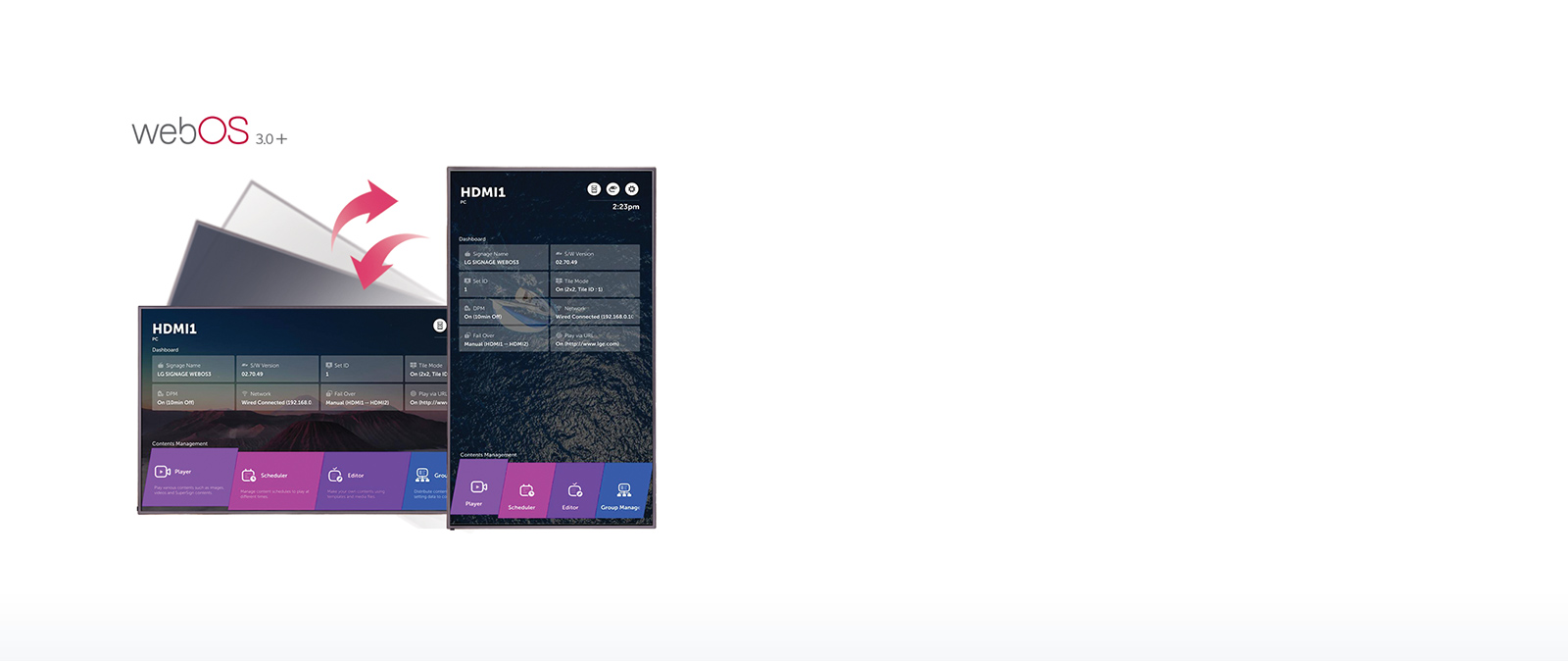

Portrait &Landscape Mode
When using the signage in Portrait Mode, GUI taliored to Portrait Mode is
provided without affecting images' original ratio and resolution.

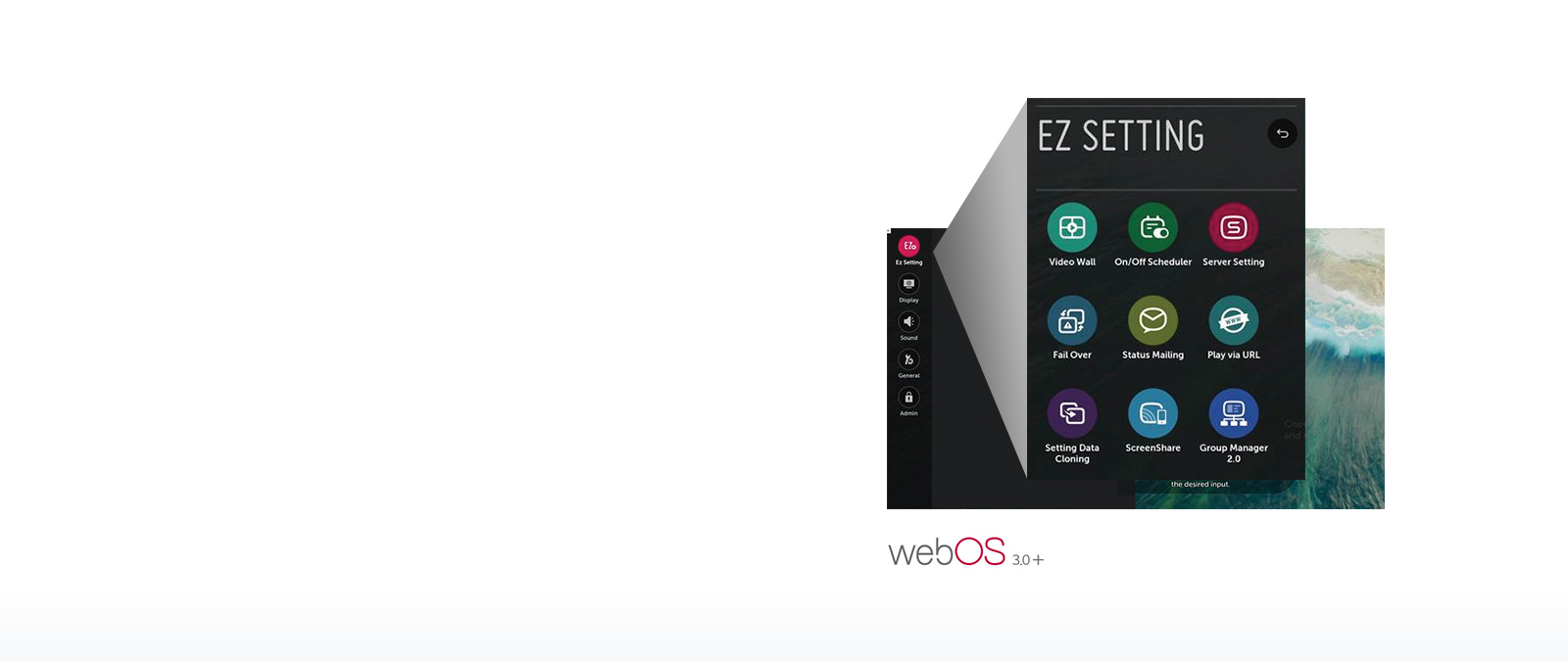

EZ Setting
As all of its unique functions are indexed in EZ setting, you can enjoy
convenient access to setting for effi cient management.

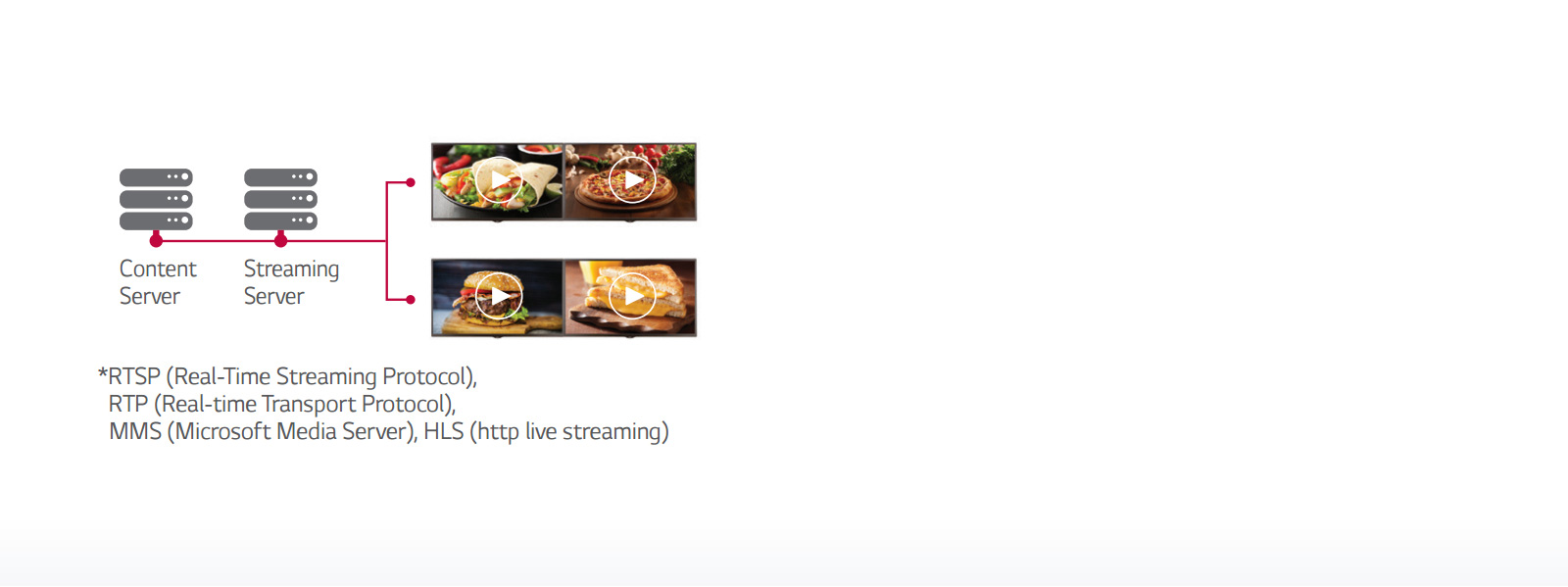

Support Network Protocol IP Streaming Protocol
Various types of IP video streaming protocol are supported, such as RTSP/RTP,
MMS, HLS and MPEG-2 TS*.
Support Network Protocol Secure Communication Protocol
By supporting HTTPS* protocol, communication between server and signage is
more secure.

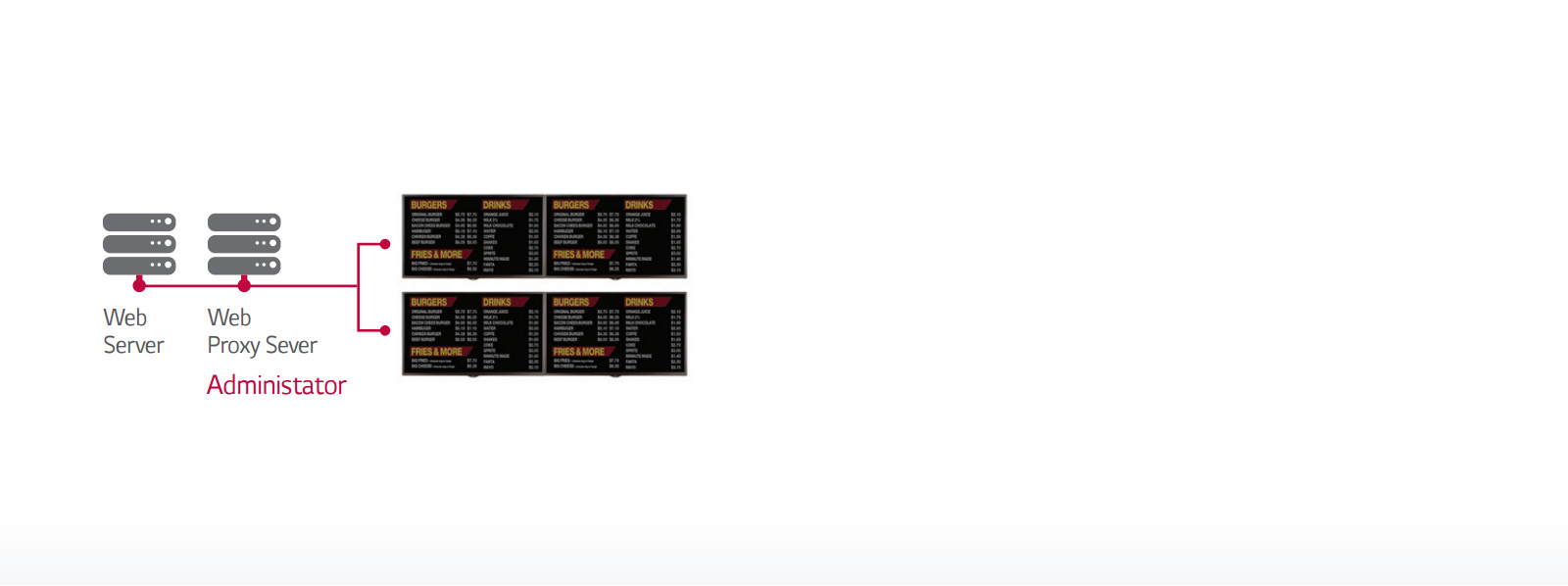

Support Network Protocol Proxy Server
Web access speed and security can be improved by supporting Proxy Server (A
server that acts as an intermediary for requests from clients seeking resources
from other servers.)

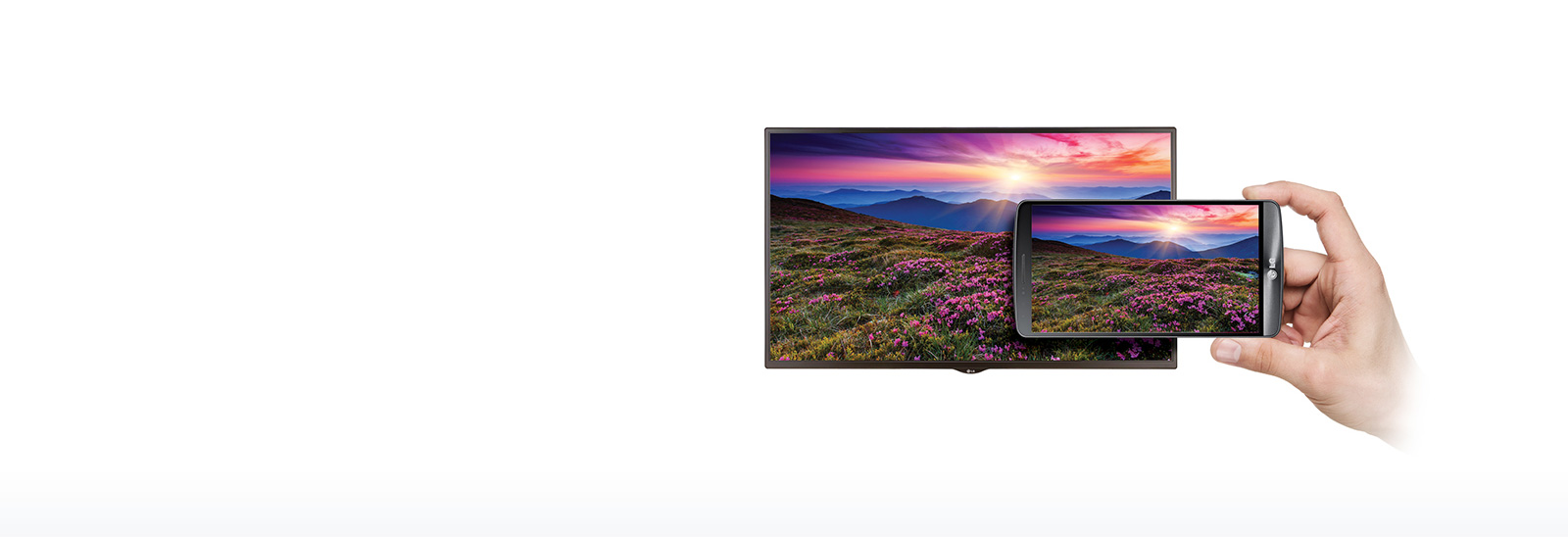

Built-in Wi-Fi Mirroring
Content sharing is more convenient on a Wi-Fi network.

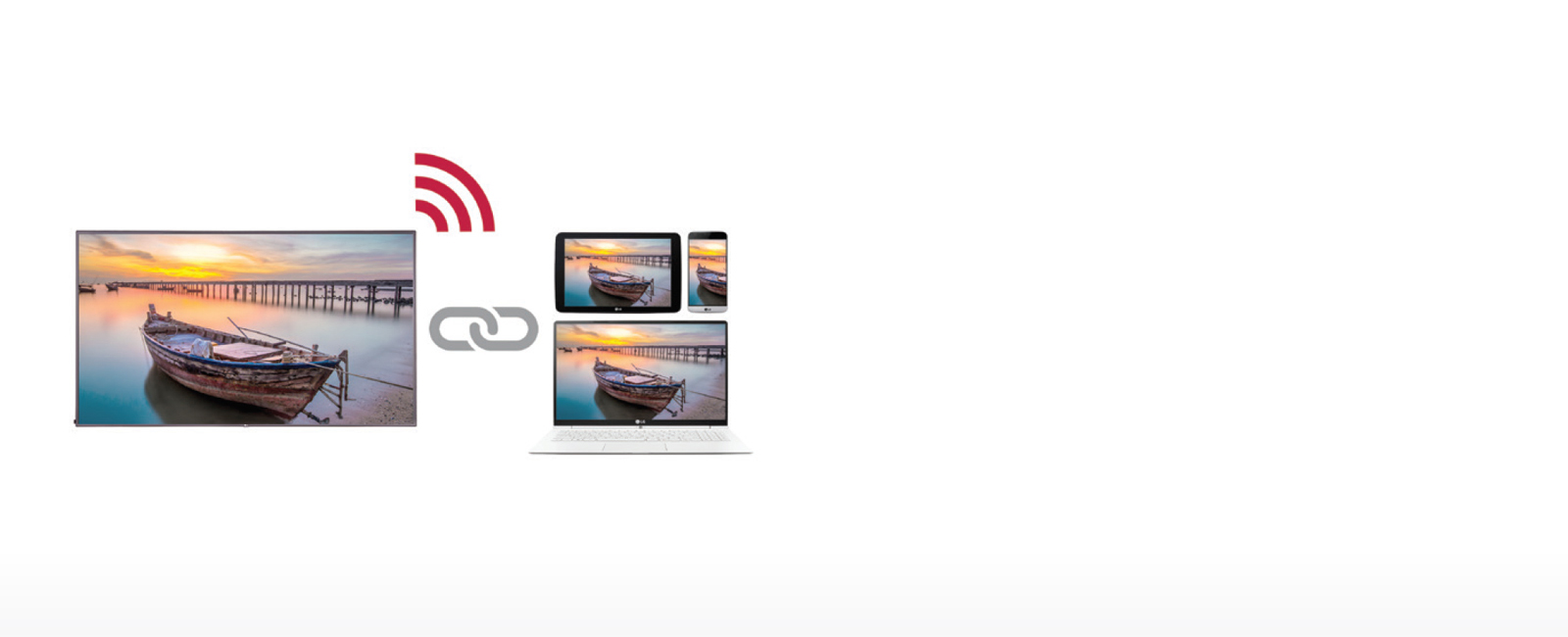

Built-in Wi-Fi SoftAP
The SM5KD with SoftAP software can operate as a wireless access point for
mobile devices.

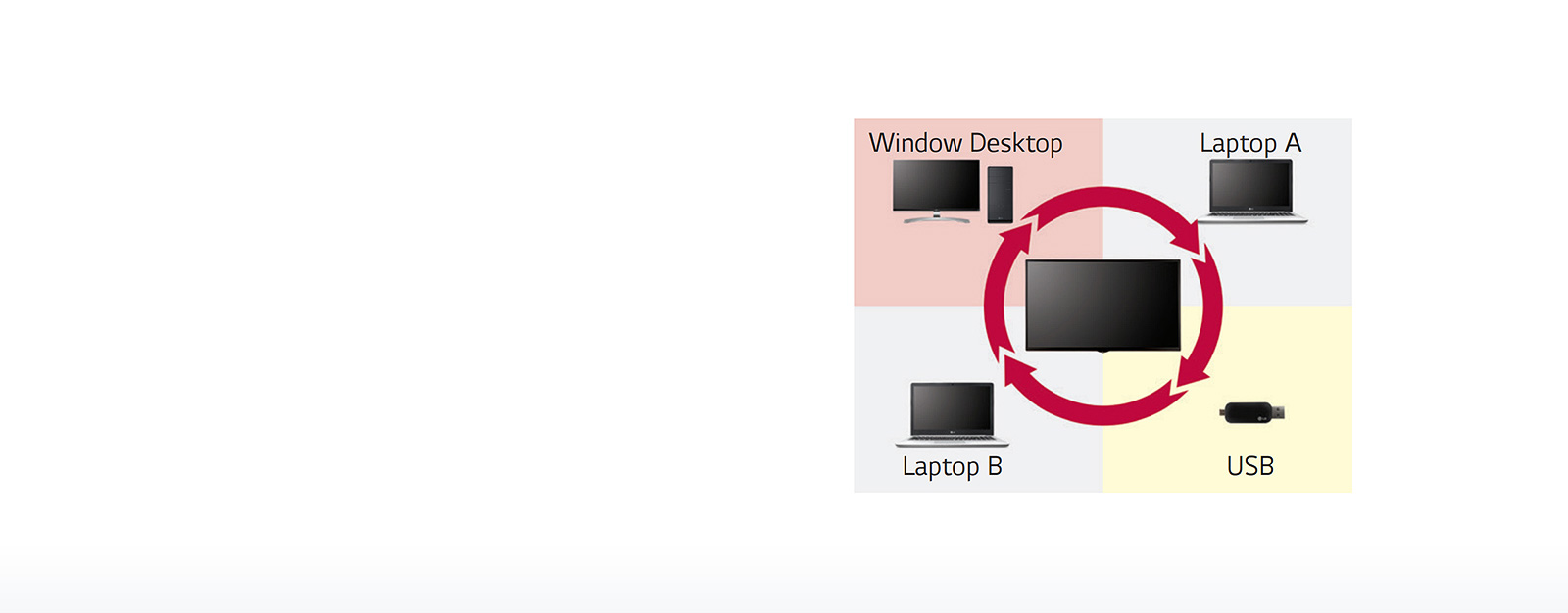

Convenient Management Enhanced Connectivity
Through its diverse interface, the signage lets you connect more than one
device for optimal use.

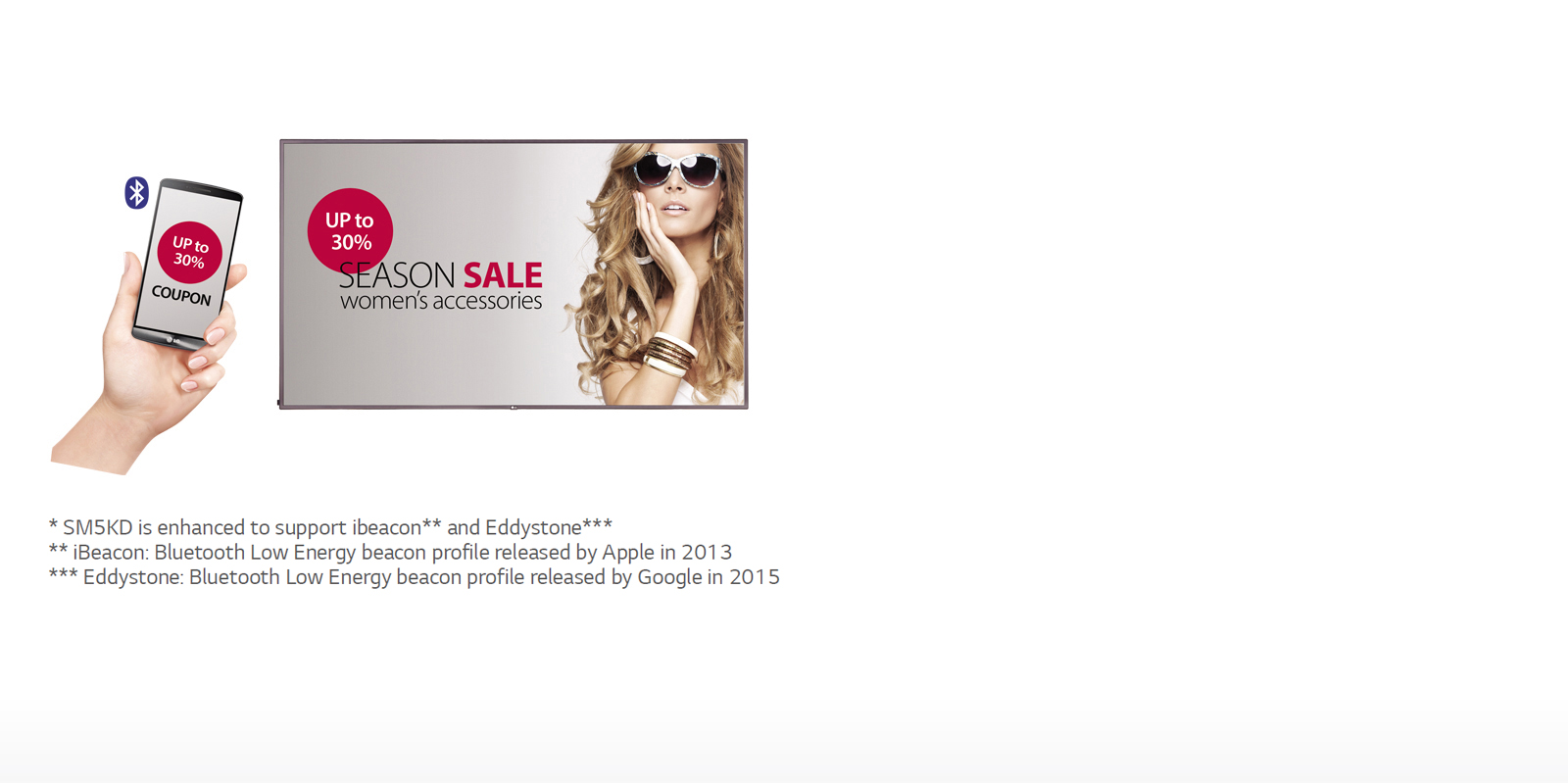

Supportive Convenience BEACON
With BEACON and Bluetooth Low Energy (BLE) supported by SM5KD*, retail stores
can provide coupons and information in real time.

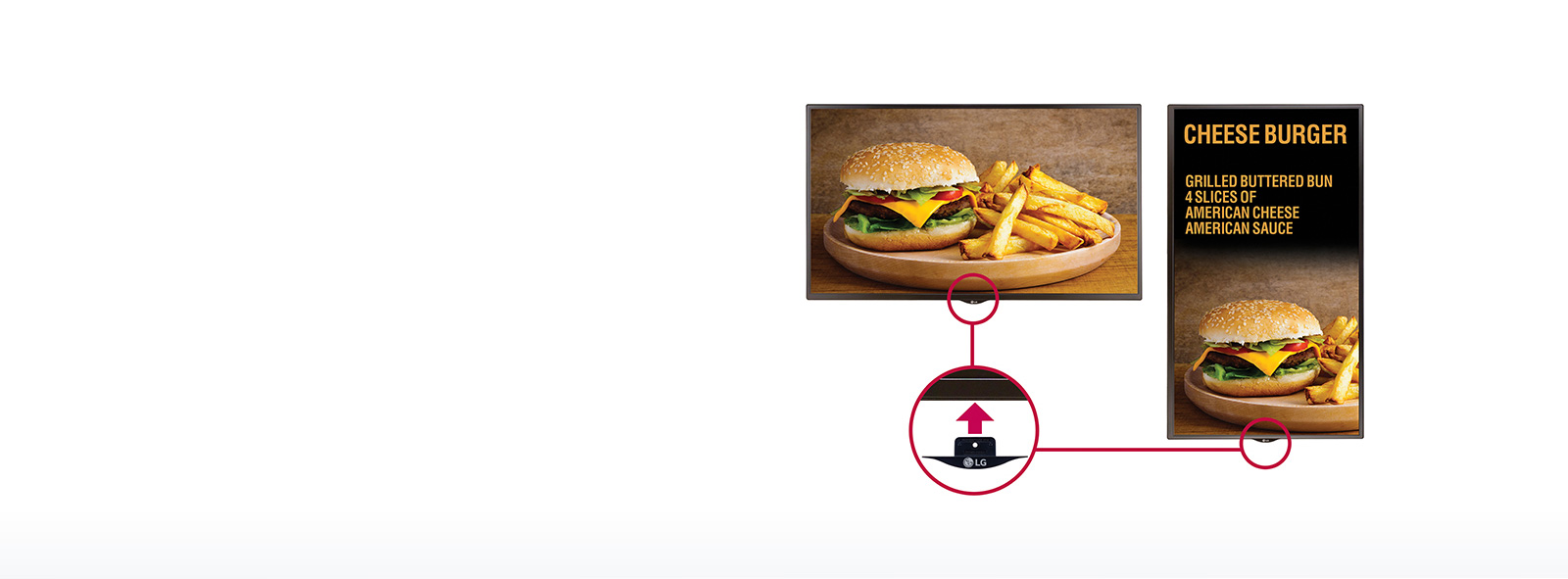

Industrial Design Detachable logo
The detachable logo allows for installation in the desired orientation:
landscape or portrait mode.
Enhanced Maintenance
Dust &Humidity Protection Circuit board reliability is enhanced with
conformal coating that protects against dust, iron powder, humidity and other
harsh conditions.
Specifications
PANEL
Connectivity
-
Input
HDMI (2), DP, DVI-D, RGB, Audio, OPS, USB 3.0
-
Output
DP, Audio
-
External Control
RS232C in/out, RJ45 in, IR Receiver, Pixel Sensor
Physical
Specification
-
Bezel Width
11.9mm (T/R/L), 18mm (B)
-
Monitor Dimension(W x H x D)
1,456.9 x 838 x 56.5 mm
-
Weight (head)
27.9 kg
-
Carton Dimensions (W x H x D)
1,561 x 977 x 190 mm
-
Packed Weight
33.8 kg
-
VESA Standard Mount Interface
300mm x 300mm
Environment Conditions
-
Operation Temperature
0C to 40C
-
Operation Humidity
10% to 80%
Media Player Compatibility
Software
Compatibility
-
SuperSign Premium
Yes
-
SuperSign C
Yes
Accessories
-
Basic
Remote Controller (2 ea batteries included), Power Cord, QSG, RGB Cable,
Regular Book (depend on regional standard), Phone to RS232C Gender, Memory
cover
