All stock codes associated to this product
VE819ATU, VE819-AT-U, KVAVE819, KVA-VE819, 4719264645266
Aten VE819 HDMI Dongle Wireless
Extender
The VE819 HDMI Dongle Wireless Extender is the perfect solution for meeting
rooms and home theater systems. It sends uncompressed Full HD 1080p signal from
your HDMI devices such as laptops, computers and set top boxes. Up to four
Wireless HDMI Transmitters can be paired to the Receiver, boosting the number of
total transmitters per receiver to a maximum of 4.
The VE819 is designed to simply plug and play, no drivers or software are
required. The VE819 can wirelessly extend or mirror your computer to the
connected HDMI devices, enabling smooth and effortless video streaming and photo
sharing.
The VE819 has less than 1ms latency, meaning that in meeting room settings,
you can have the source video synchronized with a projector almost without
delay.
Package Contents
- 1x VE819T HDMI Dongle Wireless Transmitter

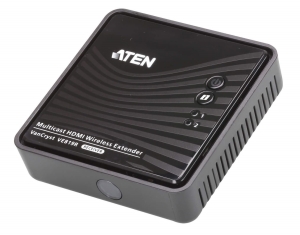

- 1x VE819R HDMI Dongle Wireless Receiver
- 1x Mini USB to USB Cable
- 2x Mini USB Power Adapters
- 1x HDMI Cable
- 1x Remote Control Unit with 2 AAA Batteries
- 1x IR Receiver cable
- 1x User Instructions
- 1x Warranty Card
Features
- Low latency < 1ms
- Uncompressed full HD 1080p video transmission
- Wireless extend or mirror the computer or laptop
- Extends signals up to 10 m, up to 7 m with superior image quality*
- Up to 4 Wireless HDMI Transmitters can be paired to one Receiver
- Plug-and-play - No software installation required

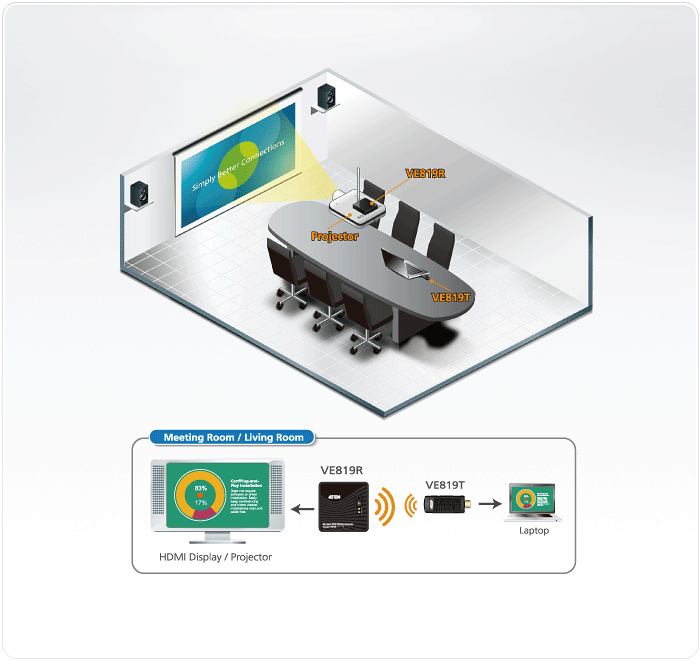

Diagram
Specifications
Function |
VE819R |
VE819T |
Video Input |
|
|
Interfaces |
N/A |
1 x HDMI Type A Male (Black) |
Impedance |
N/A |
100 |
Max. Distance |
N/A |
N/A |
|
|
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
N/A |
Impedance |
100 |
N/A |
|
|
|
Video |
|
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
6.75 Gbps (2.25 Gbps Per Lane) |
Max. Pixel Clock |
225 MHz |
225 MHz |
Compliance |
HDMI (3D) |
HDMI (3D) |
|
HDCP Compatible |
HDCP Compatible |
Max. Resolutions / Distance |
Up to 1080p/60Hz@10m (Line of Sight) * |
Up to 1080p/60Hz@10m (Line of Sight) * |
|
|
|
Audio |
|
|
Input |
N/A |
1 x HDMI Type A Male (Black) |
Output |
1 x HDMI Type A Female (Black) |
N/A |
|
|
|
Control |
|
|
IR |
1 x 2.5mm Mini Stereo Jack Female (Black) |
N/A |
|
|
|
Connectors |
|
|
Power |
1 x Mini USB Jack |
1 x Mini USB Jack |
|
|
|
Power Consumption |
5 VDC, 7.5W (Mini USB) |
5 VDC (Mini USB) |
|
|
|
Environmental |
|
|
Operating Temperature |
0 - 40°C |
0 - 40°C |
Storage Temperature |
-20 - 60°C |
-20 - 60°C |
Humidity |
0 - 80% RH, Non-Condensing |
0 - 80% RH, Non-Condensing |
|
|
|
Physical Properties |
|
|
Housing |
Plastic |
Plastic |
Weight |
0.13 kg ( 0.29 lb ) |
0.03 kg ( 0.07 lb ) |
Dimensions (L x W x H) |
9.50 x 9.50 x 3.33 cm |
3.00 x 7.03 x 1.75 cm |
|
(3.74 x 3.74 x 1.31 in.) |
(1.18 x 2.77 x 0.69 in.) |
|
|
|
|
|
|
|
|
|
Note |
* Distance may vary depending on the actual environment; solid objects
such as steel, concrete or brick may cause interference and shorten the
transmission distances. |
* Distance may vary depending on the actual environment; solid objects
such as steel, concrete or brick may cause interference and shorten the
transmission distances. |
|
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH format. |
|
