All stock codes associated to this product
VE849TATU, VE849T-AT-U, KVAVE849T, KVA-VE-849T, 4719264643538

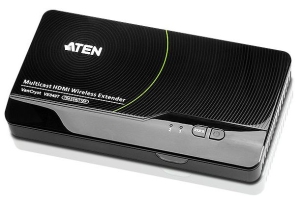

Aten VE849T Multicast HDMI Wireless Transmitter
The VE849T Multicast HDMI Wireless Transmitter allows you to position HDMI
displays up to 30m* away from HDMI sources when used in unison with up to 4
VE849R receivers.
Easily connect two HDMI source devices, a local HDTV and up to four receivers
(connected to remote HDTVs) wirelessly, while ensuring crystal clear image
quality (Full 1080p), 5.1 channel Dolby digital audio and 3D technology. The IR
remote control allows you to switch between HDMI source devices remotely from
the receiver side, making watching up to one local and four wirelessly connected
HDTVs simultaneously a breeze!
The VE849T can be used as:
- A wireless 2-port HDMI switch to connect and consolidate remote devices
(such as Blu-ray and media players), giving you a complete wireless home
cinema.
- An ideal addition to meeting rooms, allowing you to share presentations
and video conferences to up to four different locations up to 30m* away.
- A part of your digital signage architecture, for example when broadcasting
promotional videos wirelessly across a show room, boutique or car dealership.
* Distance may vary depending on the actual environment; solid objects such
as steel, concrete, or brick may cause interference and shorten the transmission
distance.
Package Contents
- 1x VE849T Multicast HDMI Wireless Transmitter
- 1x IR Remote Control with 2 AAA Batteries
- 1x IR Blaster Cable
- 1x Power Adapter
- 1x User Instructions
Features
- Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless
extension*
- Wirelessly extend four HDMI displays up to 30m* from the HDMI source
- Connect and transmit wireless video content from your Blu-ray DVD player,
media players, or other HDMI device wirelessly
- Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers
simultaneously
- Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal
interference for improved transmission quality and stability
- Wireless 3D supported
- Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital
audio
- Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
- Keeps home theater electronic devices neatly out-of-sight
- Built-in IR receiver with IR blaster cable allows control of remote source
devices
- WHDI™ Technology - Low latency <1ms
- HDCP compatible
- No software or driver installation needed

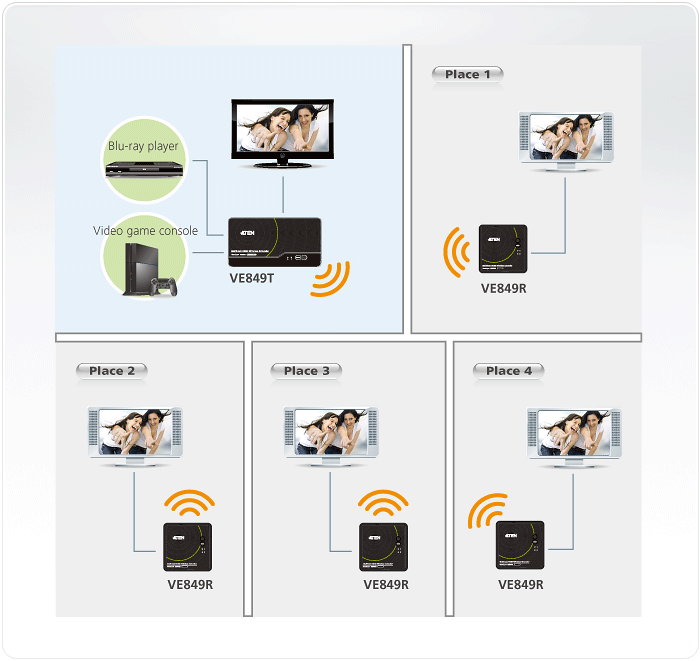

Diagram
Specifications
|
Video Input |
|
|
Interfaces |
2 x HDMI Type A Female (Black) |
|
Impedance |
100 |
|
Max. Distance |
1.8 m |
|
|
|
|
Video Output |
|
|
Interfaces |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 |
|
|
|
|
Video |
|
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
|
Max. Pixel Clock |
225 MHz |
|
Compliance |
HDMI (3D) |
|
|
HDCP Compatible |
|
Max. Resolutions / Distance |
Up to 1080p@30m (Line of Sight) * |
|
|
|
|
Audio |
|
|
Input |
2 x HDMI Type A Female (Black) |
|
Output |
1 x HDMI Type A Female (Black) |
|
|
|
|
Control |
|
|
IR |
1 x 2.5mm Mini Stereo Jack Female (Black) |
|
|
|
|
Connectors |
|
|
Power |
1 x DC Jack |
|
|
|
|
Power Consumption |
5 VDC, 10W |
|
|
|
|
Environmental |
|
|
Operating Temperature |
0 - 40°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
|
|
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.21 kg ( 0.46 lb ) |
|
Dimensions (L x W x H) |
18.00 x 9.50 x 3.00 cm |
|
|
(7.09 x 3.74 x 1.18 in.) |
|
Carton Lot |
5 pcs |
|
|
|
|
Note |
* Distance may vary depending on the actual environment; solid objects
such as steel, concrete or brick may cause interference and shorten the
transmission distances. |
|
|
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
